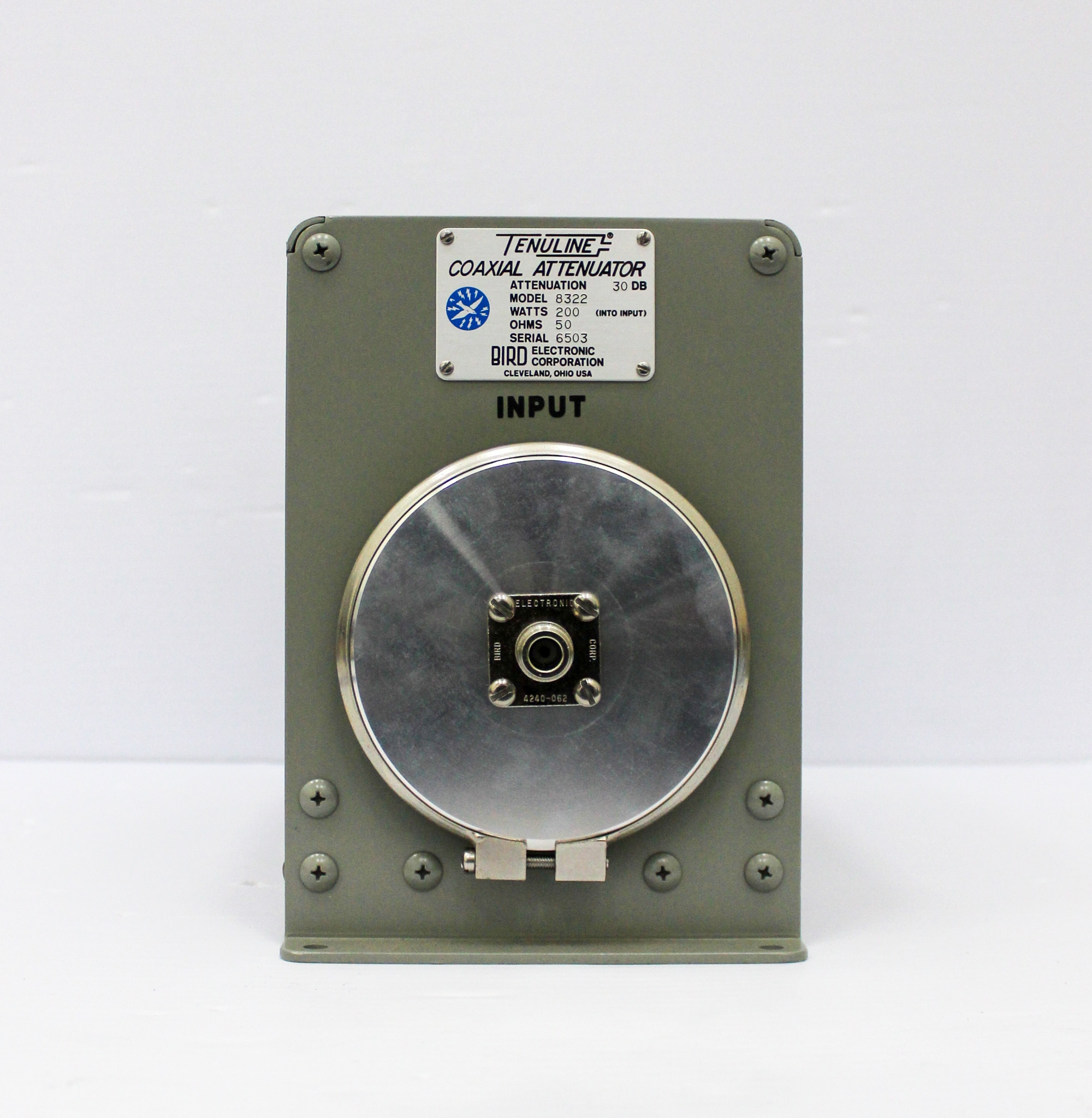

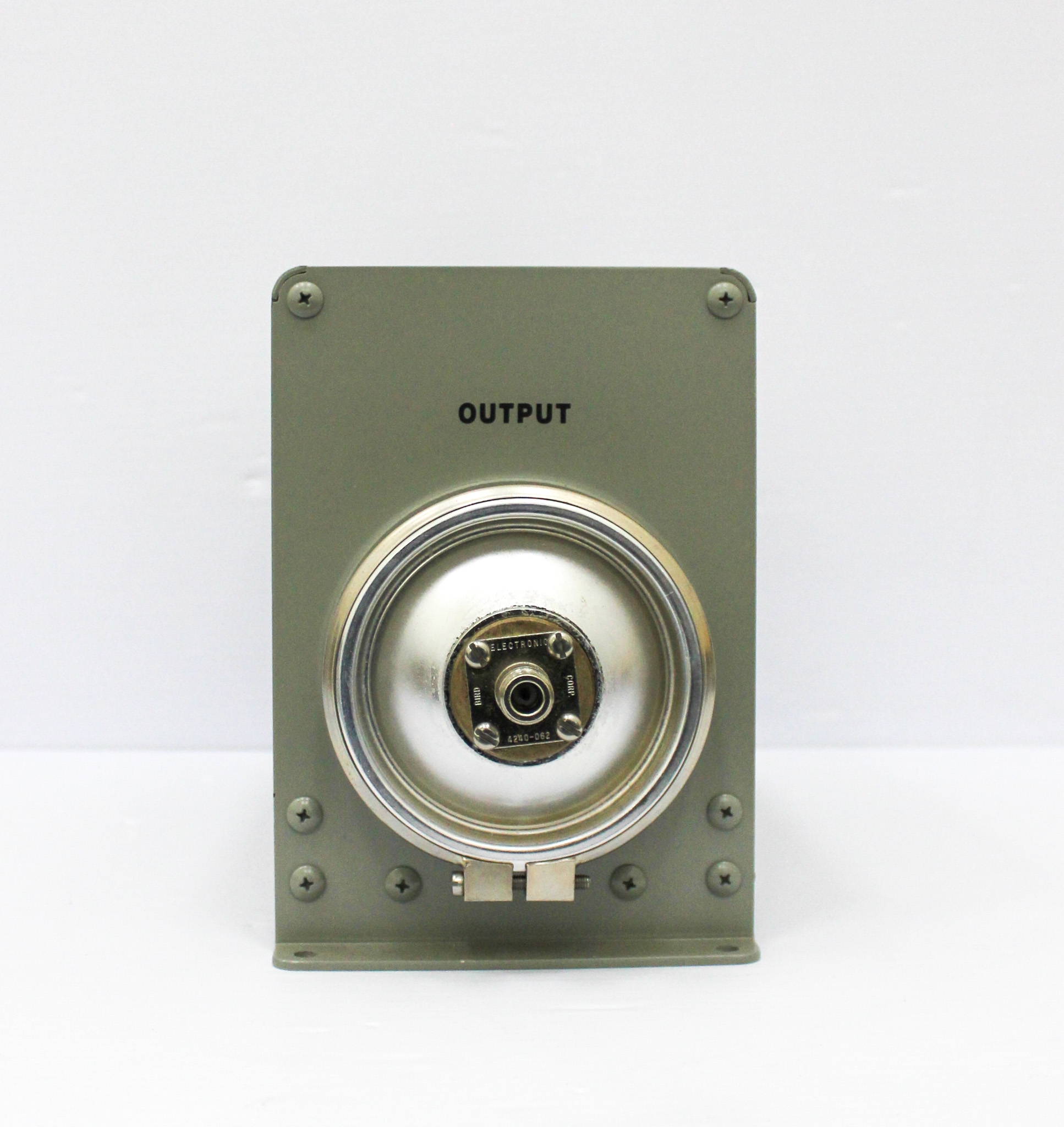

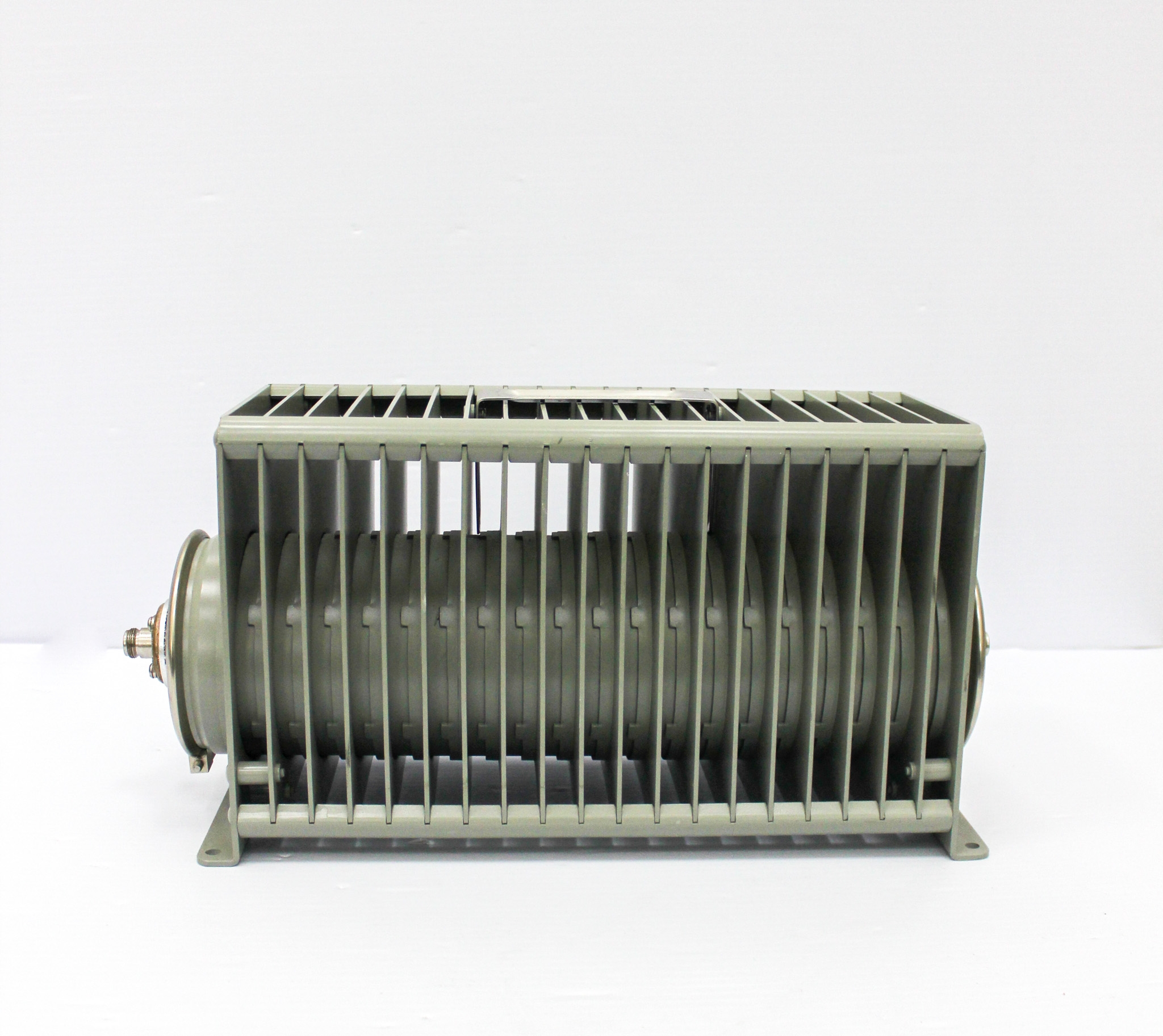

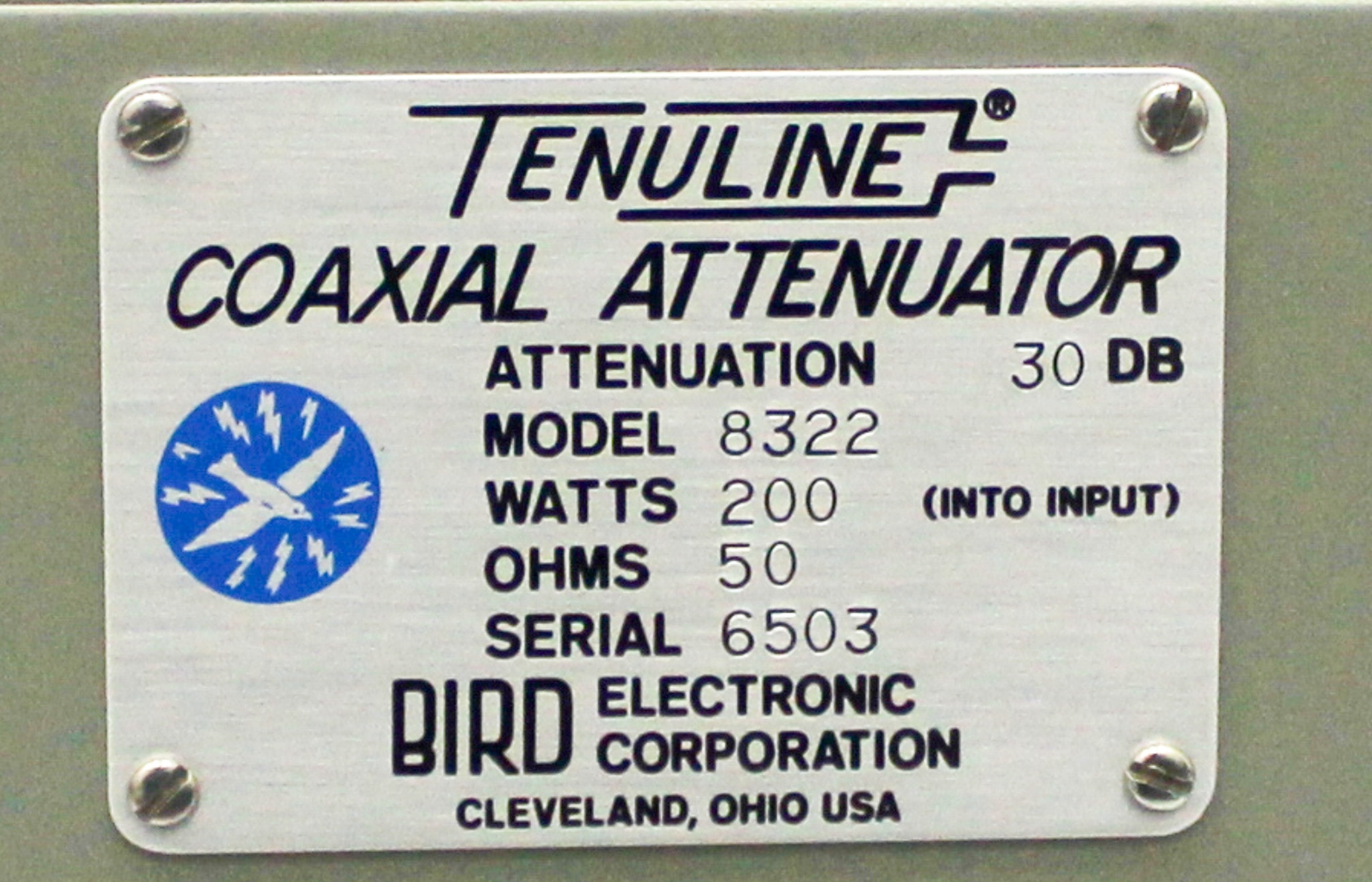

Thermo 8322 RF Coaxial Attenuator 200W Oil-Cooled, DC-500MHz, 30dB
Thermo
Details
-
CategoryOther
-
Dimension19.0in x 6.0in x 9.0in
-
Serial6503
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Thermo Model 8322 is a versatile RF Coaxial Attenuator designed for controlling signal strength in laboratory environments and various testing applications. Engineered for reliability, it operates effectively from DC to 500MHz with a 30dB reduction in power levels. Rated at a continuous power of 200 watts forward and 20 watts reverse, this oil-cooled attenuator is built with durable, high-quality construction indicative of Thermo's robust design standards. Despite not being able to fully test its functionality, the unit powers on, conducts basic tests, and shows no signs of significant operational faults; cosmetic wear from usage is present. Featuring N(f) input and output mono-directional connectors, this device is ideal for those looking to reduce VSWR, analyze harmonics, and work with RF signals reliably. Note that power/data cables, computers, software, and user manuals are not included.
Key Features
- 30dB Tenuline broadband attenuation
- Operates DC to 500MHz
- 200W forward power rating
- Oil-cooled design
- Mono-directional with N(f) connectors
Specifications
- Continuous power rating: 200W (forward), 20W (reverse)
- Frequency range: DC-500MHz
- VSWR: 1:1.5
- Connectors: N(f) input, N(f) output
- Condition: Unverified but seems functional, cosmetic wear present
Weight
Imperial: 25.2 Pounds
Metric: 11.43 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 7.2 lb x 10.8 lb
Metric: 57.91 cm x 18.29 cm x 27.43 cm
Harmonized Code
85437090
Harmonized Code Details
85437090 - Electrical machines and apparatus, having individual functions; not specified or included elsewhere in Chapter 85. This category is suitable for RF Coaxial Attenuators based on their function and operation characteristics.
