Brooks 5860S/BC Smart Mass Flow Meter 0-30 in Min Air gas

Product Information

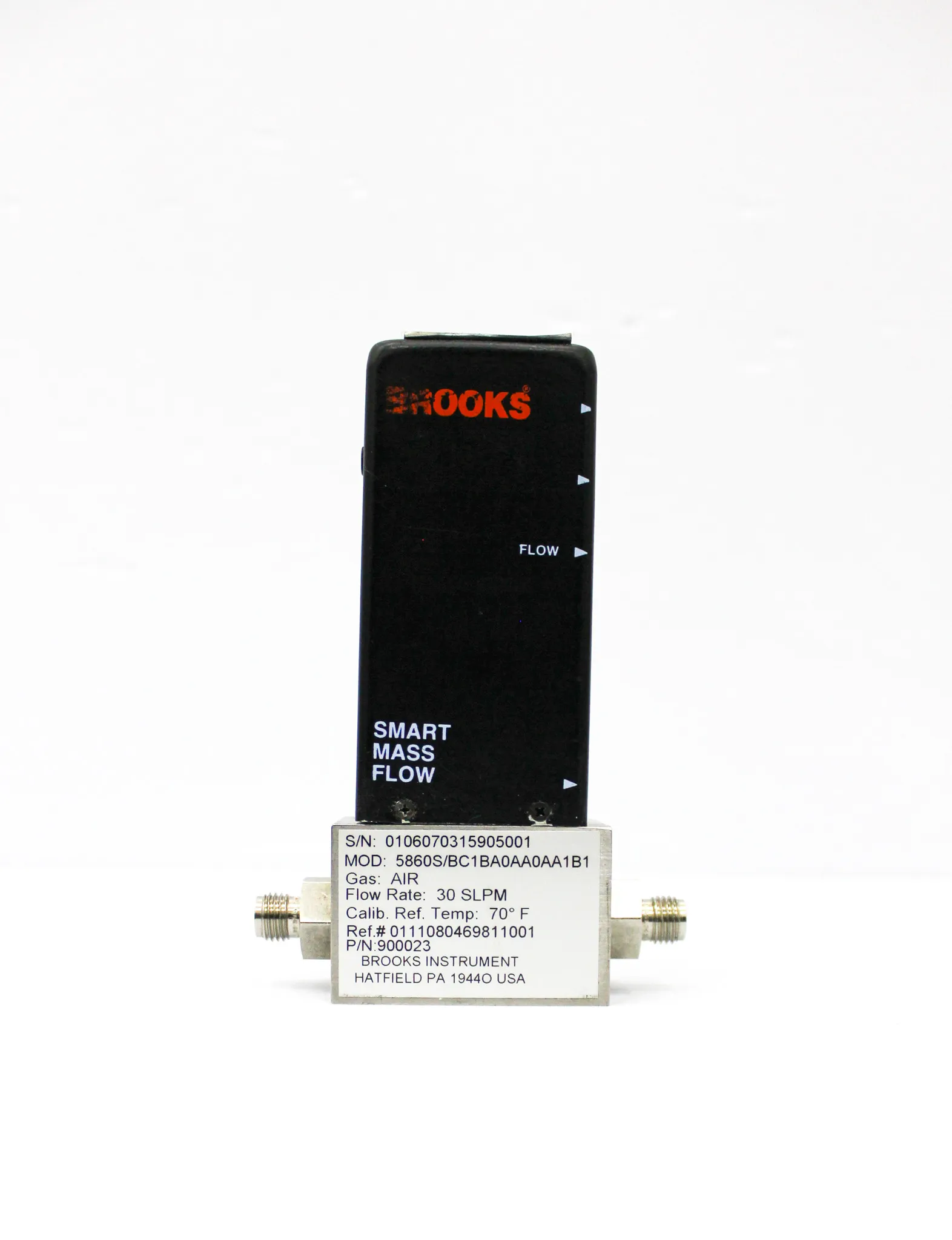

The Brooks 5860S/BC Smart Mass Flow Meter is a stand-alone instrument with microprocessor-based electronics on board. The unit is in great condition with slight cosmetic blemishes from normal use. Smart Mass Flow Meters are primarily used to provide accurate measurements of gas flows, with the heart of these systems being the thermal mass flow sensor. This model is capable of controlling gas flows and achieving stable gas flows. This high-quality mass flow meter is capable of handling gases at maximum pressure of 300 bar. It has a flow rate range from 0-30 in/min, with flow signal adjustable via various software options.

• Stand-alone instrument with microprocessor-based electronics
• Accurate measurements of gas flows
• Thermal mass flow sensor
• Control of gas flows for stability
• High quality mass flow meter for gas
• Maximum pressure handling of 300 bar
• Flow rate range from 0-30 in/min

• Flow Rangesmin. f.s: 0.003
• Flow Ranges max. f.s: 30 in/min
• Flow signal adjustable via software: 0-5 Vdc or 1-5 Vdc or 0-20 mA or 4-20 mA
• Flow accuracy: 0.7% of rate and 0.2% F.S. (at calibration conditions)
• Repeatability: 0.25% of rate
• Rangeability: 50:1 (within specified accuracy)
• Stability: Less than 0.5% of rate per year

Metric: 3.18 kg
Imperial: 7 lb

Metric: 15.24 cm x 10.16 cm x 22.86 cm
Imperial: 6 in x 4 in x 9 in
