ATHENA HC-187 Heated Controller Auto-Tuning 25 Series 120V 50/60Hz
ATHENA
Details
-
CategoryChiller / Heater
-
Dimension10.0in x 7.0in x 5.0in
-
SerialHC-187
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

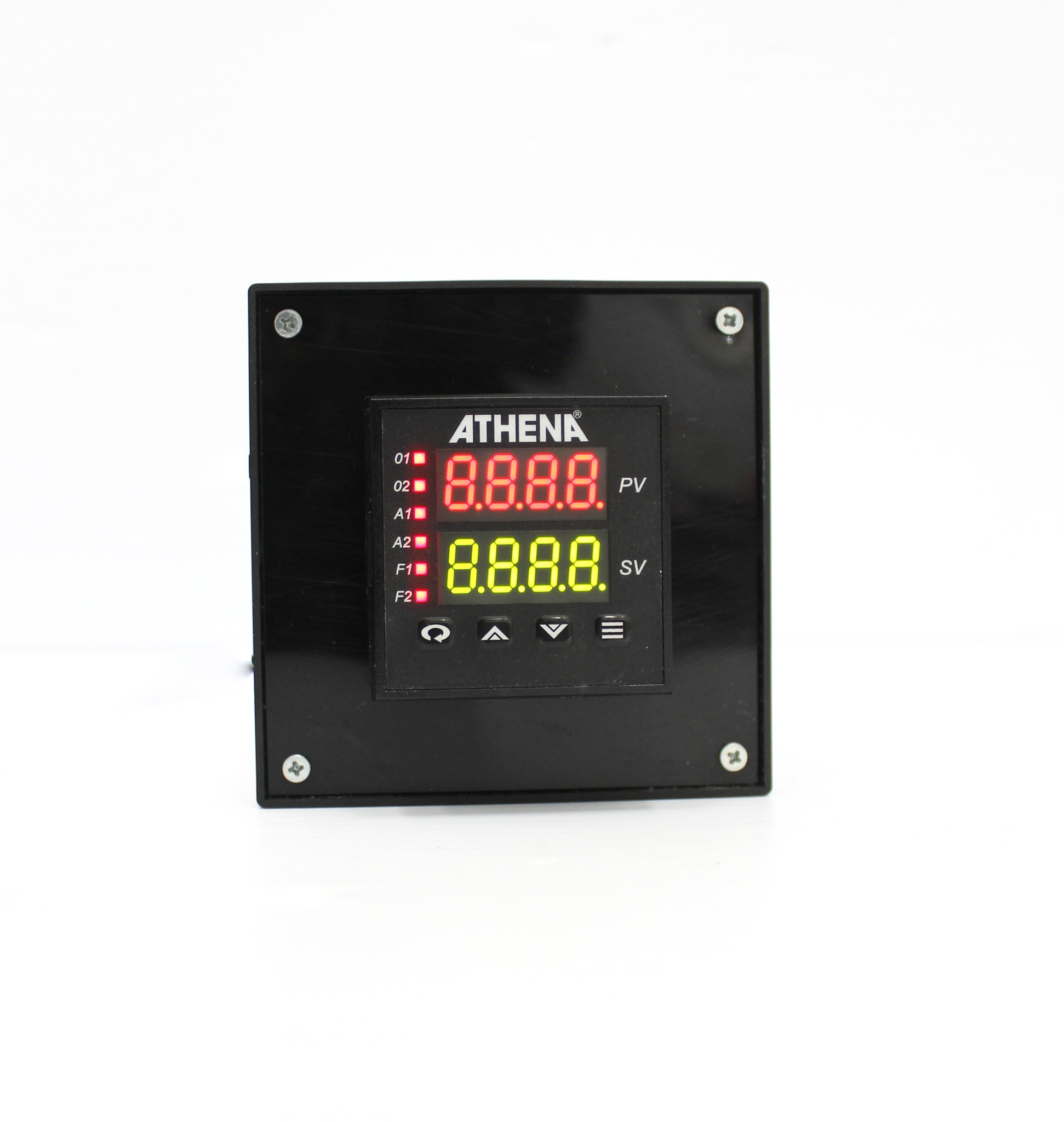

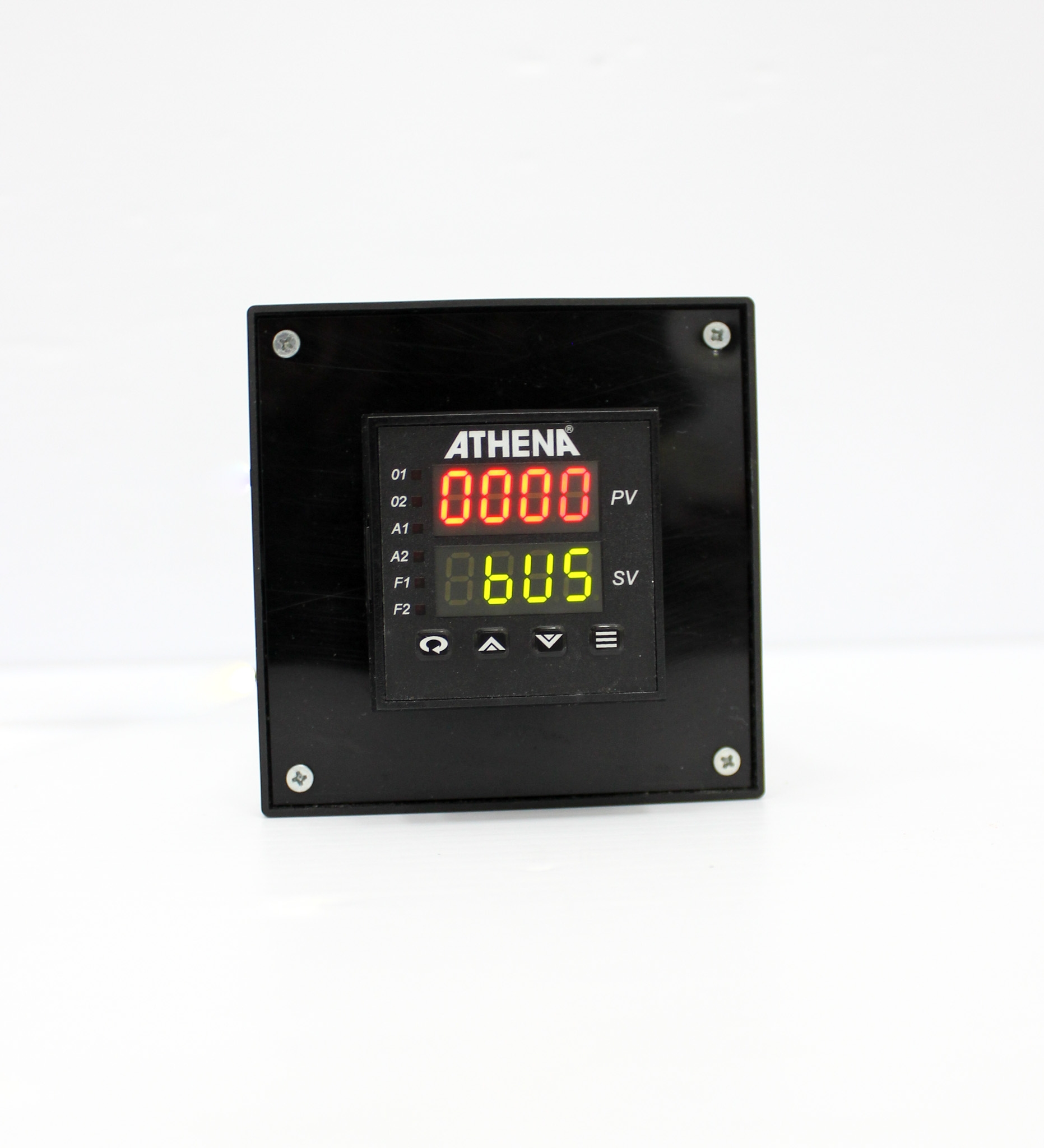

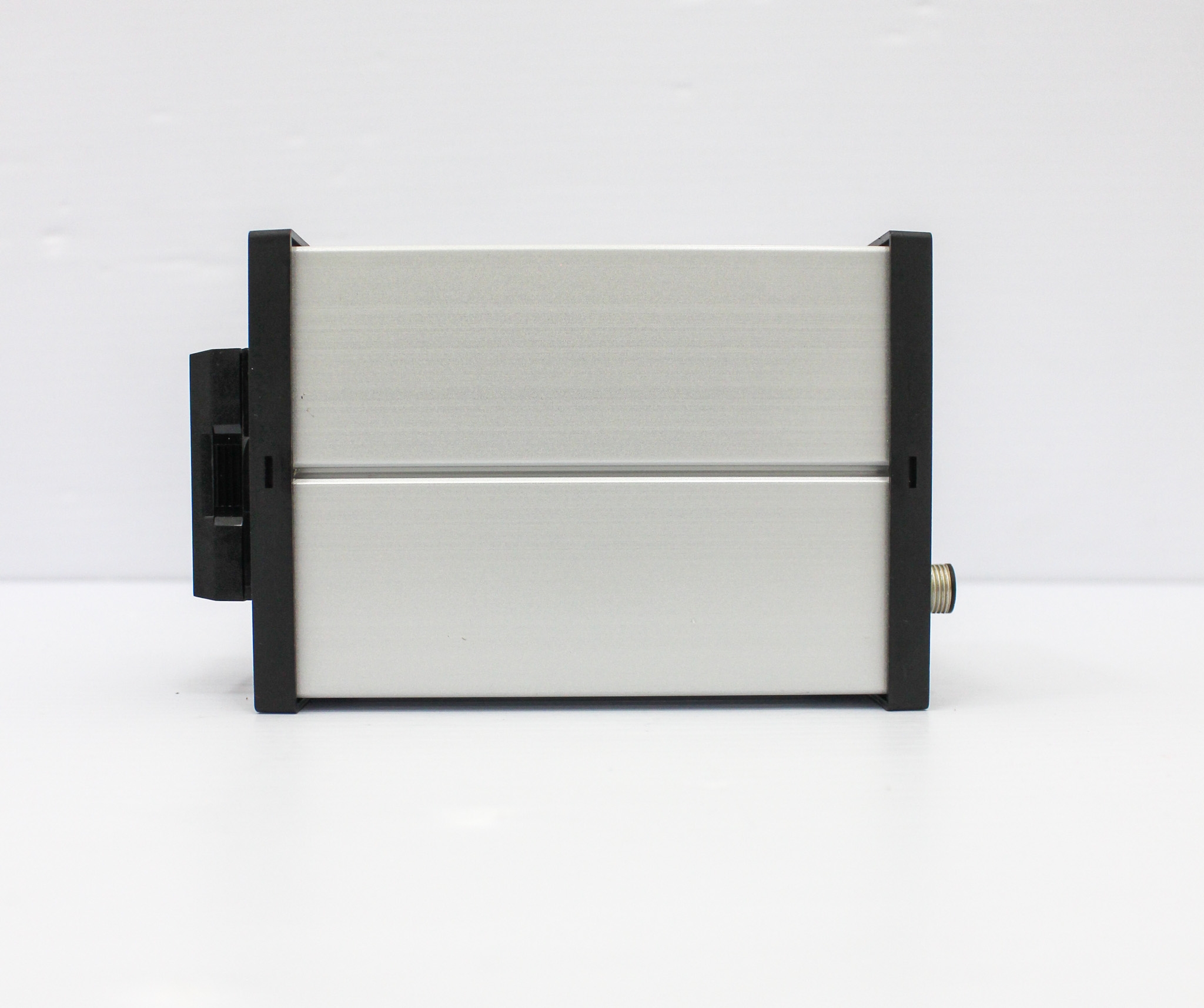

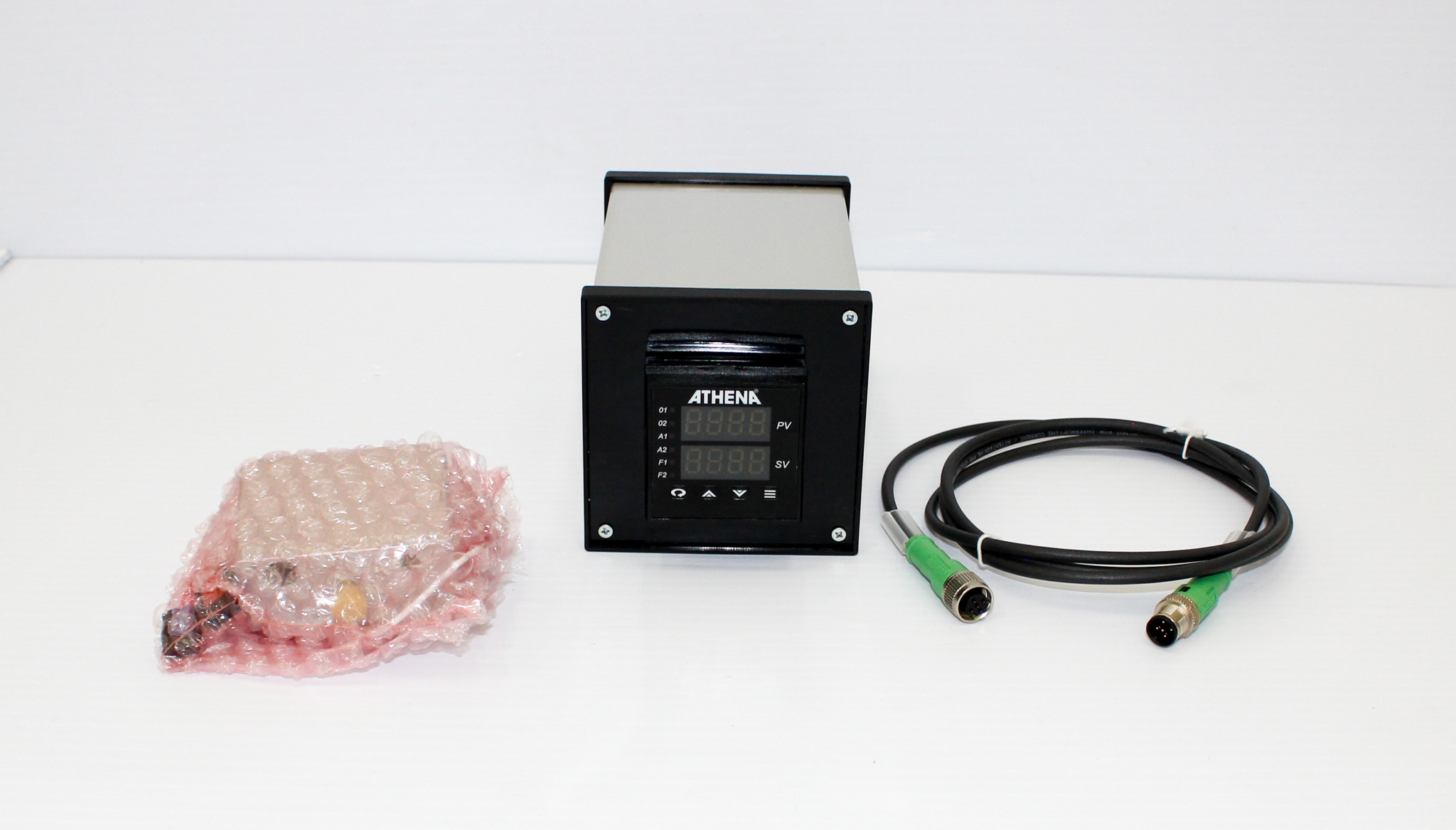

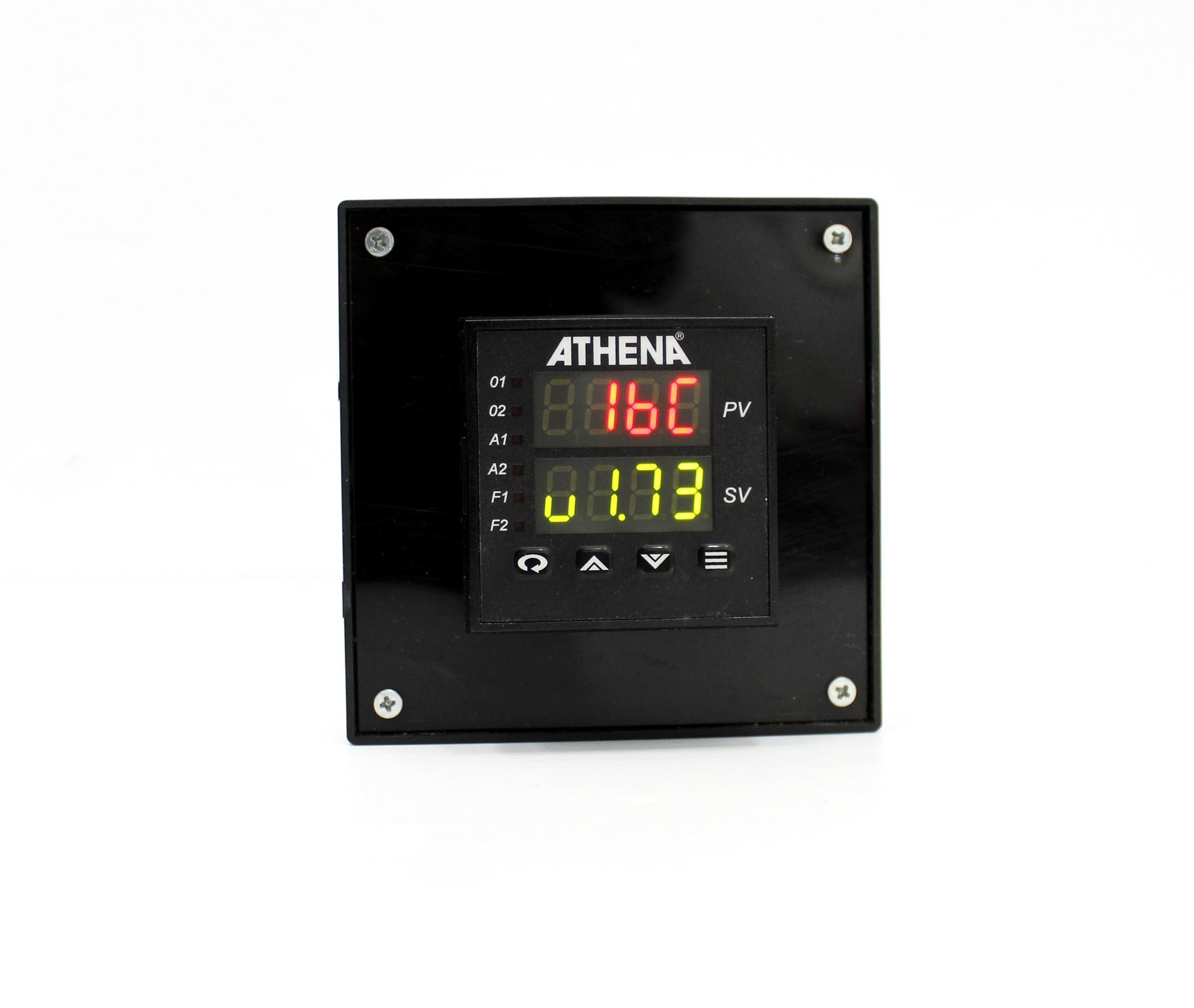

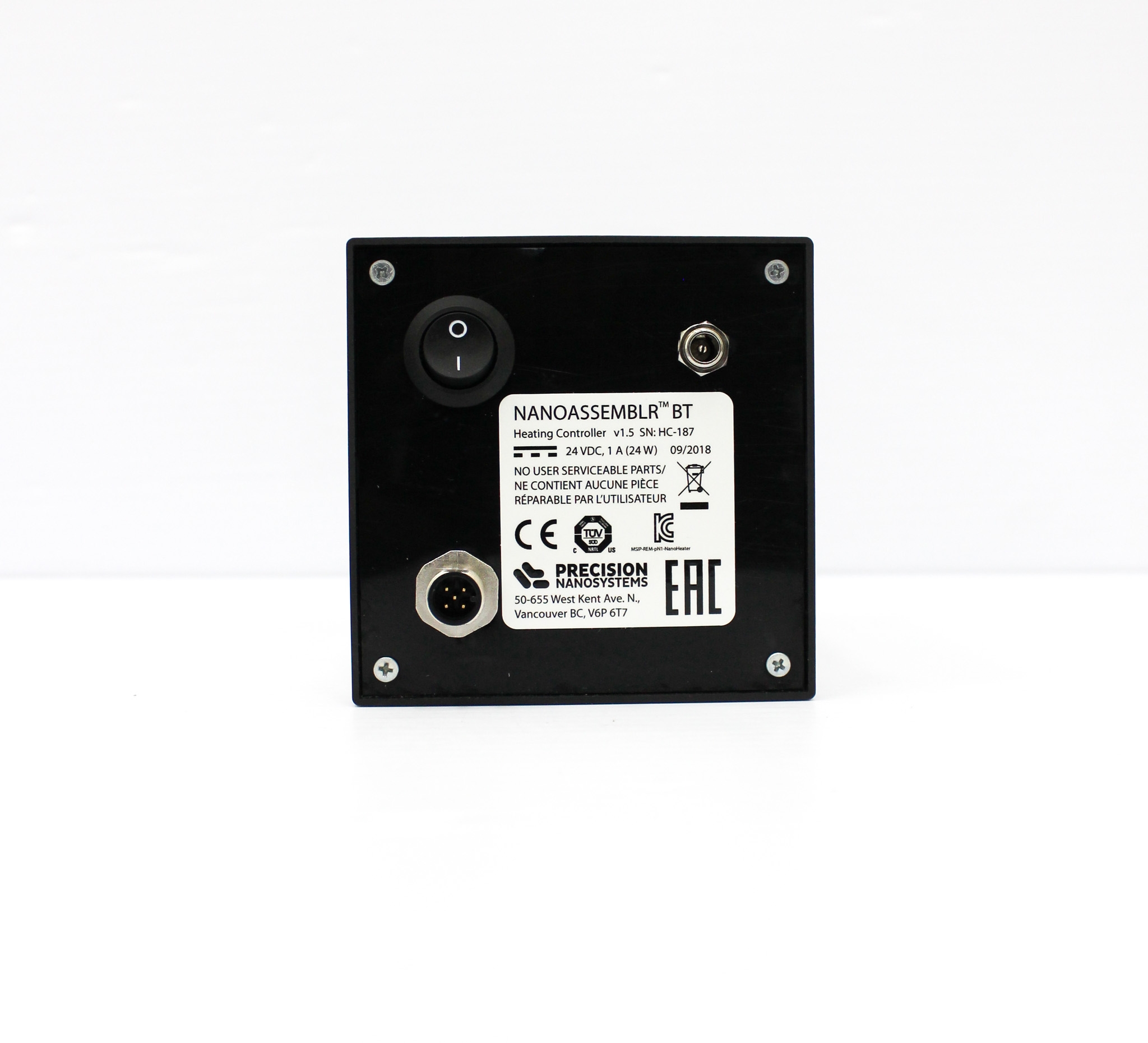

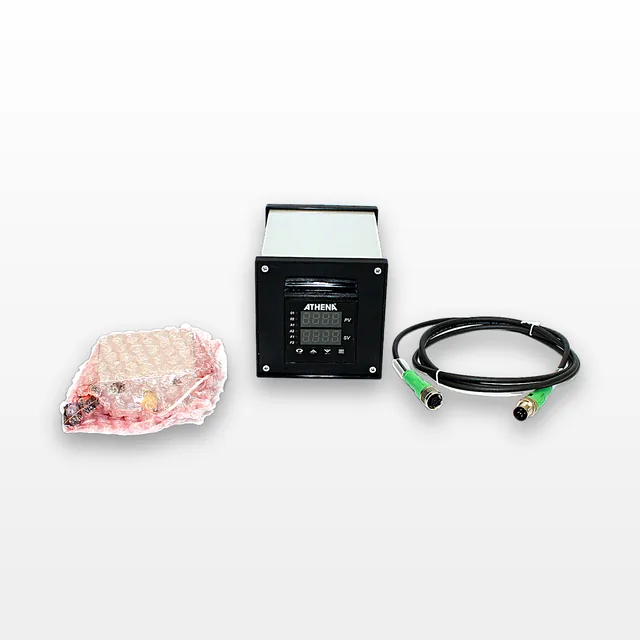

The ATHENA HC-187 Heated Controller from the Athena 25 Series offers precise temperature management with auto-tuning control, ideal for single-loop applications in the laboratory. Manufactured in the United States, this unit is in excellent used condition, having been tested and found functional. The 1/4 DIN panel mount controller supports thermocouple, RTD, voltage, or current input, and allows for user-selectable ramp to setpoint. Operating on a power input of 120V and frequency of 50/60Hz, it includes a relay output and a splash-proof front panel for added durability. Communication options for RS-232 or RS-485 are available, enhancing its utility in more sophisticated system setups.
Key Features
- 1/4 DIN panel mounted
- Auto-tuning control
- Supports thermocouple, RTD, voltage, or current input
- User-selectable ramp to setpoint
- NEMA 4X splash-proof front panel
- RS-232 or RS-485 communications available
- Relay output
- 120V power input
Specifications
- Input Voltage: 120V
- Frequency: 50Hz/60Hz
- Input Calibration: 4 to 20 mA scaleable
- Output 1: Relay, N.O.
- Digital LED displays for control functions
- Field-configurable alarms
- Optional process variable retransmission
- Dimensions: 25x18x13.5 cm (LxWxH)
Weight
Imperial: 3.6 Pounds
Metric: 1.63 Kilograms
Shipping Dimensions
Imperial: 12.0 lb x 8.4 lb x 6.0 lb
Metric: 30.48 cm x 21.34 cm x 15.24 cm
Harmonized Code
9032.10.0030
Harmonized Code Details
9032.10.0030 - Thermostats other than digital thermostats. This code was chosen as it best describes automated temperature control equipment of this type, based on input and functionality.
