Keyence SJ-F5500 Static Eliminator Blower High Precision 7000V
Keyence
Details
-
CategoryMiscellaneous
-
Dimension25.0in x 6.0in x 7.0in
-
Serial5A910518
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

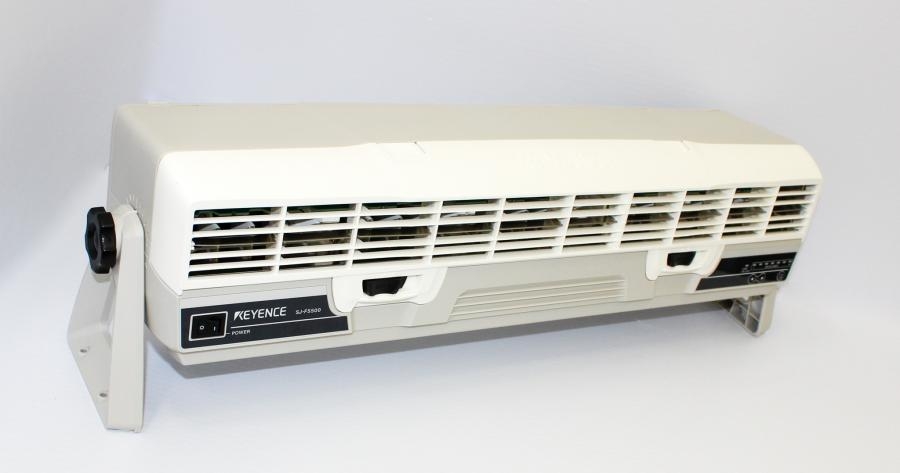

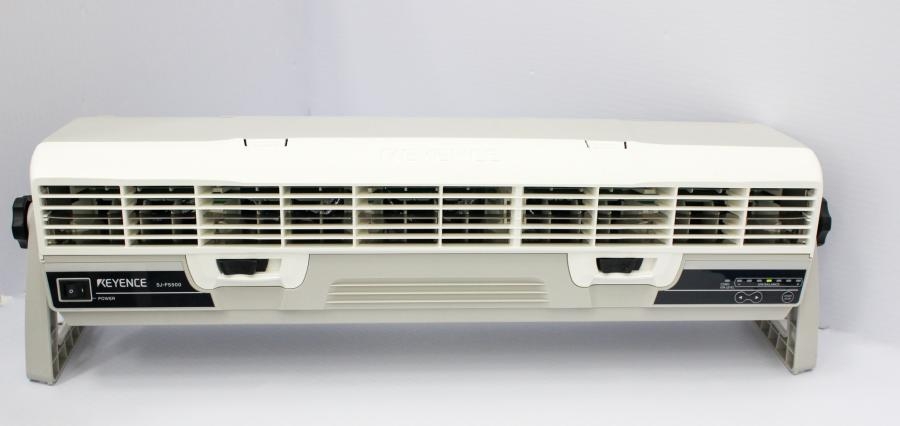

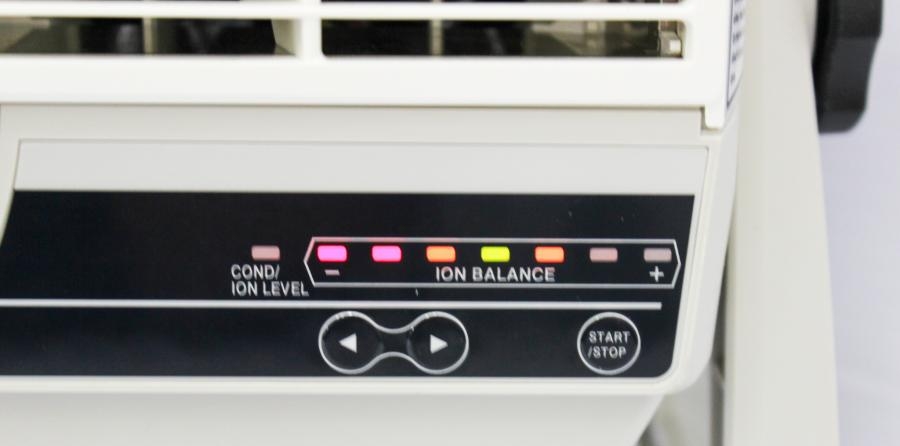

The Keyence SJ-F5500 Static Eliminator Blower is a high-speed, high-precision instrument designed to prevent dust adhesion and protect parts from static discharges. Manufactured by Keyence, this used unit is in very good condition, with slight cosmetic blemishes typical of normal use. Verified to perform as intended, it substantially reduces static electricity using a pulse AC method with an applied voltage of 7000V. The blower operates effectively with an ion balance control method (I.C.C.), balancing to 5V and can eliminate static in approximately 0.6 seconds. It can operate at a minimum distance of 50 mm and achieve a maximum wind speed of 5.7 m/s, maintaining an ambient temperature range between 0 to 50°C. The SJ-F5500 is ideal for environments demanding control over static interference, featuring a maximum air volume of 353.15 CFM and ozone density of 0.005 ppm max.
Key Features
- High-precision static elimination
- Pulse AC method
- 7000V applied voltage

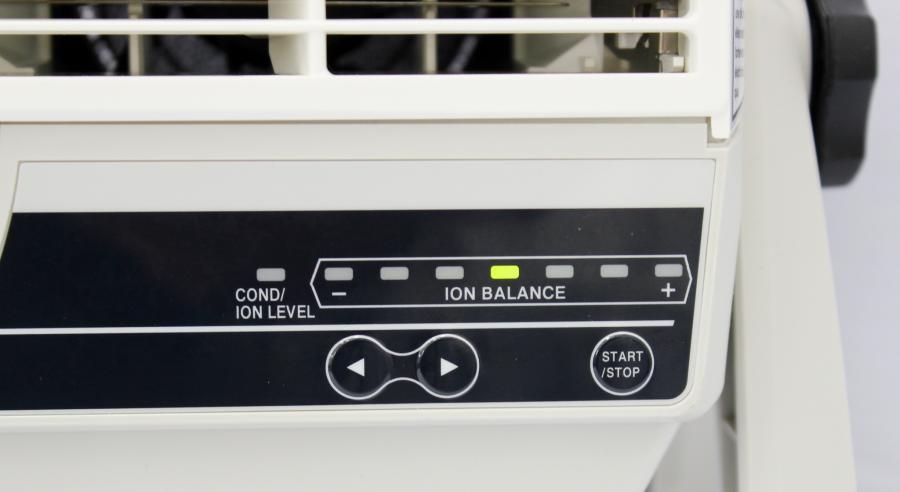

- Ion balance control (I.C.C.)
- Approx. static elimination in 0.6 sec
- Max wind speed: 5.7 m/s
- Operating distance: min. 50 mm
- Max air volume: 10 m3/min
- Ozone density: 0.005 ppm max.
Specifications
- Model: SJ-F5500
- Type: 600 mm23.62" type
- Voltage application method: Pulse AC method
- Applied voltage: 7000V
- Ion balance control method: I.C.C.
- Ion balance: 5 V
- Static elimination time: Approx. 0.6 sec
- Operating distance: 50 mm (min.)
- Maximum wind speed: 5.7 m/s
- Ambient temperature: 0 to +50°C
- Relative humidity: 35 to 65% RH
- Maximum air volume: 10.0 m3/min
- Ozone density: 0.005 ppm max.
- Power source input type: AC cord input

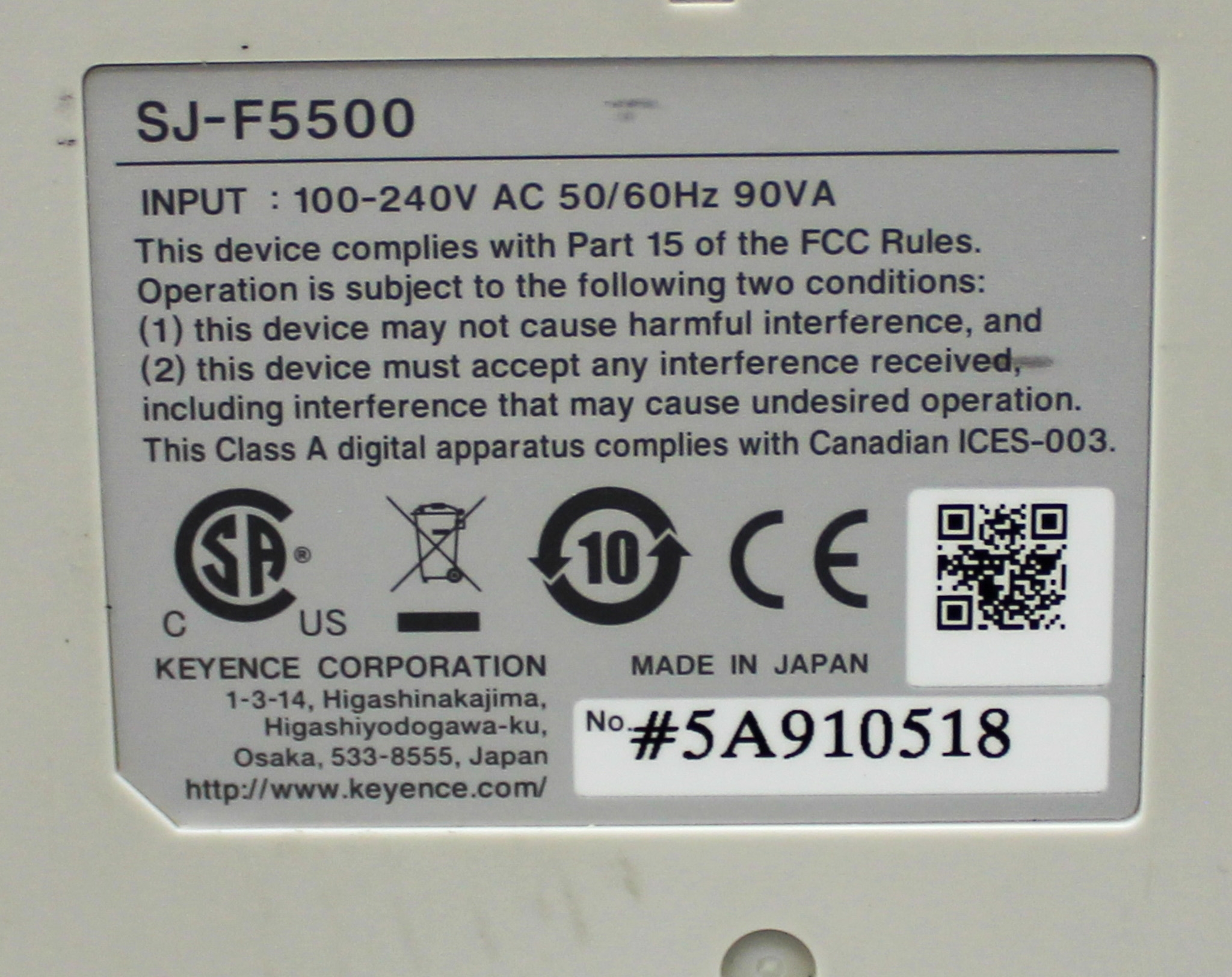

- Power voltage: 100 to 240 VAC, 50/60 Hz
- Power consumption: 90 VA
- Pollution Degree: 2
Weight
Imperial: 12.0 Pounds
Metric: 5.44 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 7.2 lb x 8.4 lb
Metric: 76.2 cm x 18.29 cm x 21.34 cm
Harmonized Code
84798997
Harmonized Code Details
Harmonized code 84798997 covers machines and mechanical appliances having individual functions, not specified or included elsewhere. This classification is apt for the Keyence SJ-F5500 as it performs a specific function—static elimination—leveraging mechanical and electrical functions as intended in the categorized description.
