Axygen GD-1000 Gel Documentation System with 5.4 MP Imaging and Transilluminator

Product Information

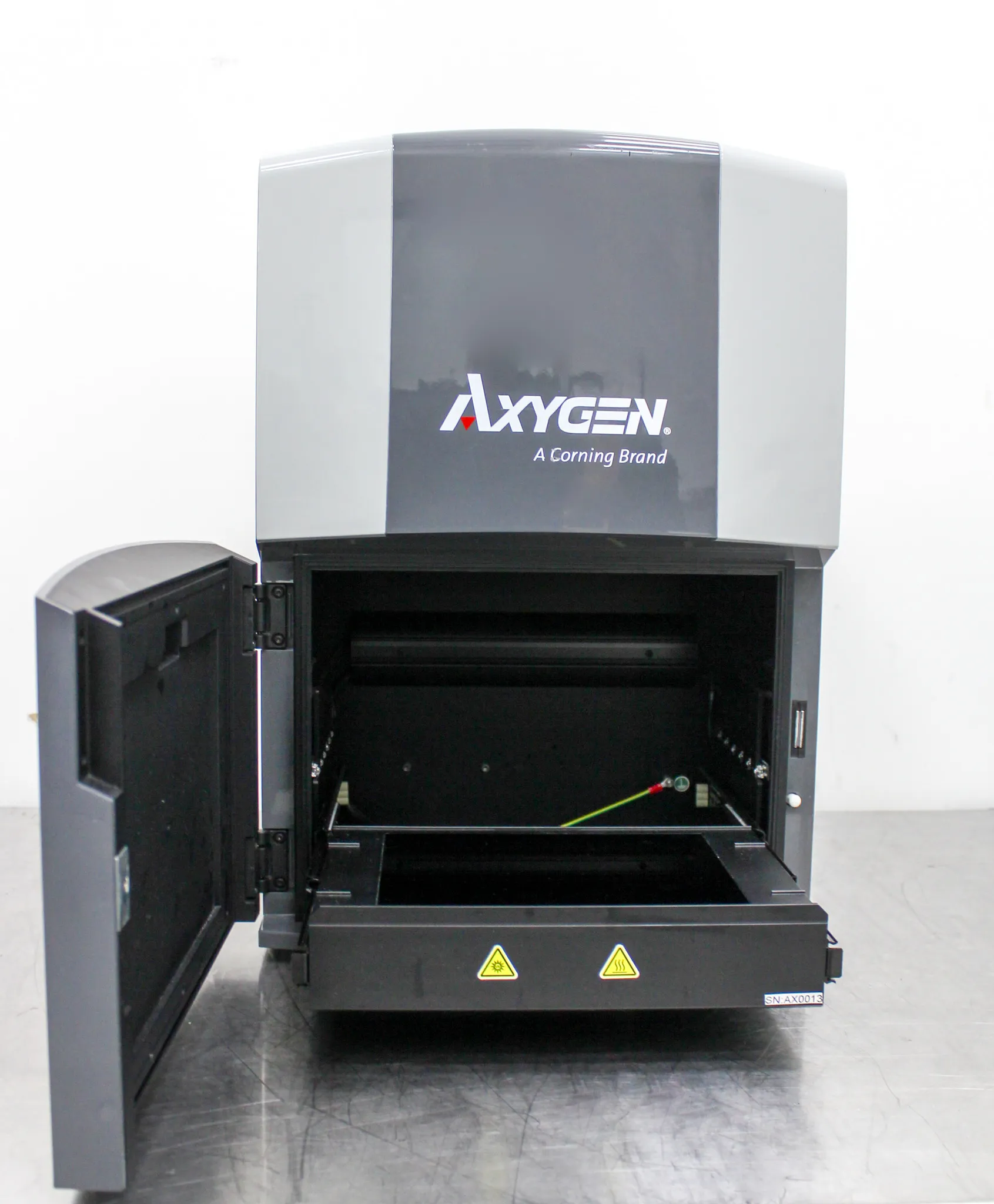

Axygen, a Corning brand, presents the Axygen Gel Documentation System GD-1000. This unit powers on and carries a 5.4 MP image resolution camera, along with a dual-wavelength transilluminator. With quick setup and an intuitive user interface, this system easily captures high-quality images. It features a compact cabinet with an UV cut-off switch and long-life dual wavelength transillumination bulbs. The system comes in two options: the standard model and the BL version, which contains built-in blue lights and a Microsoft Windows tablet. Typical applications include capturing publication-quality images, band excision, and image annotation for gel analysis software. Ideal for labs valuing ease, image quality, and value.

• Dual-wavelength transilluminator
• 5.4 MP resolution camera

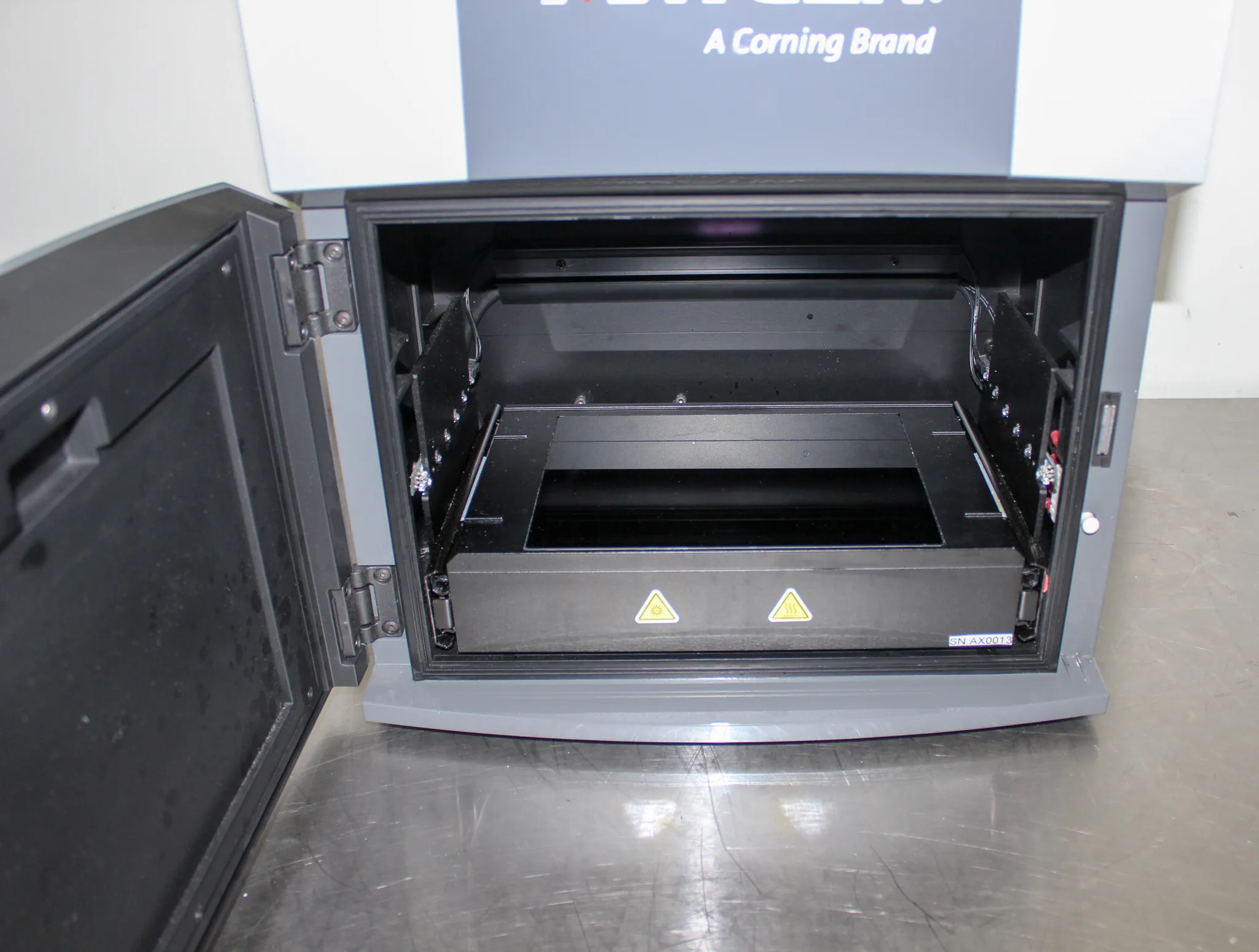

• Compact cabinet with UV cut-off switch
• Selectable exposure sources
• Intuitive image capture and annotation tools

• Camera: 5.4 MP resolution
• Light Sources: Dual-wavelength transillumination at 302 nm and 365 nm
• Trans White Light Illumination Tray: Optional
• Field of View: 15 cm x 20 cm
• Emission Filter: 590 nm
• Operating system: Windows 8
• Minimum hardware requirements: 1.4 GHz processor speed, 2 GB RAM, 16 GB free hard disk space, 2 USBs

Metric: 21.77244 kg
Imperial: 48.0 lb

Metric: 55.88 cm x 50.8 cm x 73.66 cm
Imperial: 22.0 in x 20.0 in x 29.0 in

901851

901851 - Other instruments and apparatus for photographic laboratories; negatoscopes
