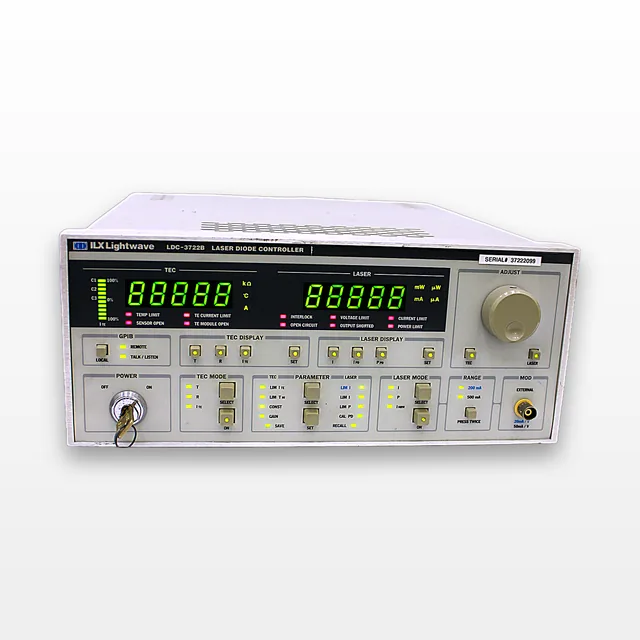

ILX LDC-3722B Laser Controller 500mA 32W TEC Dual Range Current Used GPIB
ILX Lightwave
Details
-
CategoryLaser
-
Dimension15.0in x 13.0in x 6.0in
-
Serial37222099
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

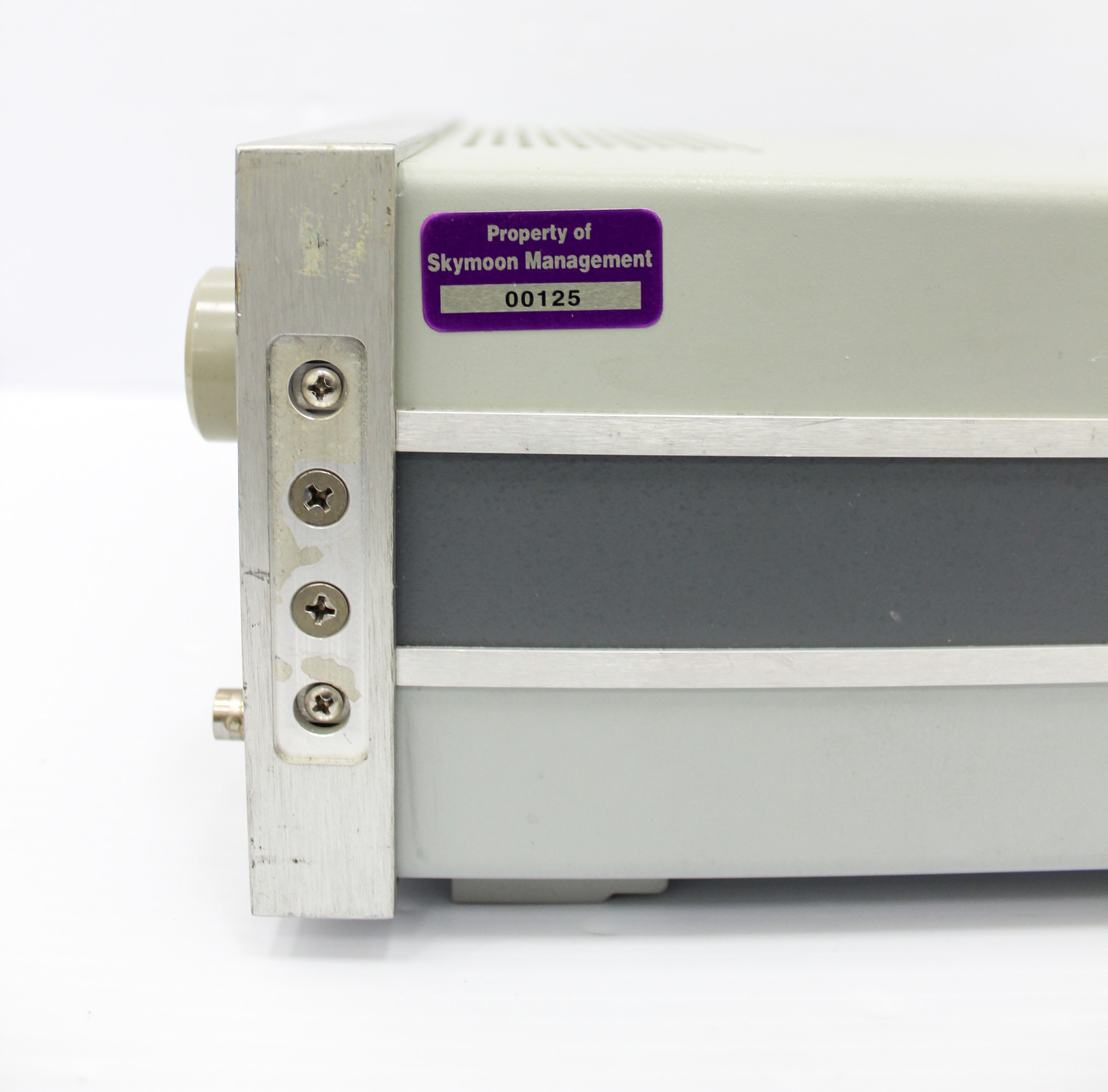

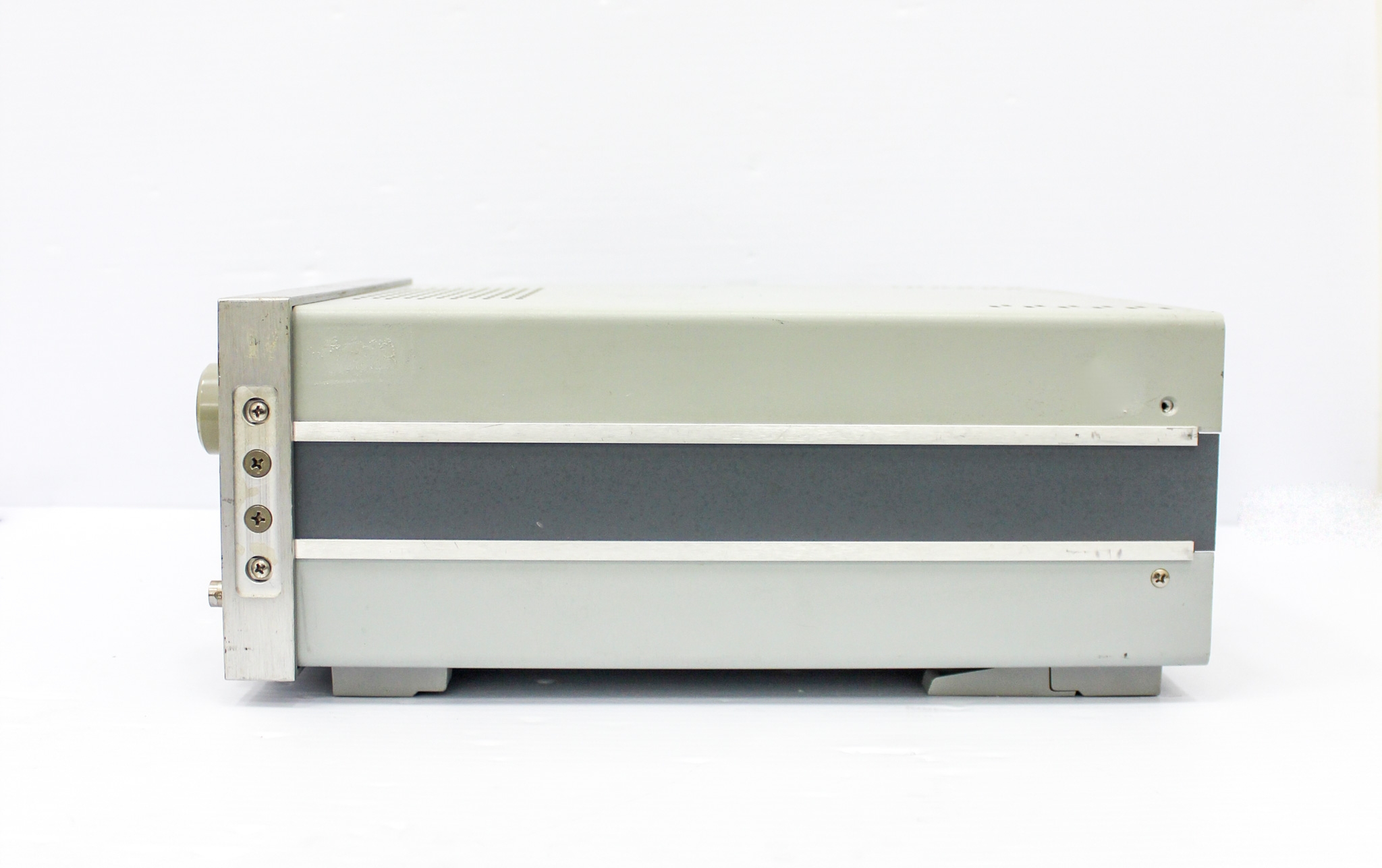

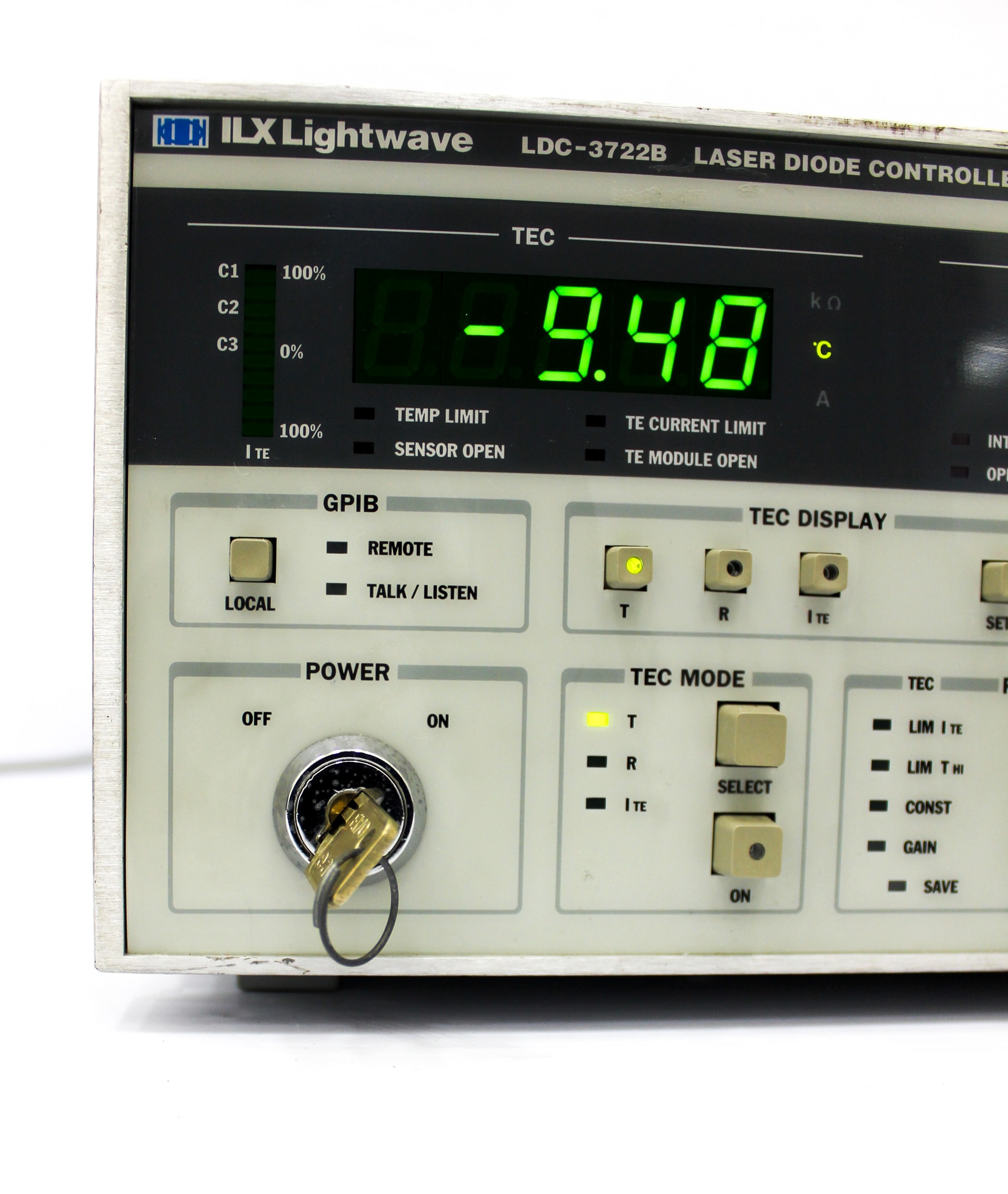

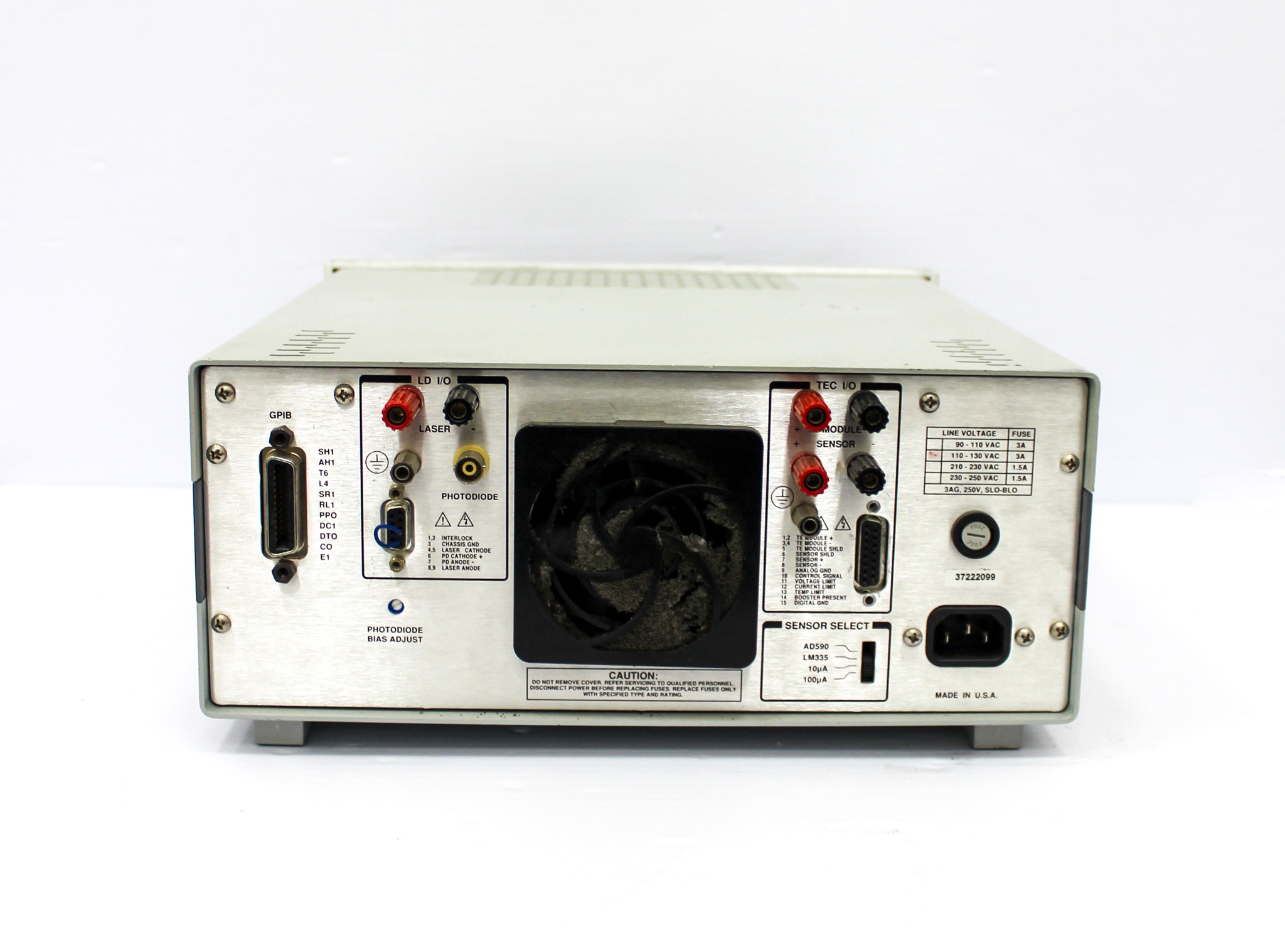

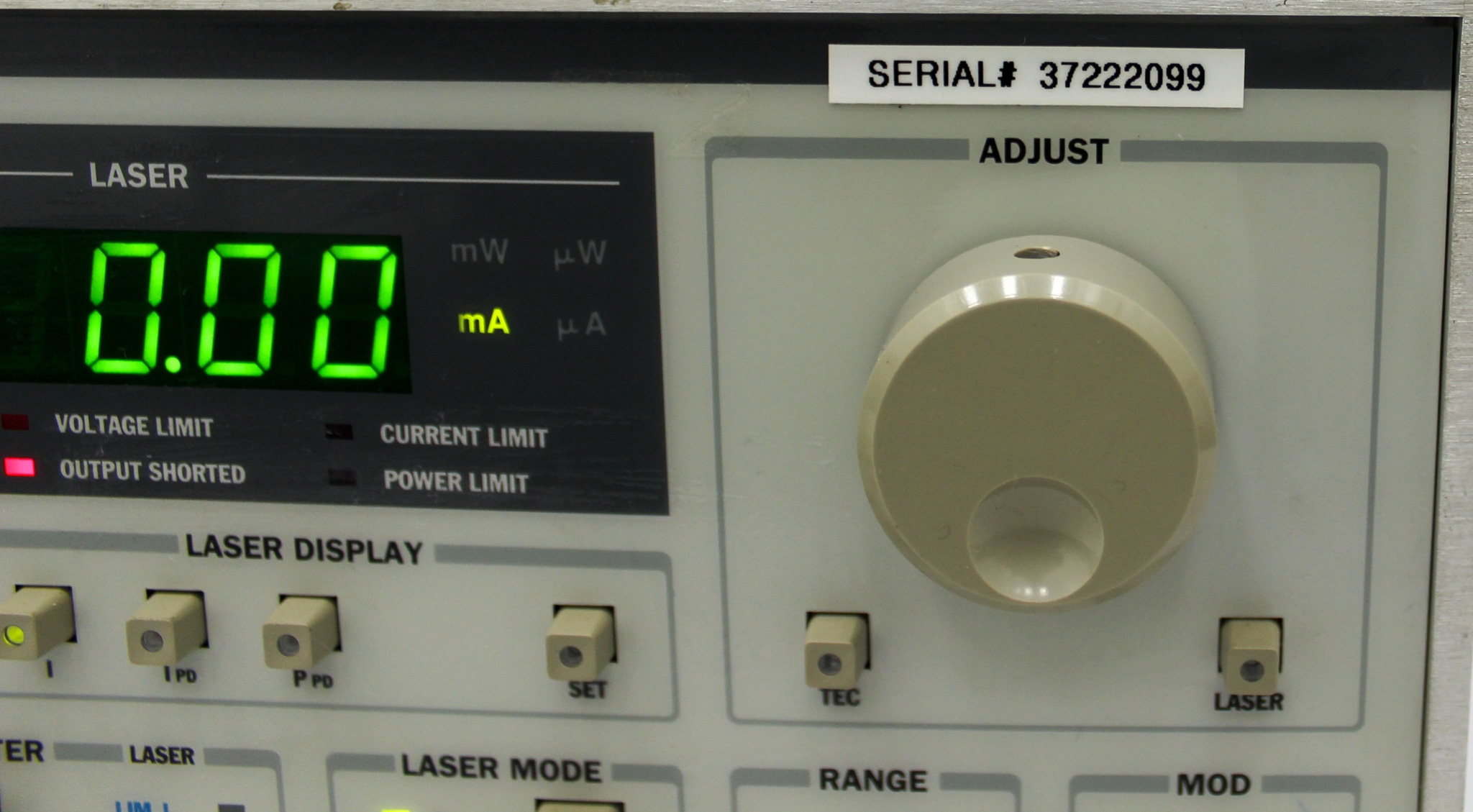

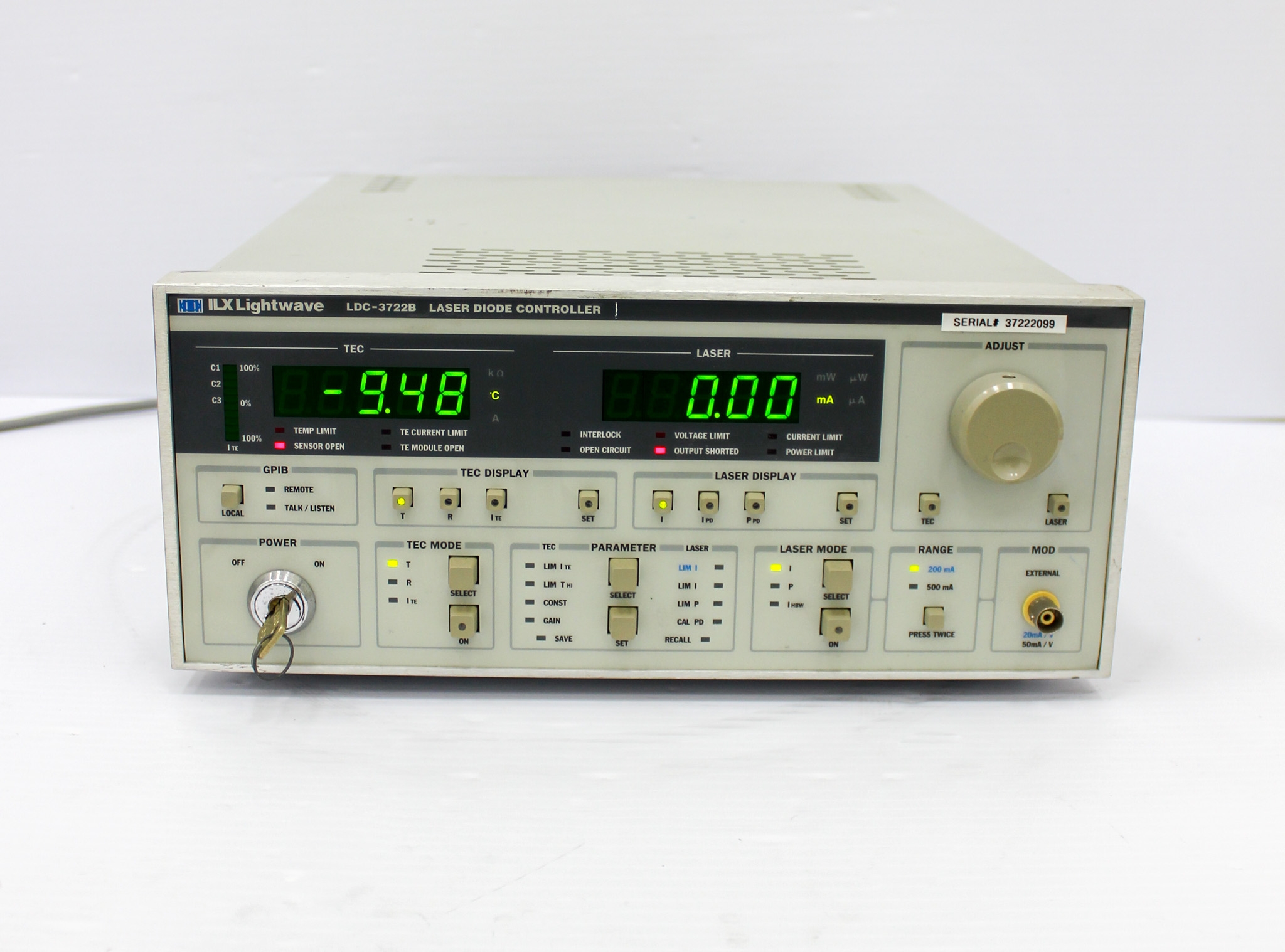

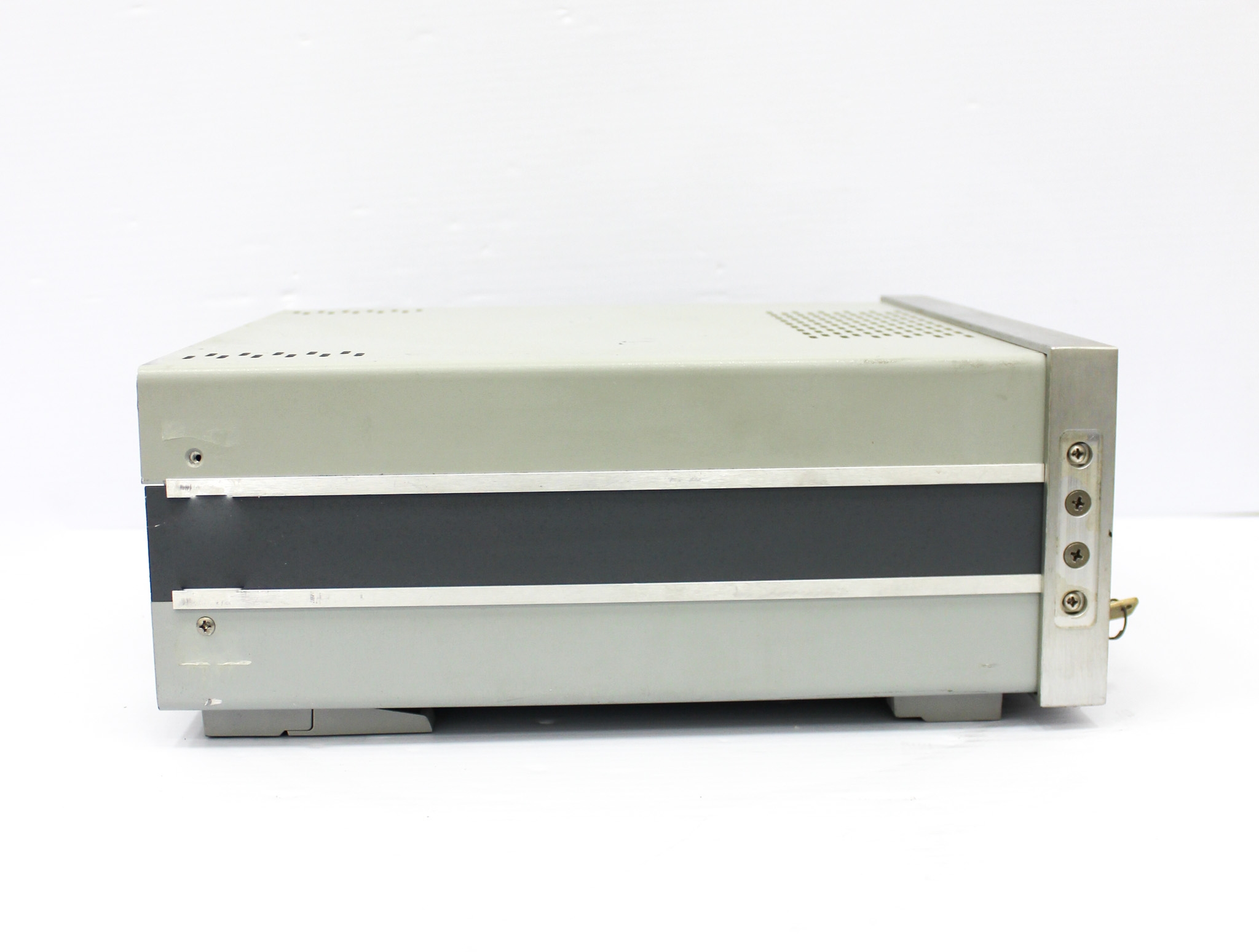

The ILX Lightwave LDC-3722B Laser Diode Controller, part of the LDC-3722/3724 series, delivers high stability precision control for laser diodes, specifically low and medium power semiconductor lasers. This controller integrates LC/TEC drive circuits and features GPIB and digital display. Providing robust laser diode protection with features like slow start current ramp, adjustable current and voltage limits, and surge protection, this unit ensures reliable temperature and current control. With a dual range current source, independent power supplies for the laser and TEC loop, and a 32 Watt hybrid PI control loop, the LDC-3722B is known for its ultra-stable operation. Despite some cosmetic wear, the unit is used but functional, as detailed photos show. Manufactured in the USA by ILX Lightwave, it stands as a staple in the photonic industry, recognized for stability, precision, and low noise performance.
Key Features
- 500mA High Stability Current Source
- 32 Watt TEC Controller
- Dual Range Current Source
- Slow Start Current Ramp
- GPIB Digital Interface
Specifications
- Output Current Range: 0 - 500 mA
- Compliance Voltage (max): 10V
- Current Setpoint Resolution: < 2 µA
- Current Setpoint Accuracy: +/- 0.05 %
- Current Stability (24 hour): < 40 ppm per C
- Current Limit Range: 0 - full scale
- Voltage Measurement Accuracy: +/- 2.5%
- TEC Output Current: -4 Amps to +4 Amps
- Maximum TEC Output Power: 32W
- Temperature Setpoint Resolution: 0.1 C
- TEC Current Limit Range: 0 to 4 Amps
- PD Measurement Range: 5 to 5000 µA
- PD Setpoint Accuracy: +/- 0.05 %
- Bandwidth (3 dB): DC to 1MHz
- Input Range: 0 to 10V
- Input Impedance: 10 K ohm
Weight
Imperial: 25.2 Pounds
Metric: 11.43 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 15.6 lb x 7.2 lb
Metric: 45.72 cm x 39.62 cm x 18.29 cm
Harmonized Code
903180
Harmonized Code Details
903180 - Instruments, apparatus and models, for demonstration purposes (for example, in education or exhibitions), unsuitable for other uses, and parts and accessories thereof; other. This code is justified as the ILX LDC-3722B is an electronic instrument designed for specific laser diode control functions, typical for scientific and technical use.
