HP 3312A Function Generator Used Dual AM-FM 13MHz Compact Sine Wave
hp
Details
-
CategoryMiscellaneous
-
Dimension16.0in x 9.0in x 4.0in
-

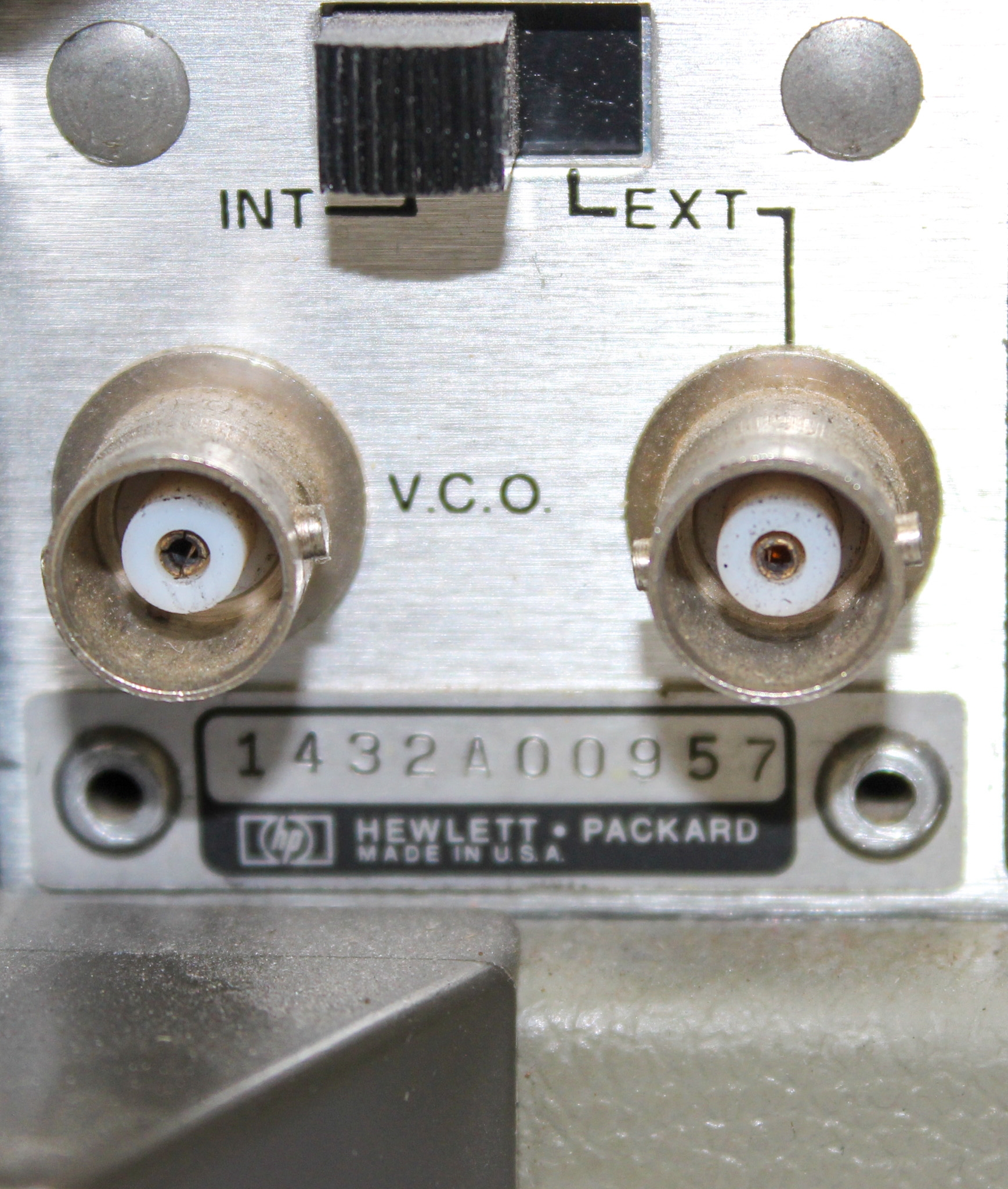

Serial1432A00957
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The HP 3312A Function Generator by Hewlett Packard offers a compact, dual-function solution ideal for laboratory applications. This used equipment supports a frequency range of 0.01 Hz to 10 kHz and allows for sine, square, and triangle wave outputs. Equipped with both a main generator and a modulation generator, it facilitates amplitude modulation (AM) and frequency modulation (FM) with an envelope adjustment from 0% to 100% and carrier frequency variation up to +/- 5%. This dual function generator offers versatile application in settings requiring precise signal generation, with internal and external triggering, sweeping, and gating capabilities. The unit has been tested for basic functionality and, despite cosmetic wear, powers on successfully.
Key Features
- Dual function generator: main and modulation
- Frequency range: 0.01 Hz to 10 kHz
- Outputs: sine, square, and triangle wave
- AM and FM modulation capabilities
- Compact and versatile for laboratory use
Specifications
- Frequency Range: 0.1Hz - 13 MHz
- Waveform Output: Sine, Square, Triangle
- AM Envelope Adjustment: 0% to 100%
- FM Carrier Frequency Variation: +/- 5%
- Output Attenuator Range: 10,000:1
- Voltage: 120V, Hertz: 50Hz/60Hz
Weight
Imperial: 10.8 Pounds
Metric: 4.9 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 10.8 lb x 4.8 lb
Metric: 48.77 cm x 27.43 cm x 12.19 cm
Harmonized Code
854320
Harmonized Code Details
854320 - Signal generators: This code is used for electronic signal generators, which aligns with the HP 3312A's function in generating AM and FM signals at various frequencies.
