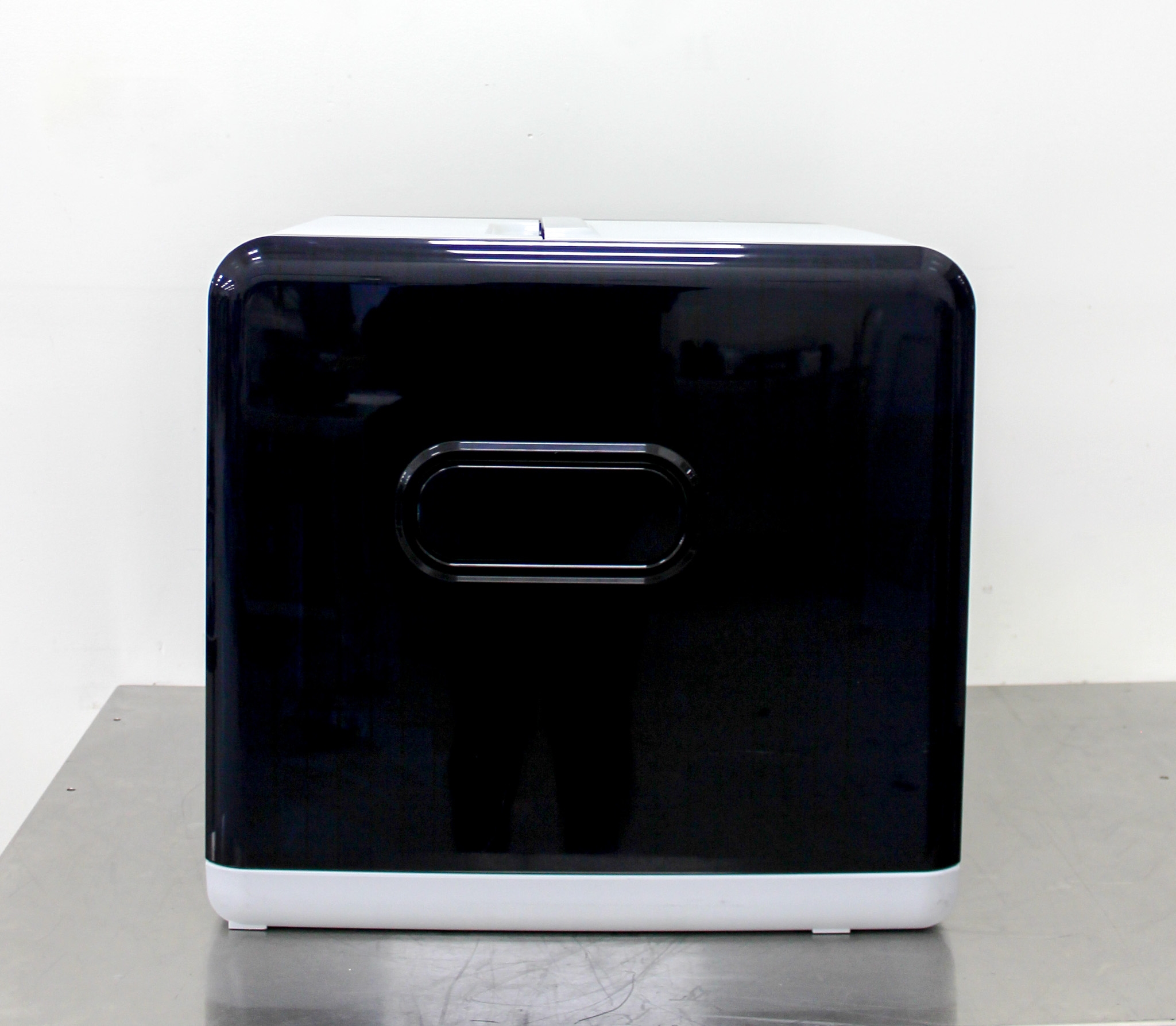

XYZ da Vinci 1.0 Aio 3D Scanner/Printer Multi-Function 120V 7.8x7.8x7.5in
XYZ Printing
Details
-
CategoryComputer / IT
-
Dimension19.0in x 22.0in x 21.0in
-
Serial3S10A-PUS5-TH-4A8-0101
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The XYZ Printing da Vinci 1.0 AiO is a multi-functional 3D printer featuring both a printer and a scanner. With industrial-grade resolution scanning capabilities, this unit captures detailed 3D images within just five minutes using advanced laser sensor technology. The integrated turn-table print bed accelerates your initial print process. This very good condition used device delivers robust 3D printing with a build size of 7.8 x 7.8 x 7.5 inches, suitable for both PLA and ABS filaments. Compatible with XYZ Printing's 3D Design Hub, users can access numerous 3D models online. Its FFF technology and 0.4mm nozzle ensure precise prints powered through XYZ scan software, not included. The unit is powered by a 120V power supply and operates efficiently in a temperature range of 15 to 32°C. Suitable for supporting various operating systems, including Windows (7 to 10 64-bit) and Mac OS (up to 10.13), with a recommended environment of 30-60% humidity. Ideal for users seeking a comprehensive 3D printing and scanning solution.
Key Features
- Combines 3D printing & scanning
- Industrial-grade resolution rapid scanner
- Build size: 7.8 x 7.8 x 7.5 inches
- FFF (Fused Filament Fabrication) Technology
- Compatible with PLA / ABS / Flexible materials
- 0.4mm nozzle diameter
- Robust XYZ Printing software
Specifications
- Printing Technology: FFF (Fused Filament Fabrication)
- Build Size: 7.8 x 7.8 x 7.5 inches
- XY Positioning Precision: X/Y 12.5 micron
- Supported File Formats: .stl, .3mf, XYZ Format (.3w), .nkg
- Material Compatibility: PLA / ABS / Flexible filaments
- Nozzle Diameter: 0.4 mm
- Scan Technology: Slit Laser Triangulation
- Turntable Payload: 3 Kg / 6.6 lbs.
- Operating Systems: Windows 7 / 8 / 8.1 / 10 (64 bits), macOS 10.10 to 10.13
- Operating Temperature: 15 ~ 32 C / 59 ~ 89.6 F
- Operation Humidity: 30 ~ 60 % RH
- Print Bed: Non-removable Glass
- Stepper Motors: 1.8 HB
- Max. Moving Speed: 120 mm/s
- Power Requirements: 100-127V, 4.0A, 50/60Hz; 200-240V, 2.0A, 50/60Hz
Weight
Imperial: 69.6 Pounds
Metric: 31.57 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 26.4 lb x 25.2 lb
Metric: 57.91 cm x 67.06 cm x 64.01 cm
Harmonized Code
847780
Harmonized Code Details
847780: Machines for working rubber or plastics or for the manufacture of products from these materials—specifically chosen due to the multifunctional plastic processing capabilities of 3D printers like this model.
