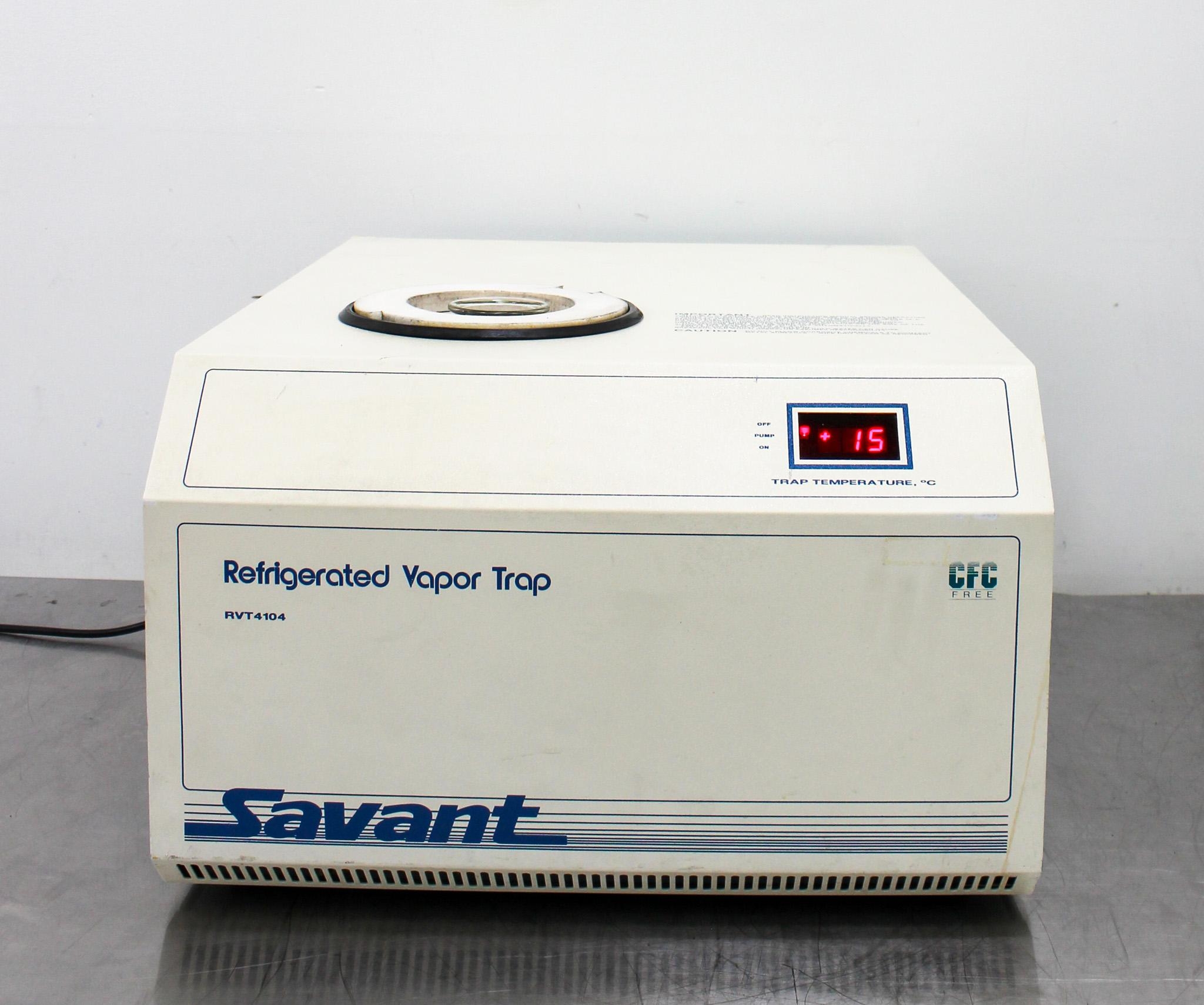

Savant RVT4104-120 Refrigerated Vapor Trap for Solvent Recovery -104C 4L
Savant
Details
-
CategoryEvaporator
-
Dimension26.0in x 20.0in x 23.0in
-

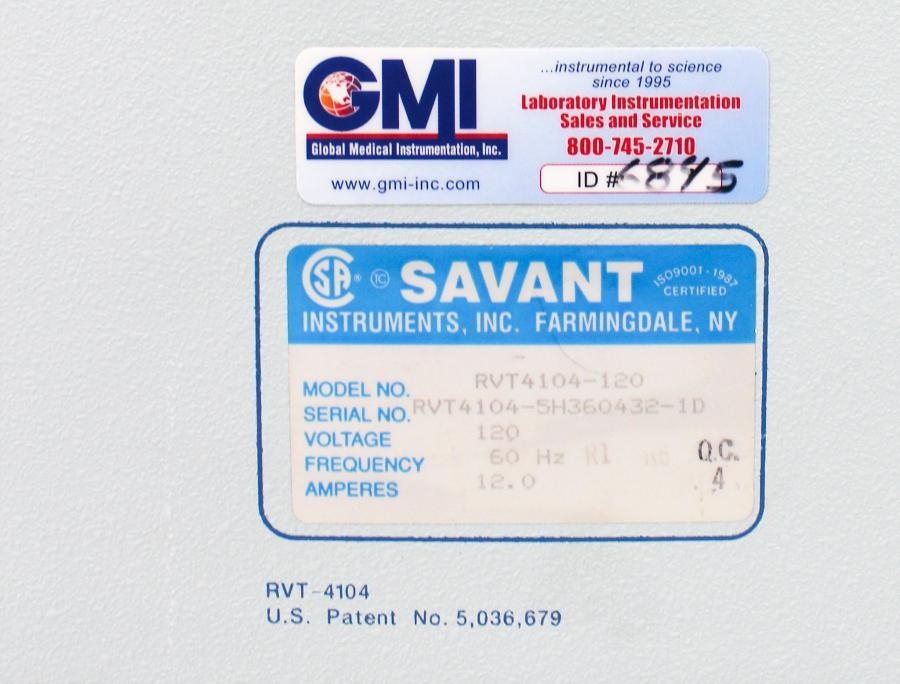

SerialRVT4104-5H360432-1D
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The Savant RVT4104-120 Refrigerated Vapor Trap provides effective solvent vapor condensation, safeguarding vacuum pump oil from contamination during vacuum evaporation processes. With ultra-low temperature capabilities down to -104C and a generous 4-liter capacity, it is ideal for laboratories that handle highly volatile solvents such as hexane, chloroform, acetone, and methylene chloride. This unit, manufactured by Savant, is used and in very good condition, with minimal cosmetic wear but full functional confidence. It includes a temperature gauge and vacuum pump interlock for enhanced safety and operational convenience. While it excludes connecting hoses and other peripherals, it includes a power cord and operates on 120V, 60Hz. The equipment has been thoroughly tested to meet specifications and is ready to support your lab's demanding applications.
Key Features
- Ultra-low temperature range down to -104C
- 4-liter capacity for solvent trapping
- Protects vacuum systems from contamination

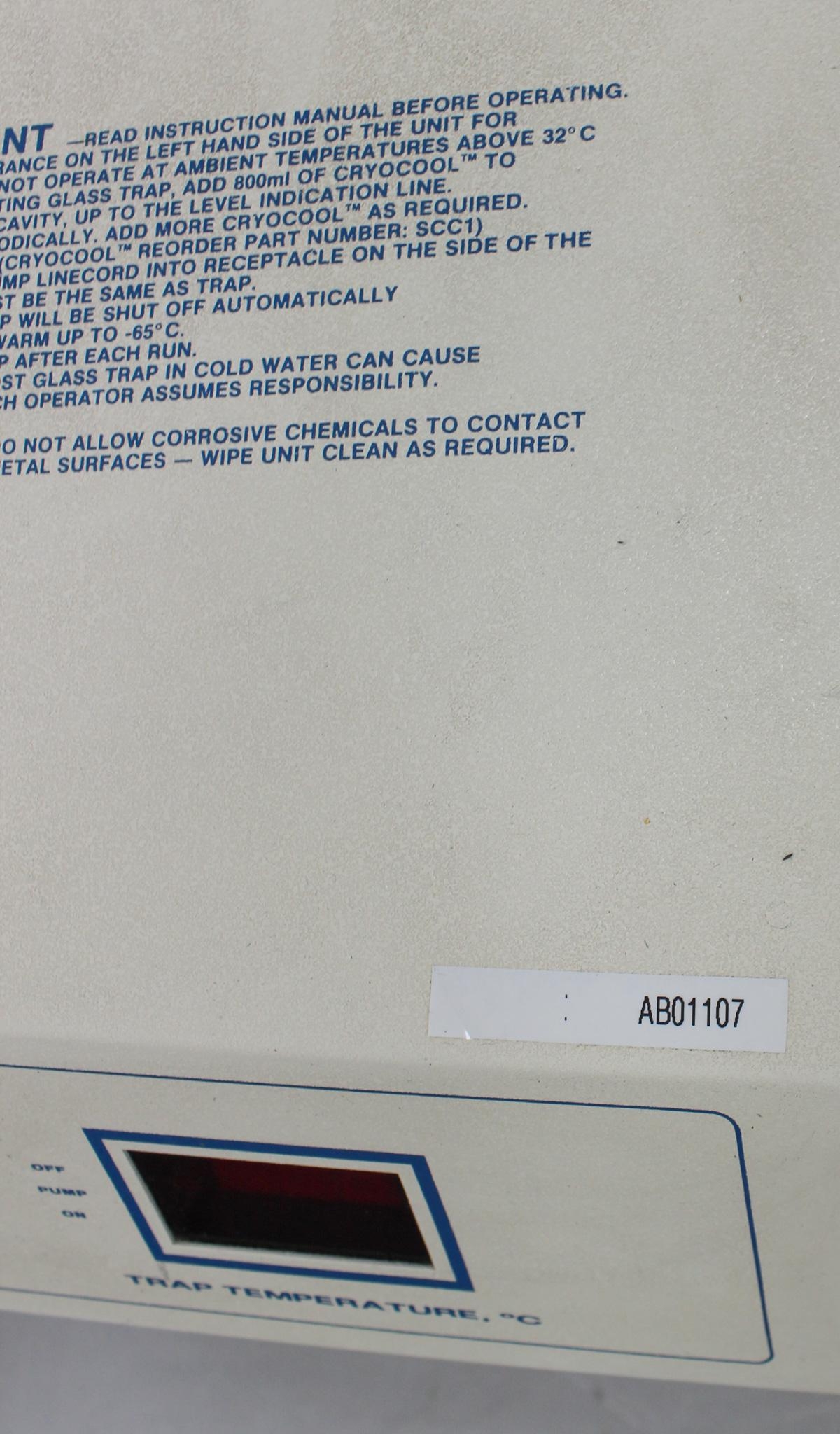

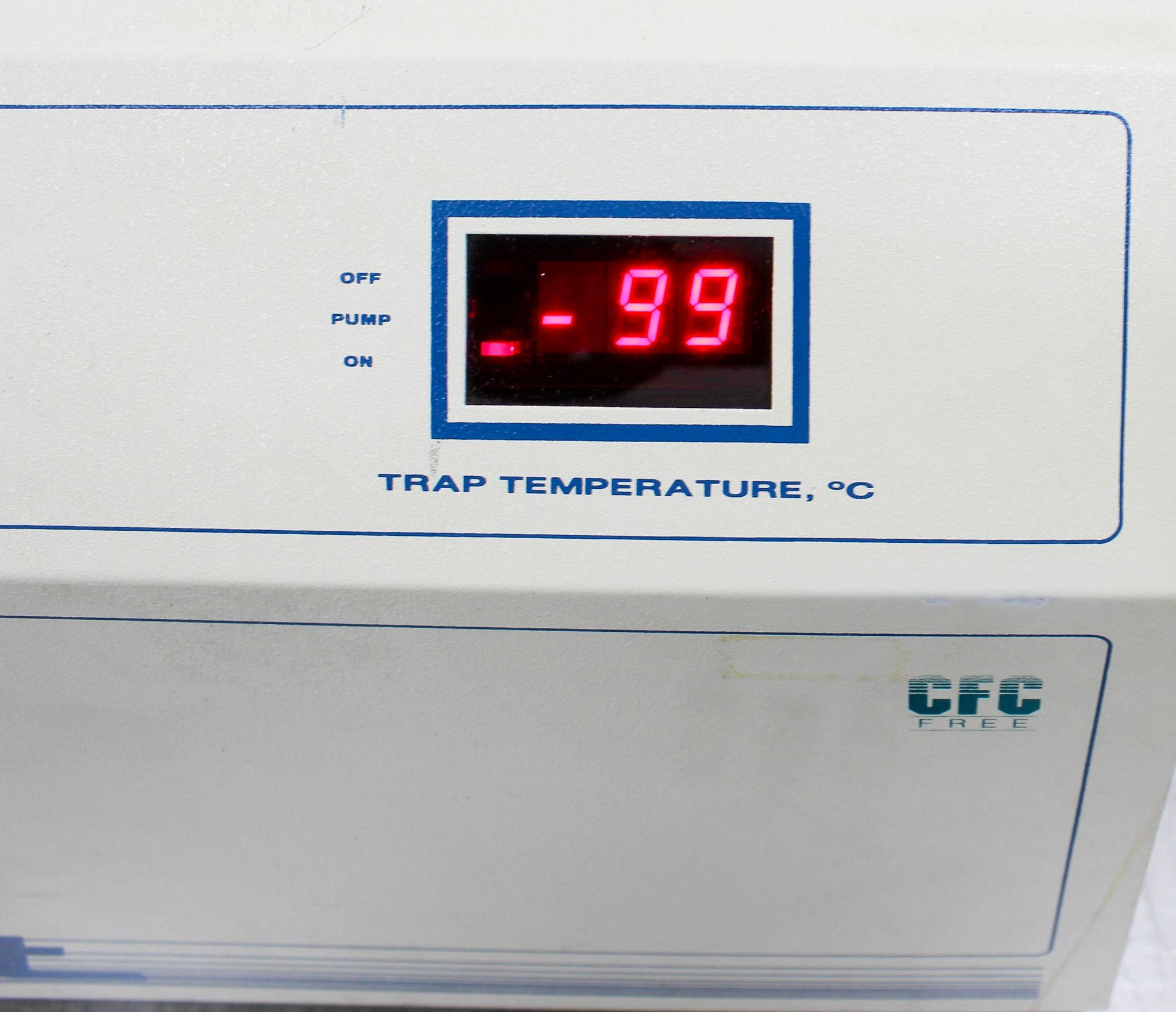

- Temperature gauge included
- Vacuum pump interlock for safety
Specifications
- Ultra Low Temperature Range: 0 to -104C
- Maximum Capacity: 4 Liters
- Power: 120V | 60Hz
- Dimensions: 20 x 26 x 13 inches
Weight
Imperial: 168.0 Pounds
Metric: 76.2 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 24.0 lb x 27.6 lb
Metric: 79.25 cm x 60.96 cm x 70.1 cm
Harmonized Code
841920
Harmonized Code Details
84192000 - Medical, surgical or laboratory sterilizers. This code was chosen because the product is used for handling solvents, similar to laboratory equipment used in sterilization or protective procedures.
