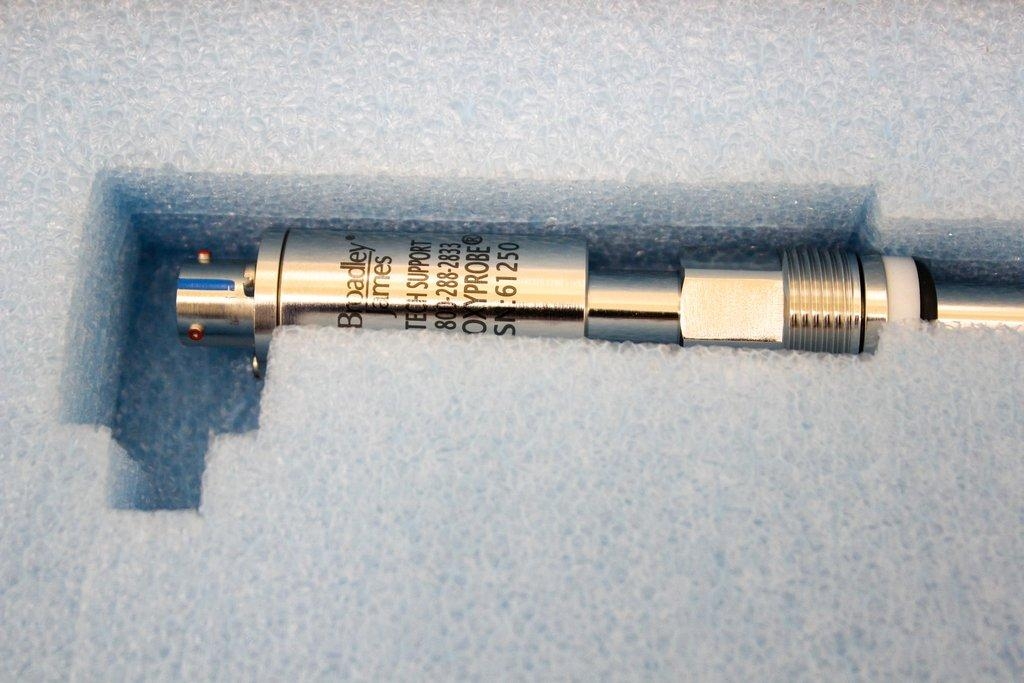

Broadley-James Corp D540-B320-PT-D9 Oxygen Sensor

Product Information

This unit looks like a new in open box. Includes all in in pictures. See photos for further details. All bundled up in one new sensor, the OxyProbe II. The D540 has a straight connector with D9 cable connector. The new membrane design is modeled after our successful 25 mm membrane cartridge. It has an expandable inner Silicone bladder that holds the electrolyte within a 316L stainless steel cage. During SIP processes or during autoclaving, the electrolyte turns to steam, but does not distend the measurement membrane because the internal bladder expands first, taking the pressure off the sensitive measurement area. This allows us to have a maximum of electrolyte present, with minimum risk of damage to the sensor. The D540 (12mm) Oxyprobe II dissolved oxygen sensor uses our standard D9 connector which has hermetically sealed gold-plated contacts in a glass insulator, offering the ultimate in signal isolation and transmission. Hygienic Sensor Design. Microorganisms cannot adhere to the sensor surface due to the enhanced finish (N5/Ra15µ in Quality). The sensor is fully sterilizable and autoclavable. Time-Saving Maintenance. Membrane body and sensor inner body can be changed out very quickly. A simple membrane body replacement takes just two minutes and can be made on site by the user. Due to the modular design, the different sensors have basically the same spare parts. This minimizes inventory stocking requirements. D540 (12mm) OxyProbe II Dissolved Oxygen Sensor Features Overview. Autoclavable and steam sterilizable. Accurate measurement and quick response. Long lasting and easy to maintain membranes. FDA positive listed materials of construction. Hygienically polished N5 surface finish (Max. Ra15µ in). Wetted O-rings comply with FDA and USP Class VI standards.

• Hygienic sensor design to prevent microorganism adhesion
• Fully sterilizable and autoclavable sensor
• Quick and easy maintenance with minimal spare part requirements
• FDA positive listed materials of construction

• Accurate measurement and quick response time
• Hygienically polished N5 surface finish with N5/Ra15µ in quality
• Wetted O-rings comply with FDA and USP Class VI standards
• Membrane body and sensor inner body can be changed out quickly and easily
• Autoclavable and steam sterilizable

Metric: 1.088 kg
Imperial: 2.4008 lbs

Metric: 24.0 cm x 6.0 cm x 3.0 cm
Imperial: 9.45 in x 2.36 in x 1.18 in

9027.80.11

The chosen Harmonized System (HS) code 9027.80.11 is for "Gas Analysis Apparatus", which best describes this dissolved oxygen sensor. It is specifically designed for measuring the concentration of dissolved oxygen in liquid.
