phcbi MDF-U731 Biomedical Freezer -30C Laboratory Grade, 623L Capacity
phcbi
Details
-
CategoryCold Storage
-
Dimension33.0in x 40.0in x 77.0in
-
Serial180690033
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The phcbi Biomedical Freezer MDF-U731 is in excellent condition, showcasing its durability and minimal use. Built for robust storage needs, it has been tested to reliably achieve temperatures of -31'C and operates without any functional issues. Designed for medical, biotechnology, and industrial lab environments, this upright freezer offers a large storage capacity of 22.0 cu.ft. (623 L) and uniform temperature distribution down to -30°C. Features include a microprocessor control system, rigid polyurethane foaming-insulated construction, and a high-performance hermetic compressor system. Additional features include two access ports, security features, remote alarm contacts, and casters for mobility. Constructed of painted steel for both interior and exterior, it efficiently consumes 6.72 kWh/day. The freezer also includes helpful alarms for temperature, door, and power situations, ensuring reliable containment of sensitive samples.
Technician comment

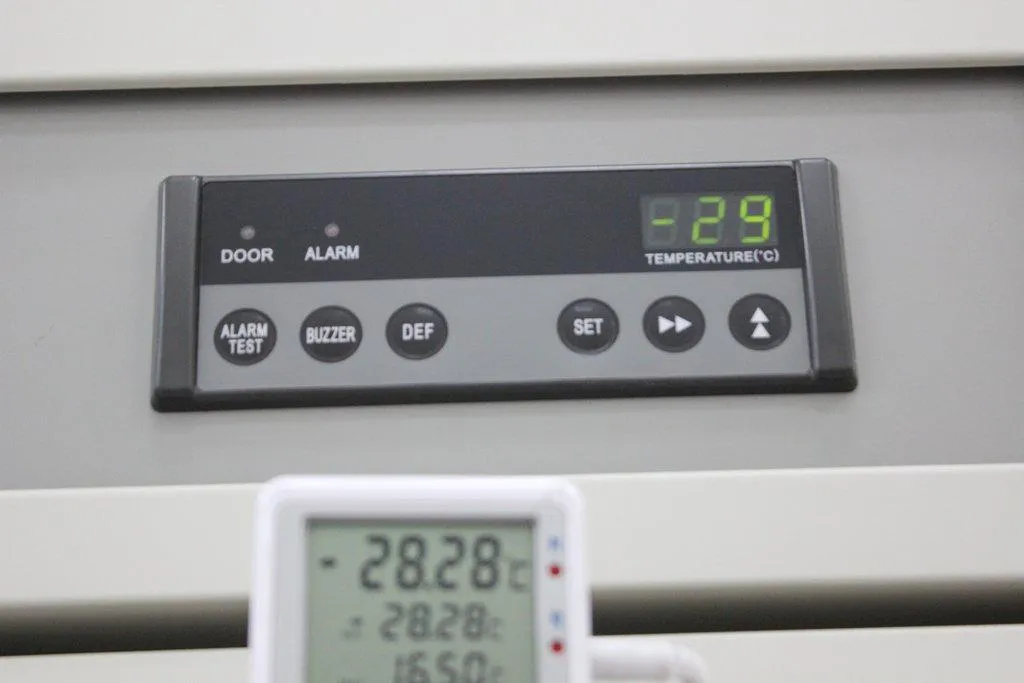

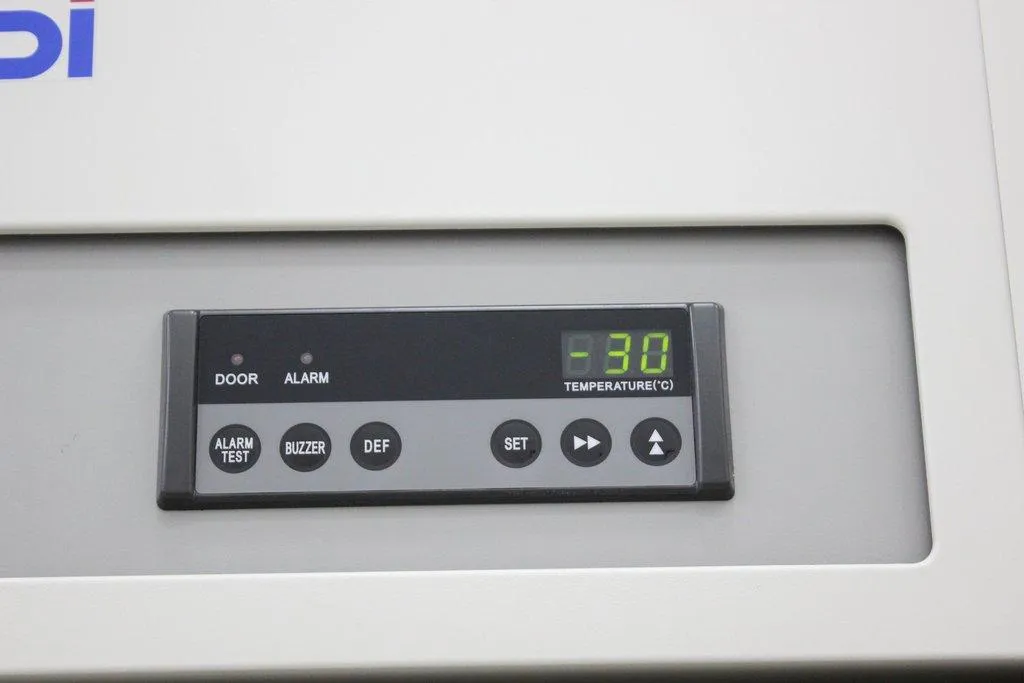

Has been reached temperature of -31'C without issues. See photos
Key Features
- Temperature Range: -15ºC to -30ºC
- Large Storage Capacity: 22.0 cu.ft. (623 L)
- Microprocessor Control System
- Hermetic Compressor, 400W Output
- Energy Efficient: 6.72 kWh/day
- Sturdy Painted Steel Construction
- Foamed-In-Place Polyurethane Insulation
- Remote Alarm Contacts and Security Features
- Casters for Easy Mobility
Specifications
- Exterior Dimensions: 30.3" W x 32.7" D x 77.0" H
- Interior Dimensions: 25.6" W x 27.6" D x 54.0" H
- Effective Capacity: 22.0 cu.ft. (623 L)
- Temperature Range: -15ºC to -30ºC
- Cooling Performance: Tested to -31ºC
- Compressor: Hermetic type, 400W
- Refrigerant: SNAP and CARB Approved HFO R-449A
- Alarms: High Temp, Low Temp, Door, Power Failure
- Shelving: 4 Polyurethane Coated Wire Shelves
- Access Ports: 2 side ports, 1 top port, 1.2" diameter
- Energy Consumption: 6.72 kWh/day
- Construction: Painted steel interior and exterior
- Insulation: Rigid polyurethane foamed-in-place
- Voltage: 120V, 60Hz US
- Net Weight: 155 kg (342 lbs)
Weight
Imperial: 420.0 Pounds
Metric: 190.51 Kilograms
Shipping Dimensions
Imperial: 39.6 lb x 48.0 lb x 92.4 lb
Metric: 100.58 cm x 121.92 cm x 234.7 cm
Harmonized Code
841840
Harmonized Code Details
841840 - Refrigerating or freezing equipment, other than household type; as phcbi Biomedical Freezer is intended for laboratory and industrial use.
