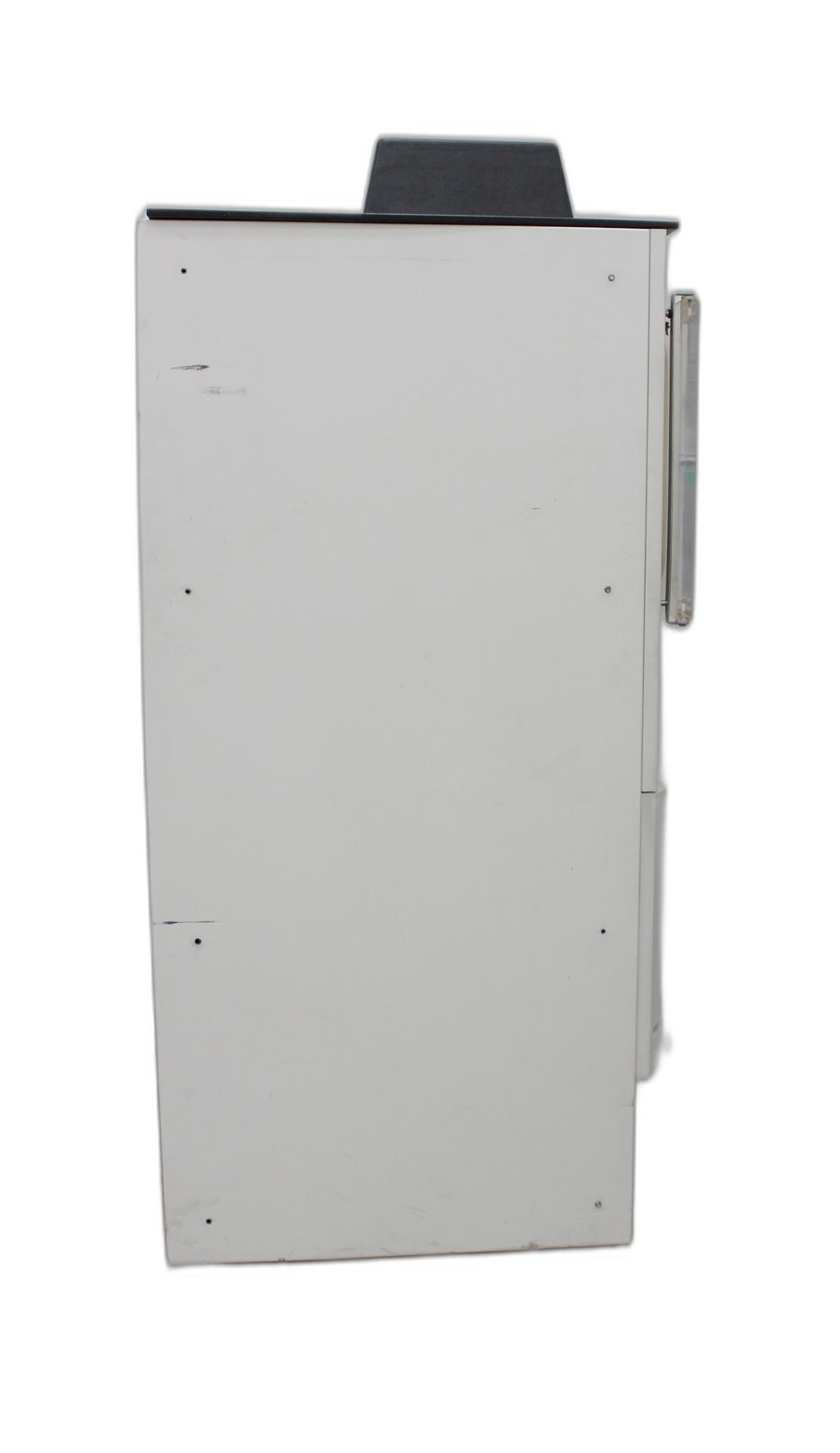

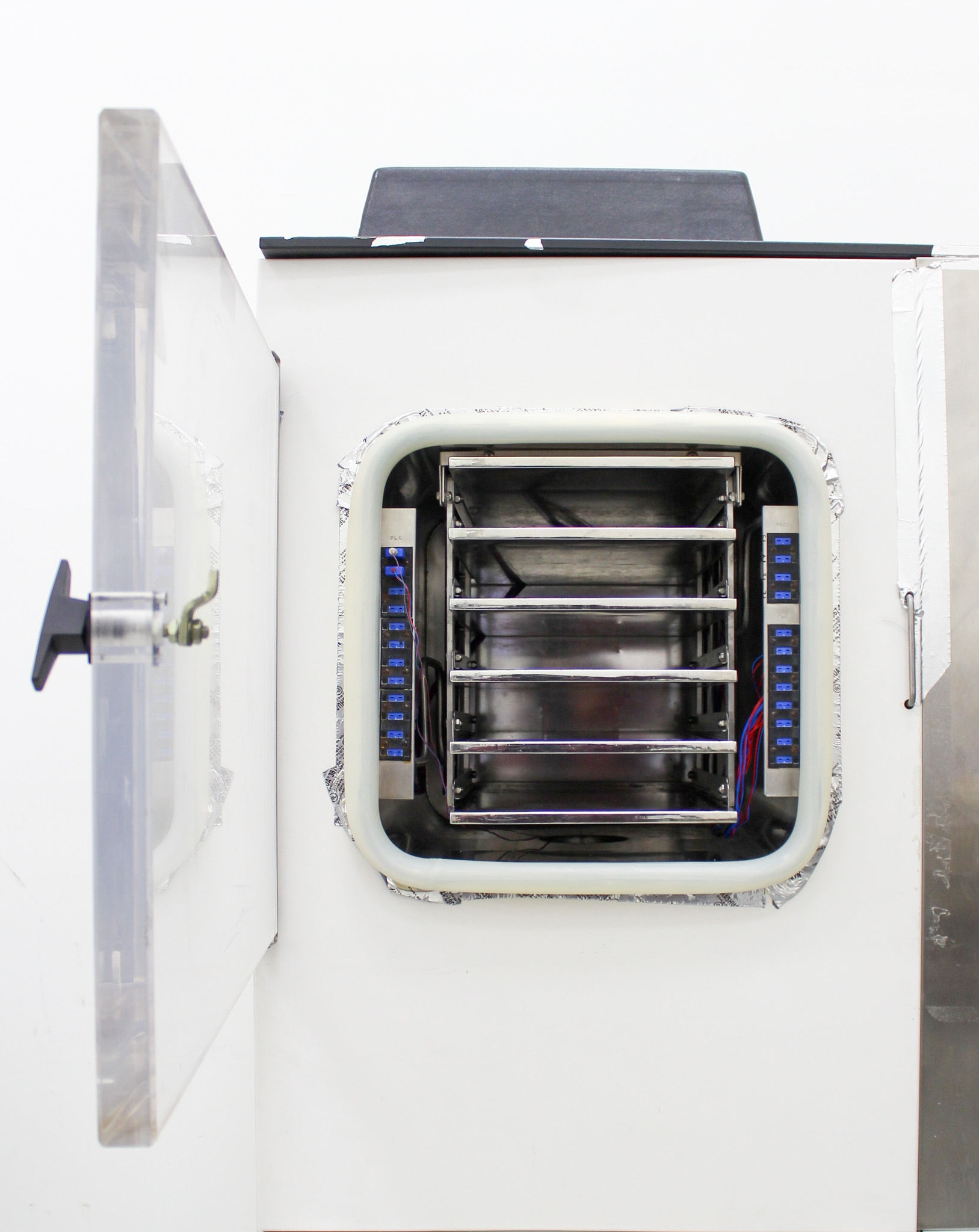

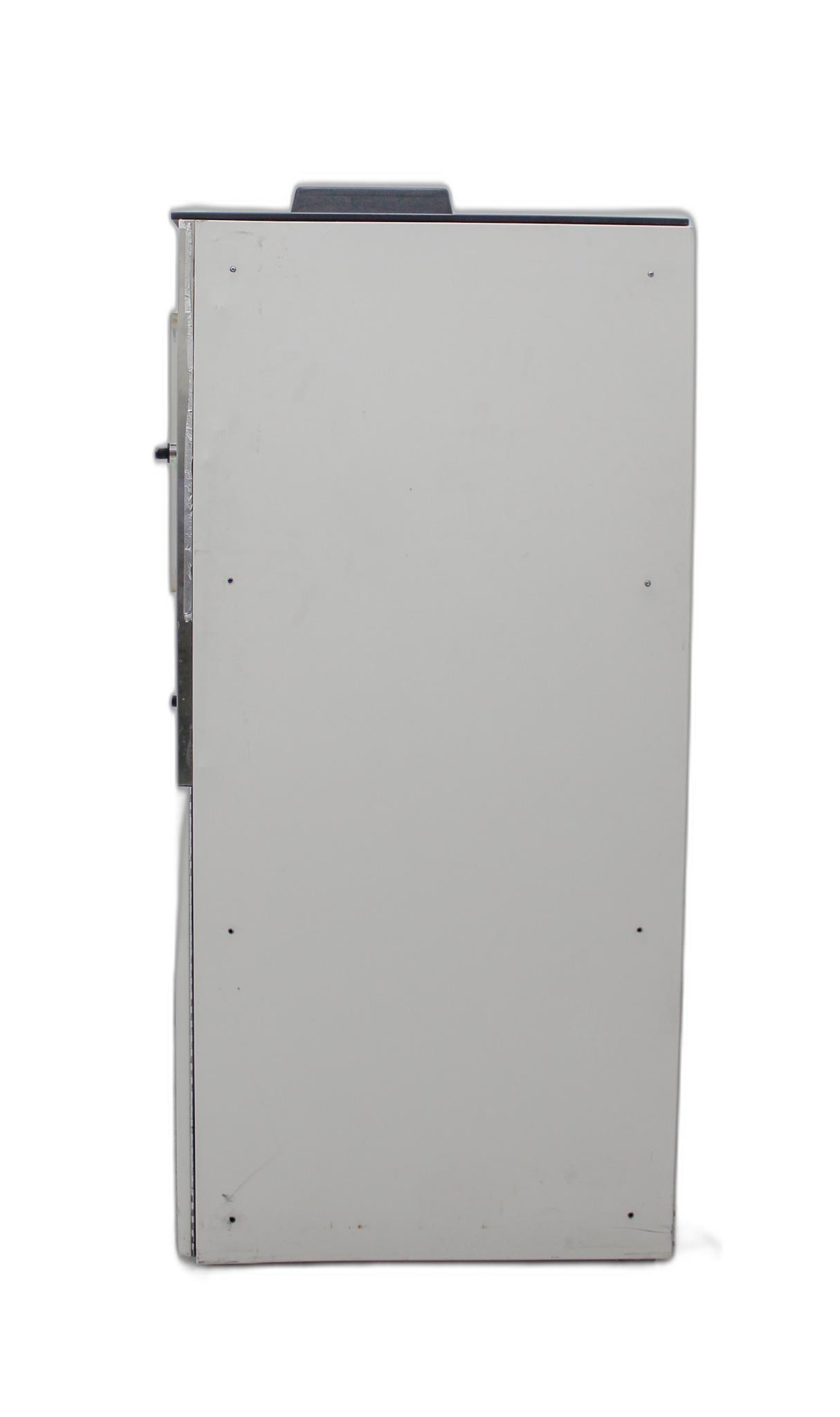

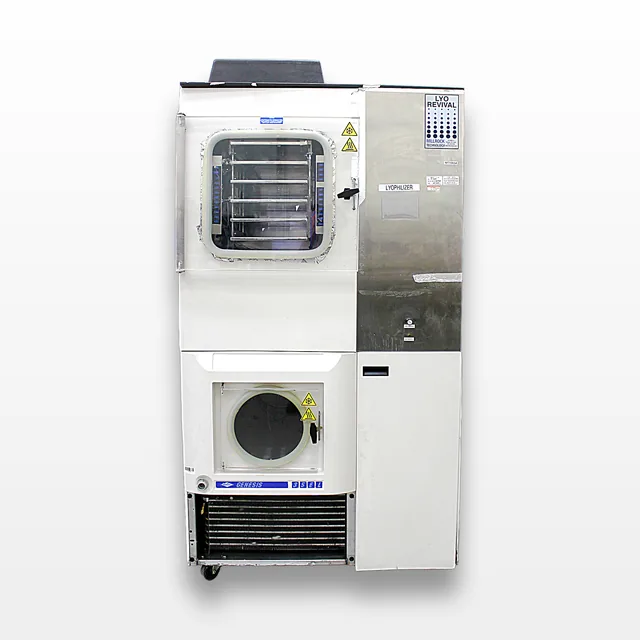

SP Scientific VirTis Genesis 35 EL Lyophilizer -70C 35L Used Functional
SP Scientific
Details
-
CategoryLyophilizer / Speed Vac
-
Dimension37.0in x 40.0in x 79.0in
-

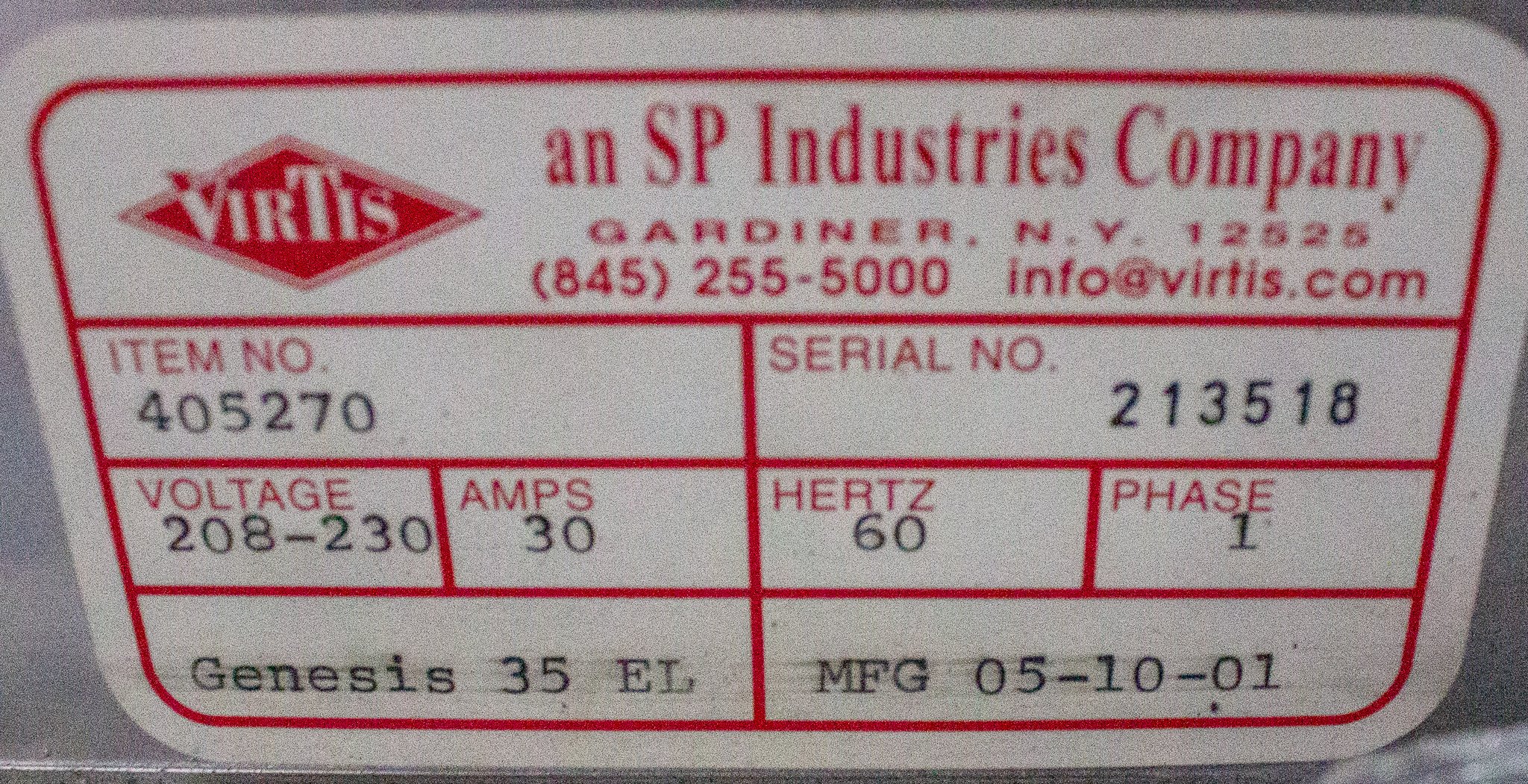

Serial213518
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 60Hz US
Description
The SP Scientific VirTis Genesis 35 EL is a reliable and versatile bulk drying lyophilizer designed for freeze drying applications in laboratory settings. Originating from the United States, this used model is in good condition with signs of cosmetic wear, missing the bottom front panel. The unit is equipped with a temperature control range of -55 to 65 degrees Celsius and features a maximum condenser capacity of 35 liters. Its dual compressors, with 1.5/1.0 horsepower, ensure efficient operation, using R50B and R407C refrigerants. With temperature uniformity of 1.0 C, it cools down quickly, reaching its lowest system vacuum of 15mT. This model operates at 220V/60Hz and is perfect for laboratories requiring robust lyophilization capabilities.
Technician comment

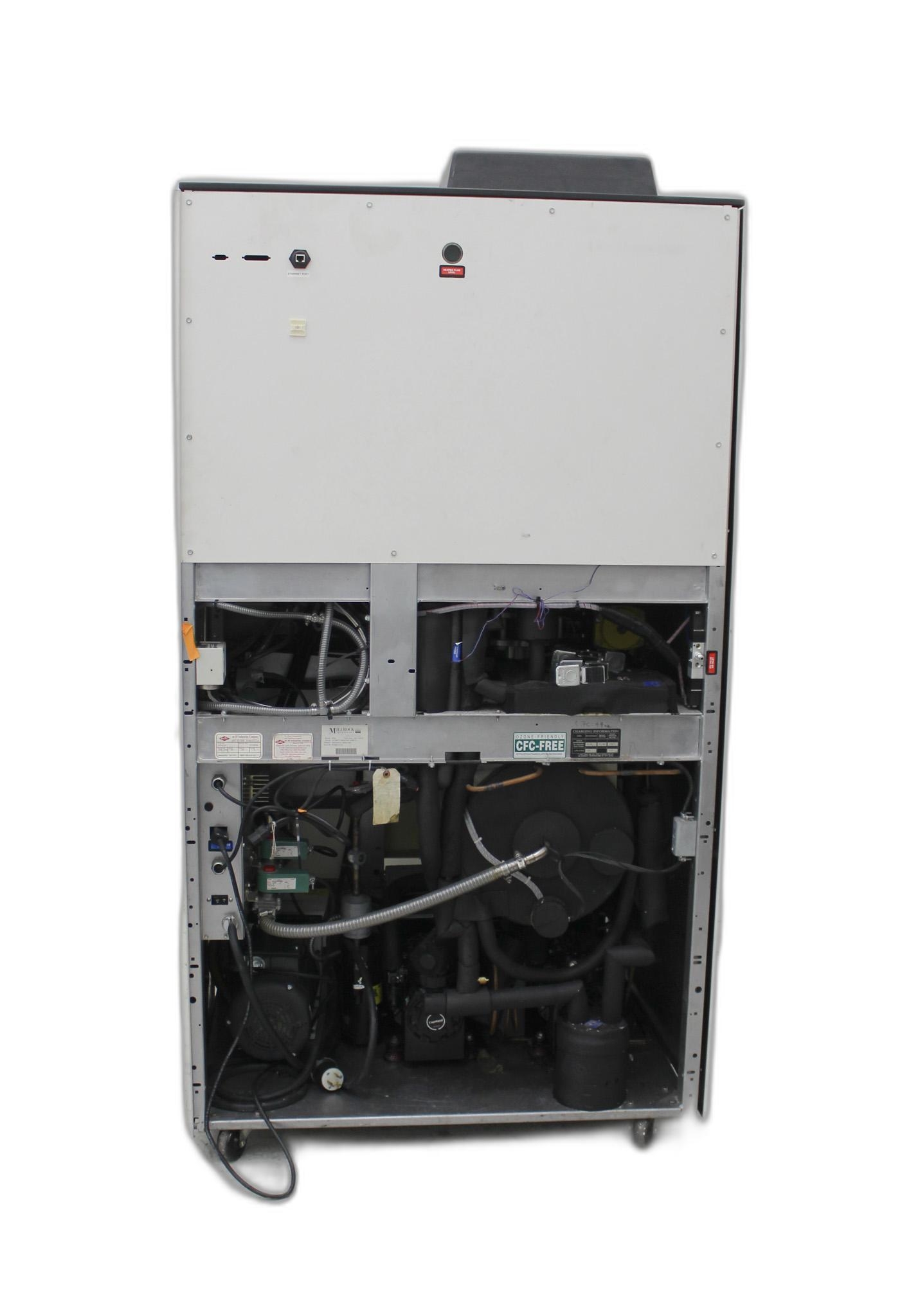

Unit is preowned from a working environment. Unit has some signs of wear from normal use, missing bottom front panel. Software not included. See photos for details.
Key Features
- Temperature Control Range: -55 to 65C
- Lowest Shelf Temperature: -67 / -70C
- Condenser Capacity: 35L
- Dual Compressors: 1.5, 1.0 Horsepower
- System Refrigerants: R50B, R407C
- Lowest System Vacuum: 15mT
Specifications
- Mode: VirTis Genesis 35EL
- Temperature Range: -55 to 65C
- Lowest Condenser Temperature: -82 / -85C
- Condenser Capacity: 35 liters
- Condenser Surface Area: 750 in² / 4838 cm²
- Ice Condensing Capacity in 24 hours: 20 liters
- Deposition Rate: 0.83 L/hour
- Condenser Pull-Down (20C to -45C): 25 minutes
- Shelf Pull-Down (20C to -40C): 30 minutes
- Number of Compressors: 2
- Horsepower: 1.5, 1.0
- Refrigerant: R50B, R407C
- Vacuum Time to 100 Millitorr: 20 minutes
- Vacuum Rate of Rise: 30 mT/hour
- Volume-Based Leak Rate: 0.0016 mbar*L/sec
- Temperature Uniformity: 1.0C
Weight
Imperial: 600.0 Pounds
Metric: 272.16 Kilograms
Shipping Dimensions
Imperial: 44.4 lb x 48.0 lb x 94.8 lb
Metric: 112.78 cm x 121.92 cm x 240.79 cm
Harmonized Code
841960
Harmonized Code Details
841960 – Machinery for liquefying air or gas, nes. This code applies to equipment like the SP Scientific VirTis Genesis 35EL Lyophilizer, which involves processes for cooling/freeze drying (lyophilization) as a form of gas transformation.
