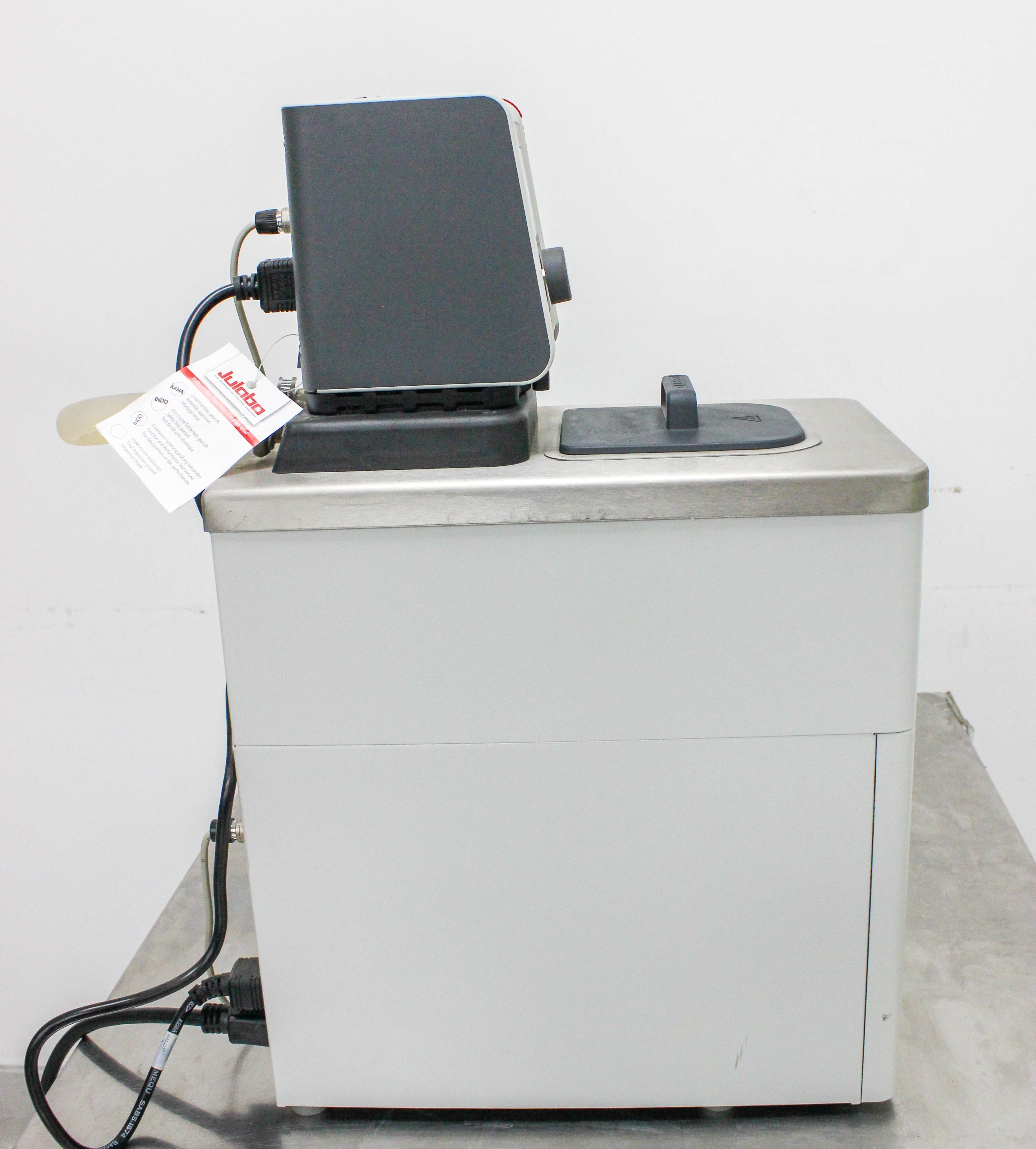

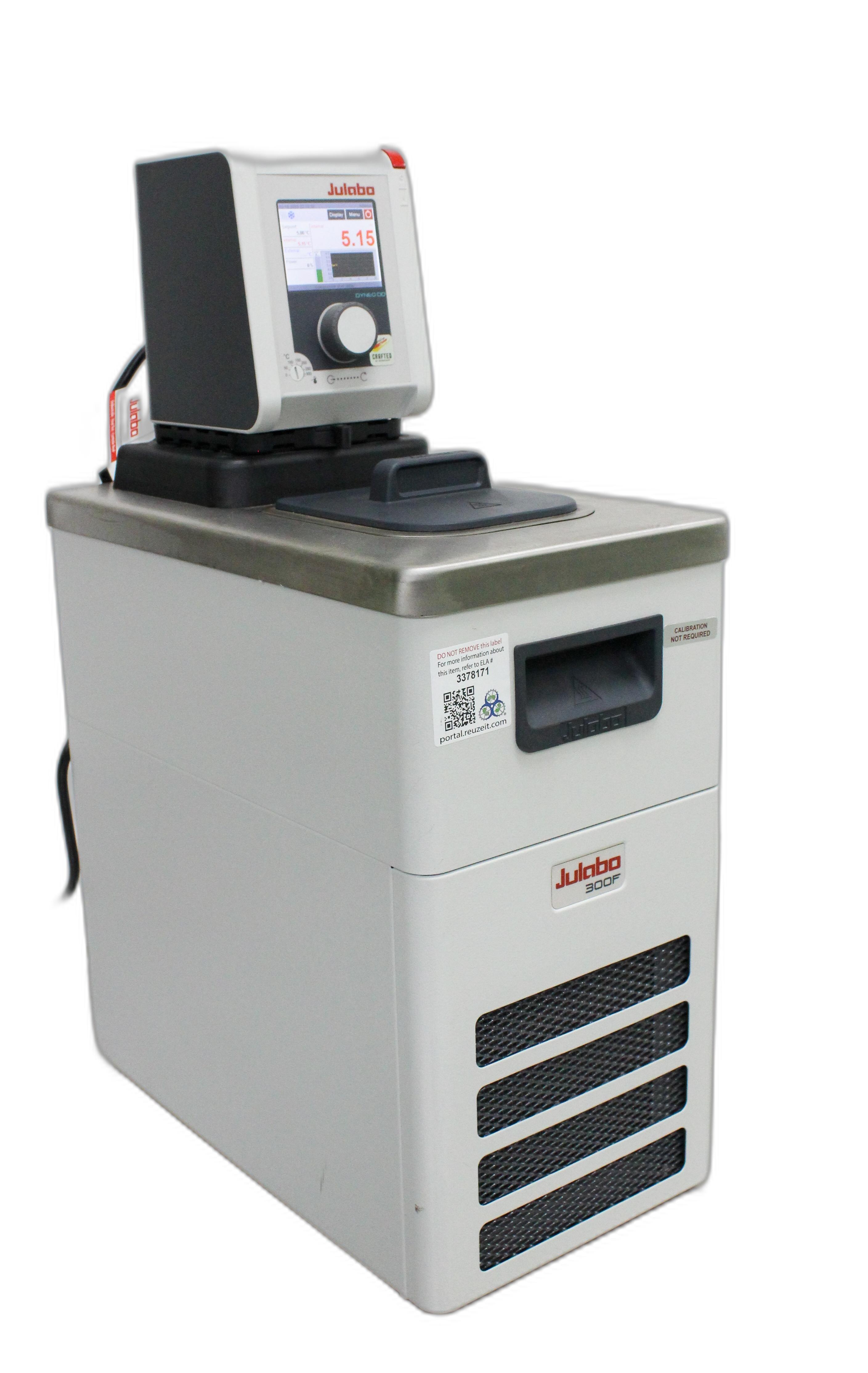

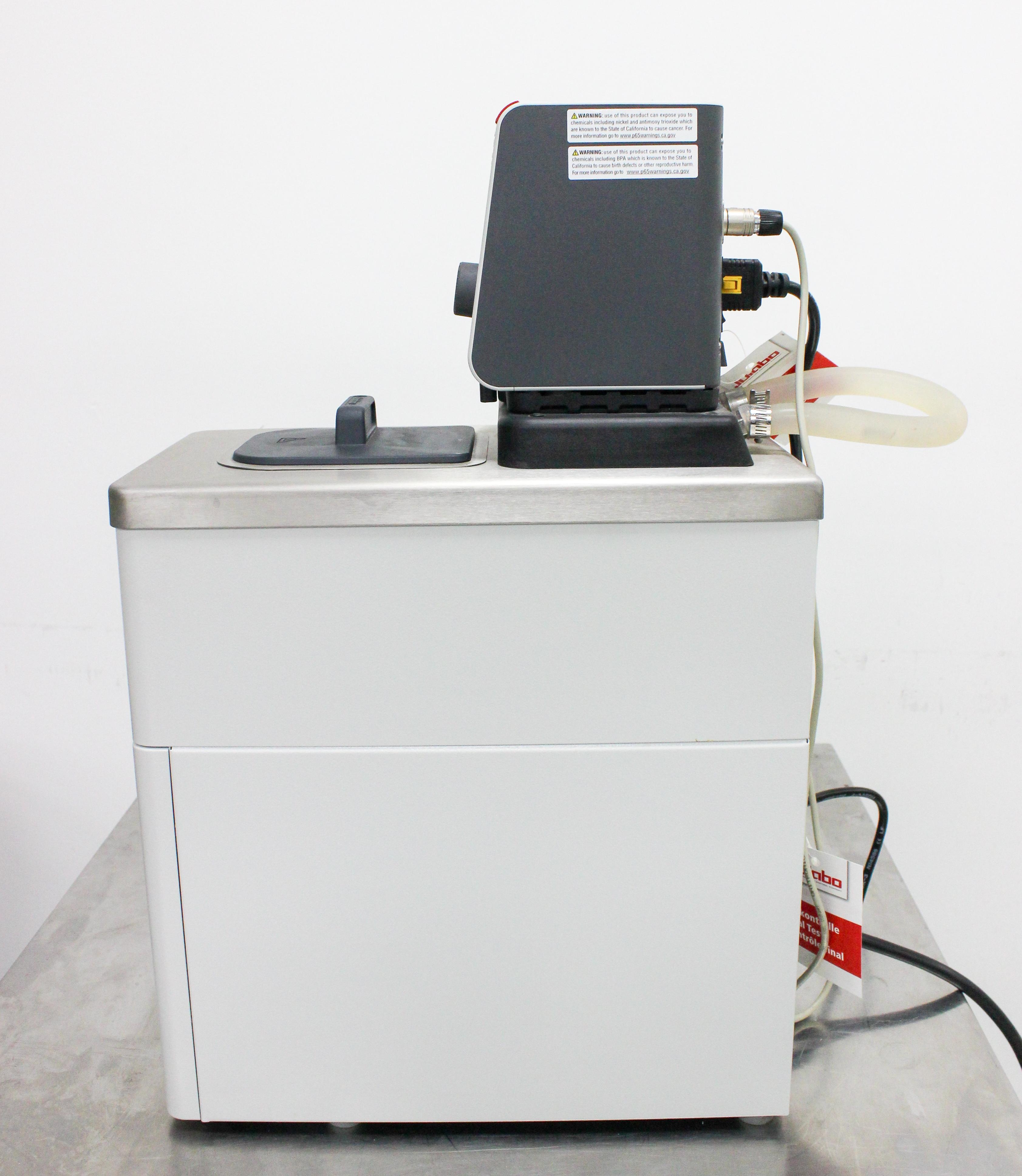

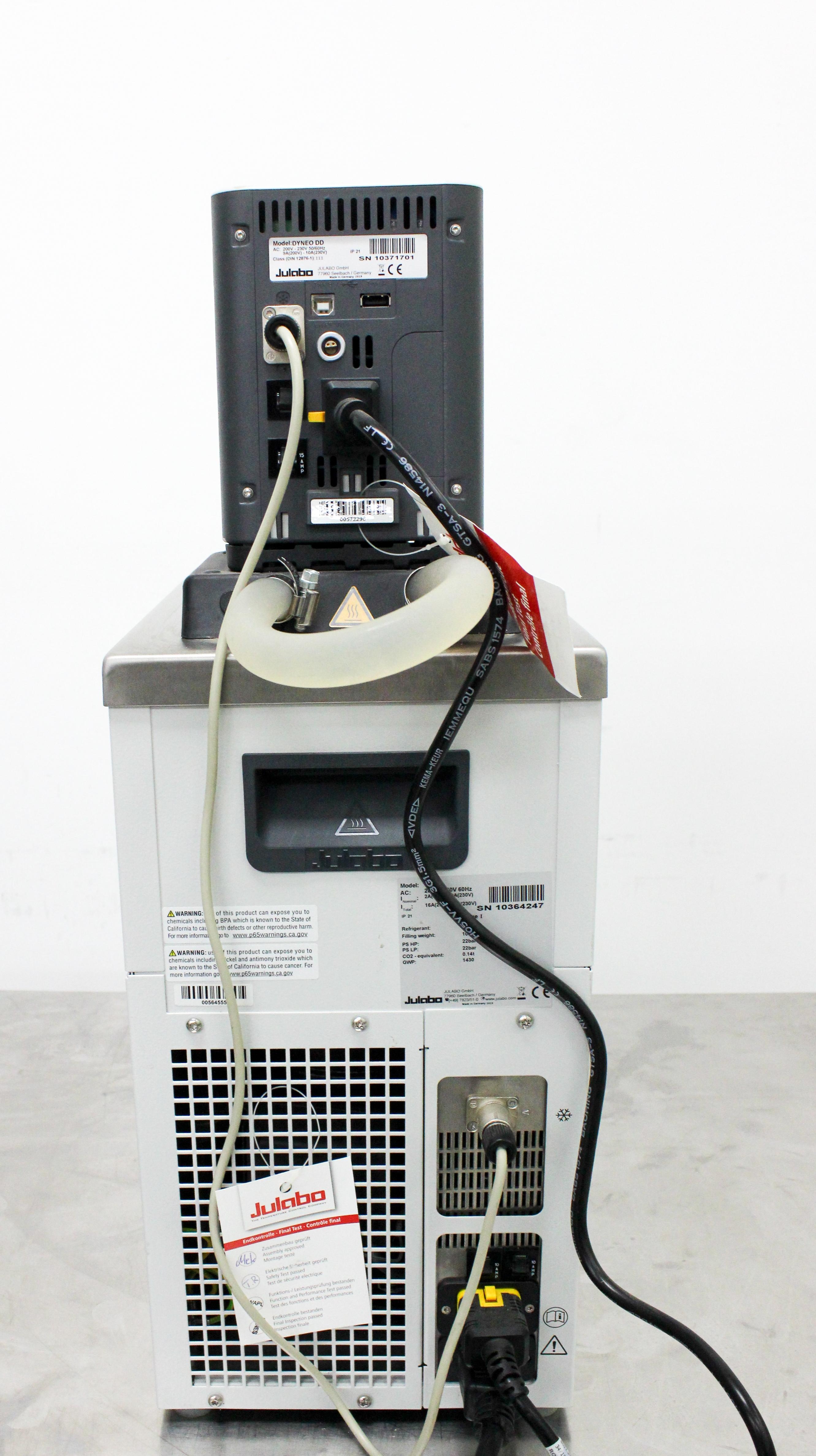

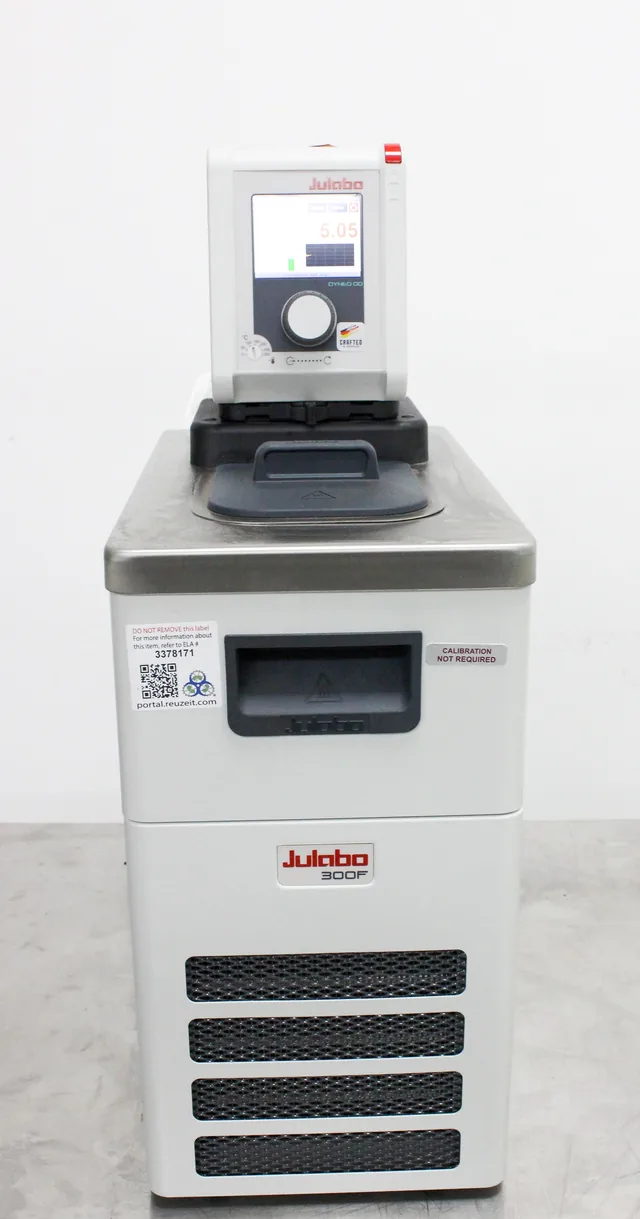

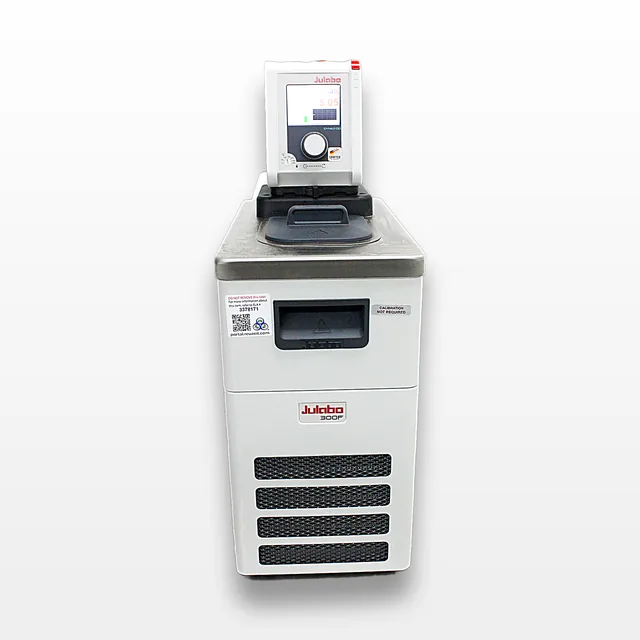

Julabo Dyneo DD 300F Refrigerated Circulator -25C to +200C, 3-4L, 2kW
Julabo
Details
-
CategoryWater Bath / Circulator
-
Dimension18.0in x 10.0in x 27.0in
-
Serial103642447
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 60Hz US
Description
The Julabo Dyneo DD 300F is an advanced refrigerated/heating circulator designed for precision temperature control across a broad range, from -25C to +200C with exceptional stability of ±0.01C. This device is ideal for demanding laboratory applications in basic research, material testing, and technical systems. It features an optimized cooling coil design, a powerful and adjustable pressure pump capable of flow rates up to 27 l/min and pressure up to 10.2 bar, making it effective for both internal and external circulations. The user-friendly design includes a large multilingual TFT display with intuitive knob controls. Its robust construction includes an integrated stainless steel bath with a 3-4L capacity and a highly efficient single-stage air-cooled compressor using R134a refrigerant. With its compact size, advanced programming capabilities, and multiple interface options like USB and RS232, the Dyneo DD 300F offers reliable performance and flexibility, ensuring it meets diverse laboratory requirements while maintaining efficient cooling performance.
Technician comment

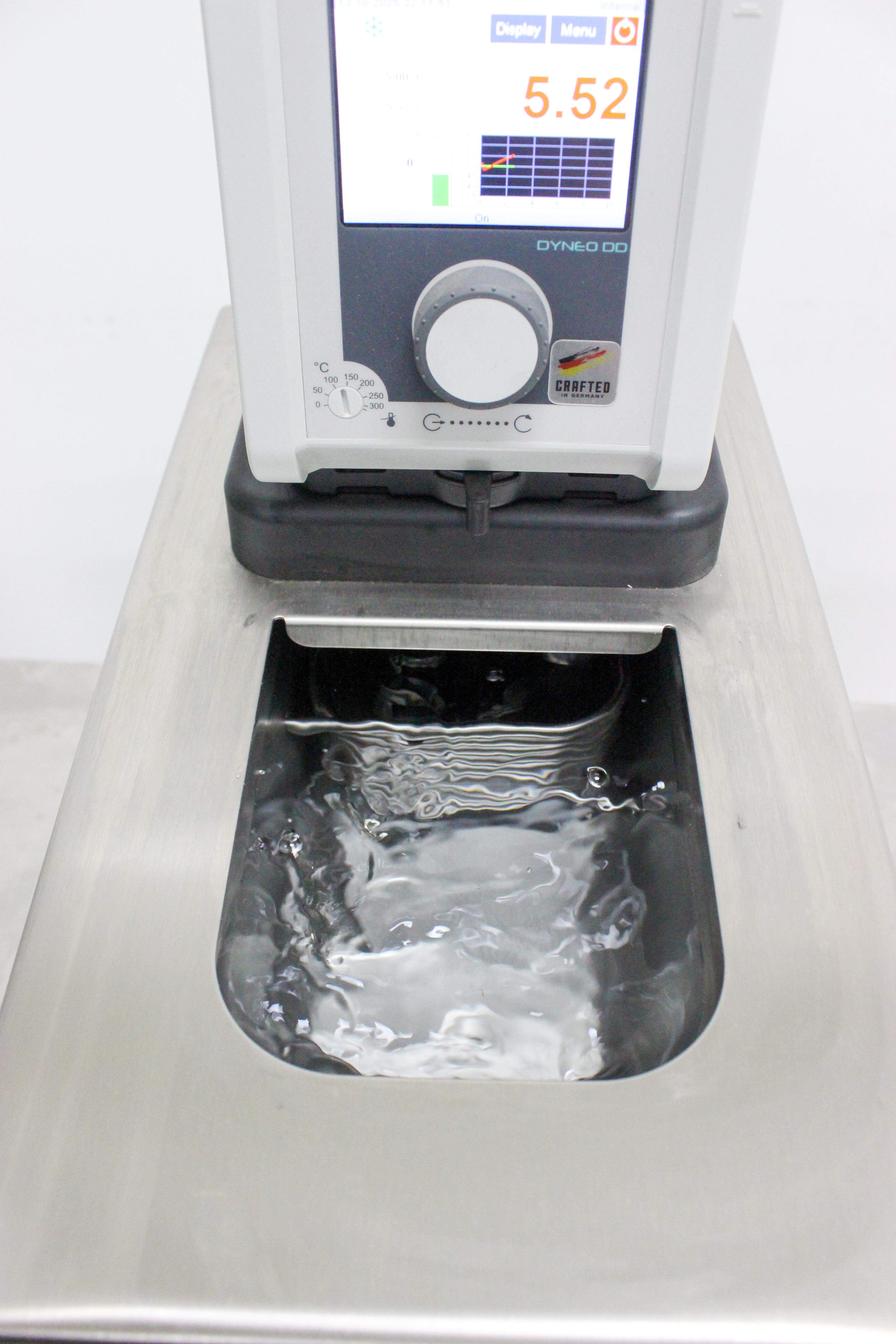

The Julabo Dyneo DD 300F powers on and initializes successfully. The display and controls are responsive, and the circulating pump operates as intended. Cooling performance was tested and verified, reaching 5°C. The unit is in excellent cosmetic condition with minor wear from prior laboratory use.
Key Features
- Broad temperature range: -25C to +200C
- Temperature stability: ±0.01C
- Powerful pressure pump: 8-27 l/min, 1.5-10.2 bar
- 3-4L stainless steel bath capacity
- Multilingual TFT display with intuitive controls
- Integrated Pt100 sensor connection

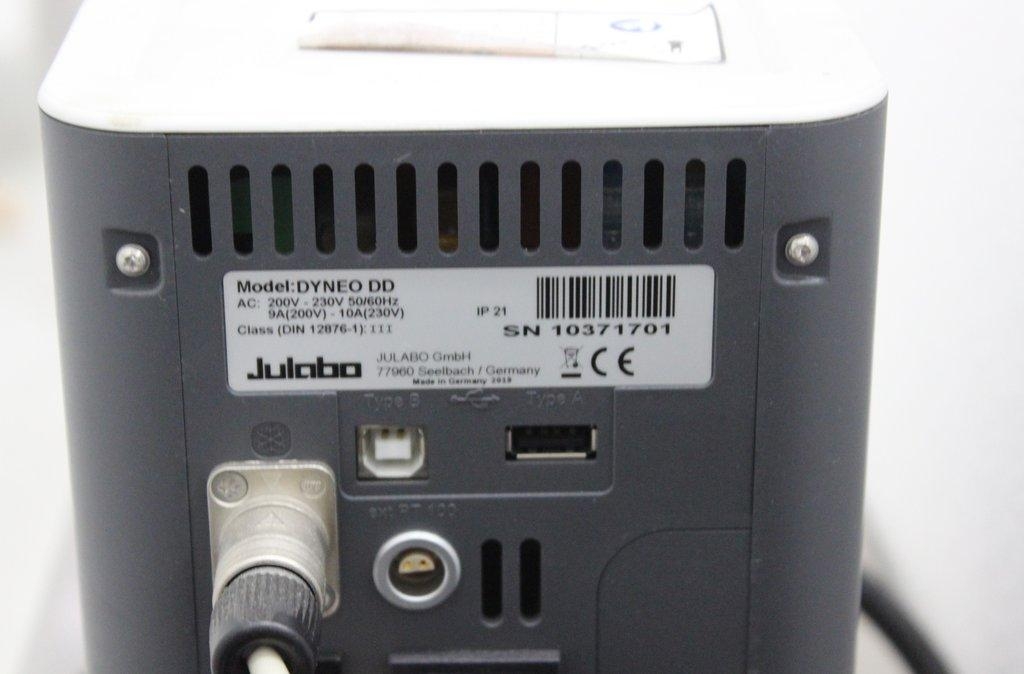

- USB and RS232 interface options
- Single-stage air-cooled compressor with R134a
Specifications
- Working temperature range: -25 to +200C
- Temperature stability: ±0.01C
- Heating capacity: 2 kW
- Pump flow rate: 8-27 l/min
- Pump pressure: 1.5-10.2 bar
- Usable bath opening: 5.1 x 5.9 / 5.9 cm
- Filling volume: 3-4 L
- Cooling capacity (Ethanol): 1 kW at 20C to 0.08 kW at -20C

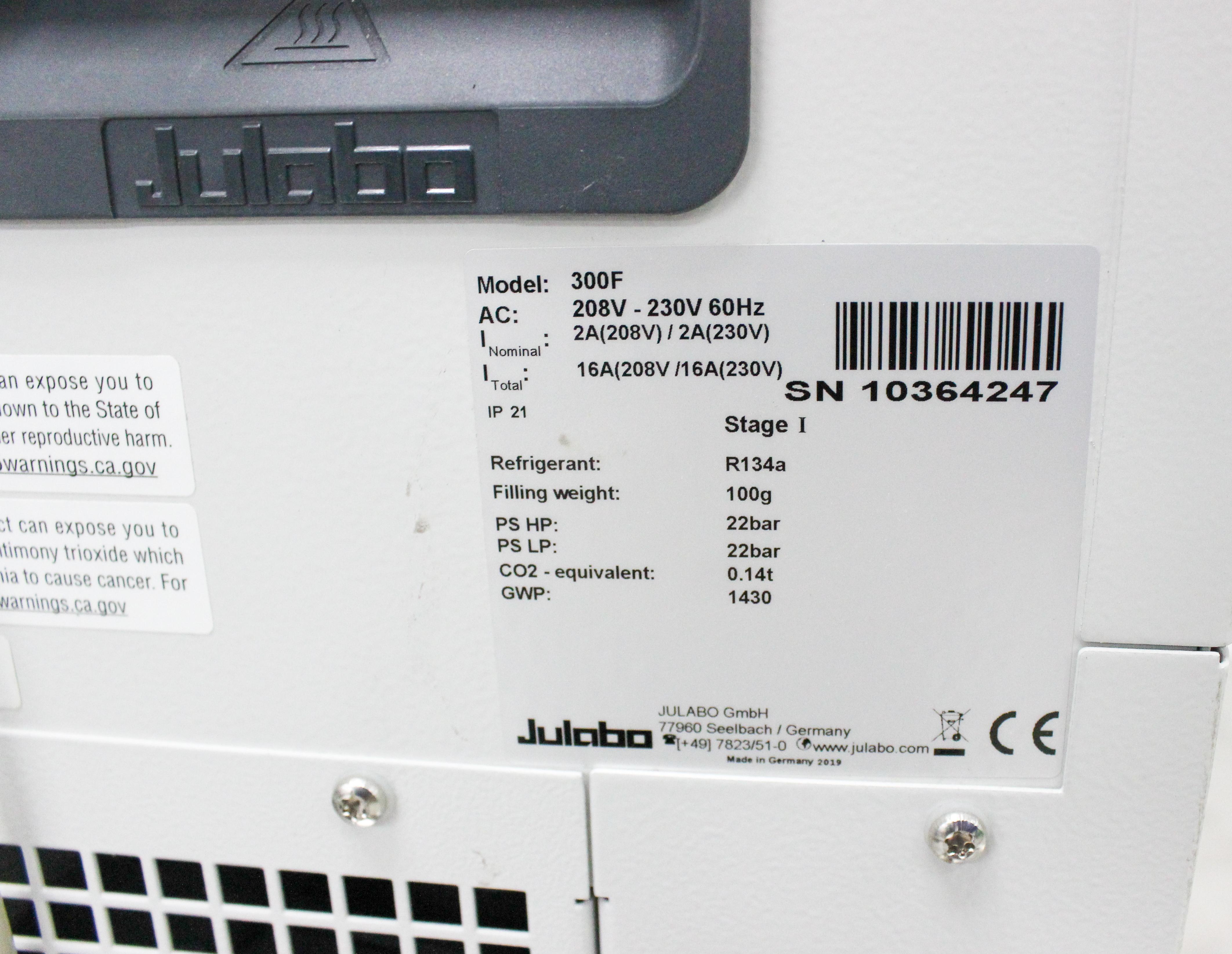

- Refrigerant: R134a
- Global warming potential: 1430
- Power consumption: 12 A
- Compressor cooling: 1-stage Air
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 12.0 lb x 32.4 lb
Metric: 54.86 cm x 30.48 cm x 82.3 cm
Harmonized Code
841989
Harmonized Code Details
Harmonized Code 841989 applies to laboratory appliances for the treatment of materials by a process involving a change of temperature. This code is suited as the Julabo Dyneo DD 300F offers controlled heating and cooling in lab settings.
