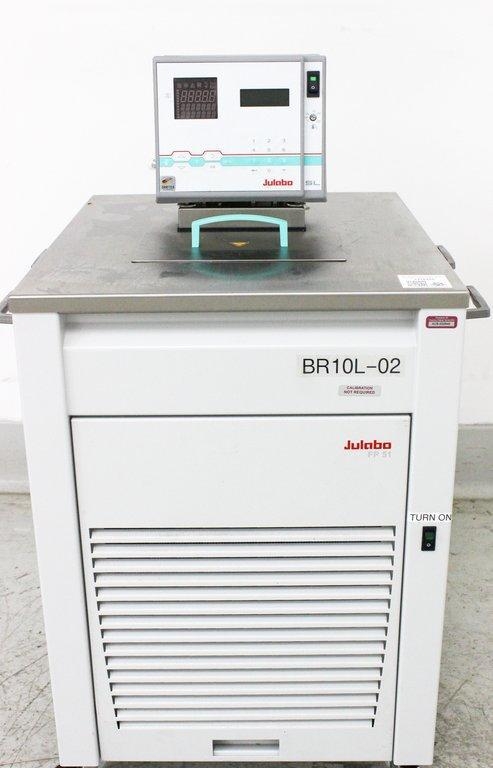

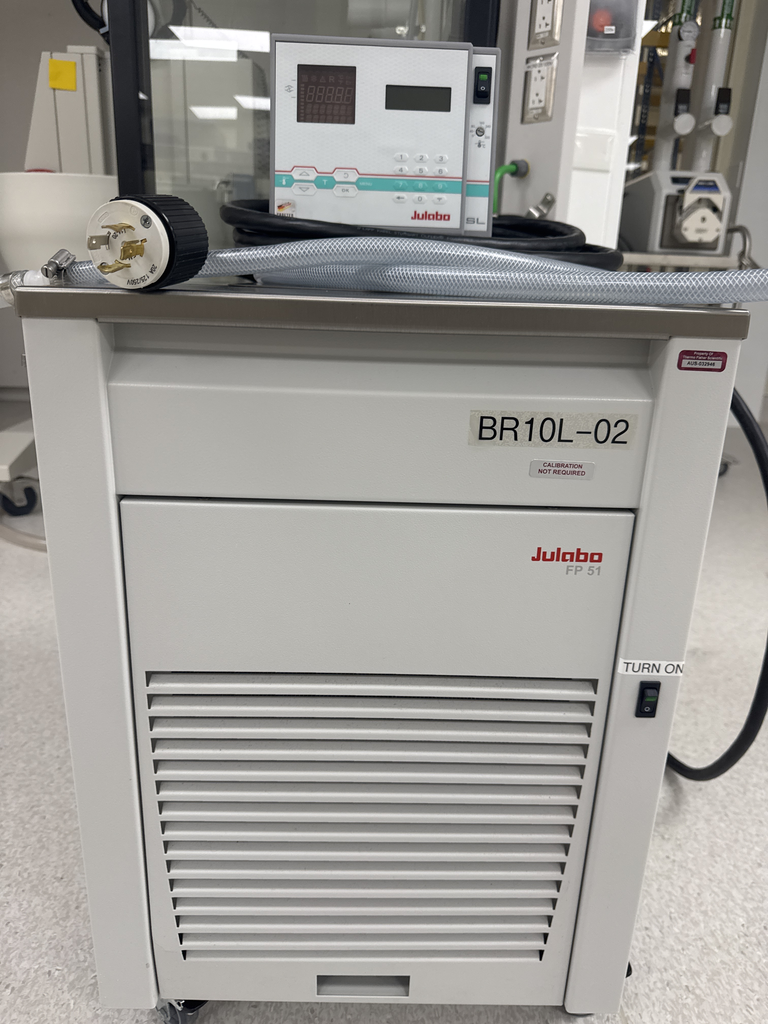

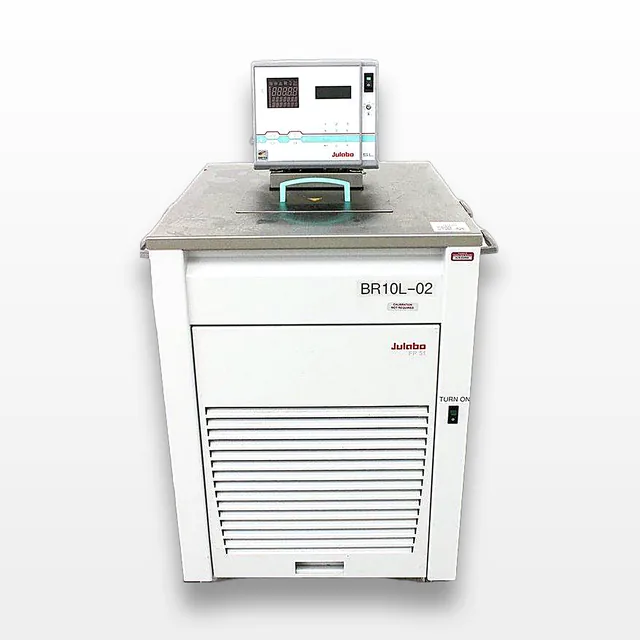

Julabo FP51 Ultra-Low Refrigerated/Heating Circulator -40 to 200C
Julabo
Details
-
CategoryWater Bath / Circulator
-
Dimension22.0in x 18.0in x 35.0in
-
Serial300463815
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz208-220V / 60Hz US
Description
The Julabo FP51 Ultra-Low Refrigerated/Heating Circulator offers a versatile temperature range from -40 to 200°C, ideal for external temperature control tasks. In excellent condition with minimal use, it features Active Cooling Control that ensures rapid heating and cooling across the entire range while minimizing energy loss. Its highTech model series includes features such as ICC intelligent cascade control for precise temperature stability, and an easy-to-clean venting grill to prevent dust accumulation. Convenient transport options are provided by its handles or castors, with a user-friendly drain tap for hassle-free liquid management. The circulator is equipped with a backlit liquid level display and improved insulation to avoid ice formation. Suitable for laboratories requiring precise thermal regulation, this efficient device integrates seamlessly into your workflow with digital RS232, RS485 interfaces.
Key Features
- Working temperature range: -40 to 200°C
- Temperature stability: ±0.05°C
- Intelligent cascade control system
- Active Cooling Control (ACC)
- Easy clean venting grill
- HighTech model series
- Integrated digital control interfaces
Specifications
- Model Series: HighTech
- Working Temperature Range: -51° to +200°C
- Temperature Stability: ±0.05°C
- ICC intelligent cascade control, TCF temperature control features
- Display Resolution: 0.01°C
- Integrated Programmer: 6×60 steps
- Temperature Display: VFD, LCD
- Heating Capacity: 3 kW
- Cooling Capacity: Various, up to 2 kW at 20°C
- Pump capacity Flow Rate: 22-26 l/min
- Pump Connections: M16x1
- Filling Volume: 11 Liters
- Refrigerant: R507
- Noise Level: 53 dBA
- Classification III (FL) according to DIN 12876-1
Weight
Imperial: 237.6 Pounds
Metric: 107.77 Kilograms
Shipping Dimensions
Imperial: 26.4 lb x 21.6 lb x 42.0 lb
Metric: 67.06 cm x 54.86 cm x 106.68 cm
Harmonized Code
84198998
Harmonized Code Details
This code covers machinery, plant, or laboratory equipment for the treatment of materials by a process involving a change of temperature such as heating or cooling. The Julabo FP51 falls into this category as it is a heating and cooling circulator.
