Hamilton Microlab Star Liquid Handler High-Throughput 16 Channel Lab Equipment
Hamilton
Details
-
CategoryLiquid Handling
-
Dimension92.0in x 48.0in x 103.0in
-
SerialH477
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

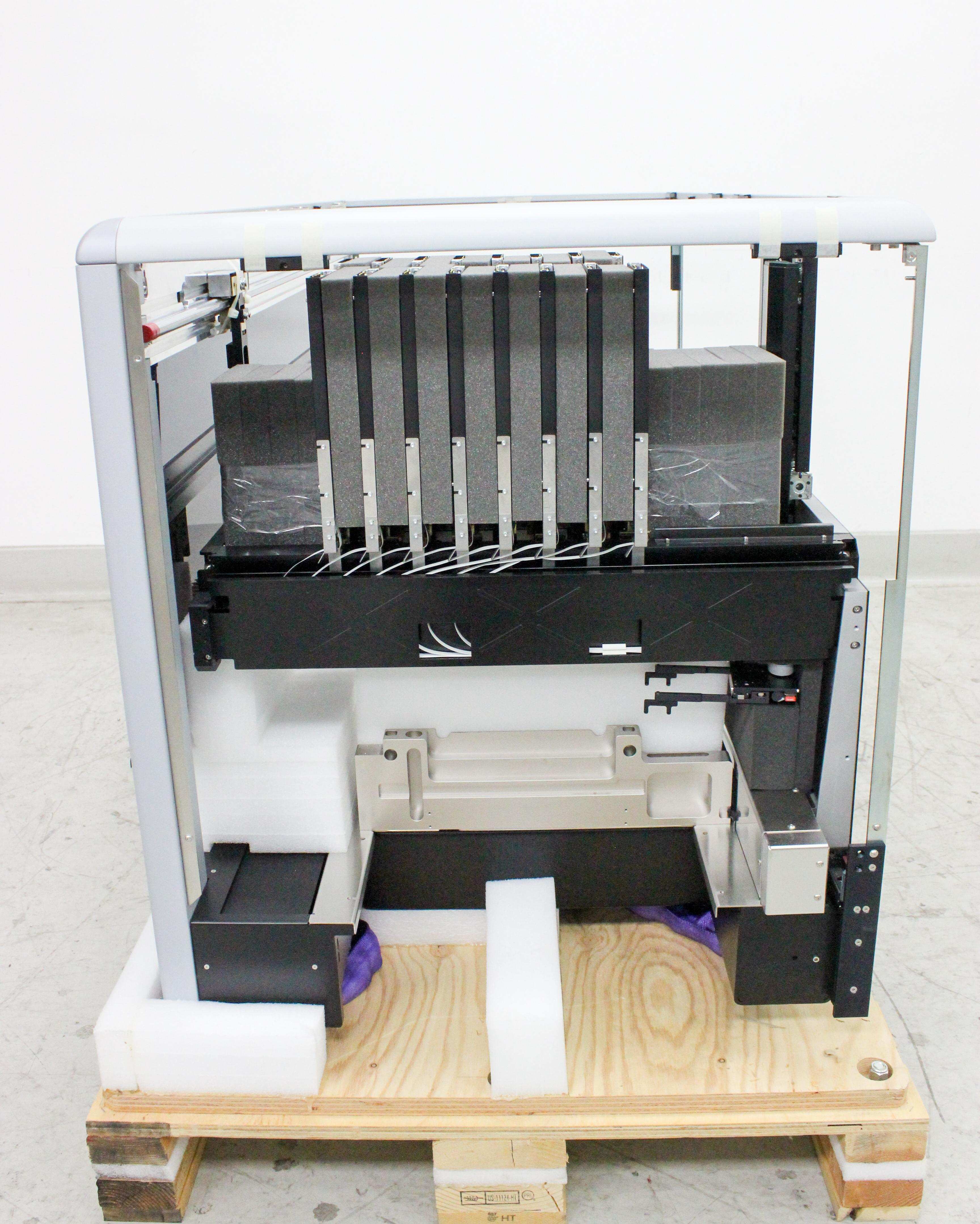

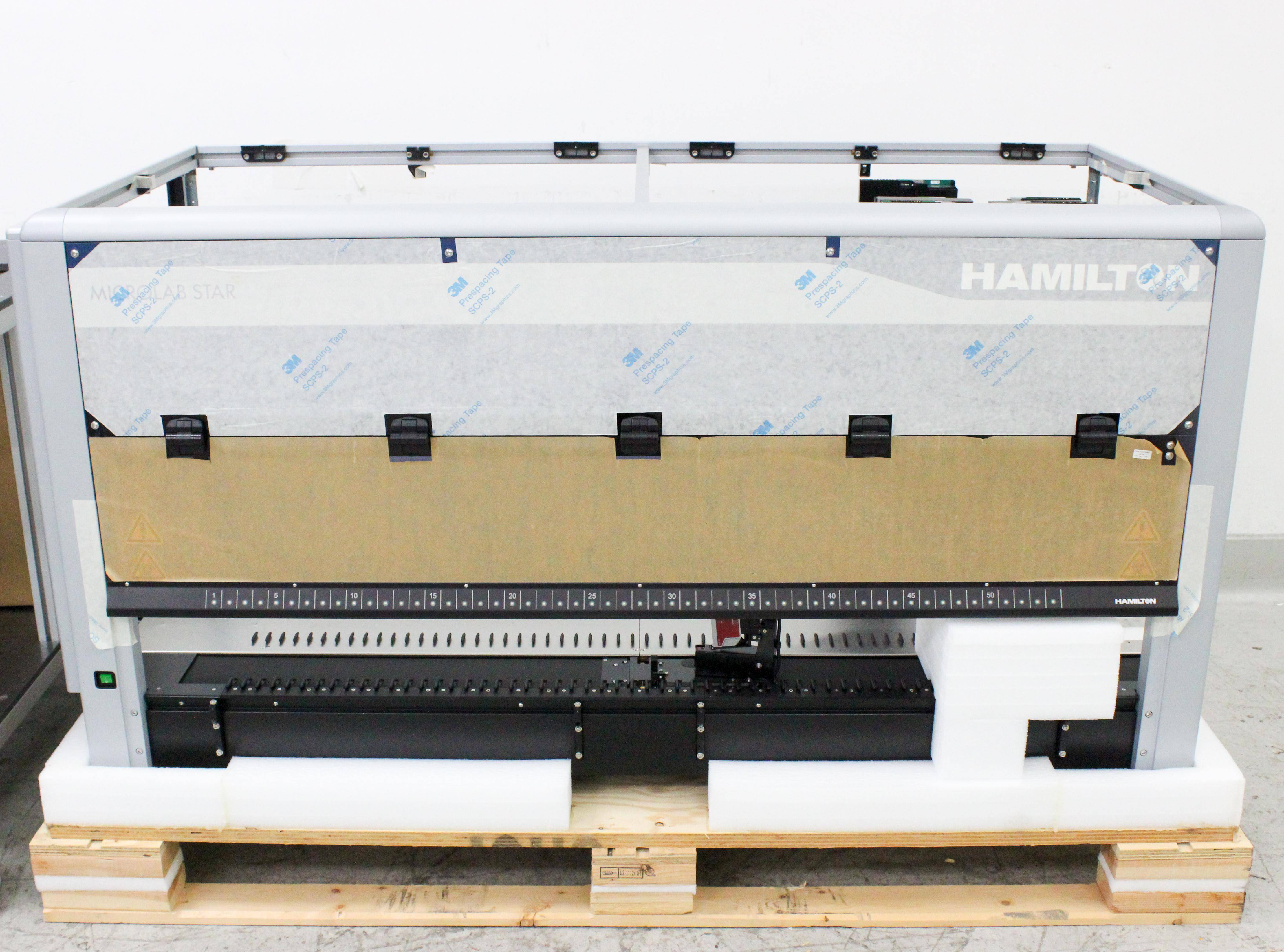

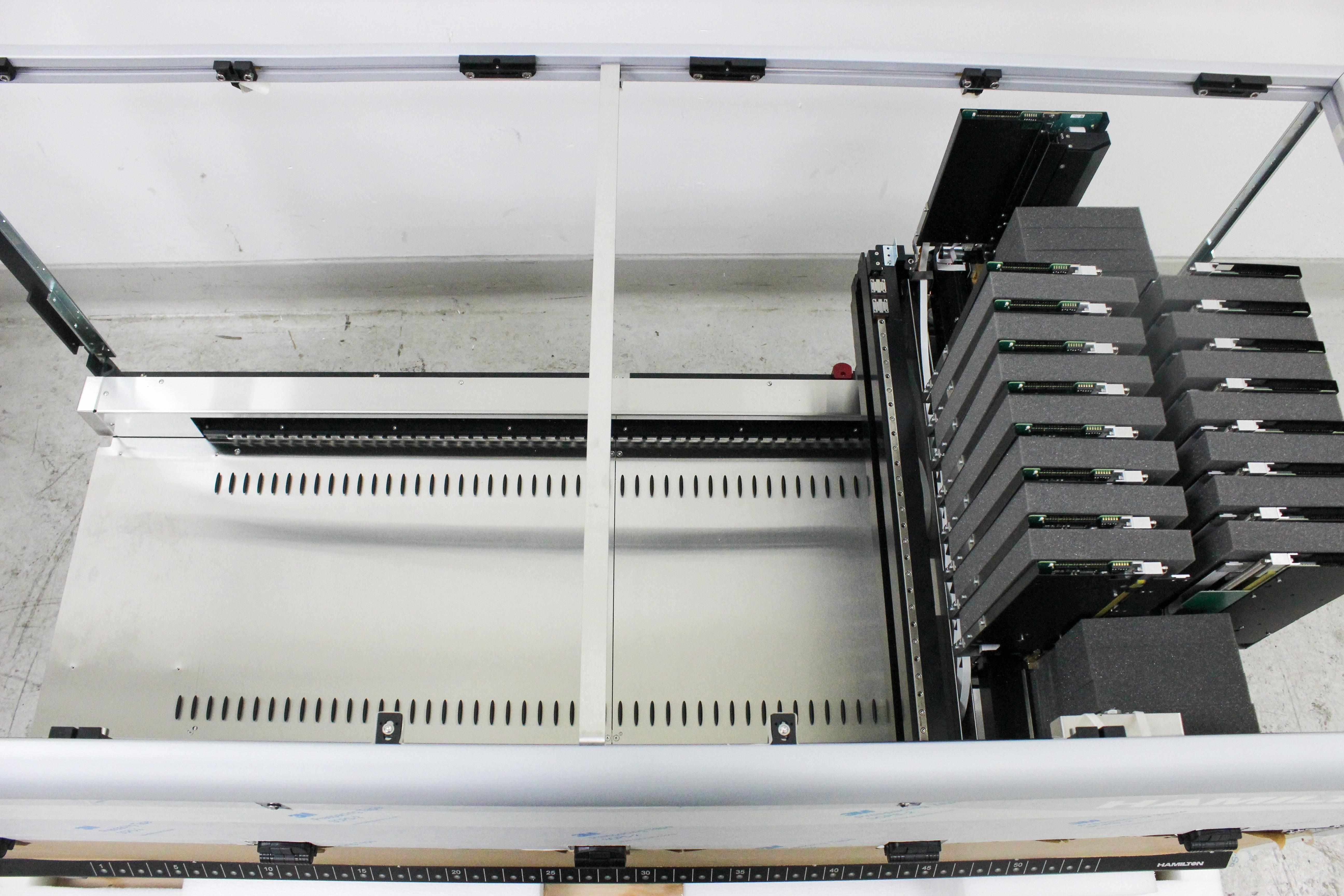

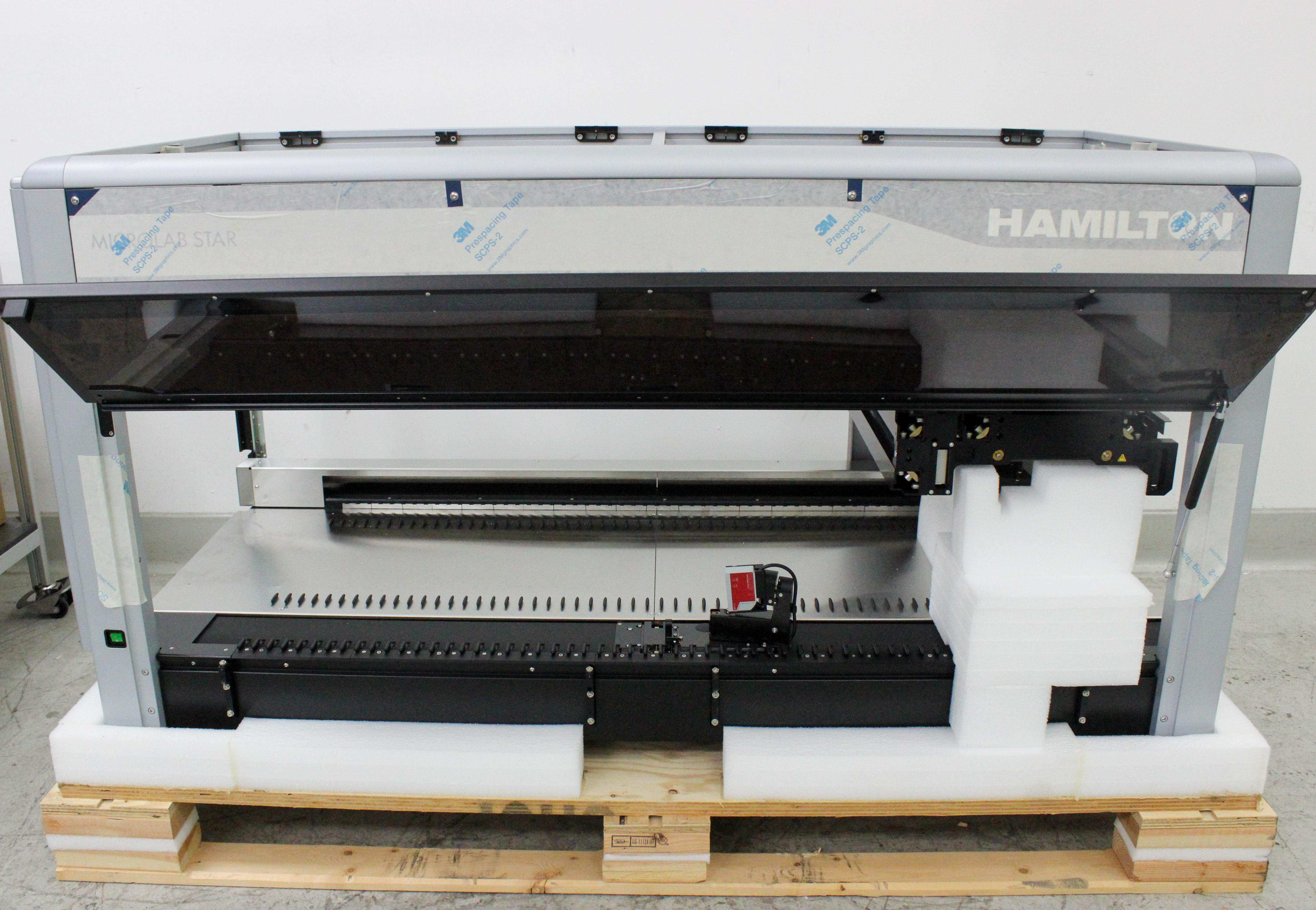

The Hamilton Microlab STAR AL 16 channel with iSWAP gripper offers a versatile solution for high-throughput liquid handling needs. Designed for genomics, proteomics, cell biology, and drug discovery, it boasts up to 16 independent pipetting channels capable of precision transfers up to 1000 µL per channel. The internal Swivel Arm Plate (iSWAP) handler enables precise transport of labware across its modular deck, thus optimizing workflows with minimized manual intervention. Its capacitive and pressure-based liquid level detection ensures reliable aspiration and dispensing even with foaming liquids. The intuitive VENUS software enhances script programming, allowing fine-tuned integration for efficient protocol designs. This setup includes a custom bench and accessories, making it a complete package for laboratories prioritizing processing capacity, precision, and adaptability.
Technician comment

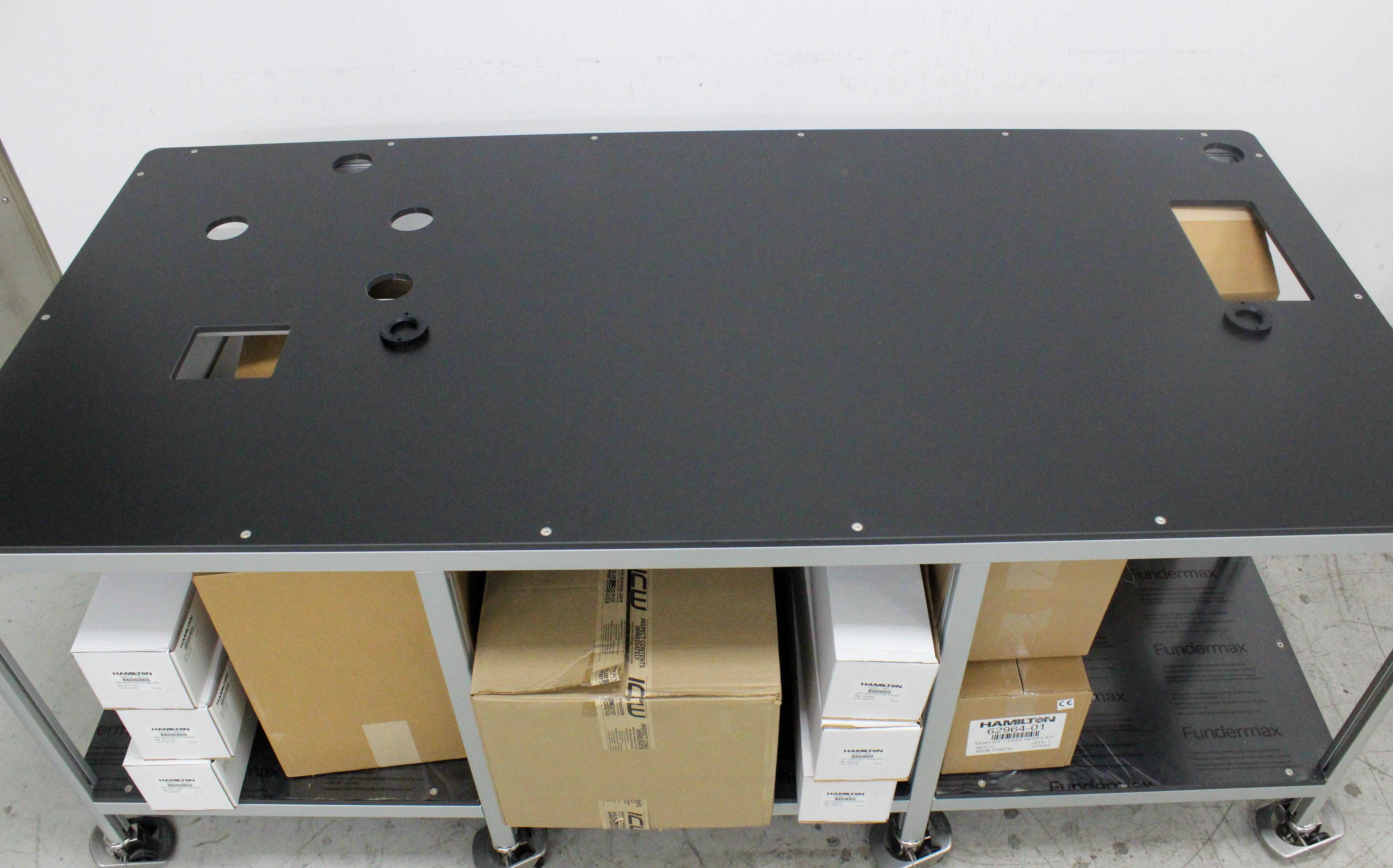

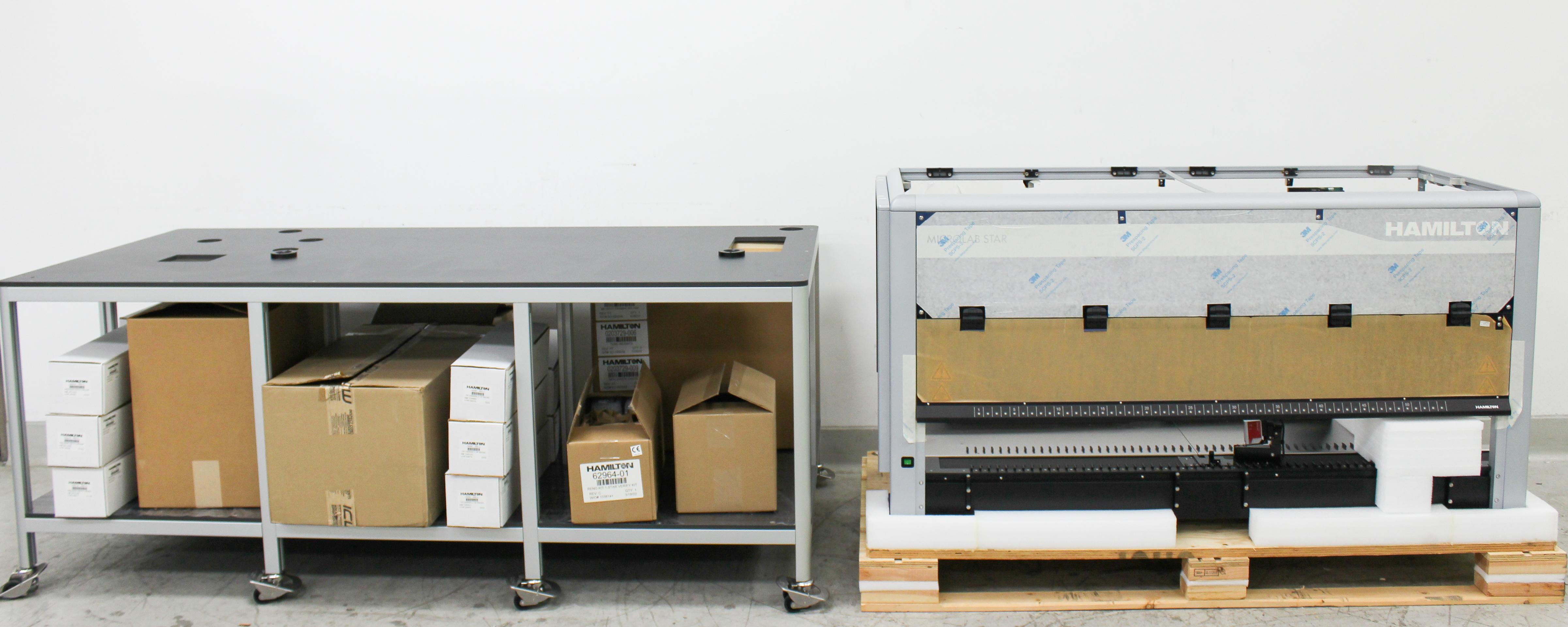

Includes: Microlab STAR AL 16 channel, iSWAP gripper with Custom bench & accessories. Included components: 173002-049 STAR 16 AL iSWAP gripper 173027 ASSY, DECK, STAR, WELDED CHASSIS – 1 EA - 173032 HOUSING ASSY, STAR – 1 EA - 190220 1 SWAP LANDSCAPE – 1 EA - 170320-C01 CHANNEL PAIR, 1000 UL PIPETTING – 8 EA - 173041 ADD-ON ARM, WELD CHASSIS – 1 EA - 911642V4 MODULAR ARM B, 4-12, 16, 96 PR, SW – 1 EA - 911642V4 SW TOOLS BASE PACKAGE V4.5 – 1 EA - Configuration 000178 – Sub-components - OTP-D50012236 LEUZE BC RASTER – 1 EA - 184089 CORE GRIP 1000 UL WASTE BLOCK – 1 EA - 185926 MPH WASTE CHUTE – 1 EA - 186469-R00 PLATE, MOUNTING, WASTE – 1 EA - 186895-R00 TIP CARRIERS, TIP RACKS – 5 EA - 187250-R00 PRECISION TAB PLT CAR, DWP – 5 EA - 187270-R00 PRECISION TAB PLT CAR, MTP – 1 EA - 187405 PLATEBASE, 74 T AP CPAC – 1 EA - 187462 TELESHAKE MAGNETIC SHAKER – 1 EA - 187463 VARIOMAG TELESHAKE – 1 EA - 187800-R00 TUBE WEIGHTS – 6 EA - 187800-R00 NEEDLE, TEACHING, SET OF 8 – 1 EA - 2032739 CUSTOM BENCH – 1 EA - 0201379-00 ADAPTER, USB TO SERIAL 4-PORT – 1 EA -
Key Features

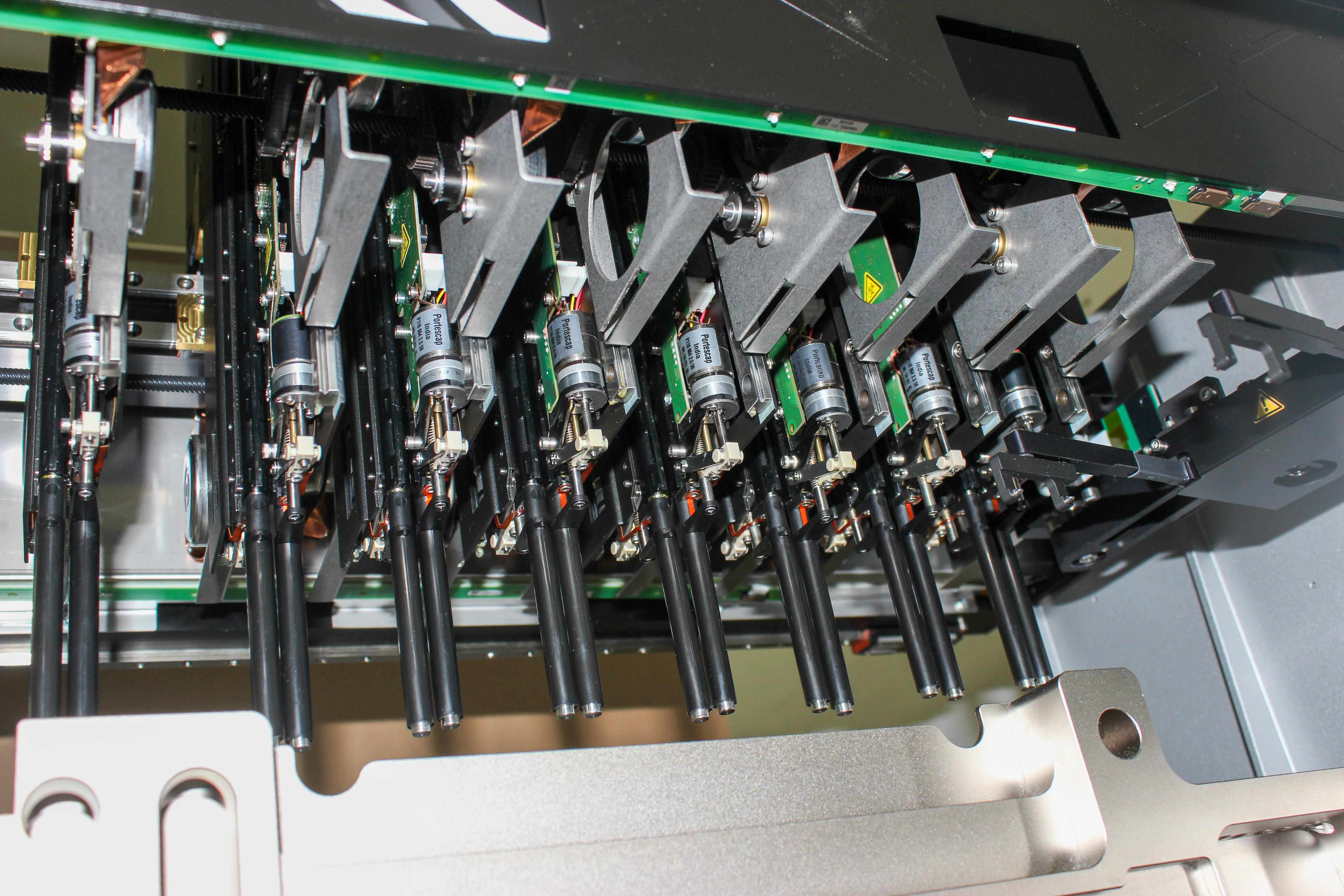

- 16 independent pipetting channels
- Precision pipetting up to 1000 µL per channel
- Modular deck for carriers and accessories
- iSWAP gripper for automated labware transport
- Advanced liquid level detection
- Intuitive VENUS software for protocol design
Specifications
- 16-channel liquid handling system
- Pipetting capacity: Up to 1000 µL per channel
- Modular deck and design for versatile workflows
- iSWAP internal Swivel Arm Plate handler
- Capacitive and pressure-based liquid level detection
- Voltage: 120V/220V, Hertz: 50Hz/60Hz
- Dimensions: 92 x 48 x 103 inches
- Weight: 1300 lb

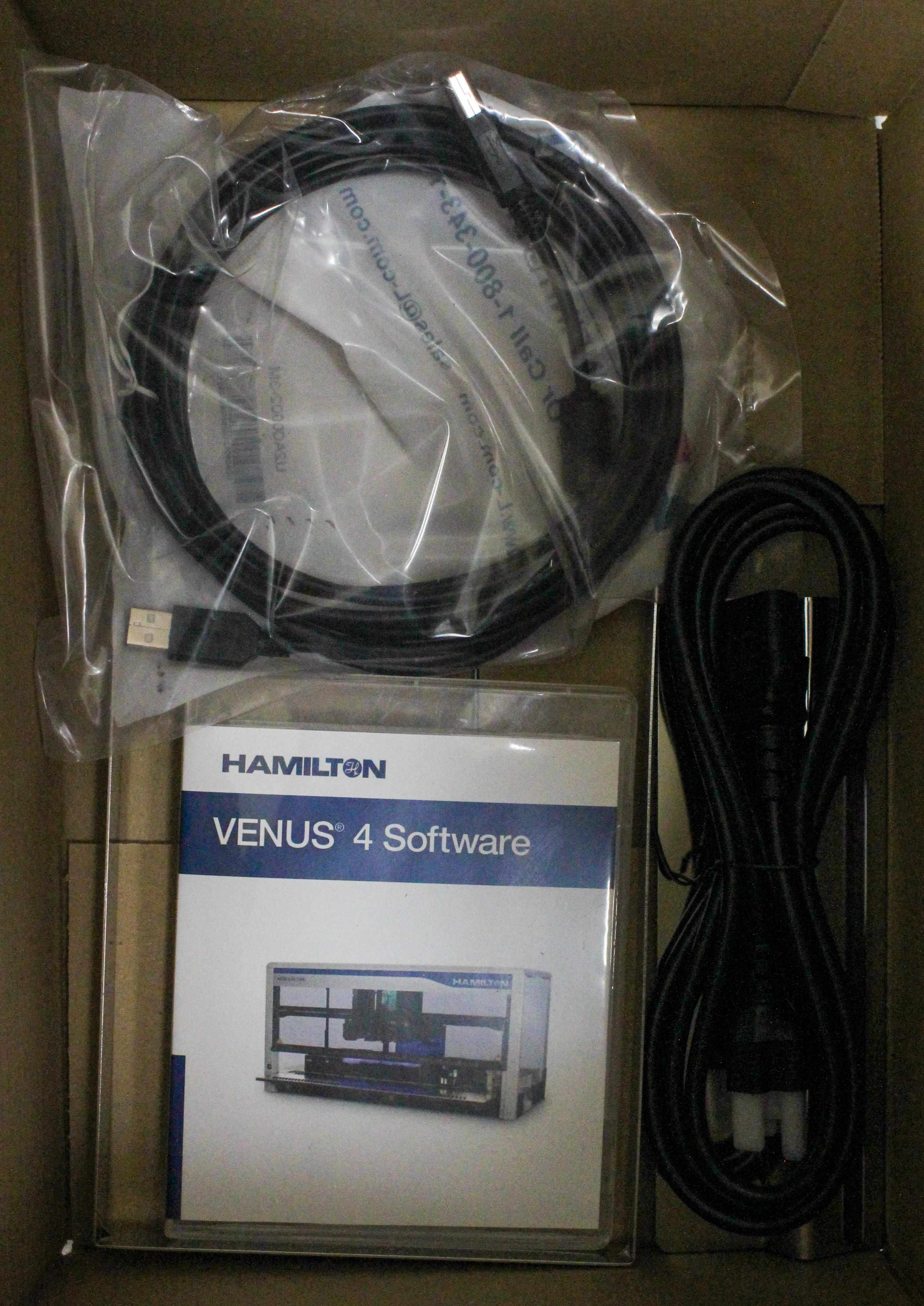

- Includes power/data cables and software CDs/files
Weight
Imperial: 1560.0 Pounds
Metric: 707.6 Kilograms
Shipping Dimensions
Imperial: 110.4 lb x 57.6 lb x 123.6 lb
Metric: 280.42 cm x 146.3 cm x 313.94 cm
Harmonized Code
847982
Harmonized Code Details
Harmonized code 847982 – 'Machines and mechanical appliances having individual functions, not specified or included elsewhere.' This classification is apt for the Hamilton Microlab STAR due to its unique function as an automated liquid handling system with integrated modular design.
