MGI MGISTP-7000RS Sample Transfer System Includes Computer/Software 192x96
MGI
Details
-
CategoryRobotic / Automation
-
Dimension38.0in x 75.0in x 77.0in
-
SerialR230070100200056
-
Shipping TypeFreight
-
Manufacturing2020-12-01
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description

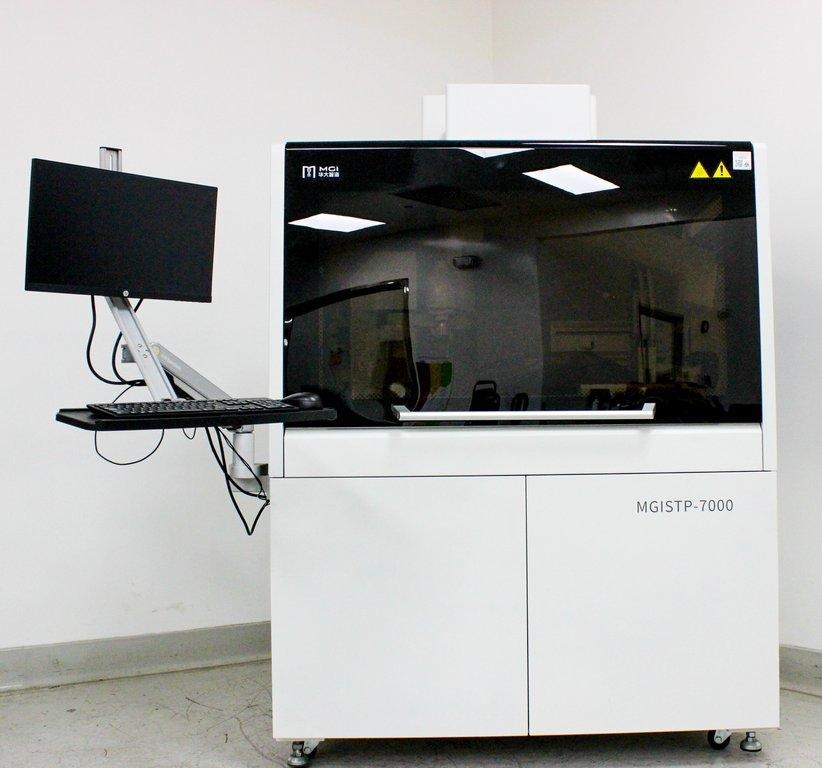

The MGI MGISTP-7000RS Sample Transfer Processing System is a highly efficient automated system designed to streamline sample handling in laboratories. Manufactured in December 2020, this system by MGI integrates functions such as tube decapping, recapping, barcode identification, automated liquid transfer, and negative pressure protection. It is capable of transferring 192 samples to 96-well microplates in just 40 minutes, enhancing nucleic acid detection capabilities significantly. The system uses air displacement for pipetting, with a volume range of 2-1000 μL and remarkable accuracy. Safety is a priority, with two HEPA filters and one UV light ensuring a protected environment. The system supports universal tube compatibility and operates on power specifications of 100-240V, 50/60Hz. With dimensions of 147 cm x 96 cm x 210 cm and a weight of approximately 500 kg, it is suited for labs requiring high productivity with reliable performance.
Technician comment

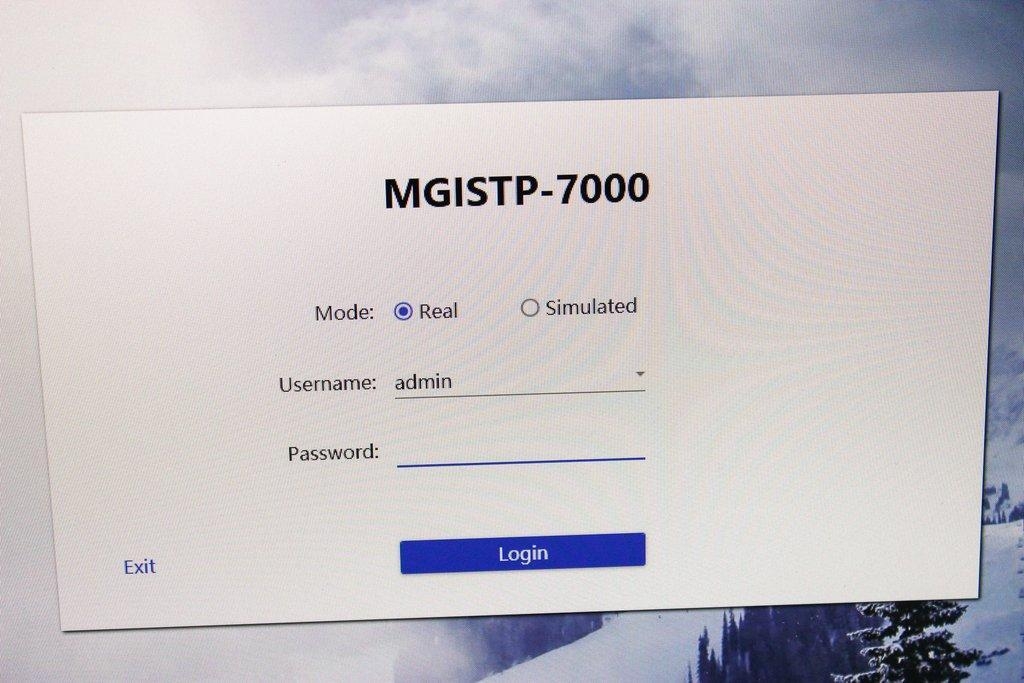

with computer and software
Key Features
- High-throughput automation
- 192 samples to 96-well microplates in 40 minutes
- Tube decapping and recapping
- Barcode identification
- Automated liquid transfer with air displacement
- HEPA-filtration and UV light for safety
- Data integration with ZLIMS system
Specifications
- Throughput: 192 samples/40 mins; one sample in 15 s
- Pipetting Method: Air displacement, liquid level detection
- Volume Range: 2 μL to 1000 μL
- Accuracy: 10 uL: <5%; 100 uL: <2%; 1000 uL<1%
- CV: 10 uL: <±10%; 100 uL: <±5%; 1000 uL: <±2%
- Robot Arm Accuracy: X-Y-Z: ±0.1 mm
- Barcode Scanner: Four 1D Scanner Sensors
- UV Light: 36 W
- Supply/Exhaust Air Filter: ISO5, HEPA 99.995% @0.3 um
- Tube Compatibility: Universal fit, ideal for 5 mL and 10 mL transport tubes
Weight
Imperial: 1320.0 Pounds
Metric: 598.74 Kilograms
Shipping Dimensions
Imperial: 45.6 lb x 90.0 lb x 92.4 lb
Metric: 115.82 cm x 228.6 cm x 234.7 cm
Harmonized Code
847982
Harmonized Code Details
847982 - Machines and mechanical appliances having individual functions not specified or included elsewhere, for the sample handling in laboratories, this harmonized code is most applicable due to the automation and sample processing functions of the equipment.
