Watson Marlow 530U/R IP31 Peristaltic Pump 2200:1 Speed Control Remote Options
Watson Marlow
Details
-
CategoryPump
-
Dimension16.0in x 24.0in x 10.0in
-
Serial210526-342259
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

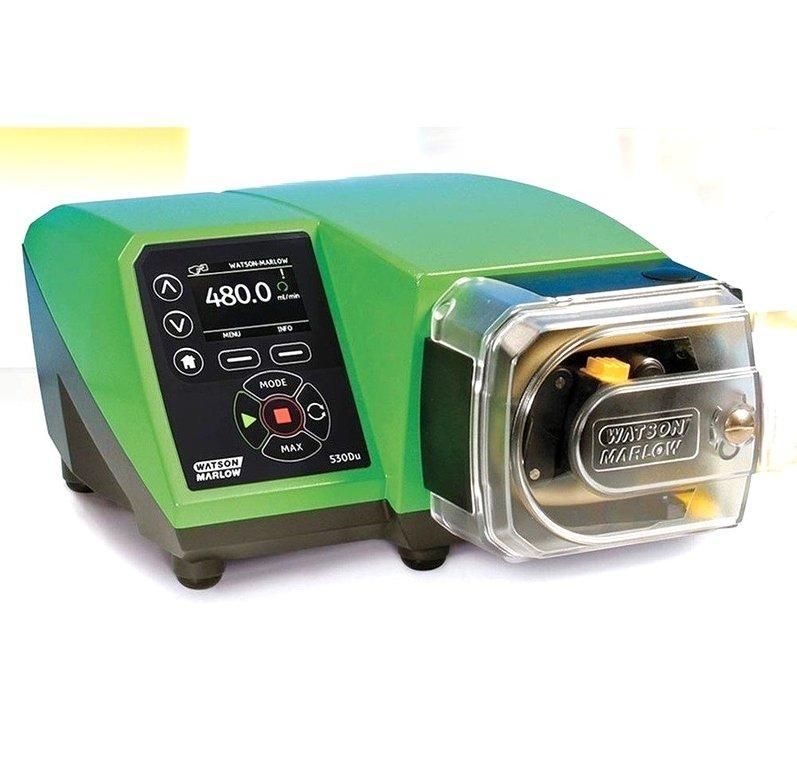

The Watson Marlow 530U/R IP31 Peristaltic Pump offers exceptional precision and ease of use with an intuitive human-machine interface (HMI). Perfectly suited for industrial lab environments, the pump isolates fluids within tubing, maintaining product integrity. Featuring a flow rate range from 0.0006 GPH (0.004 ml/min) to 55.48 GPH (3.5 L/min) and a comprehensive speed control range of 2200:1, it accommodates a variety of pumpheads and offers dual voltage, underlining its versatile control options: RS232, RS485, PROFIBUS, PROFINET, SCADA, and EtherNet/IP. Ideal for laboratories requiring efficient temperature management, operational within 5 to 40°C environments. The pump's robust design ensures long service life, making it an ideal investment for precise fluid handling.
Technician comment

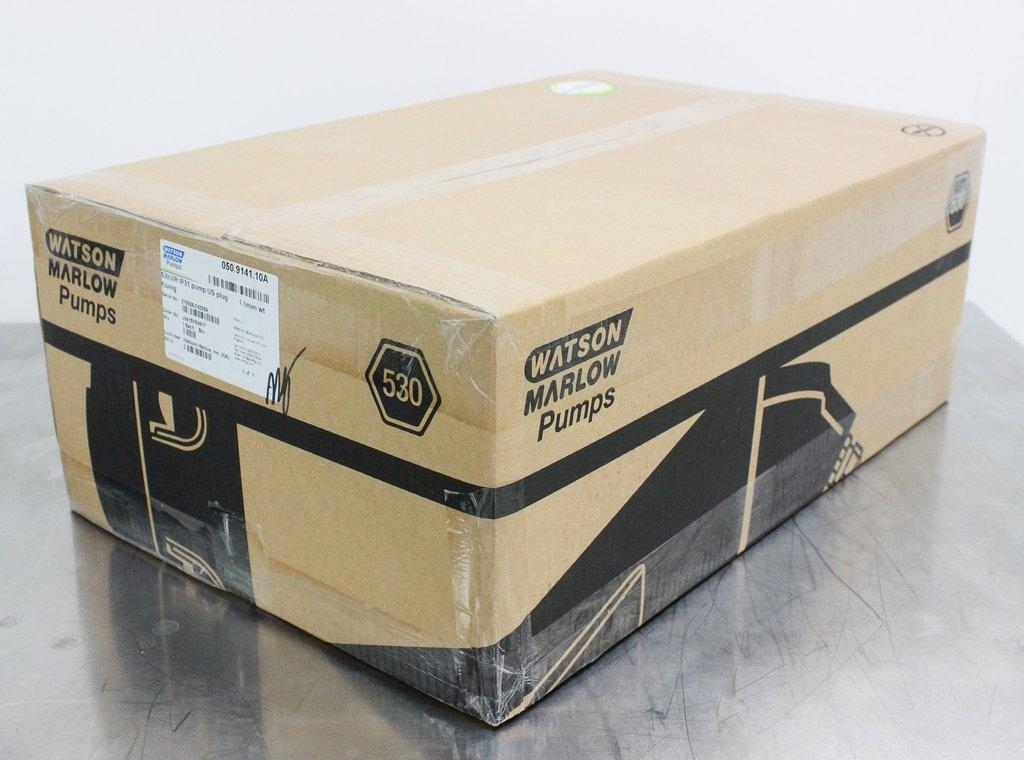

NEW in box
Key Features
- Intuitive HMI with a color display
- Complete fluid isolation for maintained integrity
- Wide flow rate range: 0.0006 to 55.48 GPH
- 2200:1 speed control ratio
- Dual voltage 115V/230V, 50/60Hz
- Remote control: RS232, RS485, PROFIBUS, PROFINET, SCADA, EtherNet/IP
- Operates in temperatures ranging from 5°C to 40°C
Specifications
- Max Flow Rate: 3500 ml/min (56 USGPH)
- Min Flow Rate: 0.004 ml/min (0 USGPH)
- Drive Speed Control Ratio: 2200:1
- Operating Temperature: 5 to 40°C (40 to 104°F)
- Drive Power Supply: 115/230 V, 135 VA
- Drive Ingress Protection: IP31, IP66
- Compatible Tubing Bore Sizes: 0.5 to 9.6 mm
Weight
Imperial: 32.4 Pounds
Metric: 14.7 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 28.8 lb x 12.0 lb
Metric: 48.77 cm x 73.15 cm x 30.48 cm
Harmonized Code
84138100
Harmonized Code Details
84138100 - Pumps for liquids, whether or not fitted with a measuring device. This code fits the Watson Marlow 530U/R IP31 due to its peristaltic function and included measuring capabilities for lab applications.
