Cleaver Brooks CRSS-45 2P Condensate Return System 12-135 Gallon Capacity
Cleaver Brooks
Details
-
CategoryFacility
-
Dimension42.0in x 42.0in x 50.0in
-

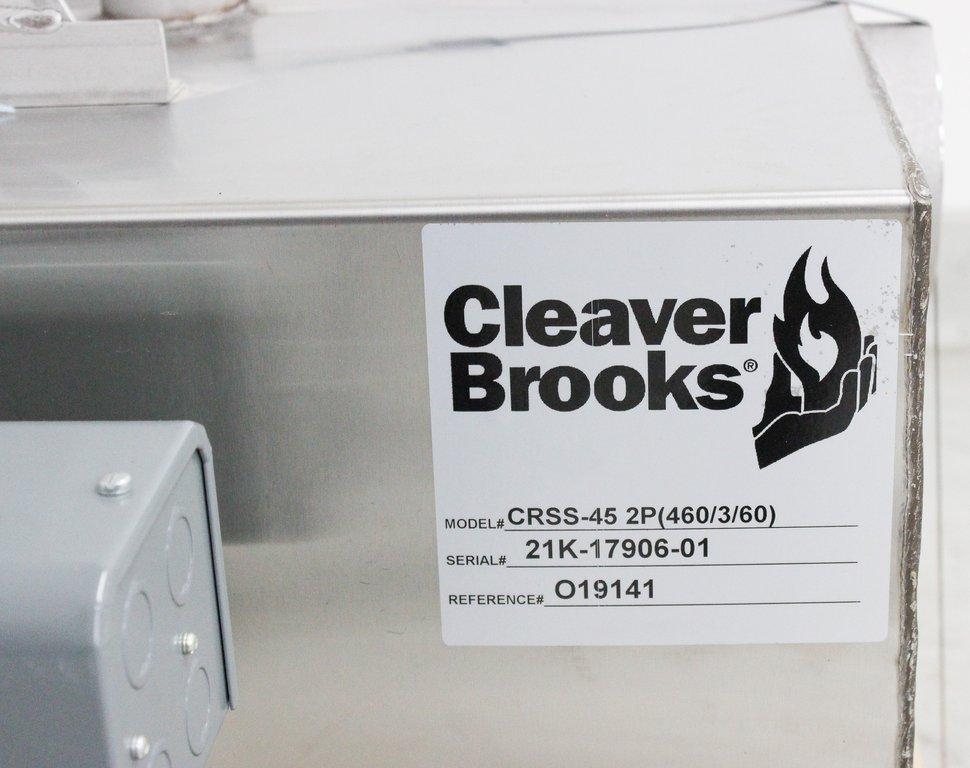

Serial21K-17906-01
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz460V / 60Hz US
Description
The Cleaver Brooks CRSS-45 2P Condensate Return System is a reliable and efficient solution designed to enhance energy efficiency, reduce chemical and make-up water costs, and meet environmental regulations by returning condensate back to the system. Featuring a durable stainless steel vertical flange mounted centrifugal pump design, it is available in simplex or duplex configurations with a tank capacity of 12-135 gallons. Built with 304 stainless steel receiver tanks and rated for 200°F condensate, it includes mechanical seals capable of handling temperatures up to 250°F. The system operates on 460V/60Hz and does not include control panels or any additional peripherals. The CRSS-45 2P is suitable for a variety of applications including industrial processes, process steam, building heat, sterilization, and humidification in healthcare settings.
Key Features
- Simplex or Duplex Design
- 12-135 Gallon Capacity
- Stainless Steel Vertical Flange Mounted Centrifugal Pumps
- 250°F Mechanical Seals
- Reduces Chemical and Make-up Water Costs
Specifications
- Model: CRSS-45 2P
- Voltage: 460V, Frequency: 60Hz
- Temperature Handling: Up to 250°F
- Capacity: 12-135 Gallons
- Construction: 304 Stainless Steel Tanks
Weight
Imperial: 420.0 Pounds
Metric: 190.51 Kilograms
Shipping Dimensions
Imperial: 50.4 lb x 50.4 lb x 60.0 lb
Metric: 128.02 cm x 128.02 cm x 152.4 cm
Harmonized Code
841989
Harmonized Code Details
The chosen code 841989 matches other mechanical appliances for treating fluids or gases. The system's features and industrial applications closely align with this code.
