Malvern ZEN 1690 Size Analyzer 0.3nm-5micron 21CFR 90 Degree Scattering
Malvern
Details
-
CategoryAnalytical
-
Dimension23.0in x 12.0in x 10.0in
-

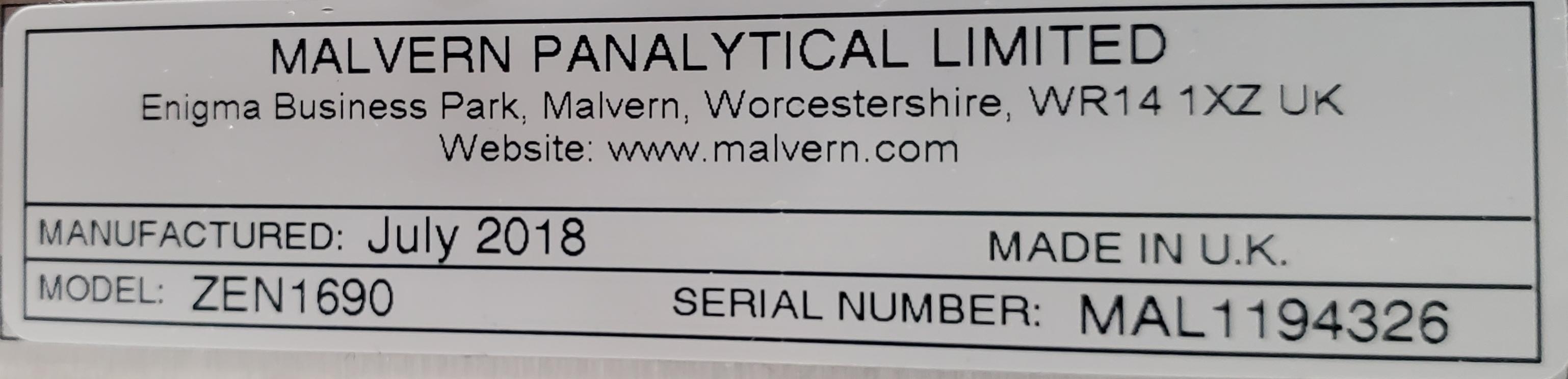

SerialMAL1194326
-
Shipping TypeFedEx Ground
-
Manufacturing2018-01-01
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The 2018 Malvern ZEN 1690 Size Analyzer is designed to measure particle size and molecular weight using 90-degree scattering optics, suitable for laboratories working with colloidal dispersions, nanoparticles, and protein solutions. Although used and unable to be fully tested, this analyzer powers on and conducts basic tests, exhibiting no known issues. With features like a measurement range from 0.3nm to 5 microns and a molecular weight measurement down to 9,800Da, it offers versatile compatibility with additional software options for expanded research capabilities. This model is valued for its comprehensive use in 94 of the world's top universities, showcasing its credibility. An autocorrelation function enhancer boosts productivity, validated by a research-grade correlator. This unit supports advanced automation for trend measurements, potentially increasing throughput within your lab. The compact design integrates multiple technologies, making it a robust choice for precision and reliability.
Key Features
- Size measurement from 0.3nm to 5 microns
- Molecular weight measurement down to 9,800Da
- Quality Factor and Expert Advice System
- 21CFR part 11 ER/ES compliant
- Automation capabilities with autotitrator
- Alternative laser option for diverse samples
- Extended temperature range option to 120C
Specifications
- Parameters Measured: Size, Molecular weight, A2
- Temperature Control Range: 0C to 90C +/- 0.1C
- Standard Laser: 4mW, 633nm
- Correlator Range: 25ns to 8000s, max 4000 channels
- Minimum Sample Volume: 20L
- Molecular Weight Range: <1000Da - 2 x 107 Da
- Automation: Autotitrator trend measurement support
- Operating Voltage: 100-240V, 50/60Hz
Weight
Imperial: 54.0 Pounds
Metric: 24.49 Kilograms
Shipping Dimensions
Imperial: 27.6 lb x 14.4 lb x 12.0 lb
Metric: 70.1 cm x 36.58 cm x 30.48 cm
Harmonized Code
902750
Harmonized Code Details
Harmonized code 902750 - Instruments and apparatus for physical or chemical analysis. This code is suitable as the ZEN 1690 is an advanced instrument used for analyzing particle size and molecular characteristics.
