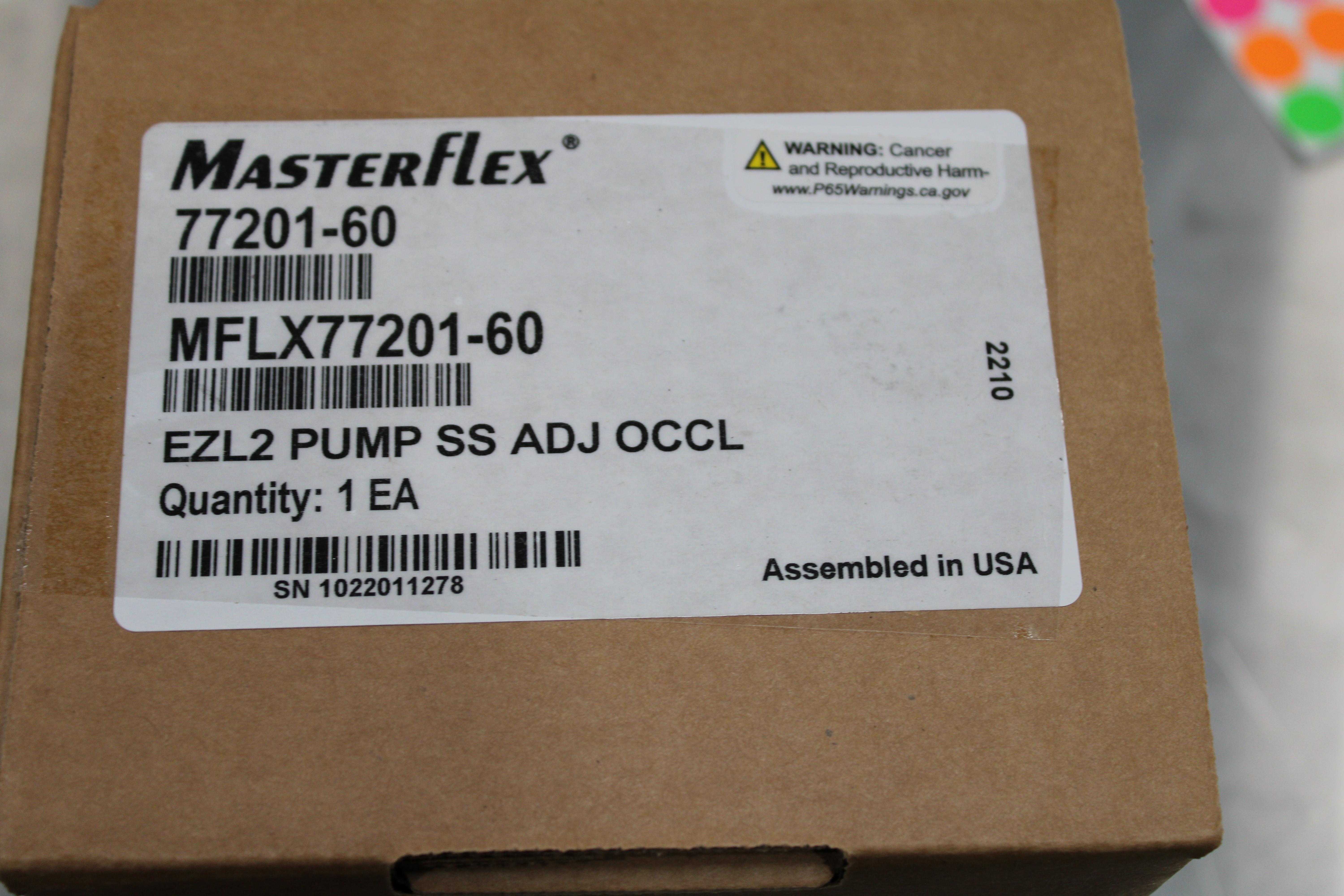

MasterFlex 77201-60 Pump Head for Multichannel Precision with Adjustable Occlusion
MasterFlex
Details
-
CategoryPump
-
Dimension5.0in x 4.0in x 5.0in
-
Serial1022011278
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The MasterFlex 77201-60 Easy-Load II Pump Head is a precision instrument designed for seamless fluid transfer, offering high performance and mechanical stability. This model is fully functional and ready for use, featuring an adjustable occlusion and a four-roller rotor that enhances pressure performance while reducing pulsation. With its automatic tubing retention system and compatibility with multiple tubing sizes (L/S 13, 14, 16, 17, 18, 25), it enables efficient operation without requiring removal from the drive. The pump head is stackable, making it ideal for multichannel applications in various laboratory settings such as chemical processing, biotechnology, and medical research. Its compact design optimizes space, while the stainless steel rotor and PPS housing ensure durability. Suction lift capability of up to 8.8 meters and a maximum flow rate of 2300 ml/min provide robust operational capabilities. Ideal for laboratories requiring precise fluid handling solutions.
Key Features
- Automatic tubing retention
- Compatible with L/S Precision tubing sizes
- Four-roller rotor for enhanced pressure performance
- Adjustable occlusion for pressure control
- Stackable for multichannel applications
Specifications
- Model: 77201-60
- Rollers: 4
- Max. flow rate: 2300 ml/min
- Housing material: PPS
- Rotor Material: Stainless Steel
- Gear ratio: 1:1
- No. of Channels: 1
- Open-head sensor: No
- Optimum RPM range: 0.02 - 600 rpm
- Pump series: L/S
- Suction lift: 8.8 m (29 ft)
- Tubing sizes accepted: L/S 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18
- Volume per revolution: L/S 13 tubing 0.06 ml, L/S 14 tubing 0.21 ml, L/S 16 tubing 0.8 ml, L/S 17 tubing 2.8 ml, L/S 18 tubing 3.8 ml, L/S 25 tubing 1.7 ml
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 6.0 lb x 4.8 lb x 6.0 lb
Metric: 15.24 cm x 12.19 cm x 15.24 cm
Harmonized Code
841330
Harmonized Code Details
Harmonized Code 841330: Liquid pumps for liquids, whether or not fitted with a measuring device. Classified based on its function as a pump head designed for precise fluid transfer, commonly used in laboratory and industrial applications.
