Quantek Instruments 906 Gas Analyzer CO2 - Accurate CO2 Level Analysis
Quantek Instruments
Details
-
CategoryAnalytical
-
Dimension11.0in x 10.0in x 7.0in
-

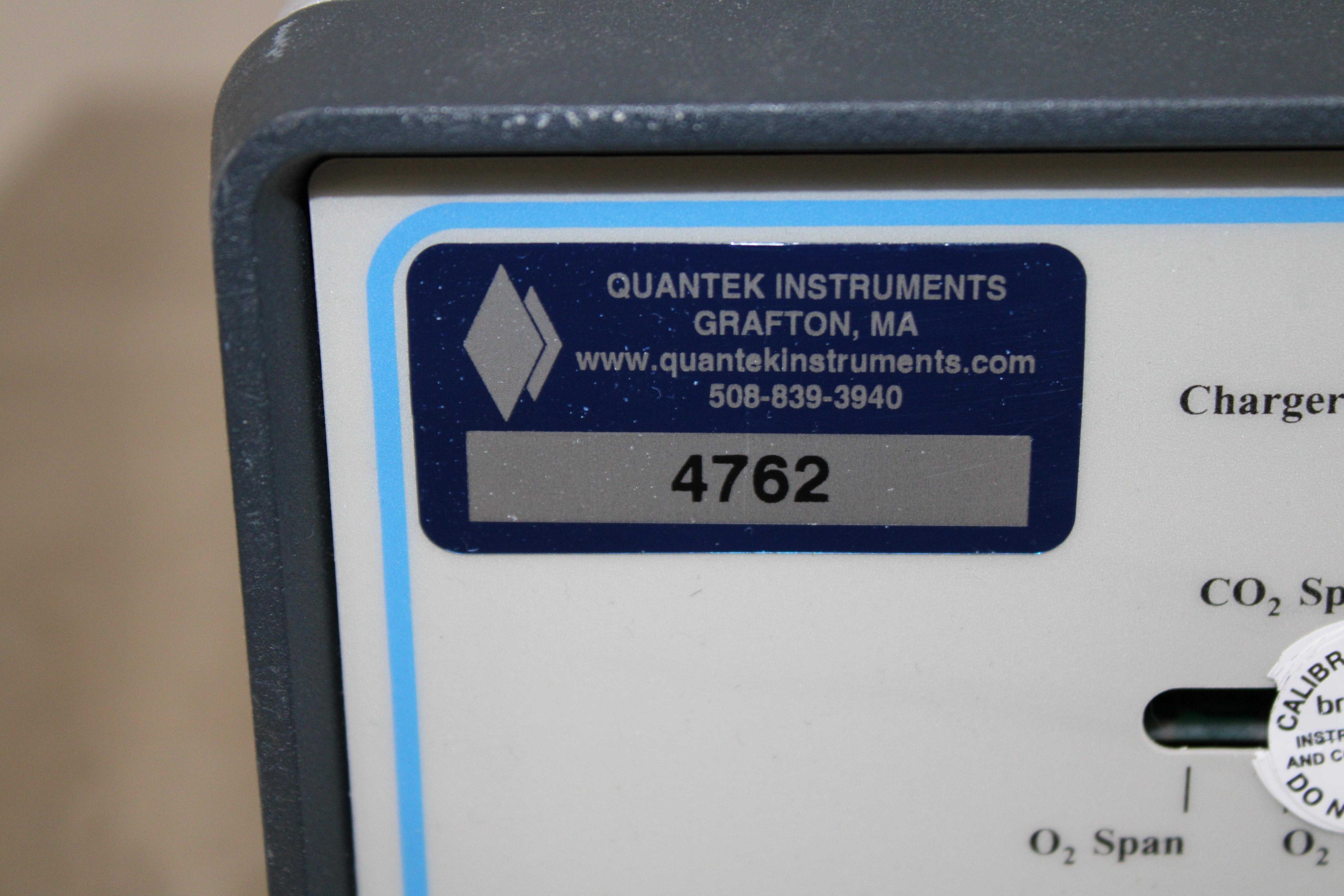

Serial4762
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

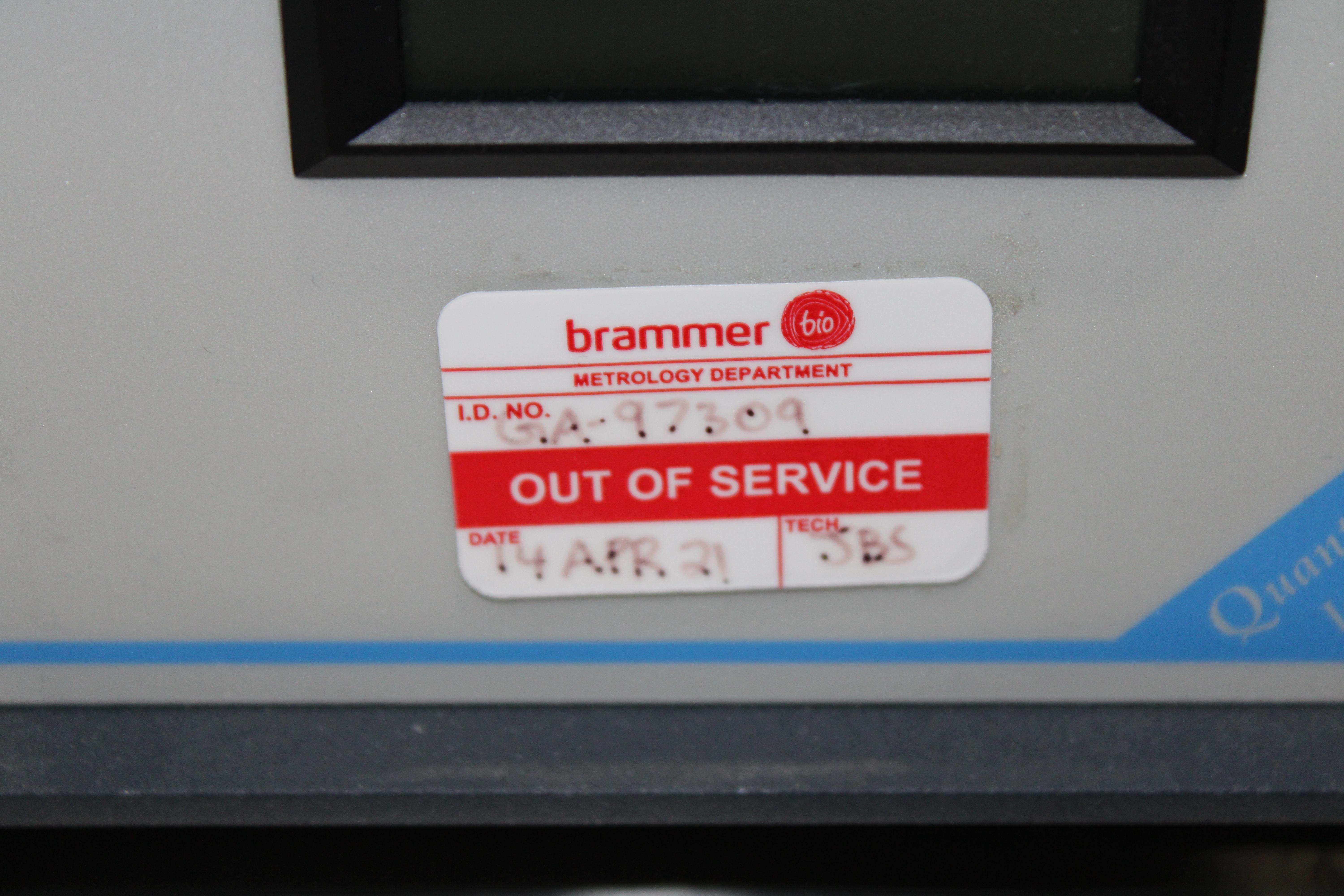

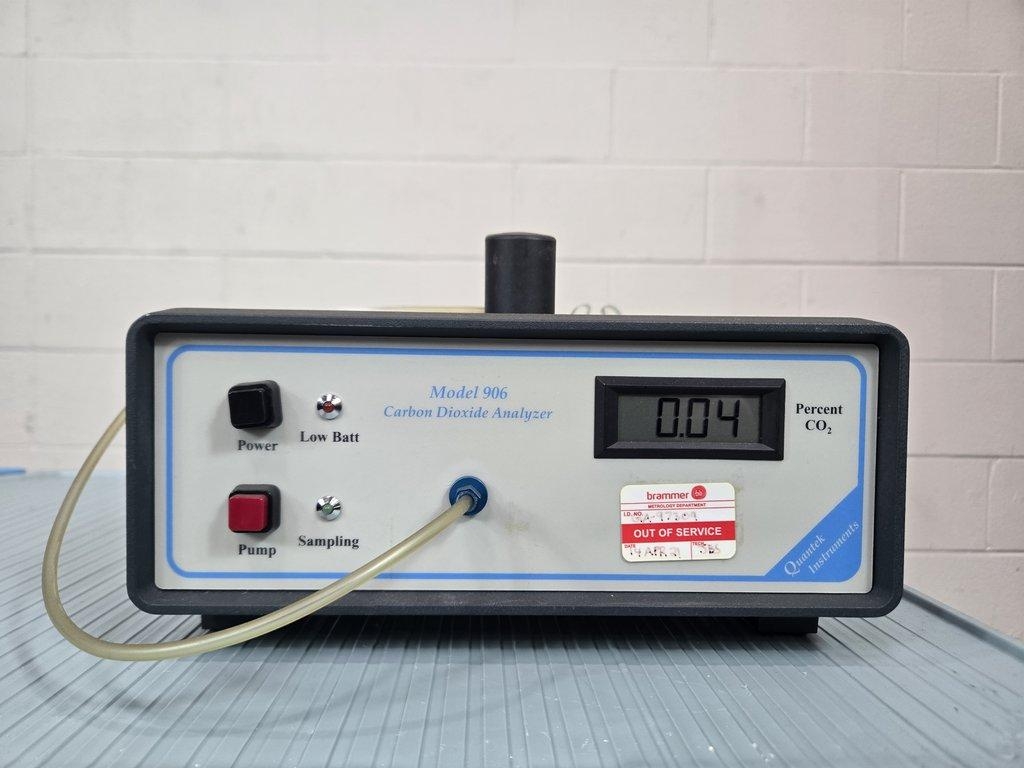

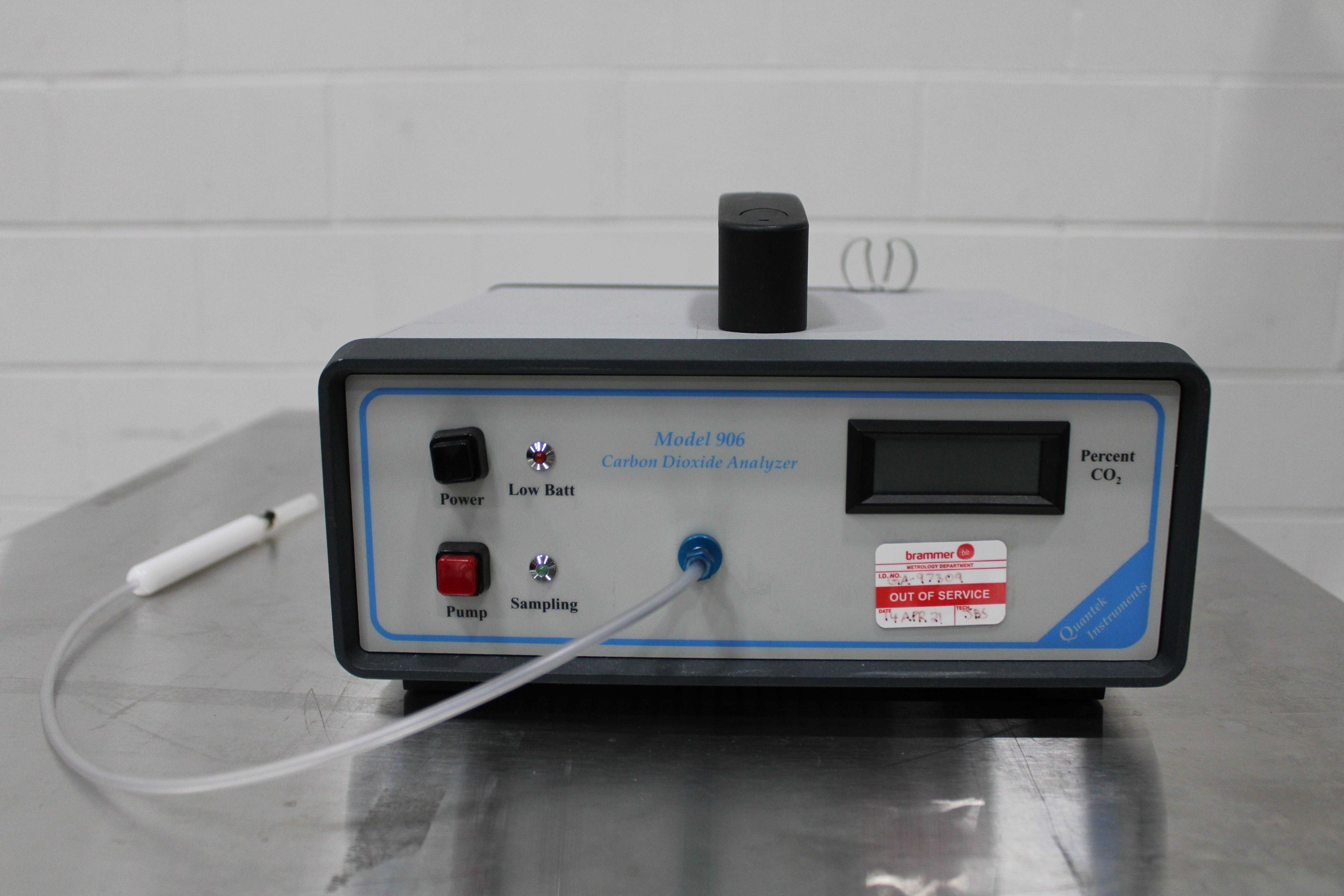

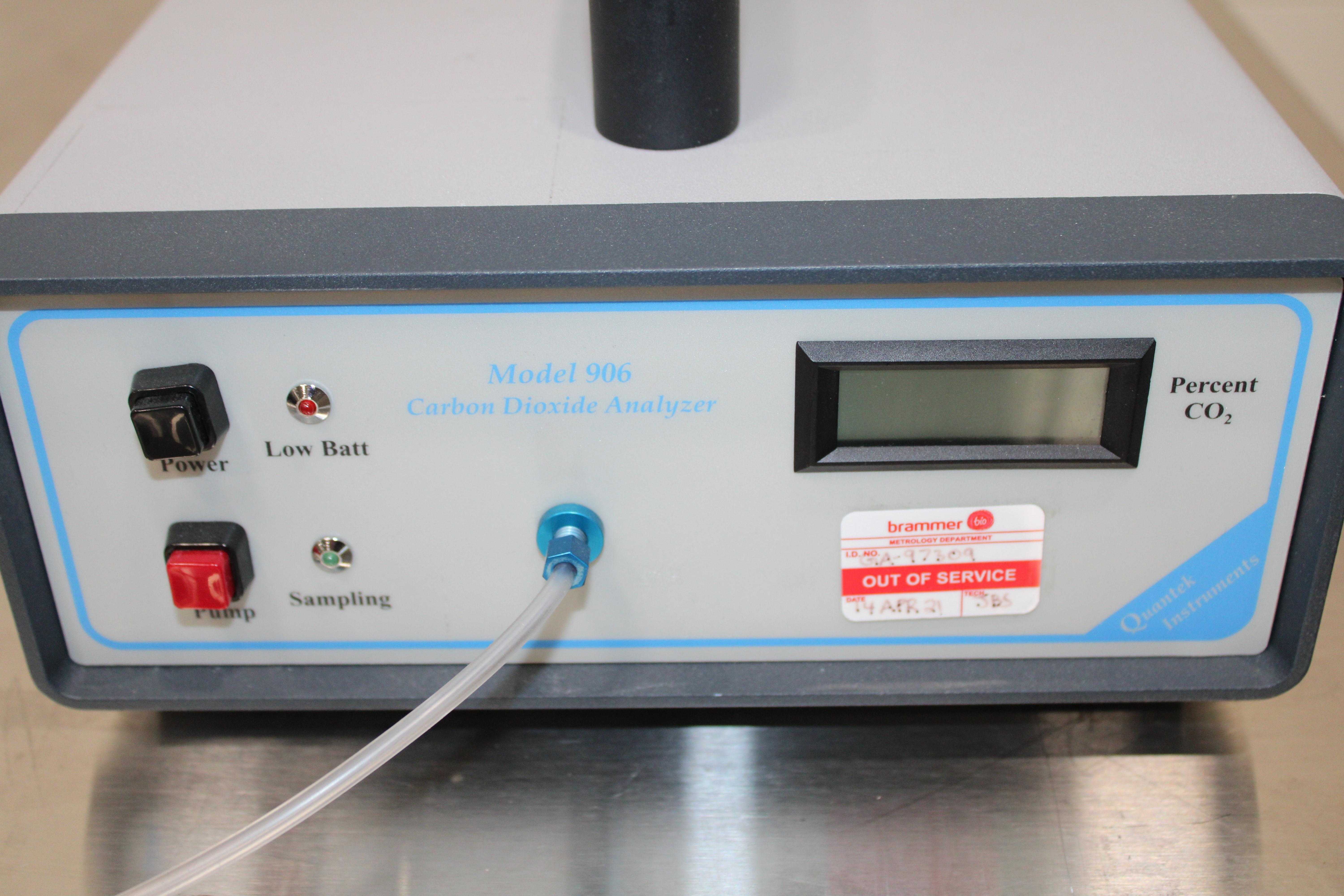

The Quantek Instruments Model 906 CO2 Analyzer is a preowned device made in the United States, designed for both continuous and spot measurement of carbon dioxide levels across a wide range. It allows for measurement ranges from 0-5,000ppm to 0-100% vol/vol. The device operates efficiently with a flow rate of 5cc/min to 1000 cc/min and an optional internal pump makes sample gas introduction versatile. A solid-state infrared sensor equipped with dual-wavelength NDIR measurement ensures accuracy by reducing drift, and an internal moisture trap filter protects against sample moisture. Additional features include Vdc or 4-20mA output options and the potential for a complete data logging solution. Despite cosmetic wear and the inability to perform full testing, the unit powers on, passes basic tests, and has no known functionality issues.
Key Features
- Wide measurement range: 0-5,000ppm to 0-100% vol/vol
- Dual-wavelength NDIR measurement principles
- Internal moisture trap filter for sample protection
- Solid-state infrared sensor with no moving parts
- Optional internal pump for sample gas introduction
- Vdc or 4-20mA output options for data collection
- Supports data logging solution with export capabilities
Specifications
- Measurement Ranges: 0-5,000ppm, 0-10,000ppm, 0-25,000ppm, 0-20%, 0-100% vol/vol
- Sample Flow Rate: 5cc/min to 1000 cc/min
- Sensor Type: Dual-wavelength NDIR solid-state infrared
- Response Time: Results in 15-20 seconds
- Operational Pressure: Atmospheric
- Battery: Optional 12 Vdc for up to 8 hours
- Charging: 100-240V international outlet compatible
- Output: Vdc or 4-20mA linear to concentration displayed on LCD
Weight
Imperial: 7.2 Pounds
Metric: 3.27 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 12.0 lb x 8.4 lb
Metric: 33.53 cm x 30.48 cm x 21.34 cm
Harmonized Code
9027.10.20
Harmonized Code Details
9027.10.20 - Instruments and apparatus for measuring or checking gases or liquids; for CO2 detection. Selected based on the fact that this code covers apparatus for gas measurement, specifically carbon dioxide as with the Quantek Instruments 906.
