Lauda Ultracool Circulation Chiller -15C to 50C Industrial Process Used
Lauda
Details
-
CategoryChiller / Heater
-
Dimension42.0in x 26.0in x 42.0in
-

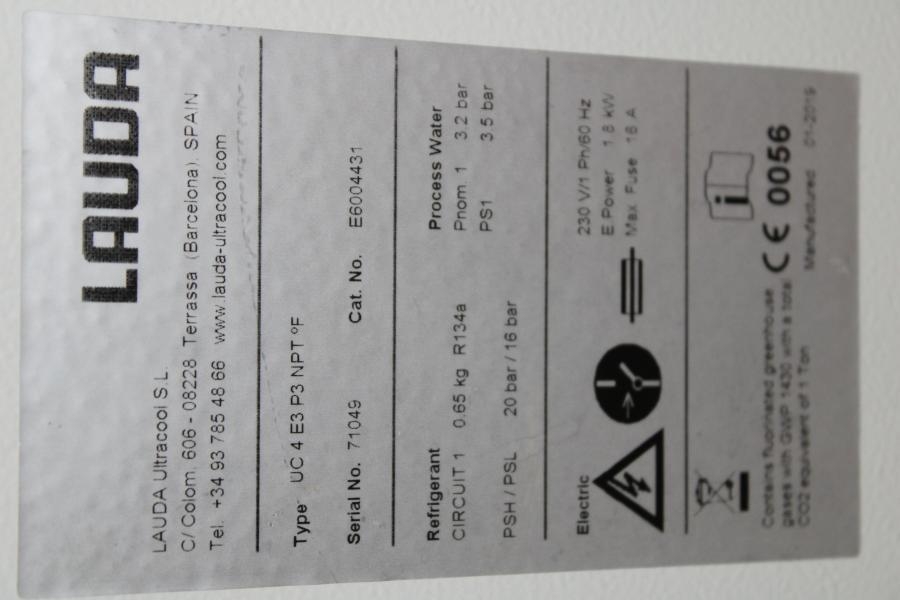

Serial71049
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 60Hz US
Description

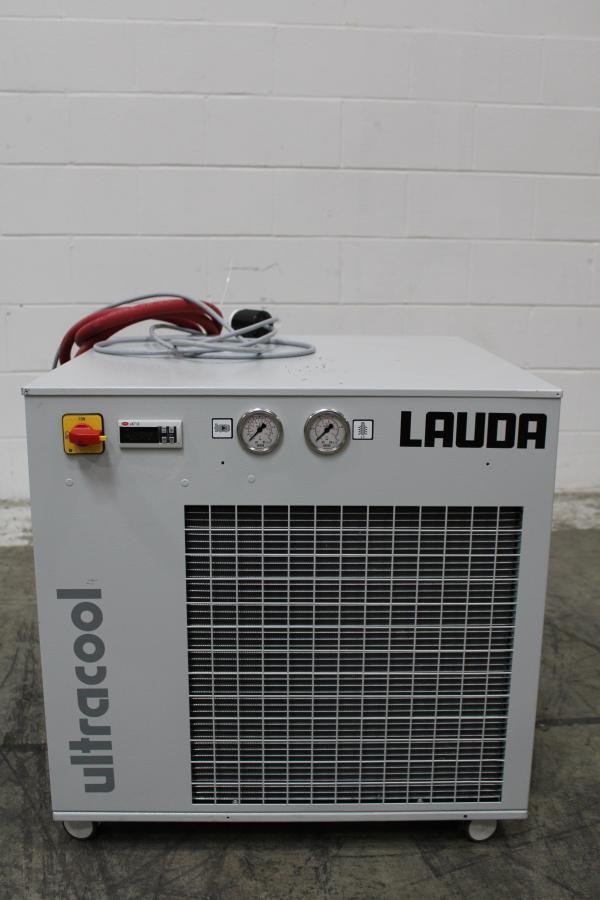

The Lauda Ultracool Circulation Chiller is an industrial-grade chiller designed for robust performance in varying ambient temperatures ranging from -15°C to 50°C. This used chiller, model Ultracool Circulation Chiller -15C to 50C, has been physically inspected and powers on without any indication of malfunction, though it has not been fully tested. It features a 1-line LED display for temperature readings, user-friendly menu guidance, and electronic 2-point temperature control with hysteresis. Its design incorporates safety elements for refrigerant pressure and tank level, an industrial block pump with high pressure and flow rate, and an insulated water tank made of polyethylene. Additional capabilities include a start-up system for low ambient temperatures, antifreeze protection thermostat, and integrated motor fan speed regulation. Operated with refrigerant R 134a, this chiller is ideal for industrial applications requiring stable temperature control.
Key Features
- Operation temperature range: -15°C to 50°C
- User-friendly 2-key menu operation
- Electronic 2-point temperature control
- Pump pressure max: 3.4 bar, flow max: 42 L/min
- Insulated water tank with polyethylene
- Integrated motor fan speed regulation
- Operation with refrigerant R 134a
Specifications
- Working temperature max: 25°C
- Working temperature min: -5°C
- Ambient temperature min: -15°C
- Ambient temperature max: 50°C
- Cooling output at 25°C: 6.9 kW
- Pump flow nominal: 13.8 L/min
- Dimensions: 640x640x635 mm (WxDxH)
- Noise level: 50.4 dB (A)
Weight
Imperial: 316.8 Pounds
Metric: 143.7 Kilograms
Shipping Dimensions
Imperial: 50.4 lb x 31.2 lb x 50.4 lb
Metric: 128.02 cm x 79.25 cm x 128.02 cm
Harmonized Code
841869
Harmonized Code Details
Harmonized code 841869 applies to refrigerating or freezing equipment, essential for facilitating industrial process cooling with this type of chiller.
