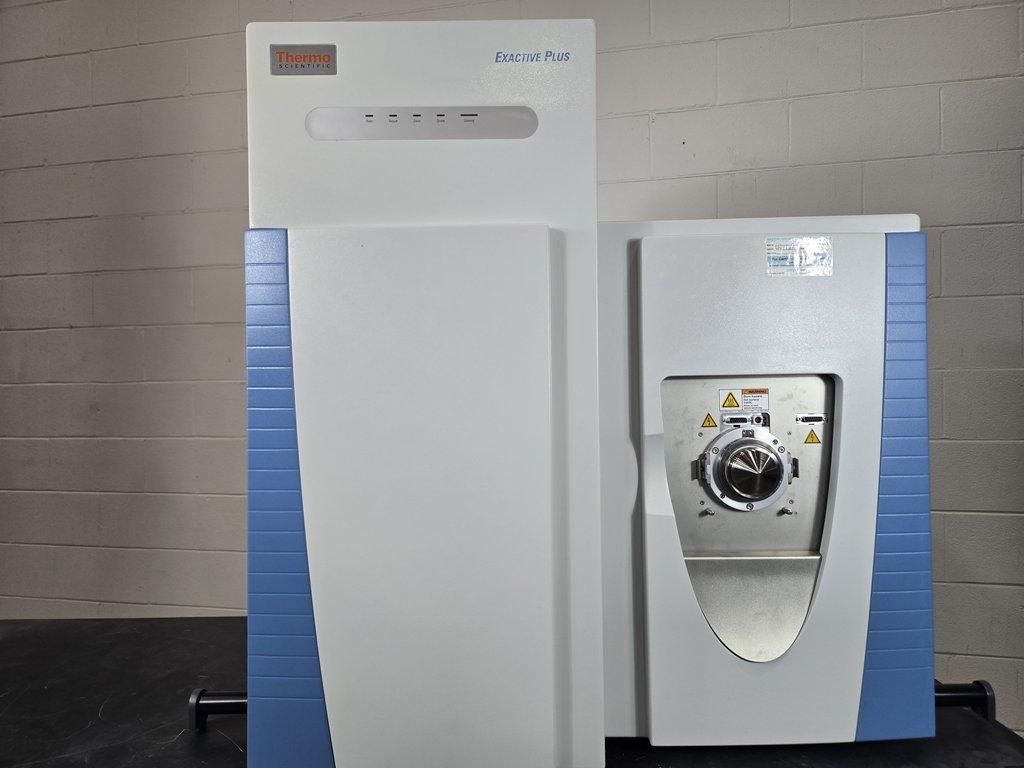

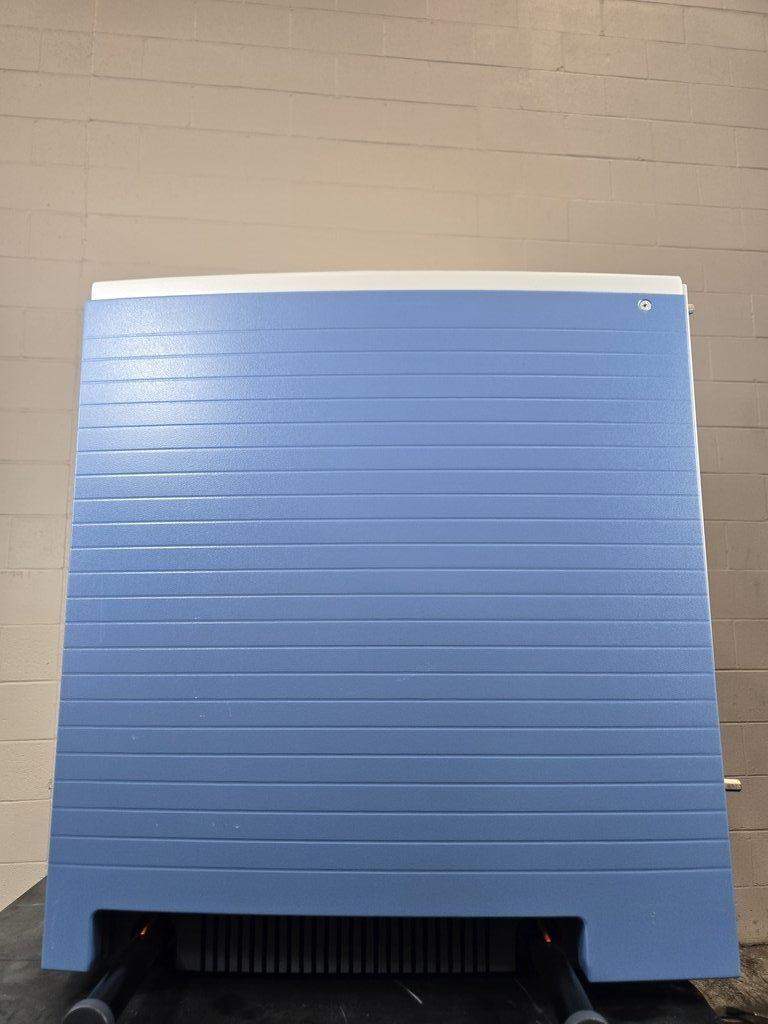

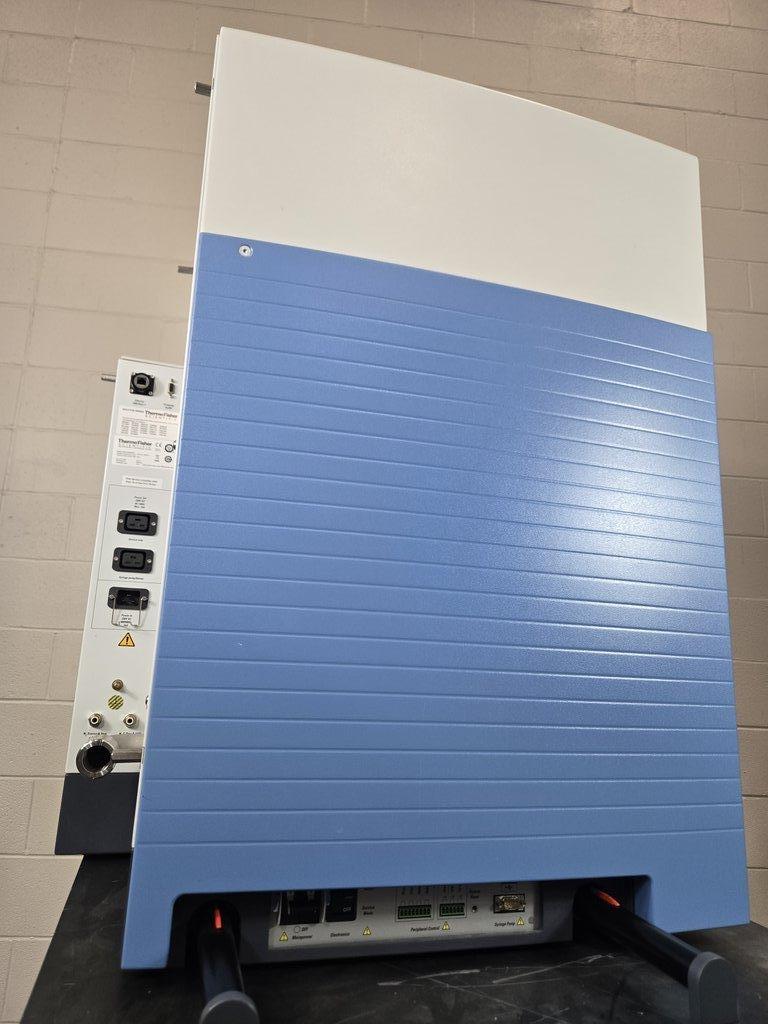

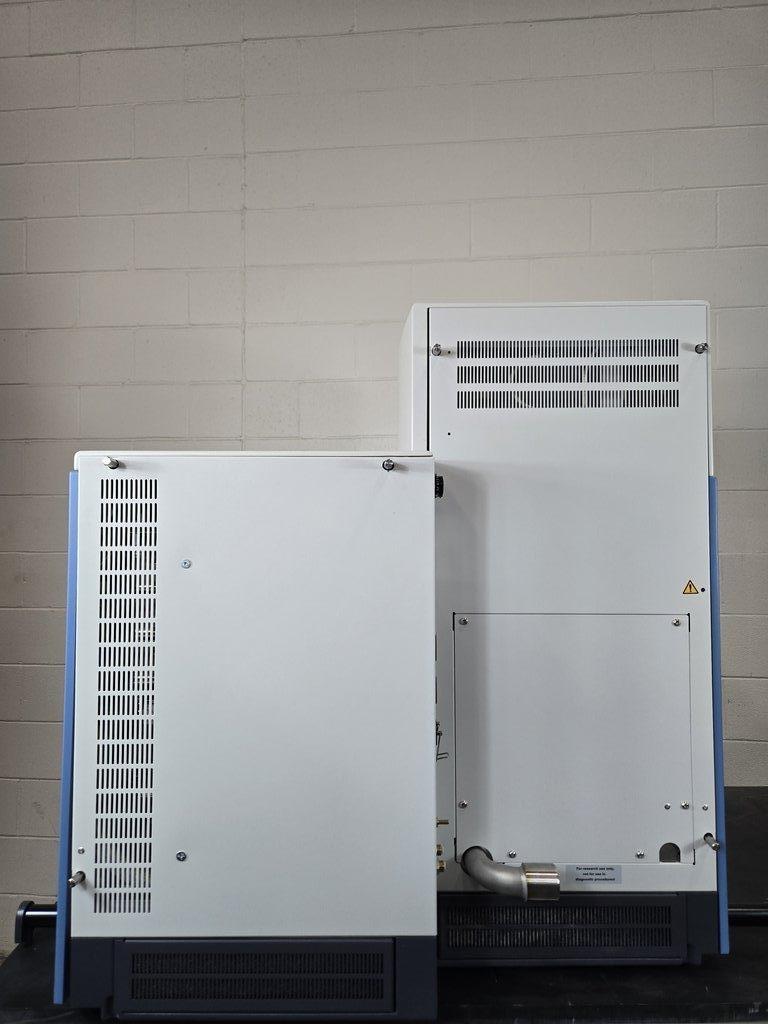

Thermo Exactive Plus Mass Spectrometer High-Resolution Accurate-Mass LC-MS
Thermo Fisher Scientific
Details
-
CategoryMass Spectrometry
-
Dimension36.0in x 30.0in x 38.0in
-

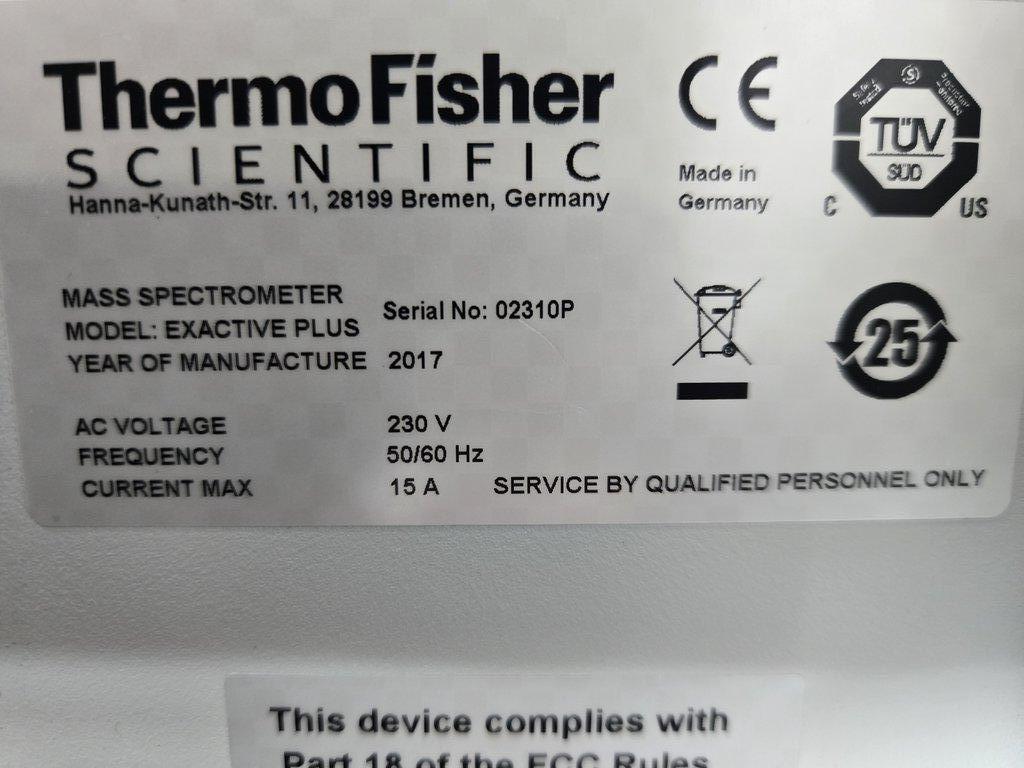

Serial02310P
-
Shipping TypeFreight
-
Manufacturing2017-01-01
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Thermo Exactive Plus Mass Spectrometer, manufactured in 2017, offers high-resolution accurate-mass (HR/AM) full-scan mass spectra using Thermo's Orbitrap technology. This very good condition unit is designed for complex sample analyses, distinguishing target compounds with a mass resolution of up to 140,000 (FWHM) at m/z 200. It features fast polarity switching, enhances screening applications, and supports food safety, environmental analysis, forensic toxicology, and clinical research. It includes advanced ion optics and vacuum systems, enabling high sensitivity and dynamic range. Please note, software and a power cord are not included, and the system requires validation/calibration prior to use.
Key Features
- High-resolution accurate-mass spectra
- Orbitrap technology
- Resolution up to 140,000 FWHM at m/z 200
- Fast polarity switching
- Supports UHPLC chromatography
- Optional HCD collision cell
- Suited for food safety, environmental and clinical research
- EMR up to m/z 20,000
Specifications
- Mass resolution up to 140,000 FWHM at m/z 200
- Mass range: 50–6,000 m/z (standard) or 350–20,000 m/z (EMR mode)
- Scan speed up to 12 Hz
- Volt: 230V, Frequency: 50/60Hz
- Differentially pumped vacuum system, final vacuum <1 × 10-9 mbar
- Ion Max API Source with advanced ion optics
- Sensitivity in full-scan MS mode: 500 fg buspirone on-column S/N 100:1
- Dynamic range of >5000:1
- Includes options for HCD cell and extended mass range
Weight
Imperial: 462.0 Pounds
Metric: 209.56 Kilograms
Shipping Dimensions
Imperial: 43.2 lb x 36.0 lb x 45.6 lb
Metric: 109.73 cm x 91.44 cm x 115.82 cm
Harmonized Code
9027.80.40
Harmonized Code Details
9027.80.40 - Instruments and apparatus for physical or chemical analysis, using optical radiation (IR, UV, visible light). This code is appropriate as it includes mass spectrometers used for analytical purposes.
