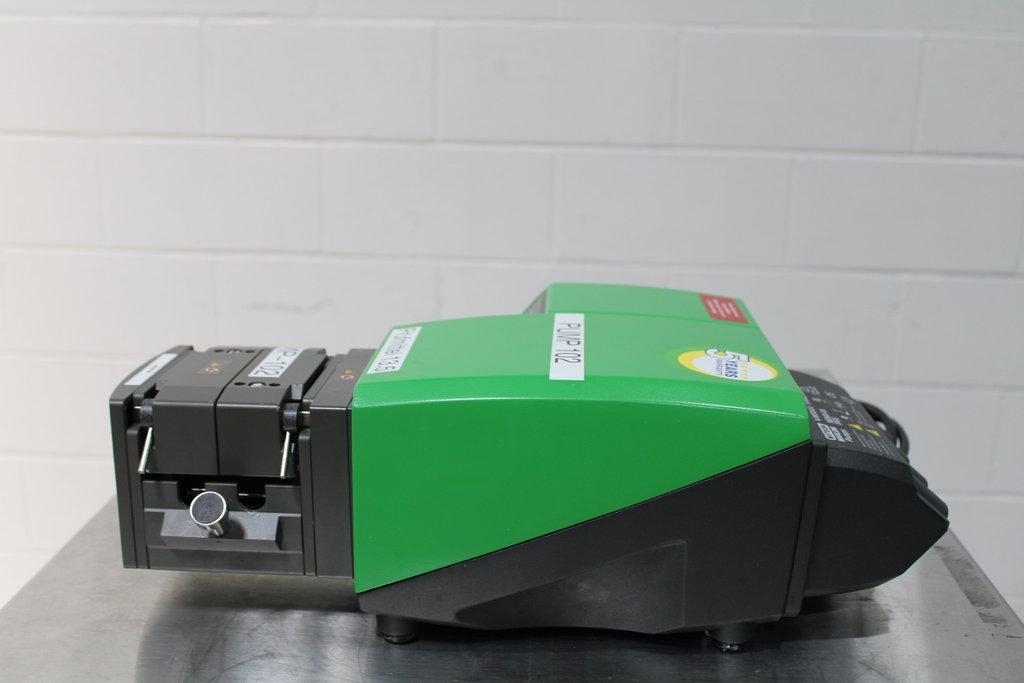

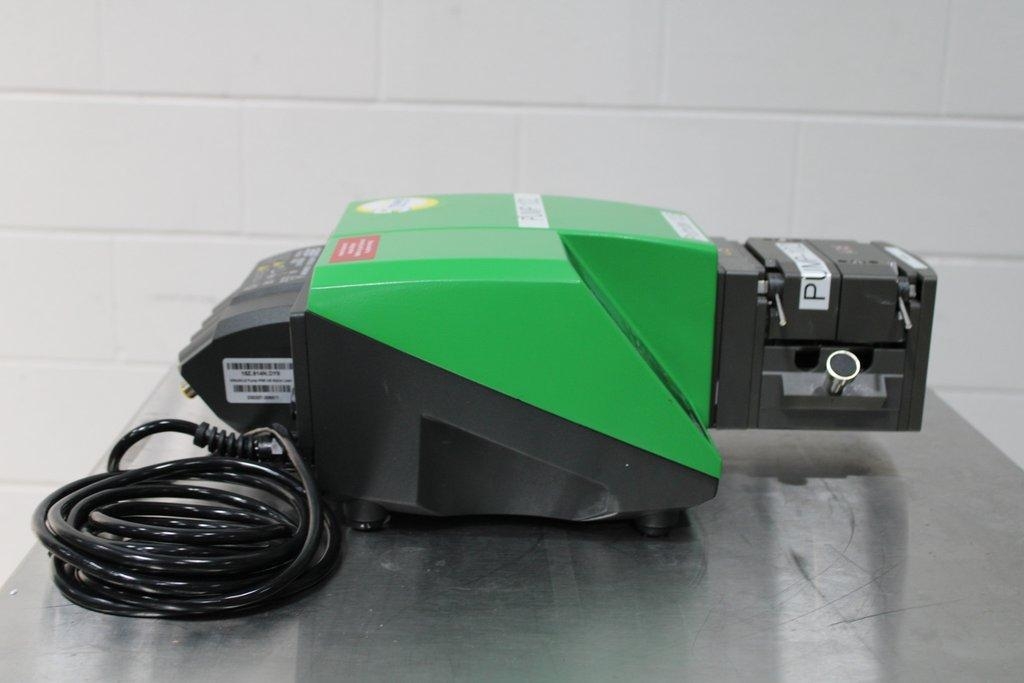

Watson Marlow 530U NEMA 4X Peristaltic Pump Accurate Flow Control
Watson Marlow
Details
-
CategoryPump
-
Dimension20.0in x 11.0in x 7.0in
-
Serial230327-306511
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Watson Marlow 530U NEMA 4X peristaltic pump, originating from the United Kingdom, is a reliable and accurate fluid transfer solution designed by the reputable Watson Marlow brand. This used pump, in good condition, powers on with basic tests passed, assuring basic functionality despite slight cosmetic wear. It offers unrivaled accuracy for precise fluid handling and is equipped with a simple-to-use Human-Machine Interface (HMI) that enables operation with minimal key presses. The fluid is isolated within the tubing, maintaining product integrity. Featuring a color display and intuitive menu structures, the pump offers flow rates from 0.0006 GPH to 55.48 GPH. Its robust NEMA 4X IP66 casing ensures durability even in harsh environments. Suitable pumphead configurations include 520R, 520REL, and 520REM options for various pressure ranges. It supports a range of control options such as EtherNet/IP and PROFIBUS, making it adaptable in modern laboratory settings.
Key Features
- Power-on functionality confirmed
- Flow rates from 0.0006 GPH to 55.48 GPH
- Color display with easy-to-use HMI
- NEMA 4X IP66 ingress protection
- 520R, 520REL, 520REM pumphead configurations
- Compatible with EtherNet/IP, PROFIBUS
- Dual voltage compatibility
Specifications
- Drive speed: 0.1 - 220 rpm with 2200:1 control ratio
- Max flow rate: 2400 ml/min
- Min flow rate: 0.004 ml/min
- Operating temperature: 5 to 40°C (40 to 104°F)
- Drive ingress protection: IP31, IP66, NEMA 2, NEMA 4X
- Remote control options: EtherNet/IP, PROFIBUS, RS232, RS485
- Drive standards: CE, cETLus, RoHS compliance
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 13.2 lb x 8.4 lb
Metric: 60.96 cm x 33.53 cm x 21.34 cm
Harmonized Code
841330
Harmonized Code Details
841330 - Fuel, lubricating or cooling medium pumps for internal combustion piston engines. The pump falls under this category due to its functionality related to fluid transfer and handling.
