Jasco UV-2075 Plus Analytical Detector UV Vis Dual Beam Intelligent In Use
Jasco
Details
-
CategoryAnalytical
-
Dimension49.0cm x 16.0cm x 16.0cm
-

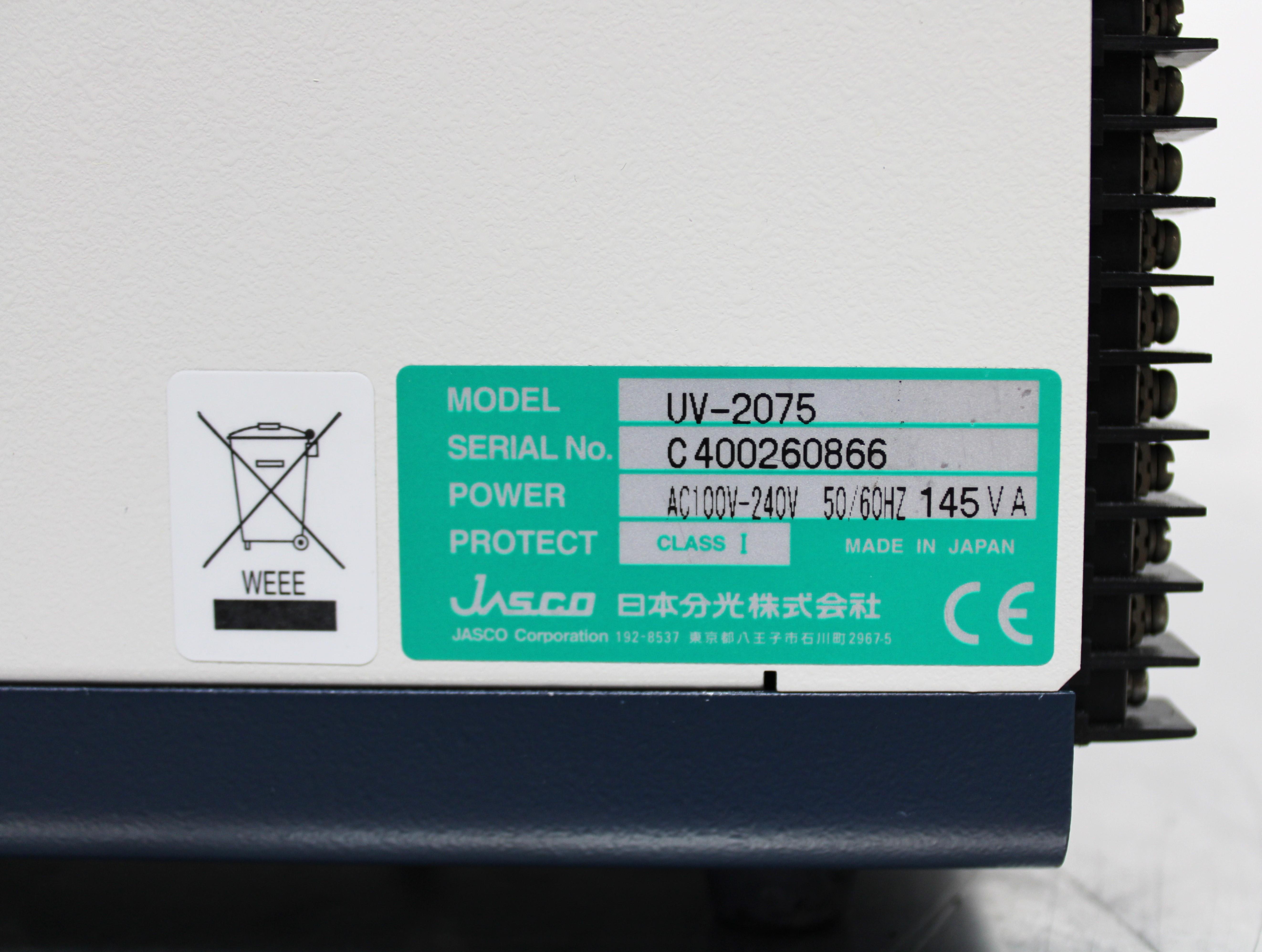

SerialC400260866
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz240V / 50Hz/60Hz
Description
The Jasco UV-2075 Plus Intelligent UV/Vis Detector is designed for laboratories seeking precise and reliable measurements. Manufactured in Japan by Jasco, this device features a Czemy-turner mount monochromator, with spectral bandwidths of 8 nm, allowing for accurate wavelength readings between 190 and 600 nm, facilitated by a deuterium lamp. Despite some visible scratches and wear, this detector is in good used condition, confirmed functional as it powers on and passes basic tests. It offers photometric dual beam analysis, providing wavelength accuracy of ±1 nm and reproducibility of ±0.1 nm. Notable features include a low noise level of ±0.3 x 10-5 ABU at 250 nm, an auto-zero function, and a drift of 1x10-4 ABU/h. This detector is essential for analytical tasks requiring detailed photometric assessments, commonly used in scientific and industrial settings.
Key Features
- Czemy-turner mount monochromator
- Spectral bandwidths: 8 nm
- Wavelength accuracy: ±1 nm
- Light source: Deuterium lamp 190-600 nm
- Dual beam photometry
- Noise level: ±0.3 x 10-5 ABU
- Drift: 1x10-4 ABU/h
- Auto zero function
Specifications
- Monochromator: Czemy-turner mount
- Spectral bandwidths: 8 nm
- Wavelength accuracy: ±1 nm
- Wavelength reproducibility: ±0.1 nm
- Light source: Deuterium lamp 190-600 nm
- Wavelength range: 190-600 nm
- Photometric method: Dual beam photometry
- Noise level: ±0.3 x 10-5 ABU (at 250 nm, empty cell)
- Drift: 1x10-4 ABU/h (at 250 nm, constant temp)
- Photometric range: 0.0005-2.56 ABU/10 mV, S (short)
- Auto zero: Provided with baseline function
- Response: 3 steps (FAST, STD, SLOW)

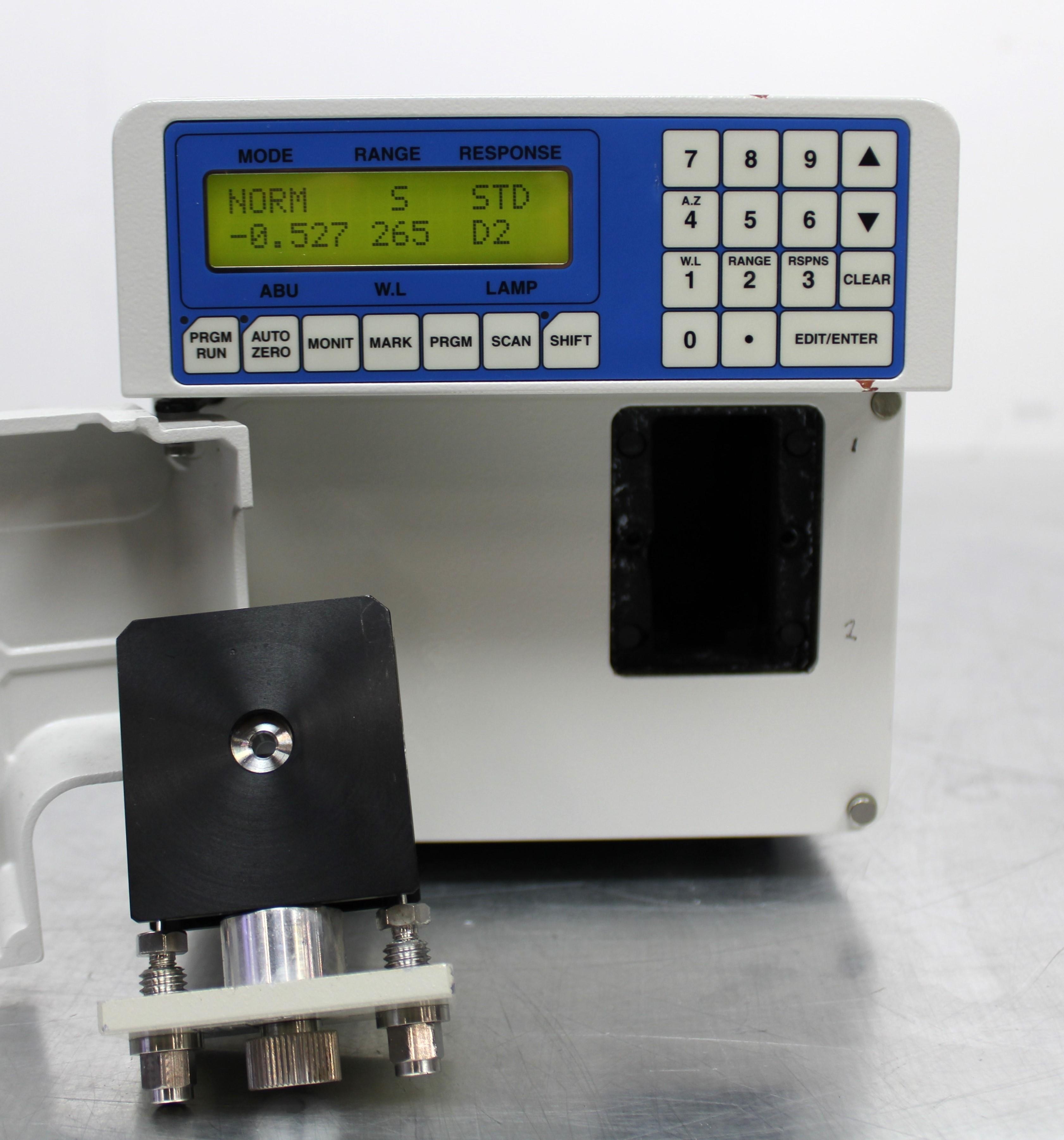

- Mounting: Front loading cassette type with bulkhead union

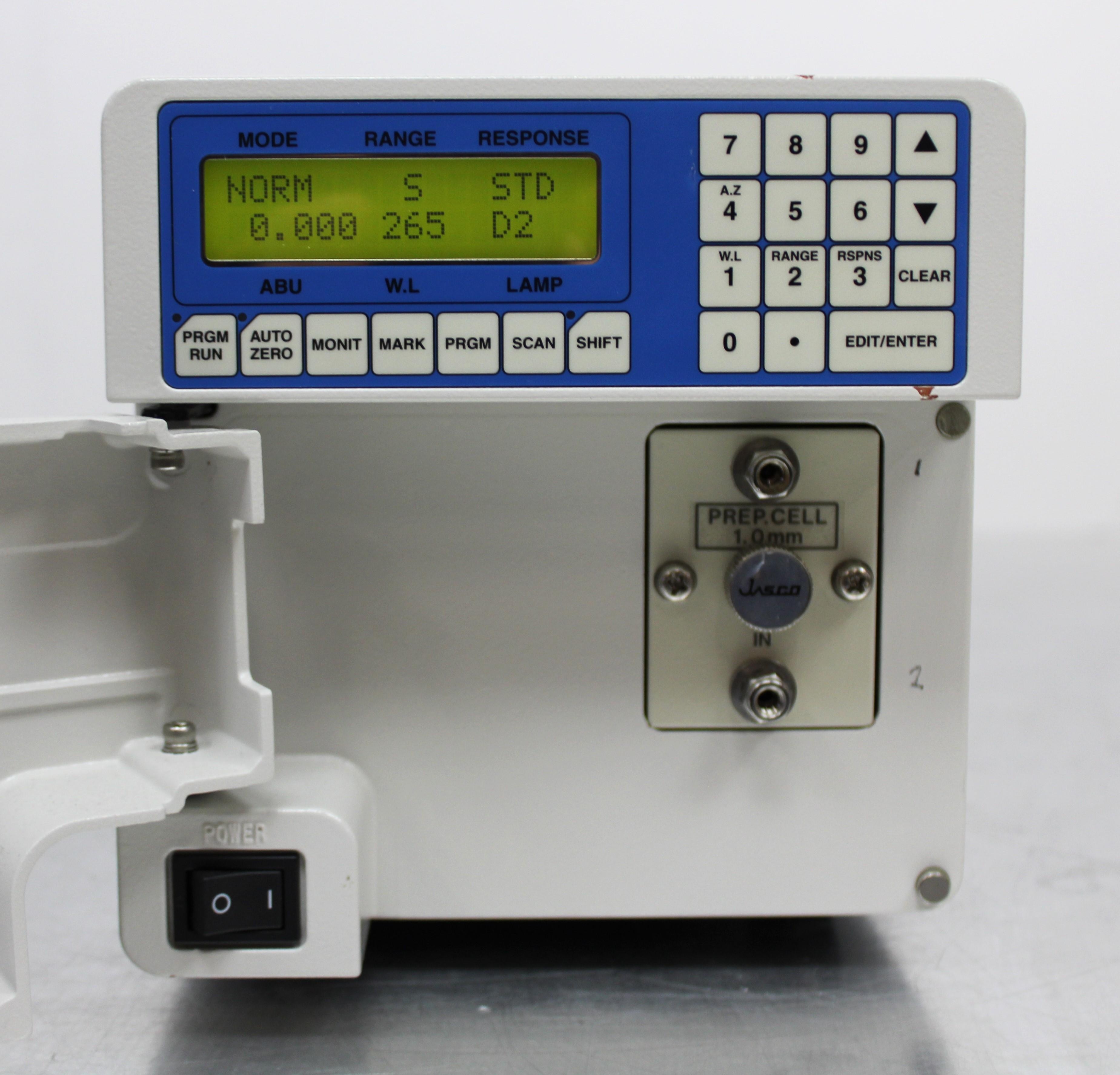

- Flow cell: Tapered cell
- Path length: 10 mm
- Power: 240V, 50Hz/60Hz
Weight
Imperial: 23.81 Pounds
Metric: 10.8 Kilograms
Shipping Dimensions
Imperial: 23.15 lb x 7.56 lb x 7.56 lb
Metric: 58.8 cm x 19.2 cm x 19.2 cm
Harmonized Code
9027.30
Harmonized Code Details
9027.30 - Spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR). This code is appropriate due to the nature of the equipment which analyzes wavelengths in the UV and visible spectrum.
