Leybold Ecodry 65 Plus Vacuum Pump Dry-Compression 55 m/hr Low Noise Lab Use
Leybold Sogevac
Details
-
CategoryPump
-
Dimension64.0cm x 33.0cm x 29.0cm
-
Serial31001783646
-
Shipping TypeFedEx Ground
-
Manufacturing2018-01-01
-
Voltage / Hertz240V / Does Not Apply
Description

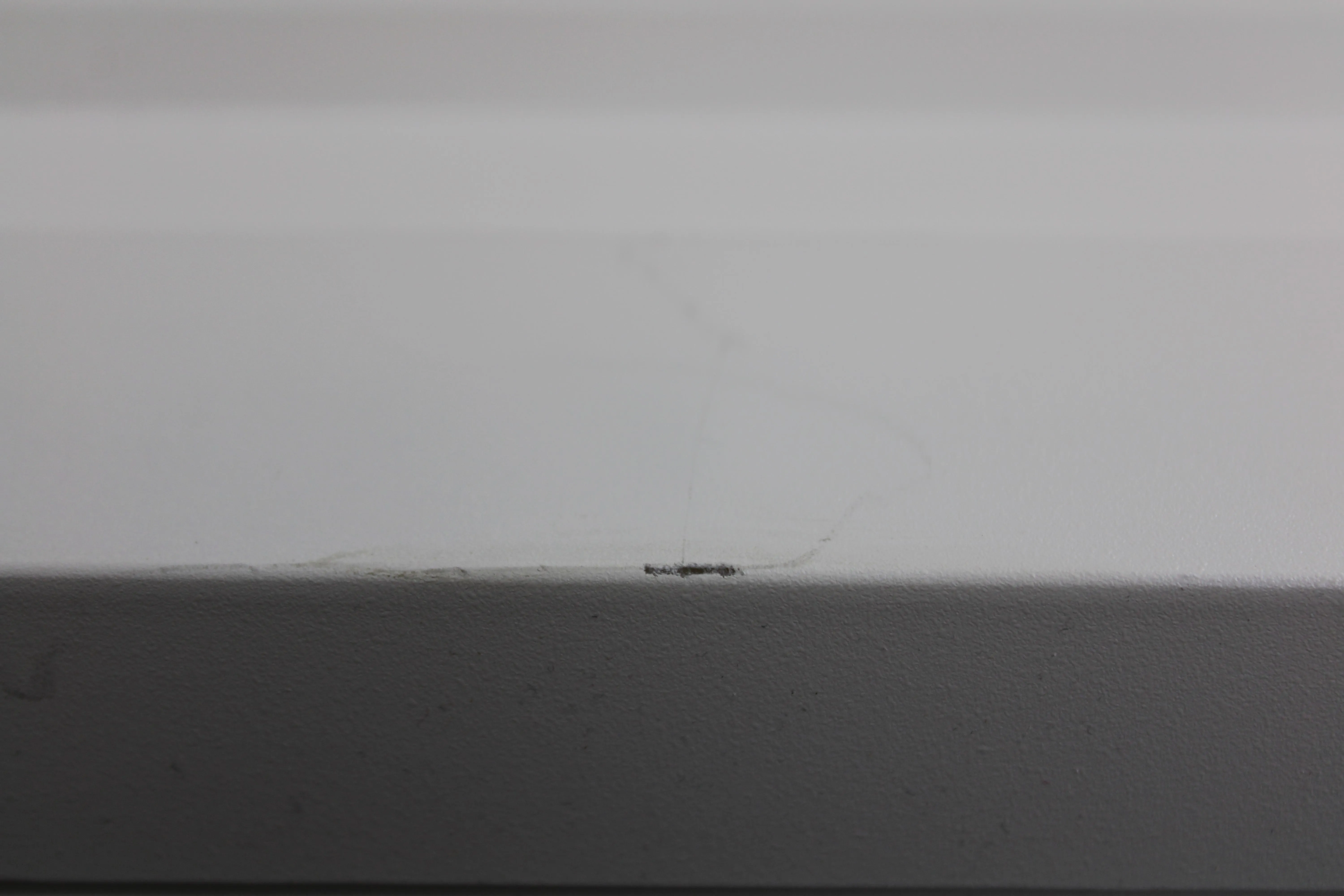

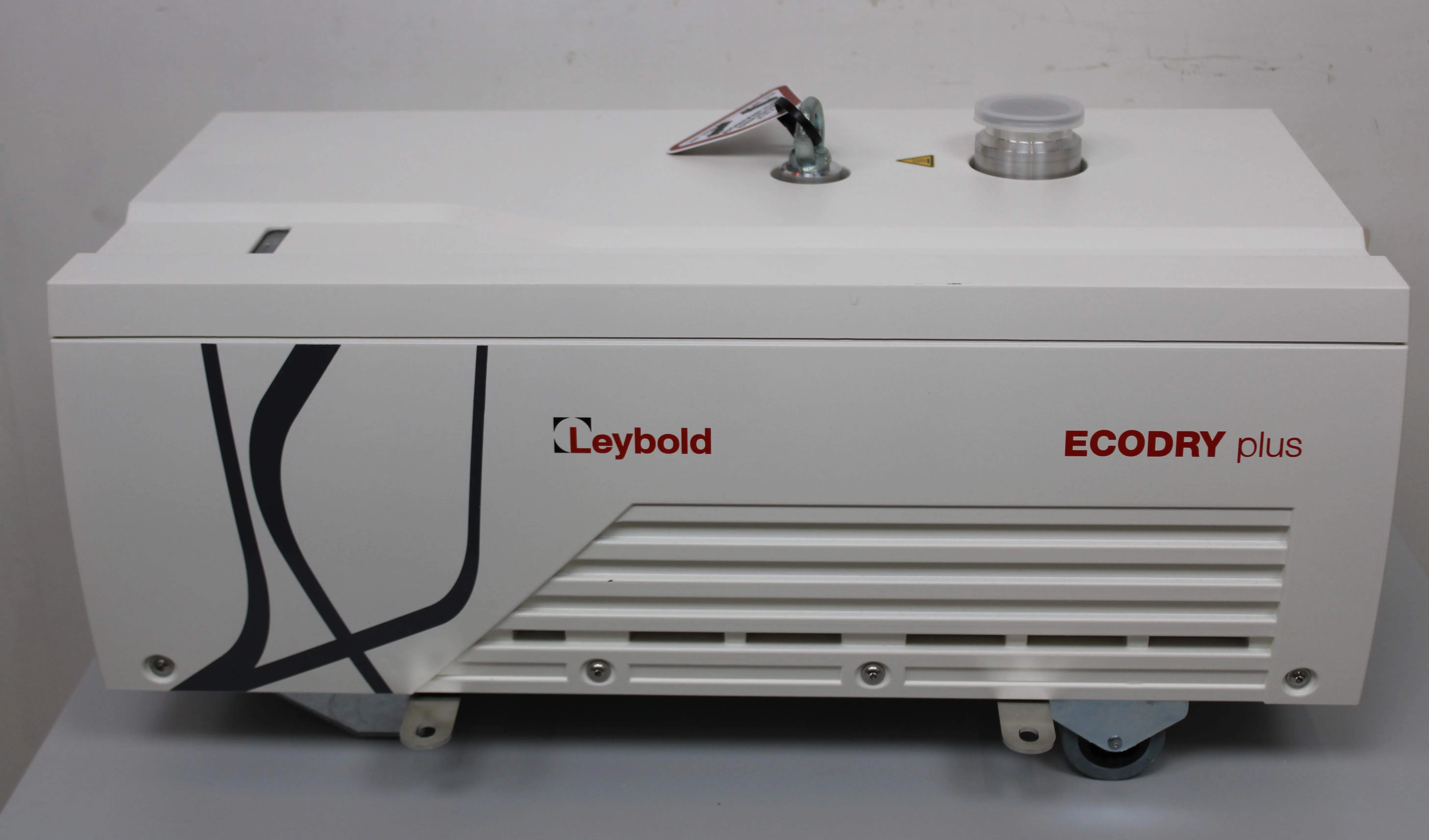

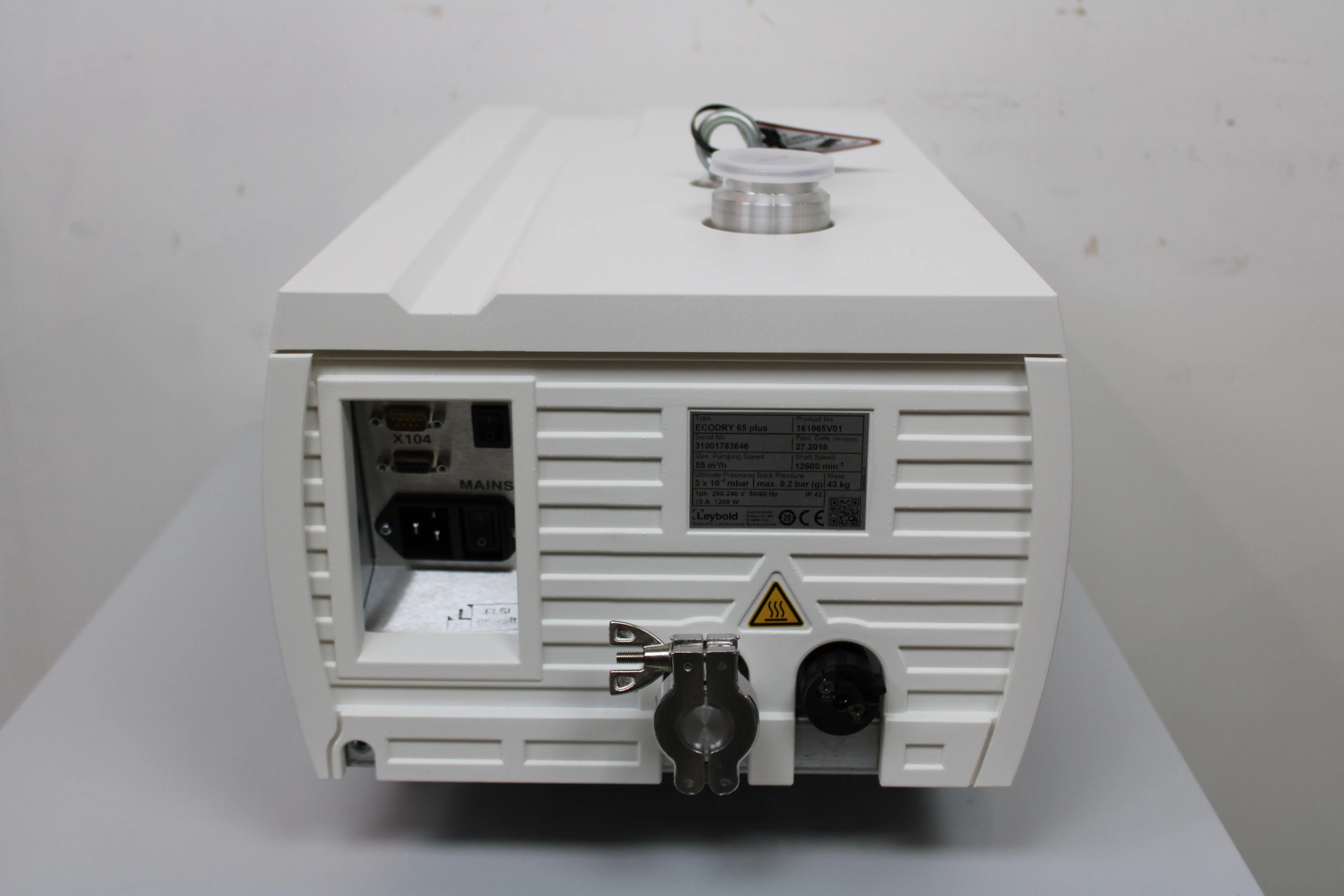

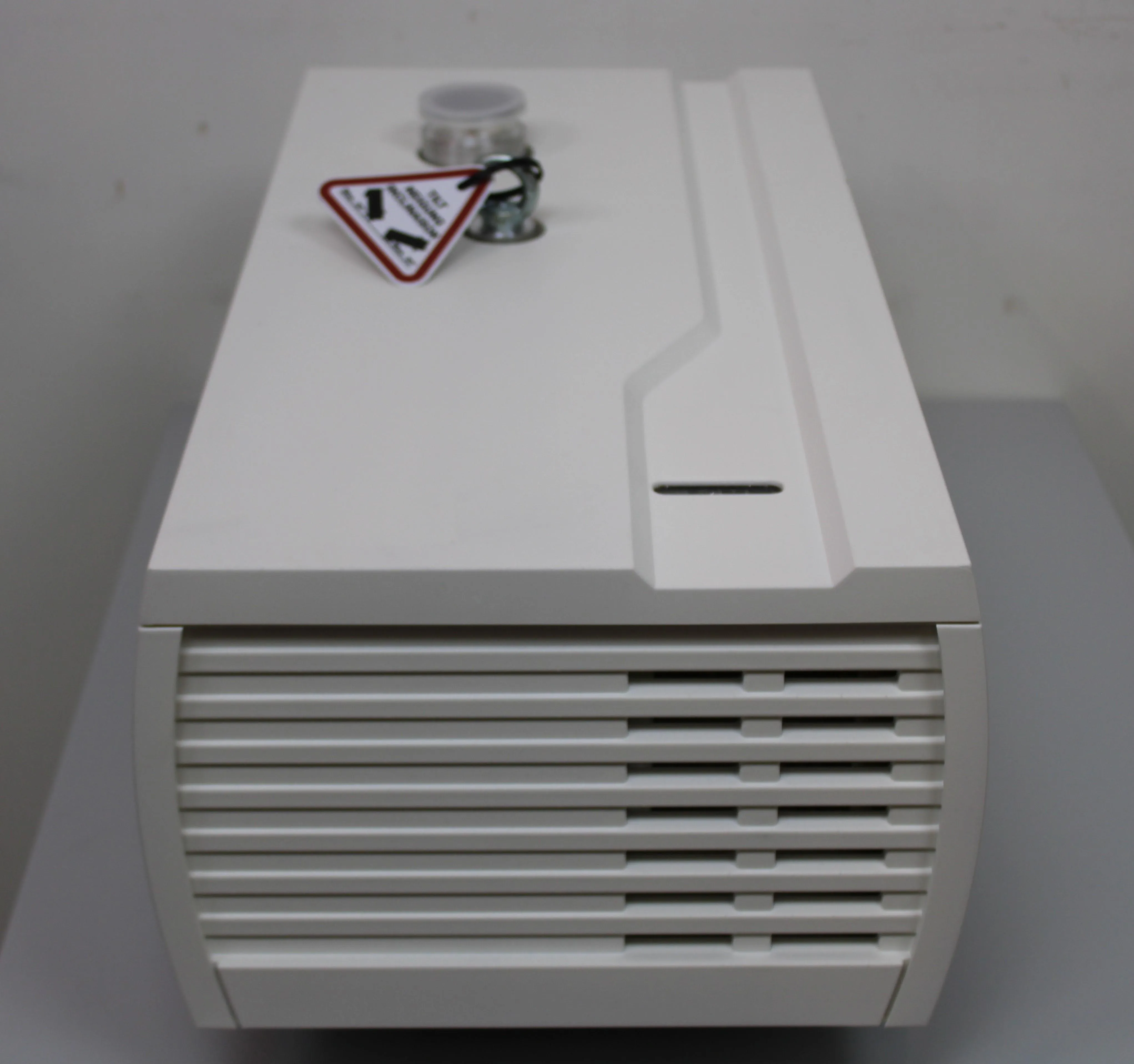

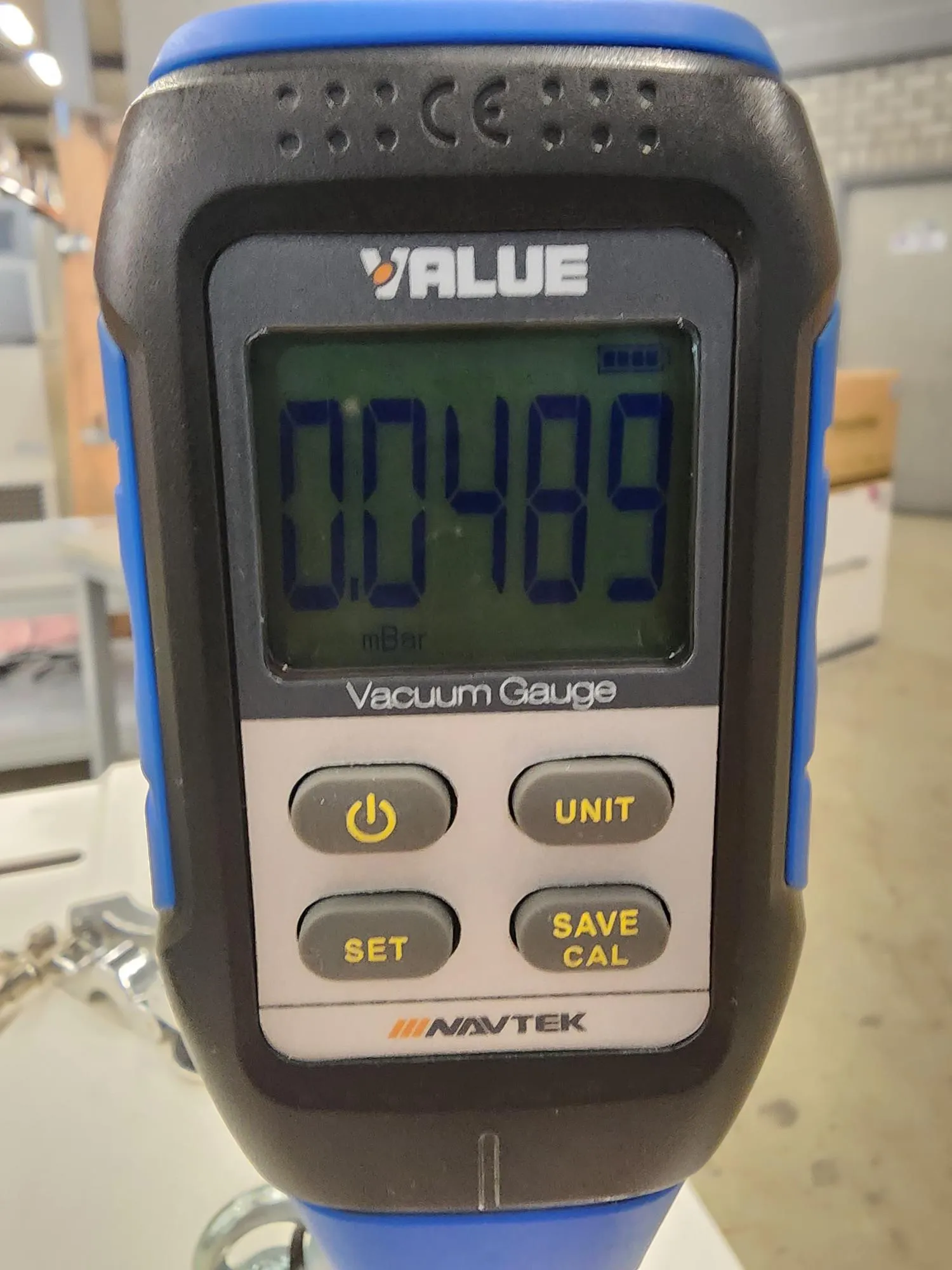

The Leybold Ecodry 65 Plus Vacuum Pump, manufactured in 2018 in Germany, exemplifies advanced technology in dry-compression vacuum systems designed for quiet and clean laboratory environments. Ideal for analytical and research laboratories, this used vacuum pump functions optimally despite minor cosmetic imperfections. It delivers a maximum pumping speed of 55 m³/hr with noise levels below 52 dB(A), ensuring a quieter operation than a typical conversation. The Ecodry 65 Plus utilizes a multi-stage Roots pumping principle, incorporating two contactless rotating rotors to move gas from the inlet to the exhaust, achieving compression from medium vacuum to ambient pressure. This oil-free, maintenance-free pump ensures clean operation with neither oil vapors nor particles contaminating the workspace. Its compact design, air-cooled system, and integrated wheels allow for ease of movement, making it a versatile addition to any clean room or laboratory setting. Note that the pressure reading and serial number may vary, and verification is available upon request.
Key Features
- Dry-compression vacuum pump
- Maximum pumping speed of 55 m³/hr
- Noise level below 52 dB(A)
- Oil-free suction chamber
- Multi-stage Roots pumping principle
- Contactless rotating rotors
- Maintenance-free design
- Compact and air-cooled with wheels for mobility

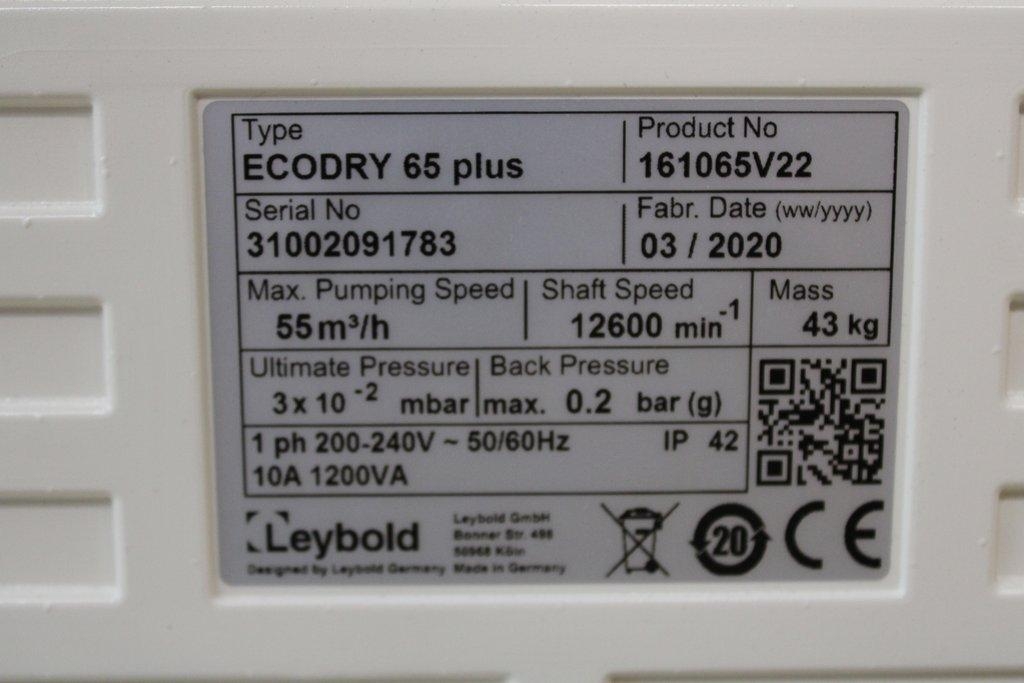

Specifications
- Brand: Leybold Sogevac
- Model: Ecodry 65 Plus
- Sub-Model: 161065V22
- Maximum Pumping Speed: 55 m³/hr
- Noise Level: <52 dB(A)
- Voltage: 240V
- Oil-free operation
- Dry-compression technology
- Country of Origin: Germany
- Manufacture Date: 2018
- Condition: VG (Very Good), Used
- Weight: 97.00 lb (approx. 44 kg)
- Dimensions: 25.20 in x 12.99 in x 11.42 in (64 cm x 33 cm x 29 cm)
Weight
Imperial: 116.4 Pounds
Metric: 52.8 Kilograms
Shipping Dimensions
Imperial: 30.24 lb x 15.59 lb x 13.7 lb
Metric: 76.81 cm x 39.6 cm x 34.8 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; includes the Leybold Ecodry 65 Plus which is used for industrial applications to provide vacuum for laboratory settings. This classification is suitable due to its function and usage characteristics.
