Thermo Dionex ISO-3100BM Biocompatible Isocratic Pump Electrochemical 3000
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension51.0cm x 43.0cm x 15.0cm
-
Serial8095082
-
Shipping TypeFedEx Ground
-
Manufacturing2014-05-07
-
Voltage / Hertz220V-240V / 50Hz/60Hz
Description
The Thermo Scientific Dionex UltiMate ISO-3100BM Biocompatible Isocratic Pump, released in 2014, is an efficient solution for electrochemical (EC) detection, particularly suitable for low-level analytes in small samples. It utilizes a serial dual-piston design and Smartflow technology, delivering consistent zero-pulsation flow for enhanced sensitivity when used with the Dionex ECD-3000RS Electrochemical Detector. The instrument, manufactured in Germany, supports a wide operating flow rate from 50 µL/min to 2500 µL/min and pressure up to 410 bar, offering flexibility for diverse EC applications without stainless steel-induced artifacts. The device features biocompatibility, emission sound pressure below 70 dB(A), and supports Thermo Scientific Dionex AutoQ instrument qualification. Key supports include 15-Pin D-Sub Connector for solvent rack/degasser connection and USB hub for PC interfacing. Please note, computer and other accessories are not included.
Key Features
- Biocompatible design for enhanced detection sensitivity
- Smartflow technology for zero-pulsation flow delivery
- Wide flow rate range: 50 µL/min to 2500 µL/min
- Operating pressure up to 410 bar (5950 psi)
- Stainless-steel-free flow path for artifact reduction
- Compatible with Dionex ECD-3000RS Electrochemical Detector
Specifications
- Min. Flow Rate: 0.001 mL/min (Recommended: 0.05 mL/min)
- Max. Flow Rate: 2.5 mL/min
- Flow Precision: <0.05% RSD or <0.01 min SD
- Pressure Range: up to 62 MPa
- Voltage: 100-120 V; 200-240 V
- Frequency: 50/60 Hz
- Emission Sound Pressure Level: <70 dB(A) at 1 m distance
- GLP Features: Full support of Thermo Scientific Dionex AutoQ
- I/O Interfaces: Two digital inputs, two relay outputs

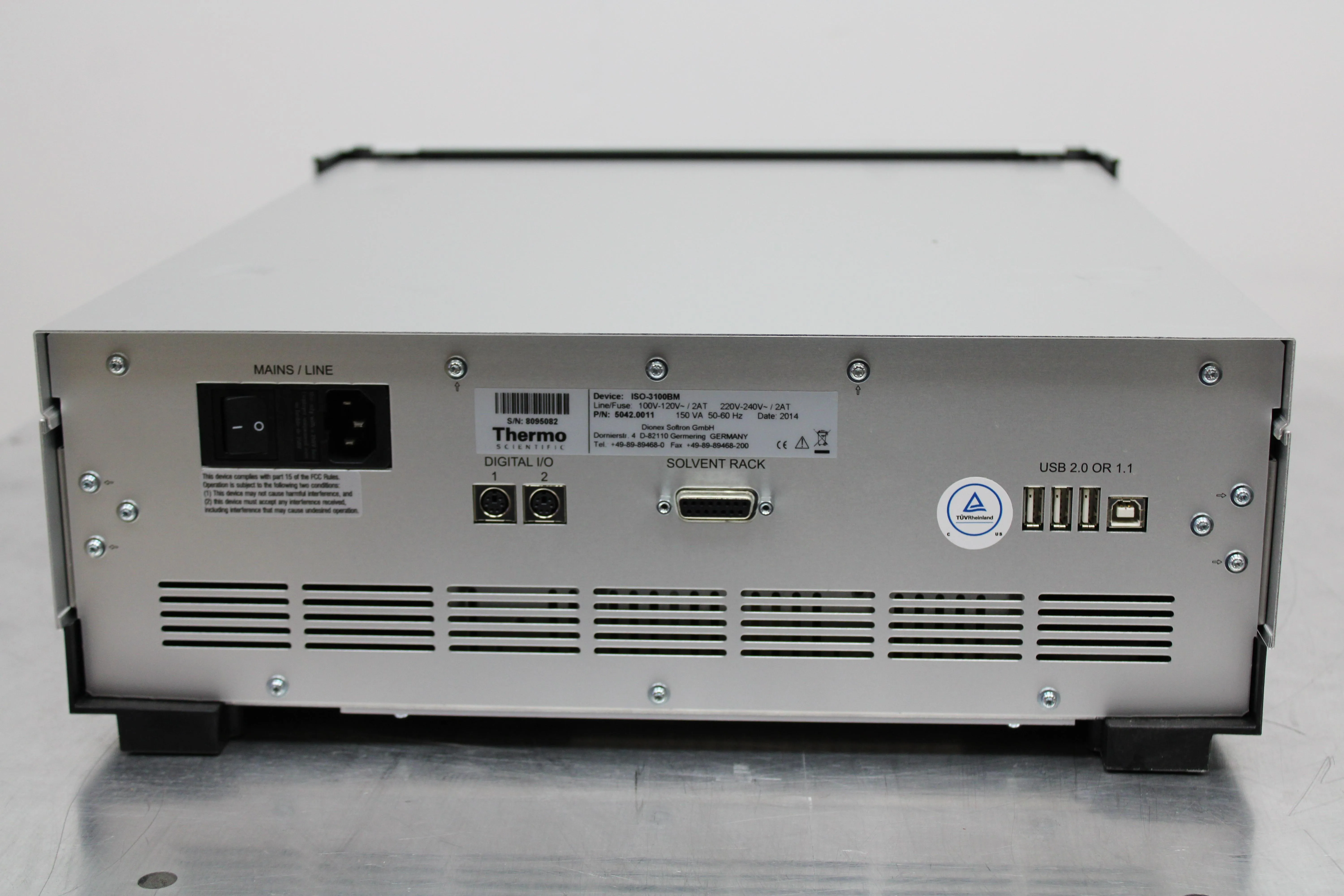

- PC Connection: USB hub with three sockets
- Pressure Ripple:<0.02 MPa or <0.1%
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 20.4 lb x 7.2 lb
Metric: 60.96 cm x 51.82 cm x 18.29 cm
Harmonized Code
902720
Harmonized Code Details
902720 - Chromatographs and electrophoresis instruments and apparatus. This code was chosen due to the Dionex ISO-3100BM being used for electrochemical analysis, a process closely associated with chromatographic techniques.
