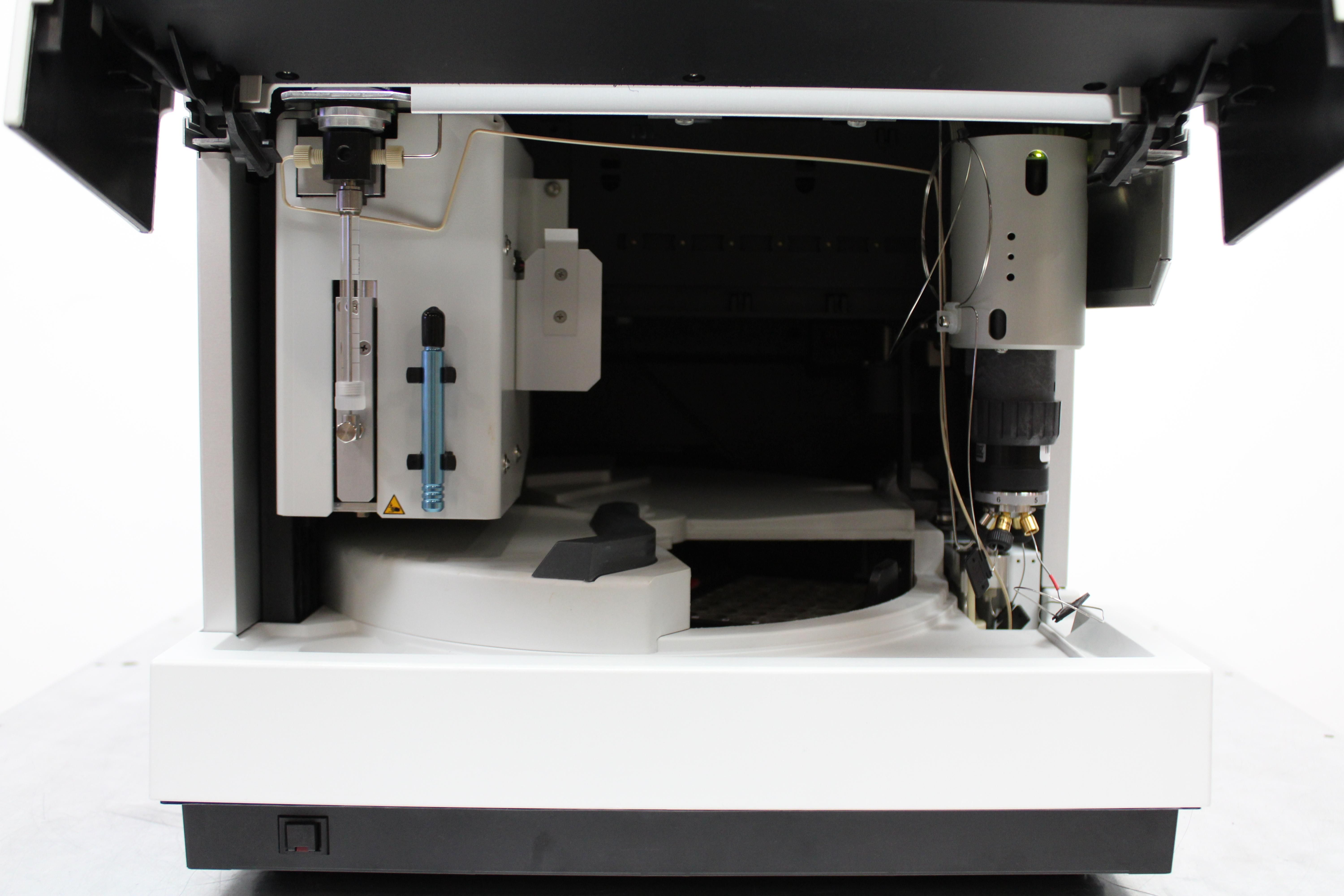

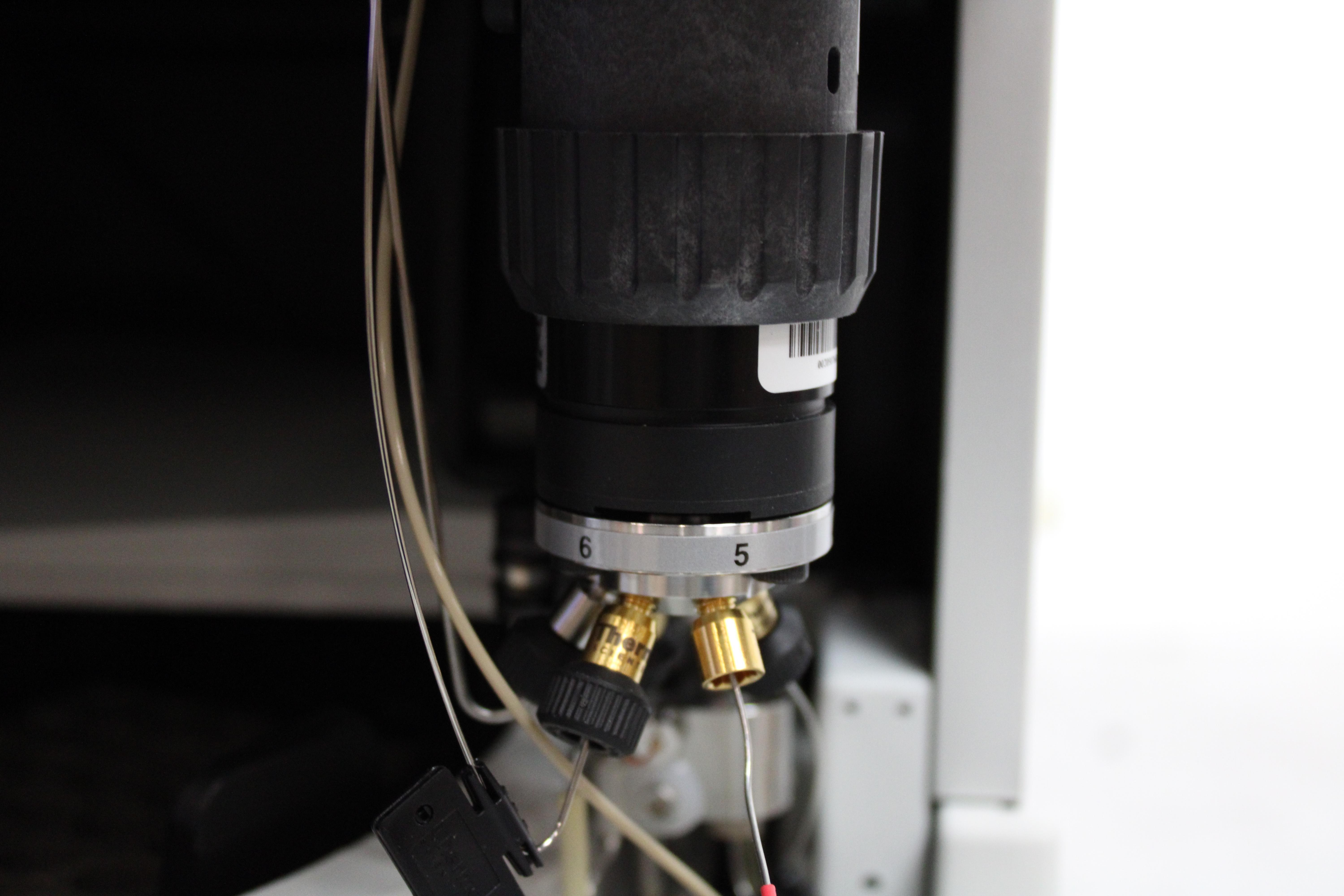

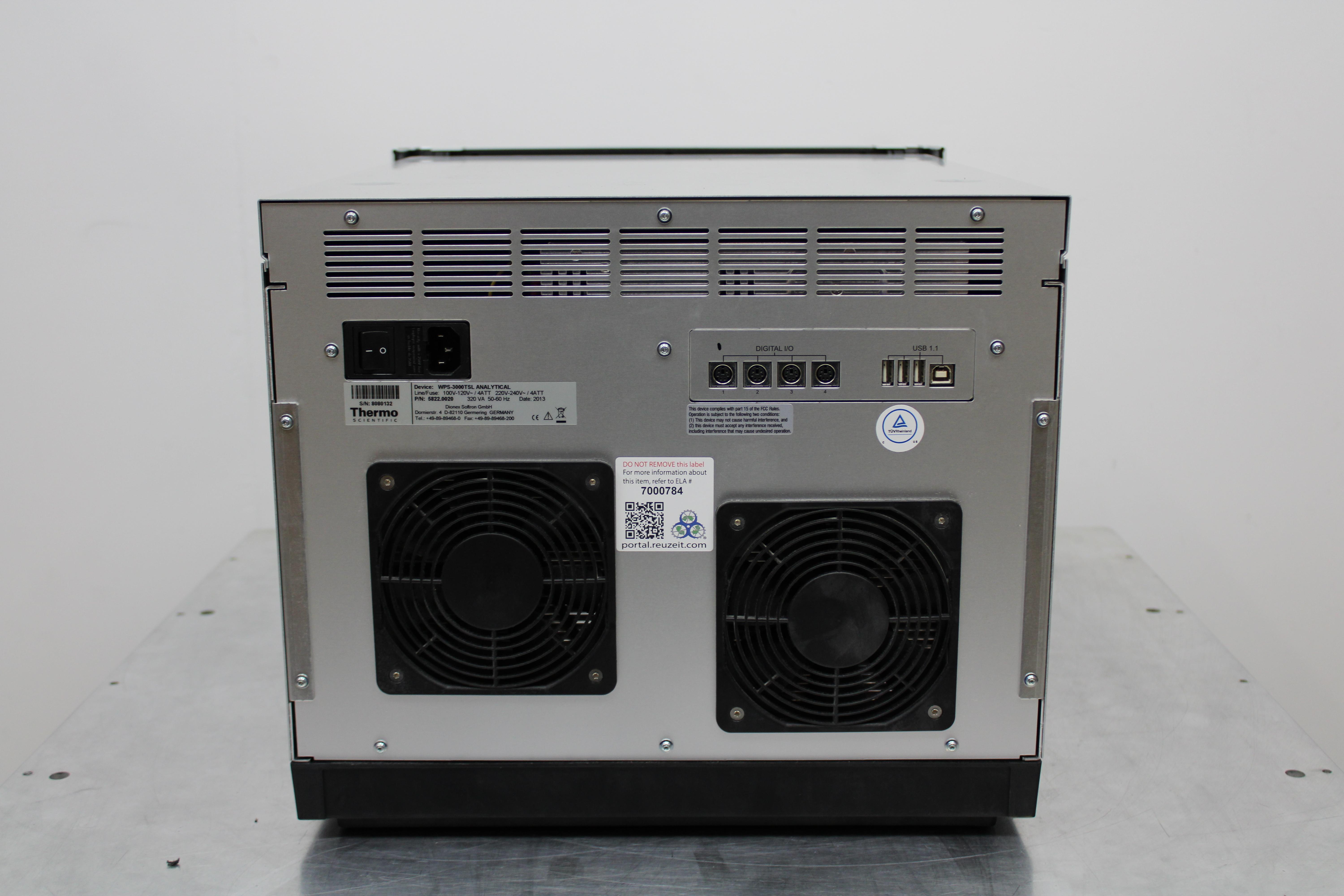

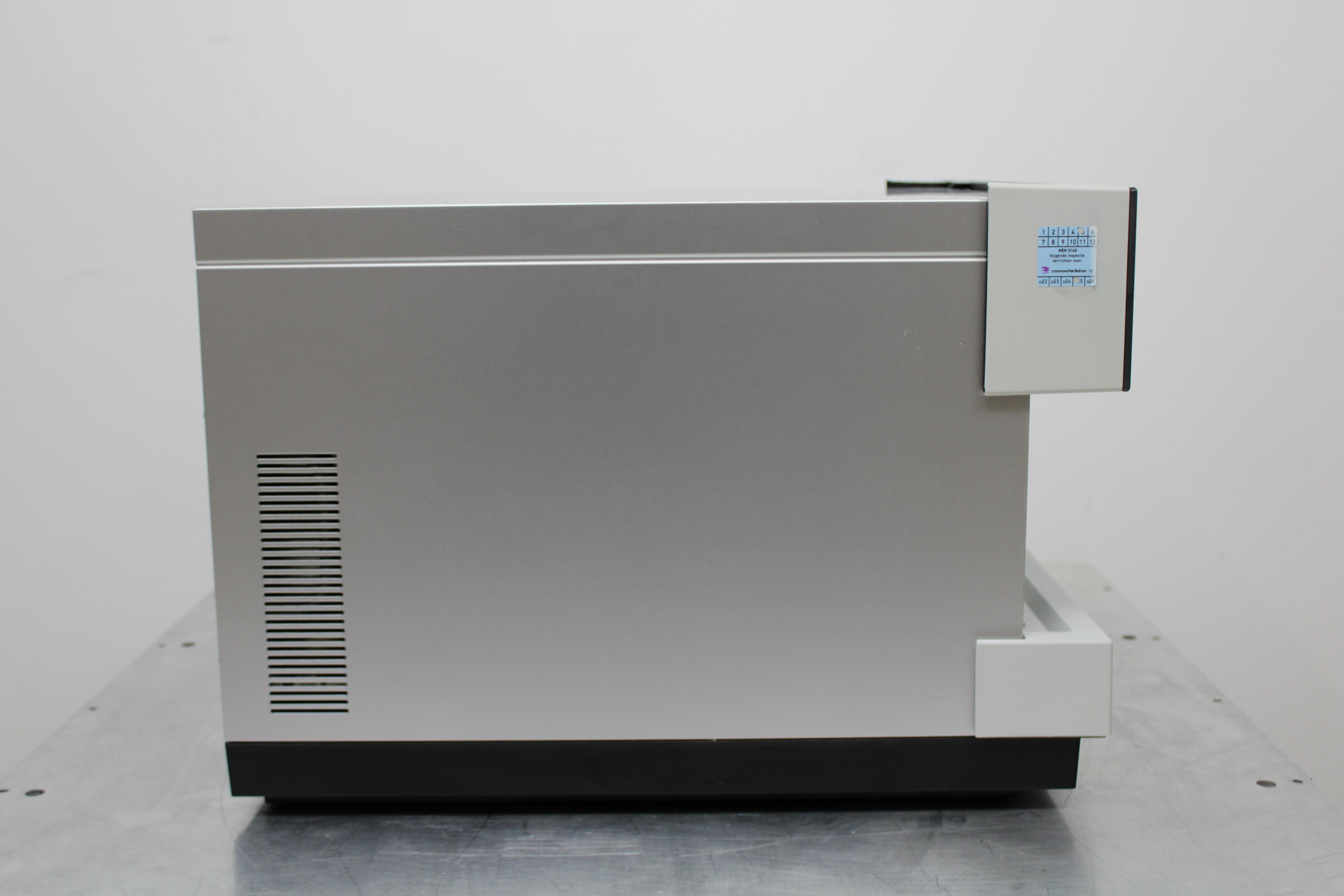

Thermo Dionex UltiMate 3000 WPS-3000TSL Autosampler LC UHPLC 4-45C TS
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension48.0cm x 38.0cm x 33.0cm
-
Serial8080132
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-

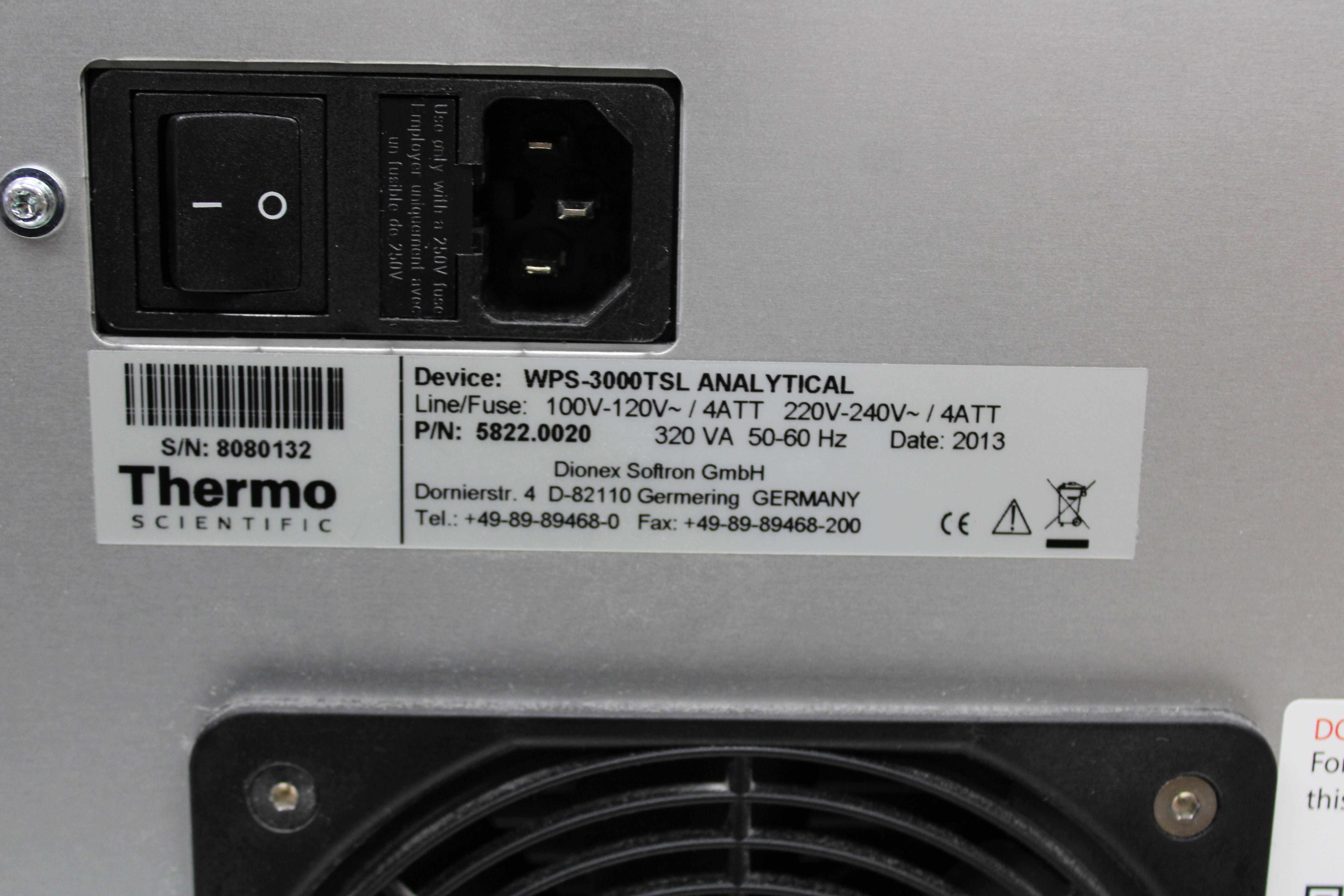

Voltage / Hertz220V-240V / 50Hz/60Hz
Description
The Thermo Dionex UltiMate 3000 WPS-3000TSL Analytical Autosampler is a versatile tool for precise sample injection, designed for both conventional LC and UHPLC applications. This autosampler features a split-loop design with minimal carryover and supports pressures up to 62 MPa. Capable of handling up to three well plates or varying vial trays, the system is ideal for low-flow applications and high injection precision. An optional cooler maintains sample integrity at 4°C, supporting a stable injection valve pressure up to 90 MPa. The system includes a dual-needle injection design to minimize sample loss and a thermostatted sample compartment, delivering consistent performance.
Key Features
- Split-loop design for minimal carryover
- Supports pressures up to 62 MPa
- Injection volume range from 1 to 100μL
- Compatible with conventional LC and UHPLC

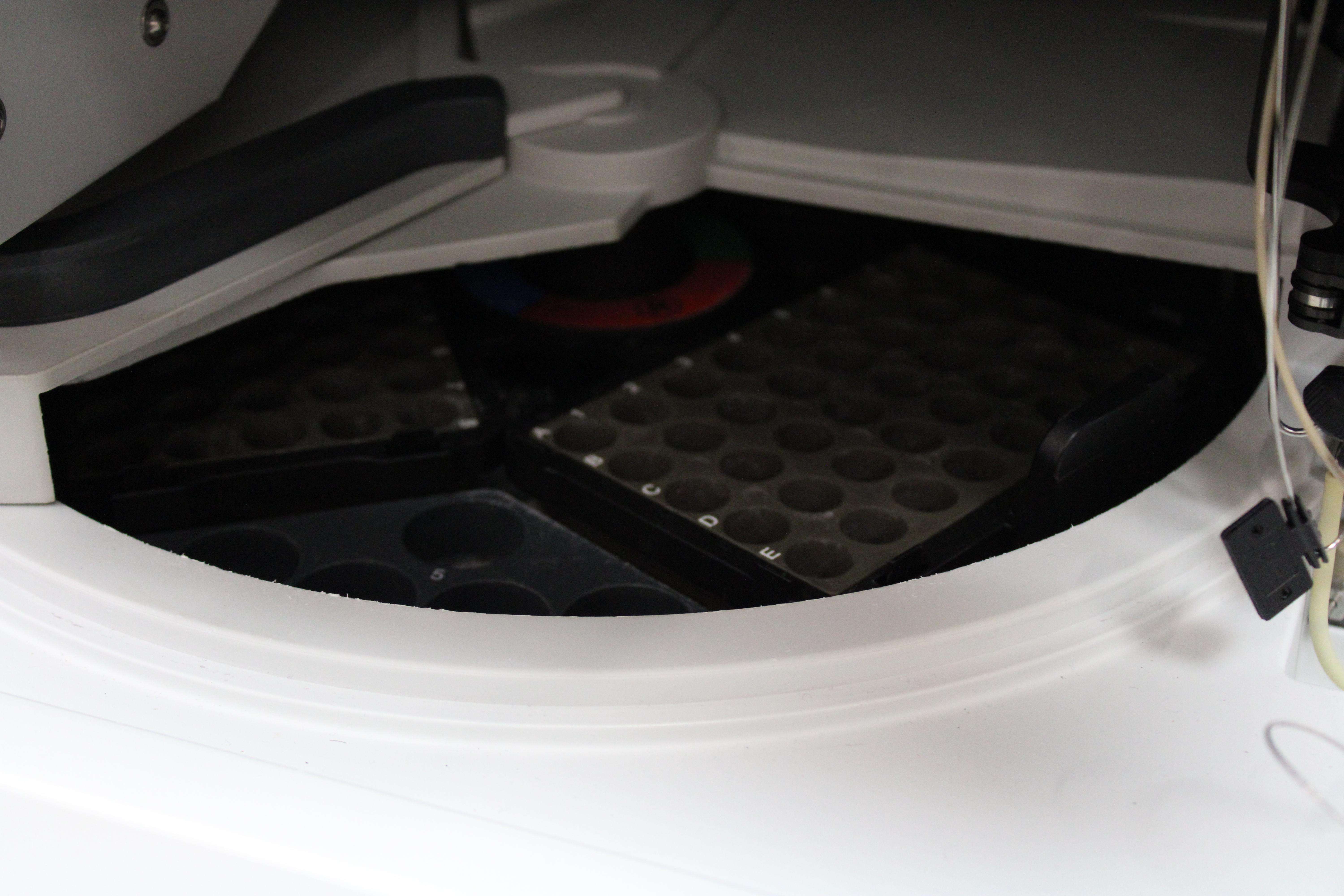

- Holds up to three well plates or vials
- Optional cooling to 4°C
- Dual-needle design to minimize sample loss
Specifications
- Pressure support: up to 62 MPa (9000 psi)
- Injection volume: 1 to 100μL
- Sample capacity: 3 well plates up to 1152 samples
- Temperature range: 4°C to 45°C, or 22°C below ambient
- Injection precision: <0.25% RSD at 5μL
- Wash option: external needle wash
- Country of Origin: Germany
Weight
Imperial: 55.2 Pounds
Metric: 25.04 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 18.0 lb x 15.6 lb
Metric: 57.91 cm x 45.72 cm x 39.62 cm
Harmonized Code
9027.20.50
Harmonized Code Details
This code corresponds to laboratory equipment for analysis, including chromatographs and electrophoresis instruments, which aligns with the autosampler functionality of the Dionex UltiMate 3000.
