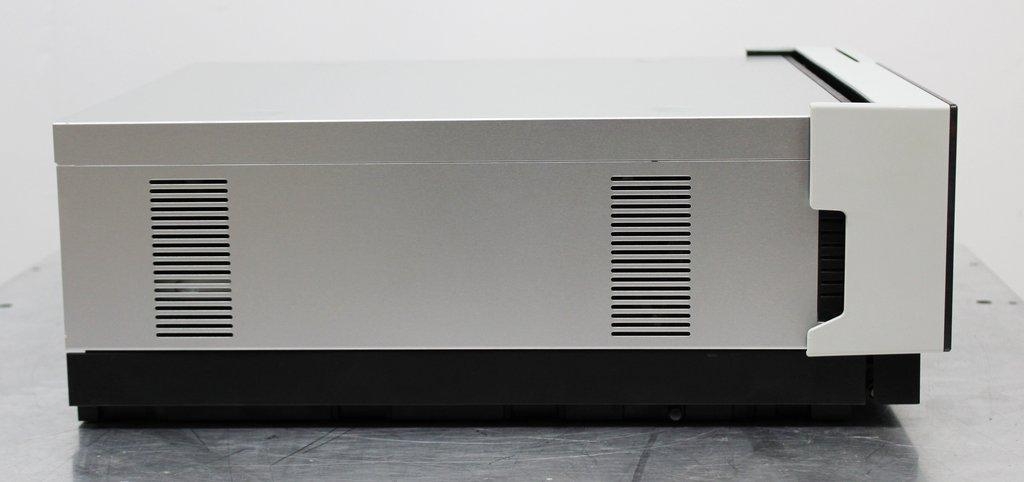

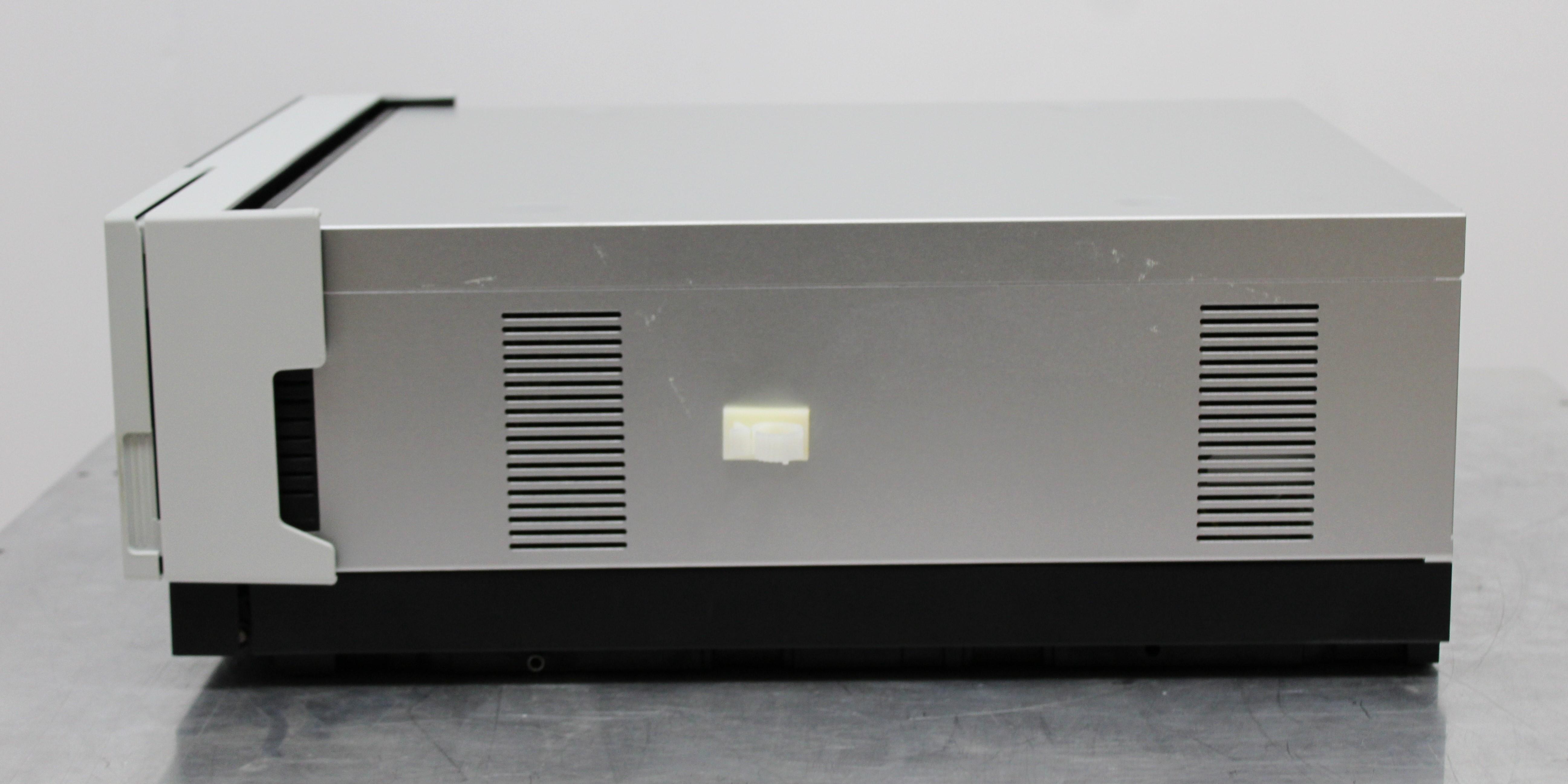

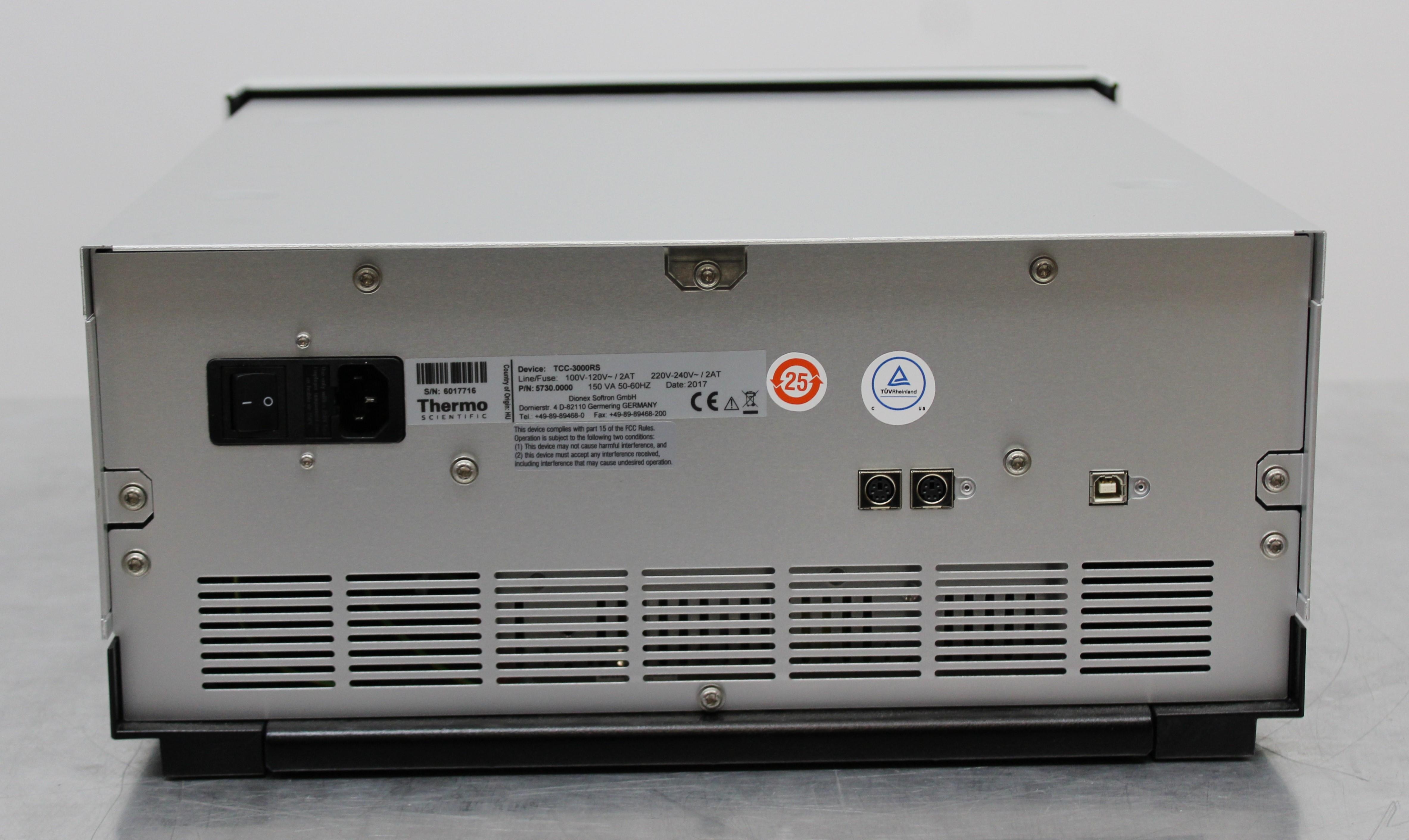

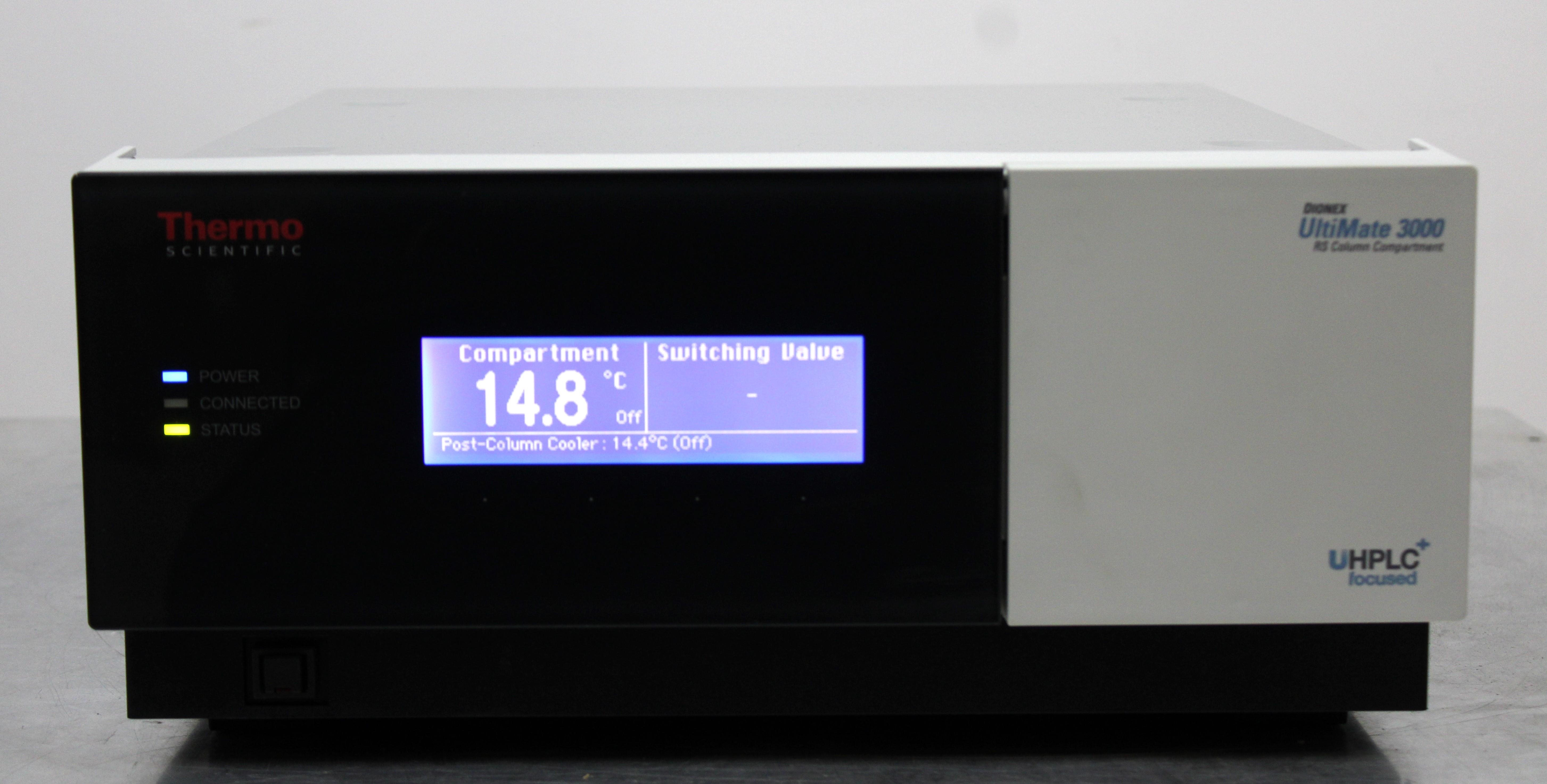

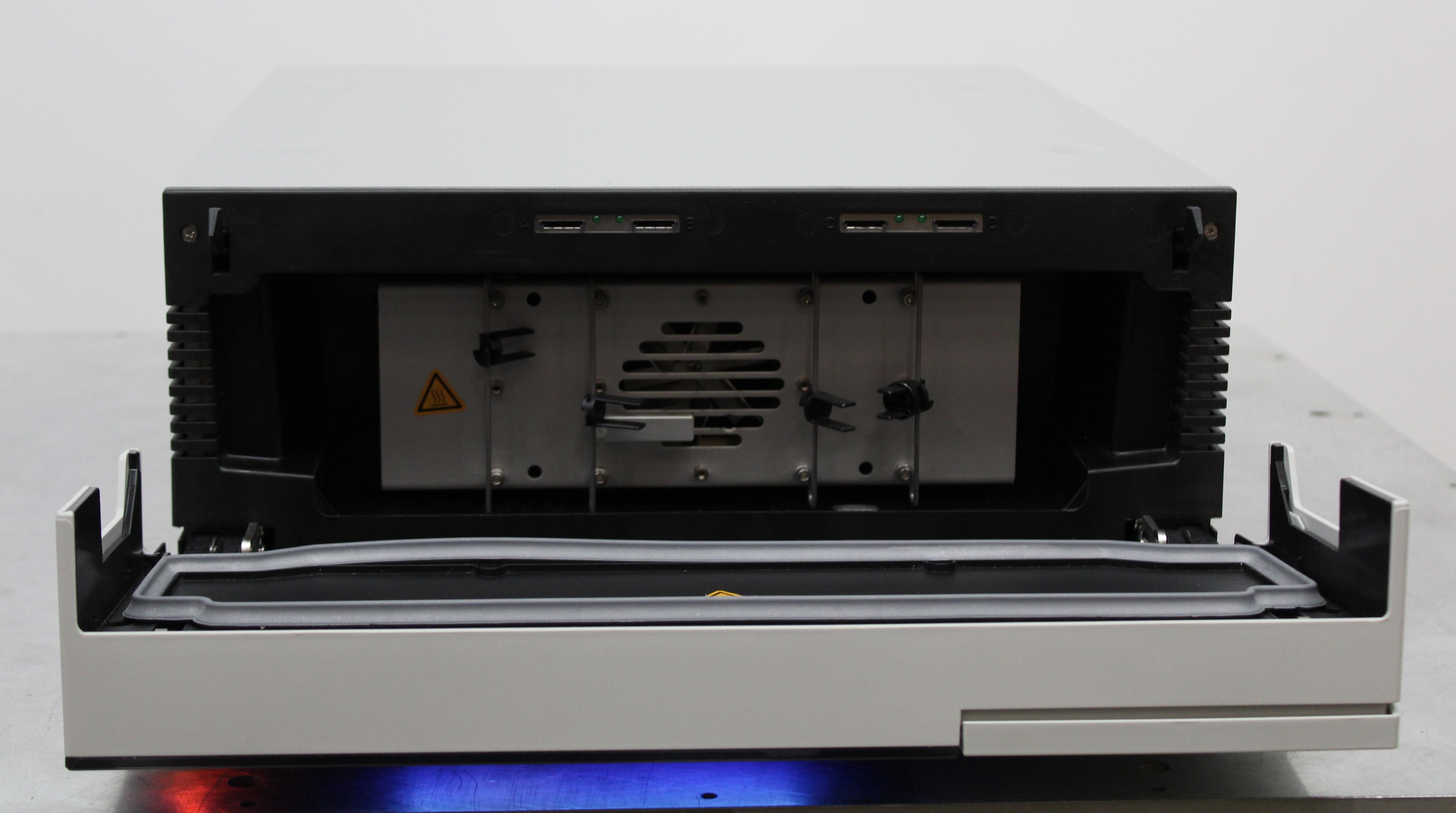

Thermo UltiMate TCC-3000RS Column Compartment 5C-110C Temp Control
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension69.0cm x 61.0cm x 46.0cm
-

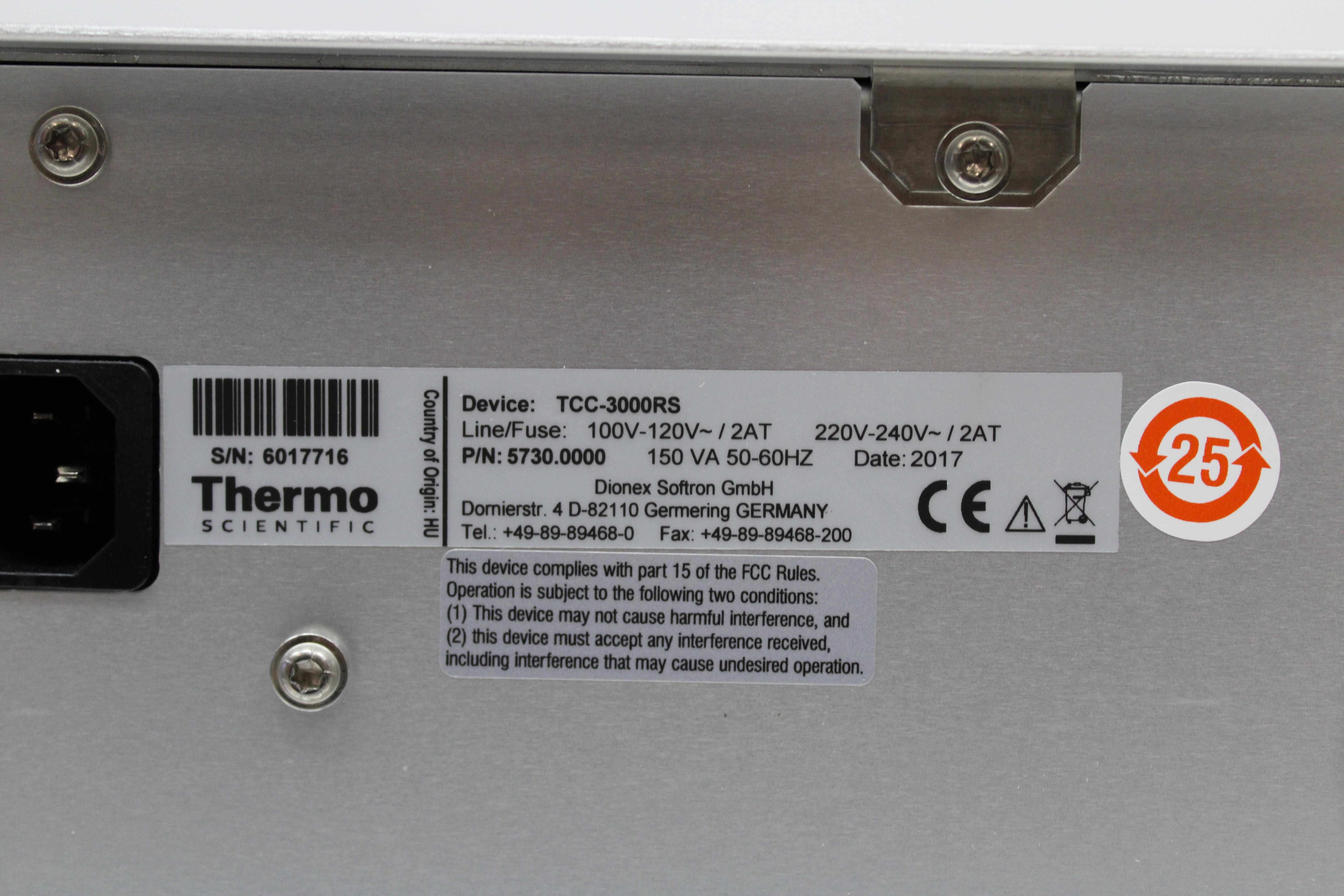

Serial6017716
-
Shipping TypeFedEx Ground
-
Manufacturing2017-01-01
-
Voltage / Hertz100-120/200-240V / 50Hz/60Hz
Description
The Thermo UltiMate TCC-3000RS Rapid Separation Thermostatted Column Compartment, manufactured in 2017, is designed for use in advanced liquid chromatography applications. This unit facilitates temperatures from 5 to 110C, ensuring precise control for both ultrafast and conventional LC applications. Optimized for method development, it reduces system backpressure and run times thanks to its dispersion-reduced precolumn heating and postcolumn cooling technology. It is compatible with up to 12 columns, but supports up to four with a maximum length of 30 cm, with features like a column identification system for audit trails and up to two column-switching valves for enhanced productivity. The unit has undergone basic tests and powers on, showing no known functionality issues, although it includes no power cord, data cables, or software.
Key Features
- Temperature control from 5C to 110C
- Supports up to 12 columns depending on length
- Dispersion-reduced precolumn heating
- Postcolumn cooling minimizes noise and drift
- Optional column switching valves
- Column identification system
Specifications
- Voltage: 100-120/200-240V
- Frequency: 50Hz/60Hz
- Temperature Range: 5C to 110C
- Cool-Down Time: 15 minutes
- Heat Up Time: 15 minutes
- Max Column Length: 30 cm
- Column Capacity: Up to 12 columns, supports 4
- I/O Interfaces: 2 digital inputs, 2 programmable relay outputs
- Biocompatible Version: Yes
- PC Connection: USB
Weight
Imperial: 45.6 Pounds
Metric: 20.68 Kilograms
Shipping Dimensions
Imperial: 32.4 lb x 28.8 lb x 21.6 lb
Metric: 82.3 cm x 73.15 cm x 54.86 cm
Harmonized Code
9027.20.00
Harmonized Code Details
9027.20.00 - Chromatographs and electrophoresis instruments. This code is apt as the product functions as a column compartment for liquid chromatography applications.
