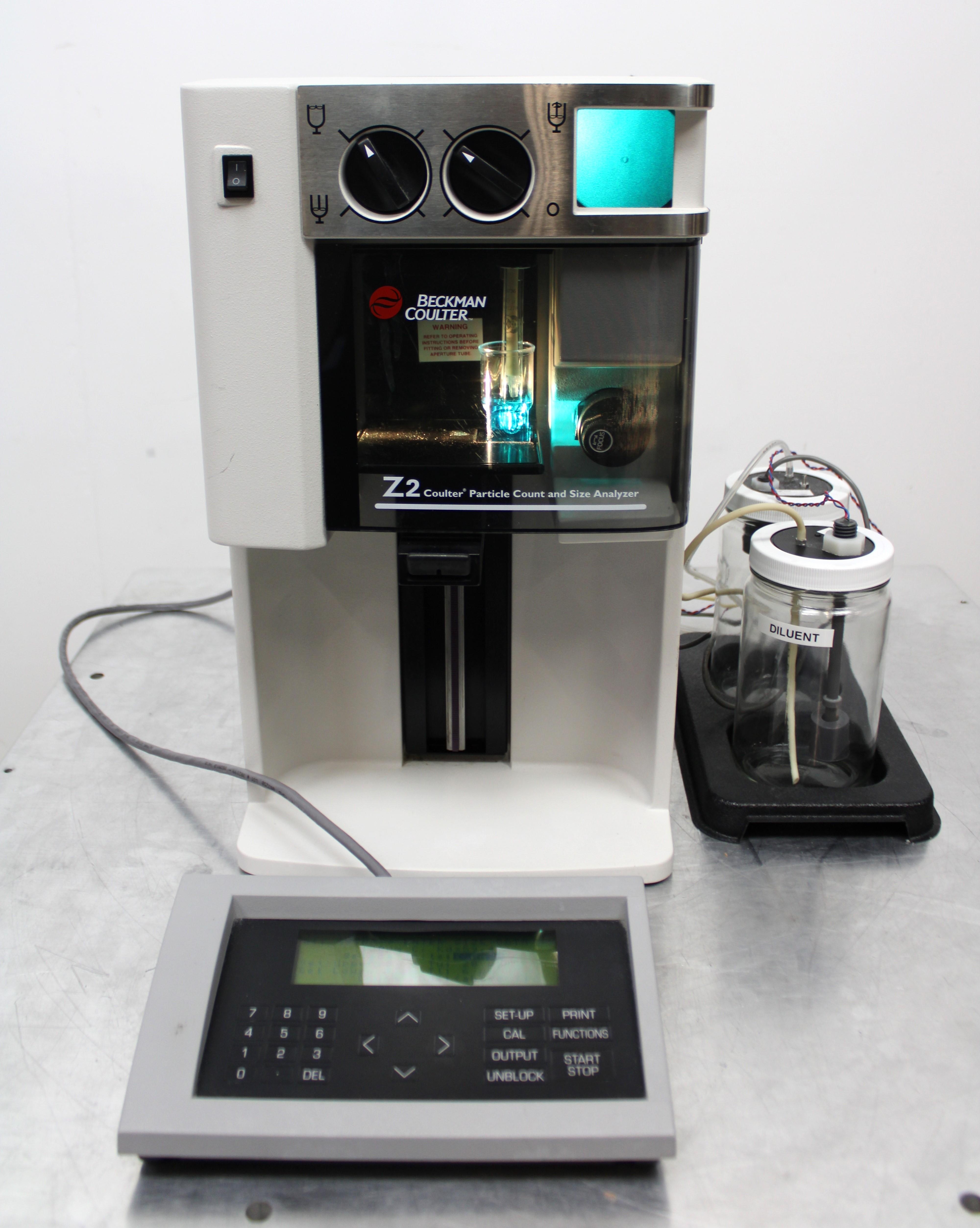

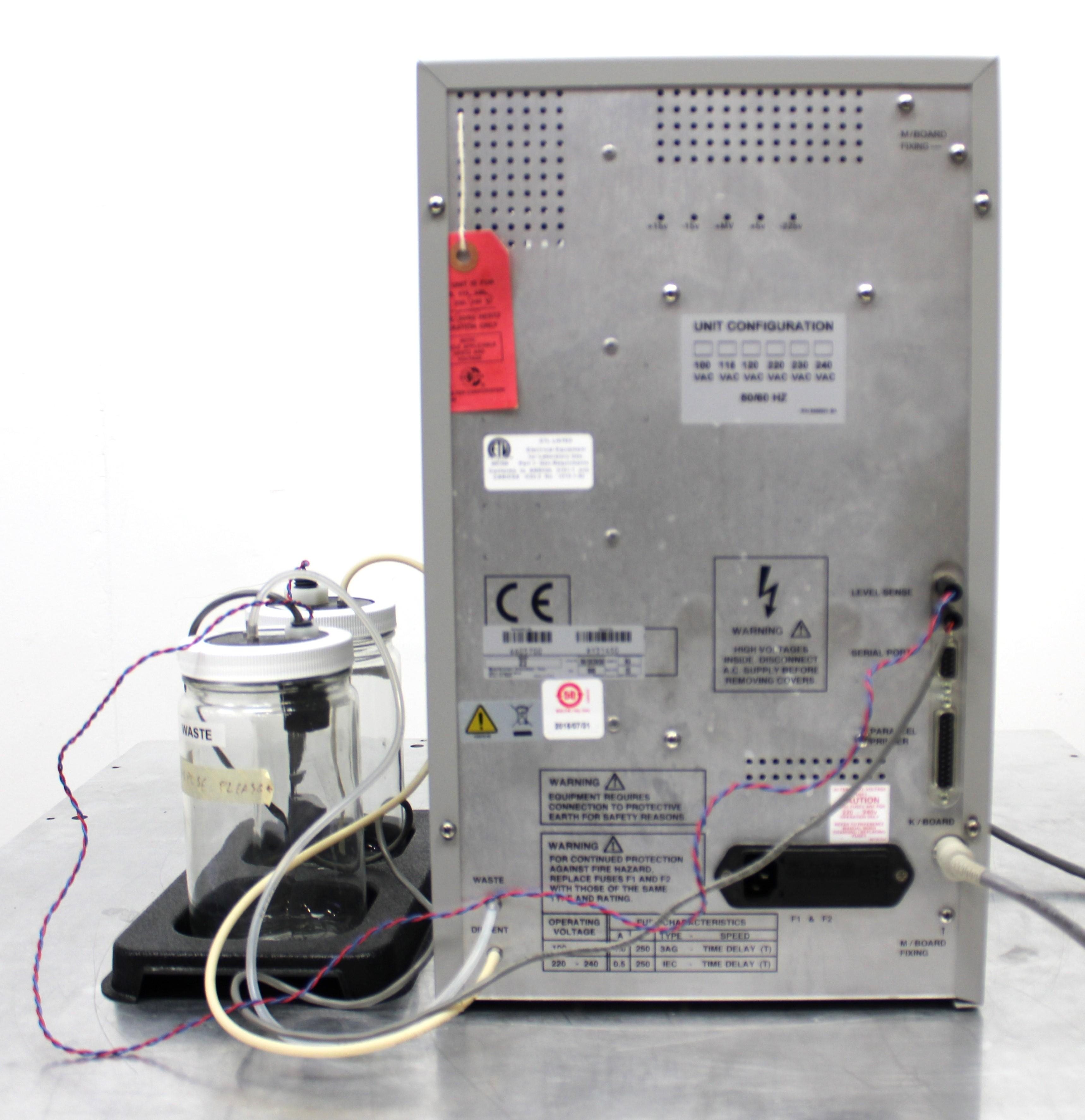

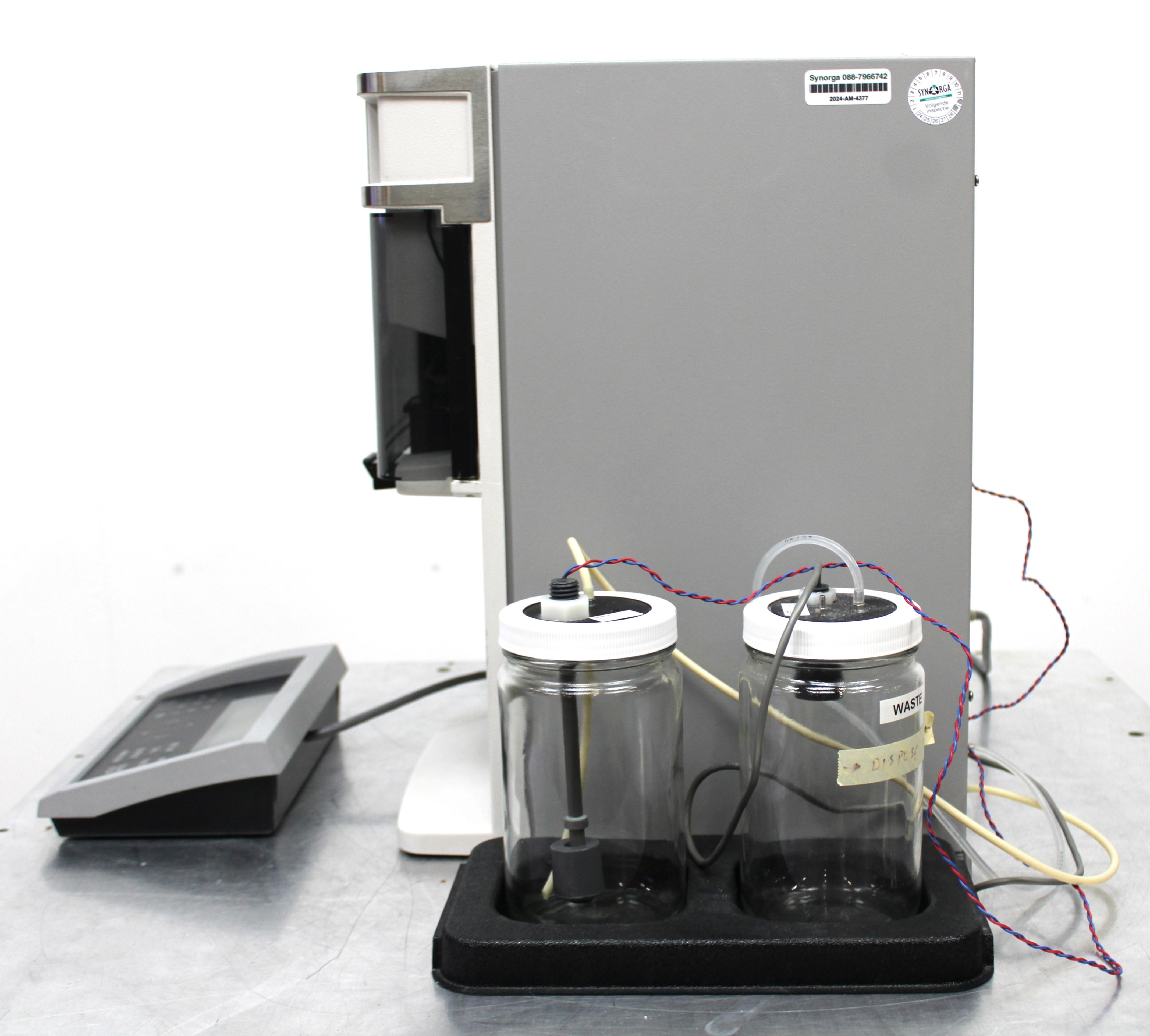

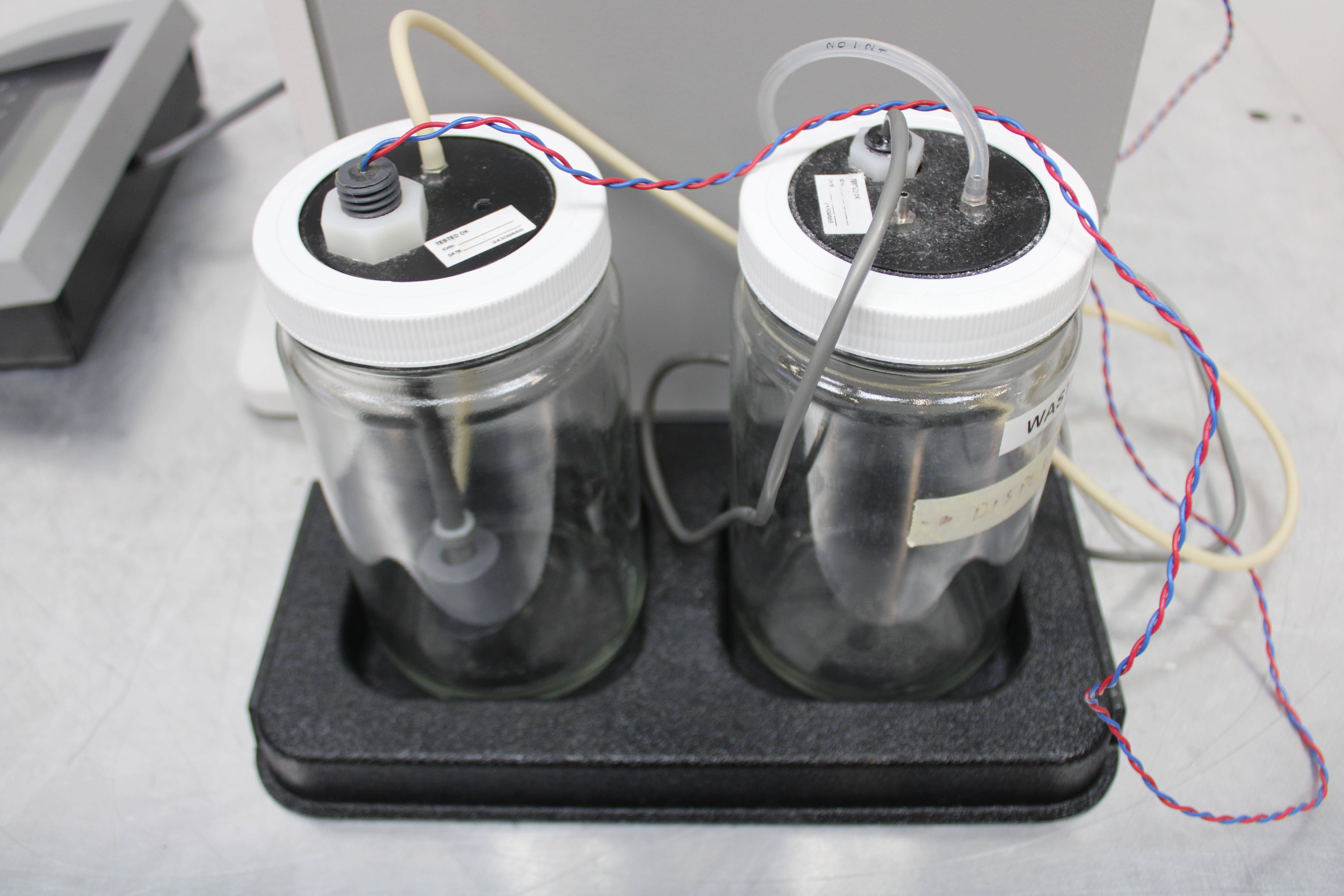

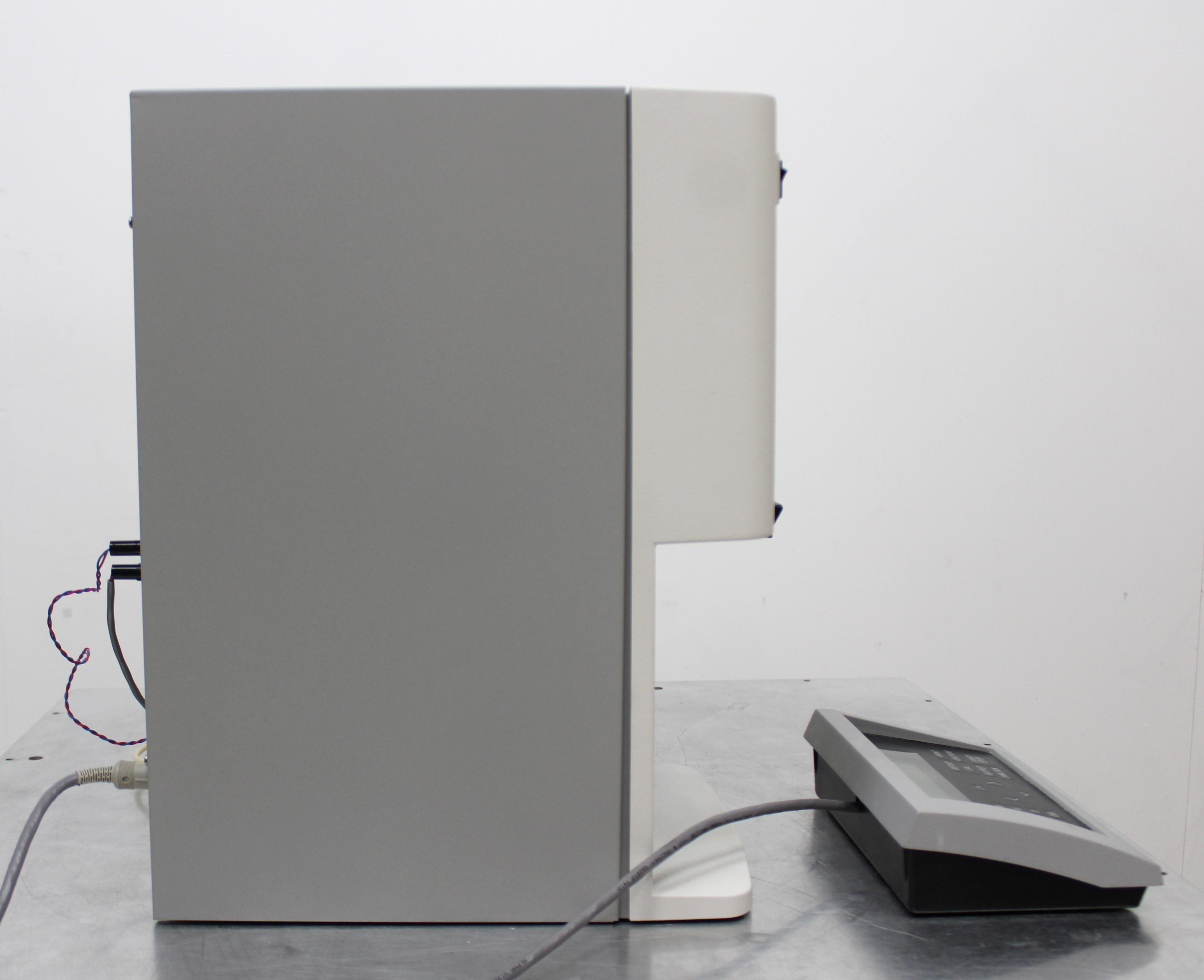

Beckman Coulter Z2 Cell Counter Particle Size Distribution Analysis
Beckman Coulter
Details
-
CategoryCell Counting / Sorting
-
Dimension43.0cm x 36.0cm x 46.0cm
-

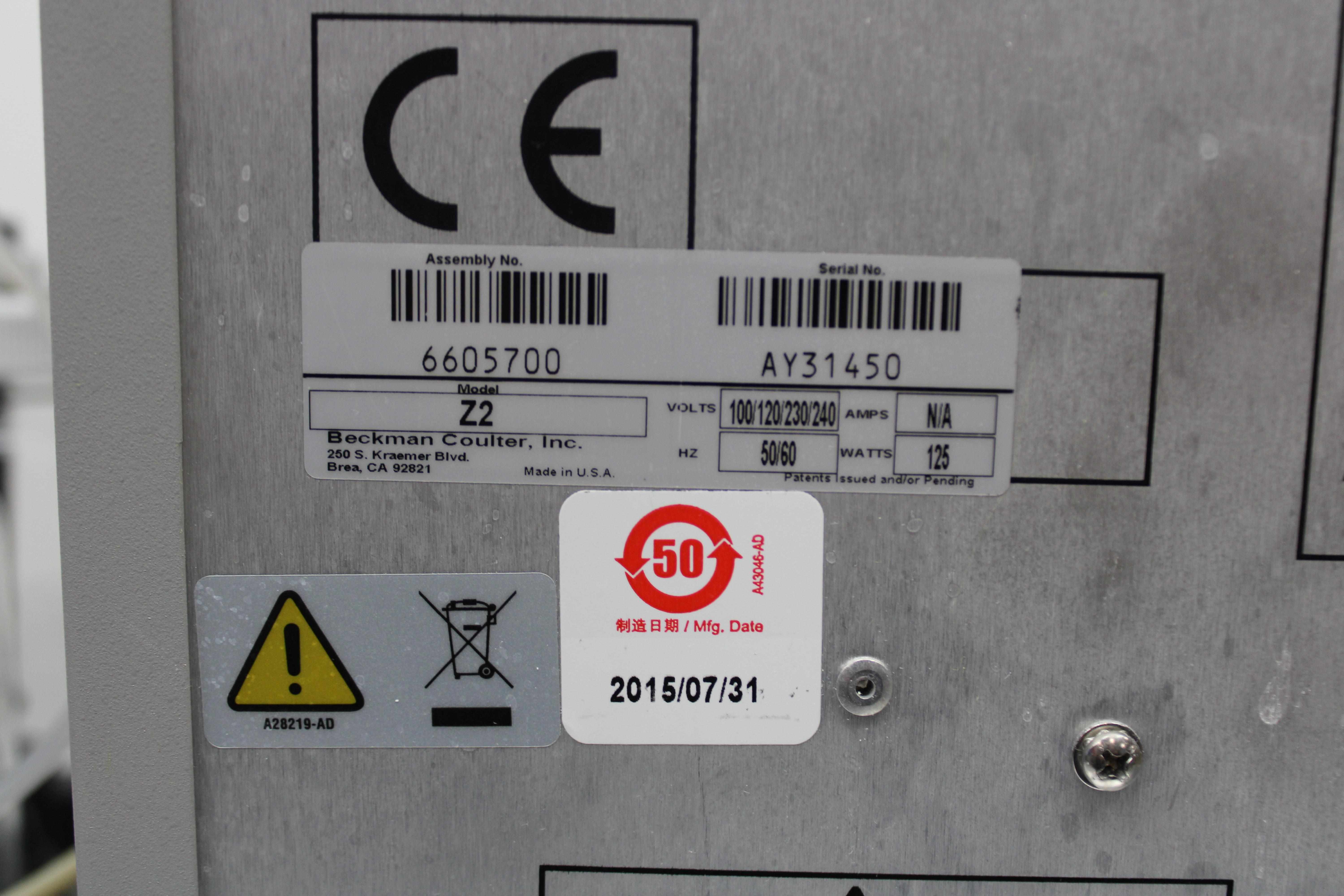

SerialAY31450
-
Shipping TypeFedEx Ground
-
Manufacturing2015-01-01
-
Voltage / Hertz100-240 / 50Hz/60Hz
Description
The Beckman Coulter Z2 Cell and Particle Counter, manufactured in 2015, utilizes the Coulter Principle (Electrical Sensing Zone Method) to offer precise and versatile counting and sizing of cells and particles. Capable of providing count, concentration, and size distribution, it presents advanced graphical data analysis options. The model supports up to 10 consecutive analyses to enhance statistical reliability and size distribution smoothing. Specifications include a wide analysis range of 1 um to 120 um, dual threshold dynamic range, multiple metered volumes, and 64-256 channel distribution. It requires 100-240V power supply, consumes less than 55W, and fits conveniently on a benchtop with dimensions 46 cm x 27 cm x 36 cm and weight 13.6 kg.
Key Features
- Electrical Sensing Zone Method
- Cell and particle count and size distribution
- Analysis range from 1 um to 120 um
- Dynamic aperture range: Dual Threshold
- Up to 10 consecutive analyses

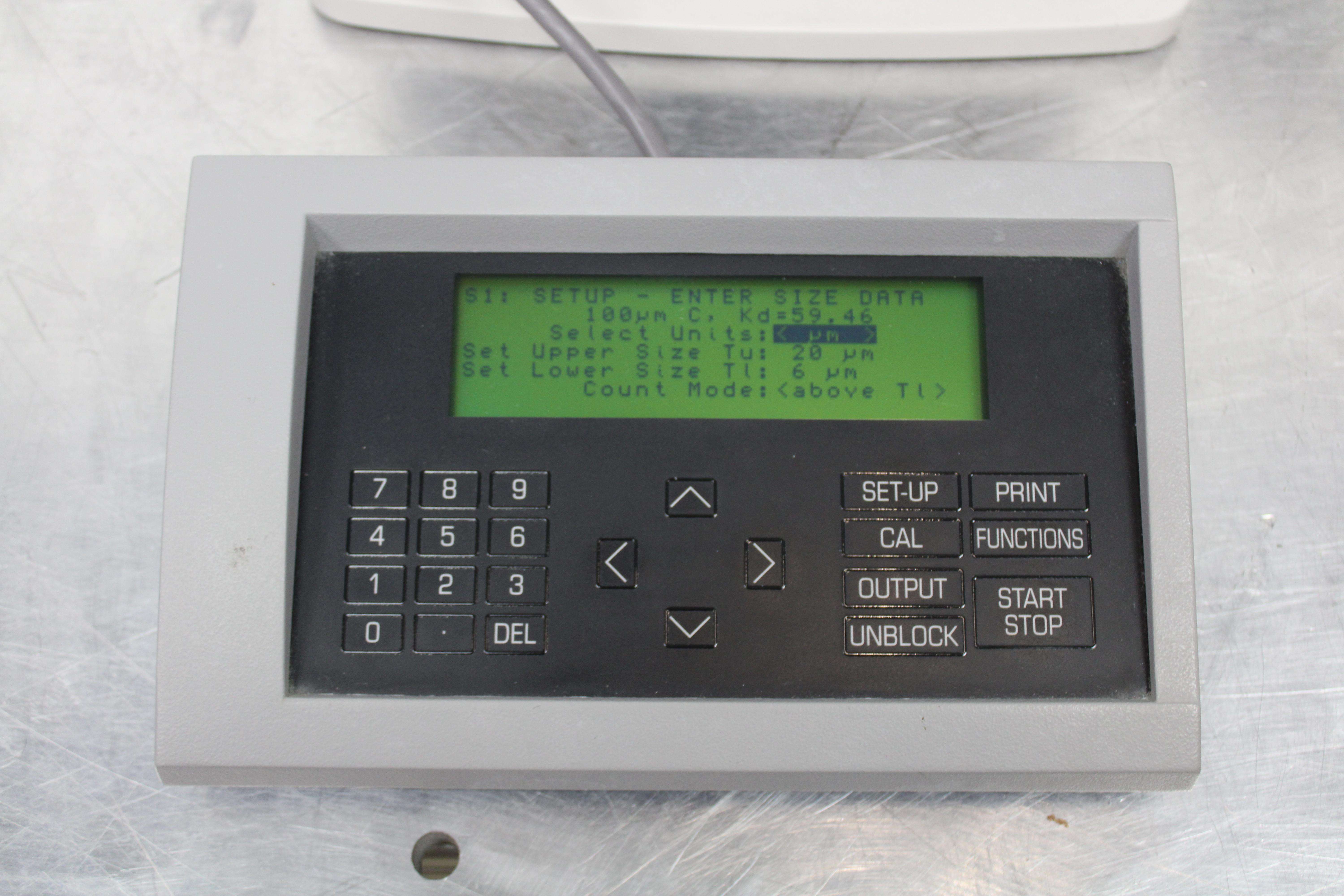

- Graphical display with user-selectable data areas
Specifications
- Analysis Range: 1 um to 120 um
- Dynamic Range: Up to 6.3:1 by diameter; 256:1 by volume
- Metered Volumes: 100/500/1000 ul
- Resolution: User selectable
- Precision: > 1% CV
- Power Supply: 100-240V, 50Hz/60Hz
- Power Consumption: < 55W
- Orifice Tube Sizes: 50/70/100/140/200 um
- Number of Channels: 64, 128, 256
Weight
Imperial: 33.6 Pounds
Metric: 15.24 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 16.8 lb x 21.6 lb
Metric: 51.82 cm x 42.67 cm x 54.86 cm
Harmonized Code
9027.50
Harmonized Code Details
9027.50 - Instruments and apparatus for physical or chemical analysis. This code is chosen as the Beckman Coulter Z2 is primarily used for cell counting and particle analysis.
