Sogevac SV120BIFC Vacuum Pump Optimized 147 m3/h 200-240V 2019 France
Sogevac
Details
-
CategoryPump
-
Dimension74.0cm x 38.0cm x 48.0cm
-

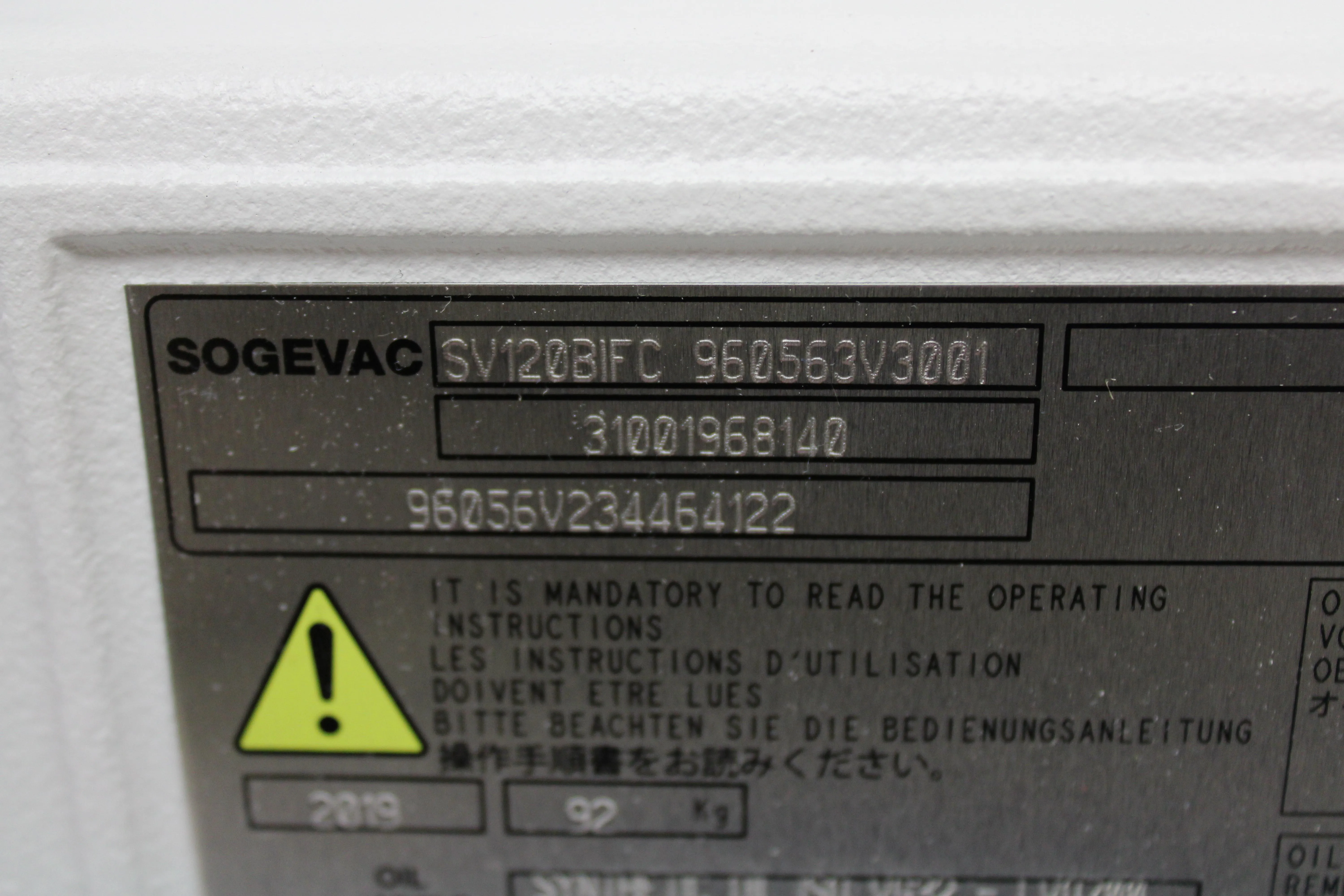

Serial31001968140
-
Shipping TypeFreight
-
Manufacturing2019-01-01
-

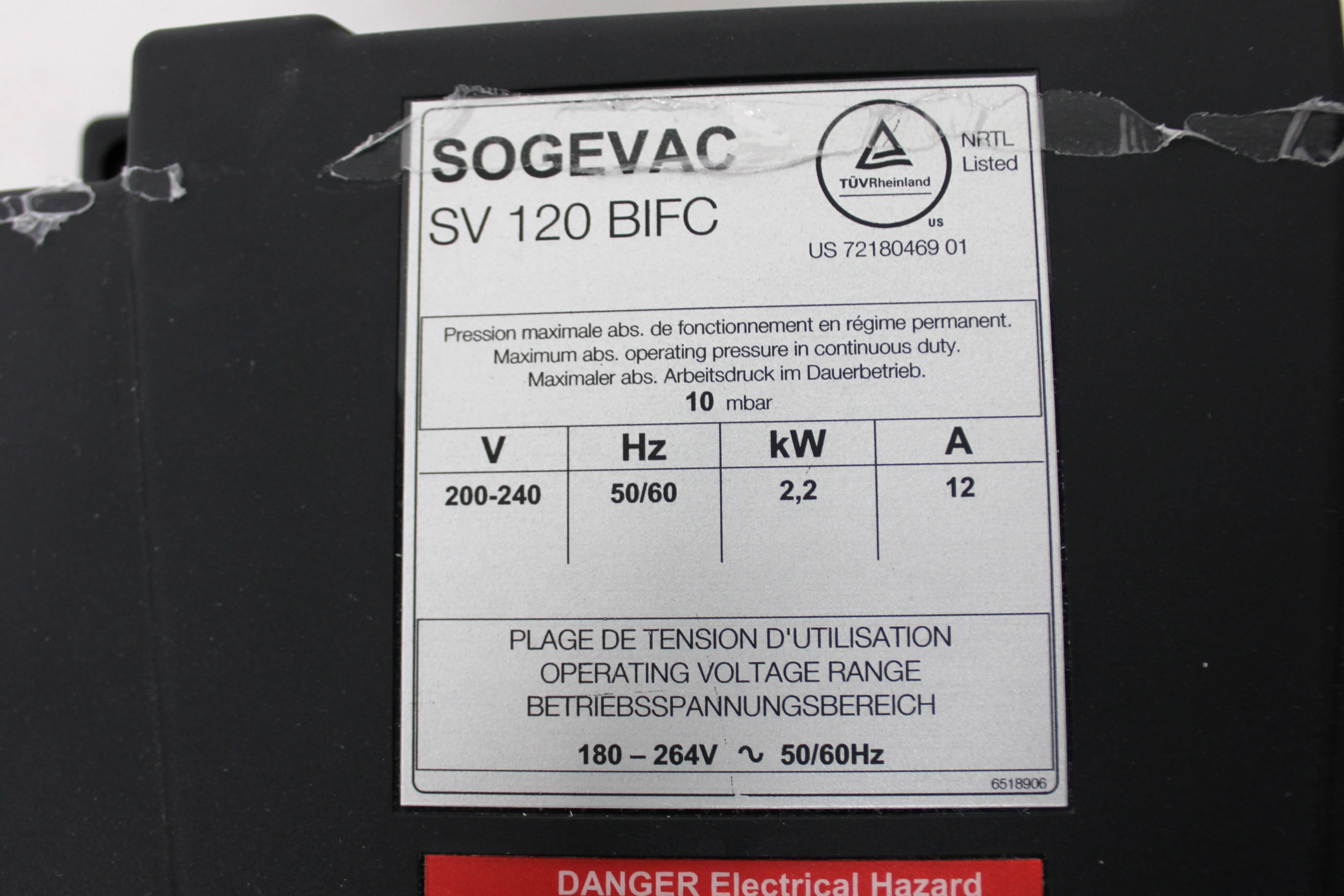

Voltage / Hertz200-240V / 50Hz/60Hz
Description

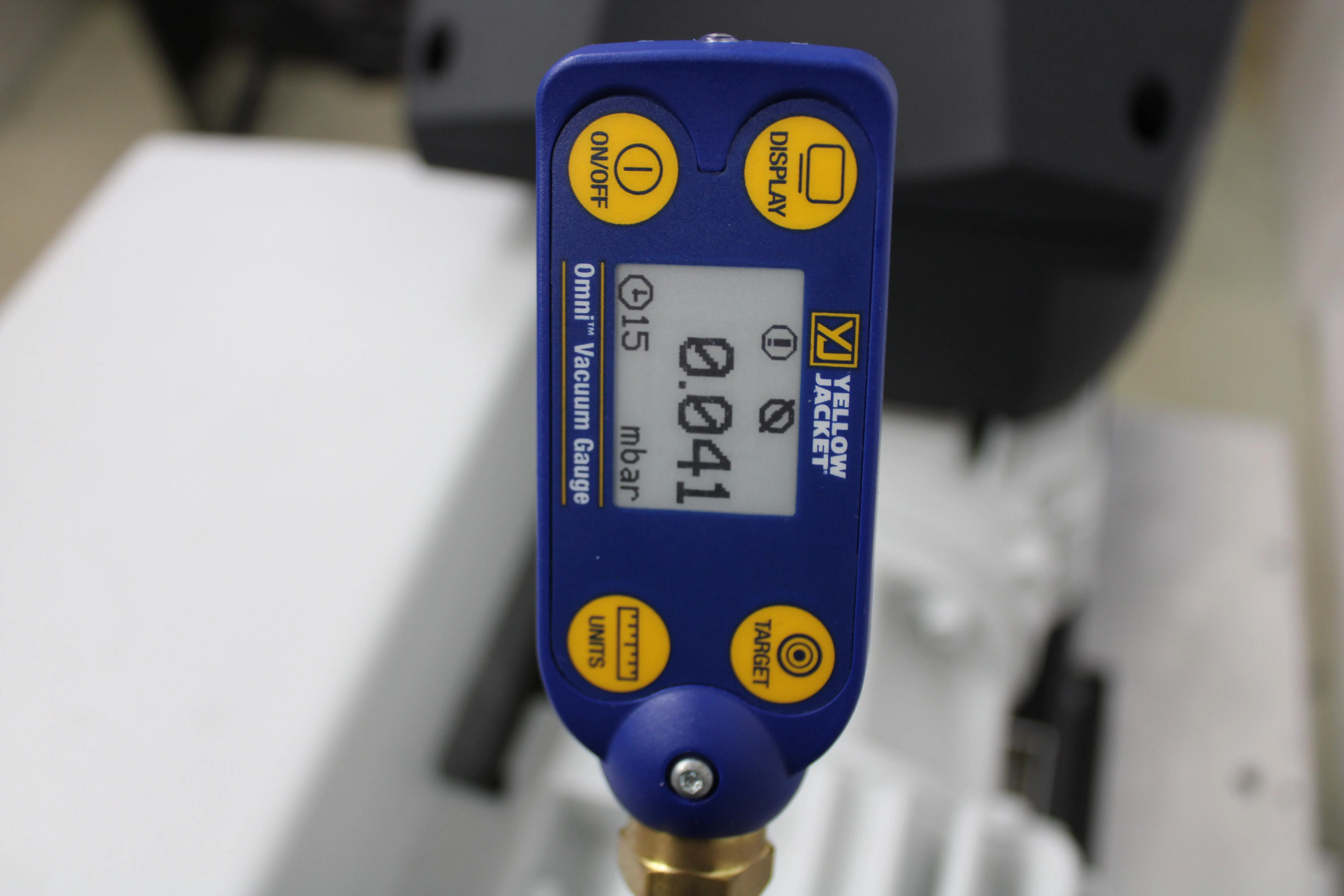

This Sogevac SV120BIFC vacuum pump, manufactured in 2019 in France, is versatile for various industrial applications, offering a nominal pumping speed of 147 m³/h across 50Hz and 60Hz frequencies. The model can achieve a pressure of 0.041 mbar during testing, demonstrating effective vacuum capabilities. Designed to handle a wide range of pumping applications, it is especially useful in laboratories and manufacturing setups. The pump features a robust build, operational within a temperature range of 18°C to 40°C, and can function at rated motor speeds of up to 1800 min⁻¹ with a motor power of 2.2 kW. Though it shows some cosmetic wear, this equipment is functionally sound and offers reliable performance. Note that this testing equipment does not include a power cord or computer, and testing to full capability has not been possible, but there are no known functional issues.
Key Features
- Nominal pumping speed of 147 m³/h
- Ultimate total pressure with gas ballast: ≤ 1.0 mbar
- Noise level: ≤ 61 dB(A)
- Operation with wide voltage range 200-240V
- Functional in ambient temperatures of 18°C to 40°C
Specifications
- Pumping speed (50 KF inlet): ≥ 100 m³/h at 2 mbar
- Pumping speed (40 KF inlet): ≥ 90 m³/h at 2 mbar
- Ultimate partial pressure without gas ballast: ≤ 0.2 mbar
- Water vapor tolerance with small gas ballast: 10 mbar
- Power: Motor rated at 2.2 kW, 1800 min⁻¹
- Rated noise output: ≤ 61 dB(A)
- Protection insulation class: IP 20 - F
Weight
Imperial: 242.4 Pounds
Metric: 109.95 Kilograms
Shipping Dimensions
Imperial: 34.8 lb x 18.0 lb x 22.8 lb
Metric: 88.39 cm x 45.72 cm x 57.91 cm
Harmonized Code
84141000
Harmonized Code Details
84141000: Vacuum pumps. This code is appropriate for the Sogevac SV120BIFC as it categorizes machinery specifically designed for vacuum generation, which is the primary function of this equipment.
