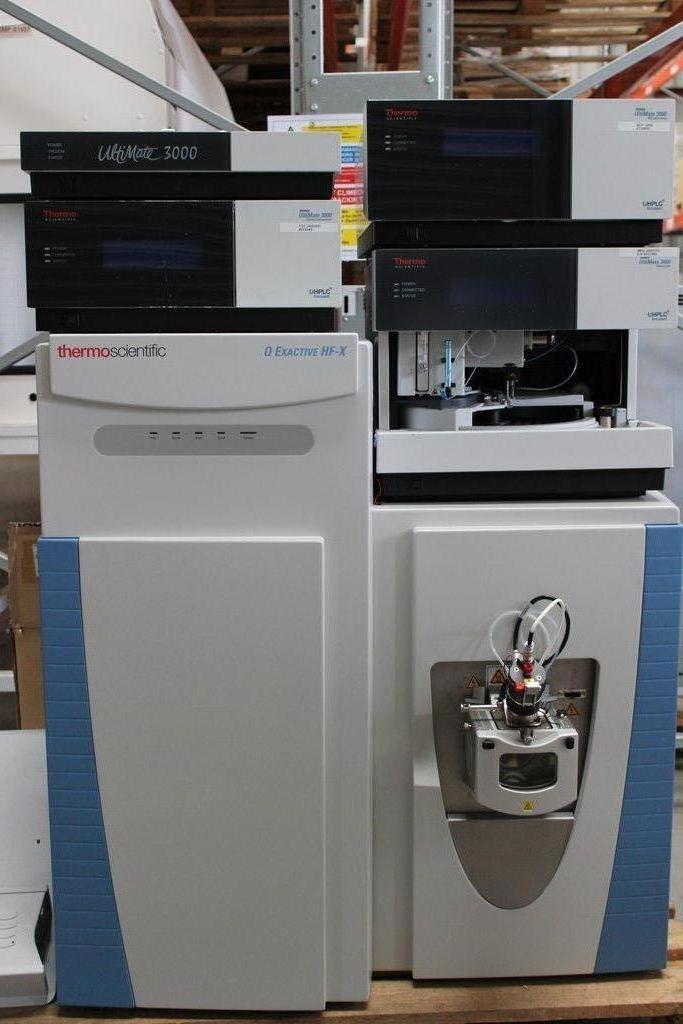

Thermo Q Exactive HF-X LC/MS Mass Spec System
Thermo Fisher
Details
-
CategoryMass Spectrometry
-
Dimension91.0cm x 89.0cm x 94.0cm
-
Serial06354L
-
Shipping TypeFreight
-
Manufacturing2018-01-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

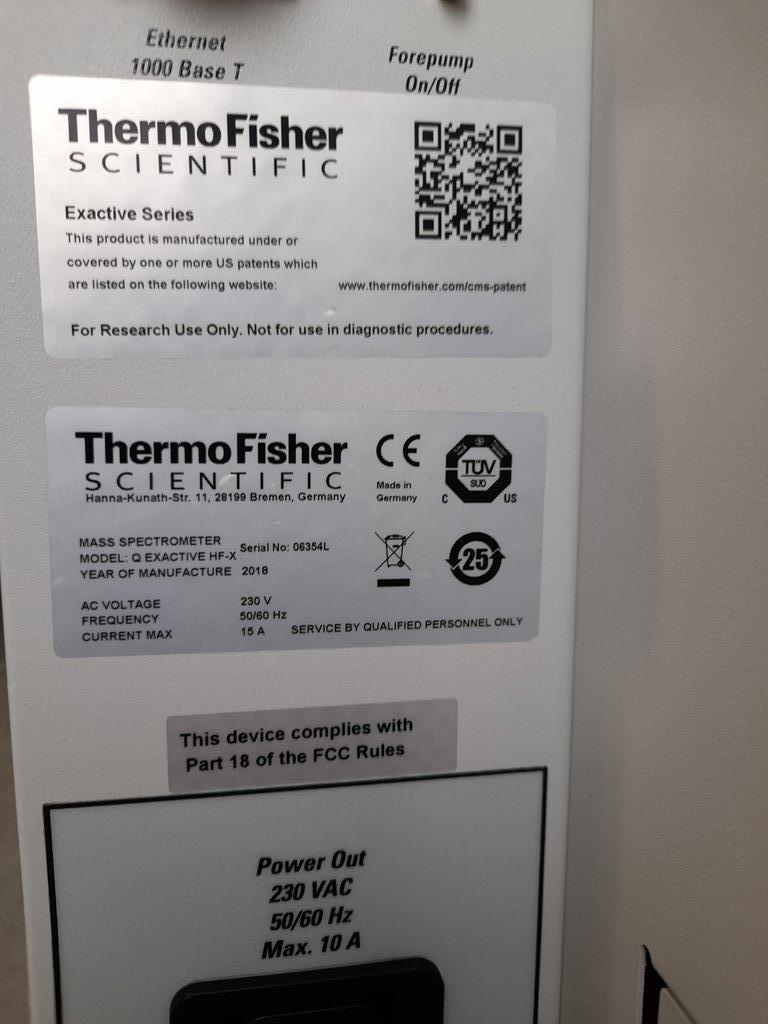

The Thermo Q Exactive HF-X Mass Spectrometer, manufactured in 2018, is an advanced hybrid quadrupole-Orbitrap system designed to tackle the toughest analytical challenges in discovery and quantitation. Equipped with an ultra-high-field Orbitrap mass analyzer, it offers enhanced scan speed and resolution, maintaining high spectral quality for the detection and quantification of peptides, lipids, metabolites, and other crucial biochemical compounds. The system utilizes Advanced Quadrupole Technology for improved quantitation of low abundant analytes and features multiple Data-Independent Acquisition (DIA) methods for comprehensive data archiving. Notably, it includes U3000 HPLC components, facilitating efficient sample preparation. Note: computer and software are not included, unit requires validation and calibration.
Technician comment

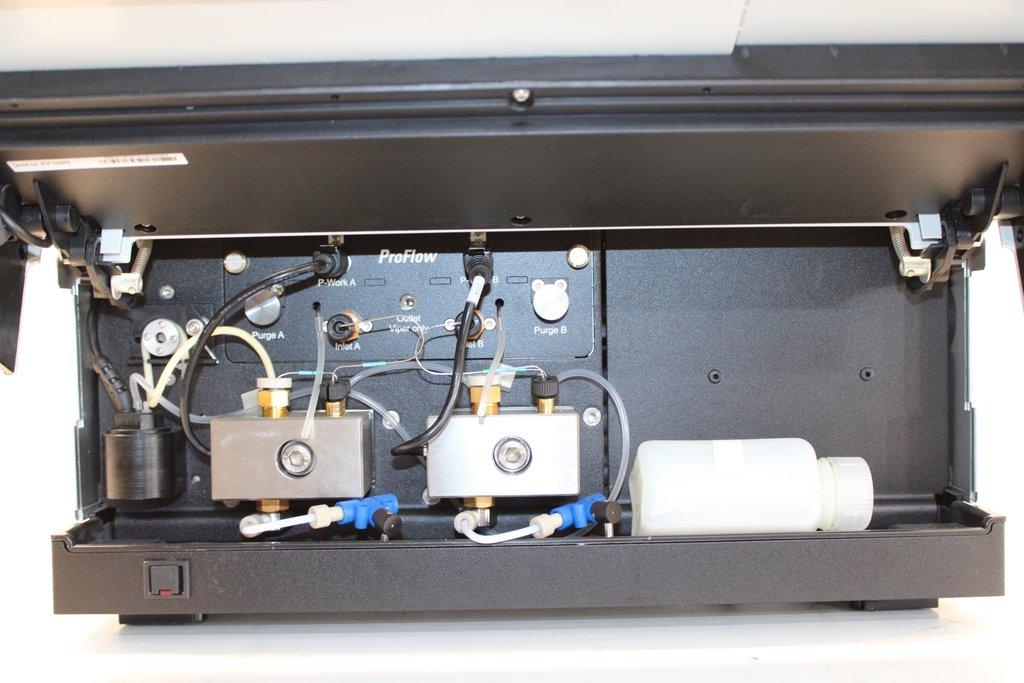

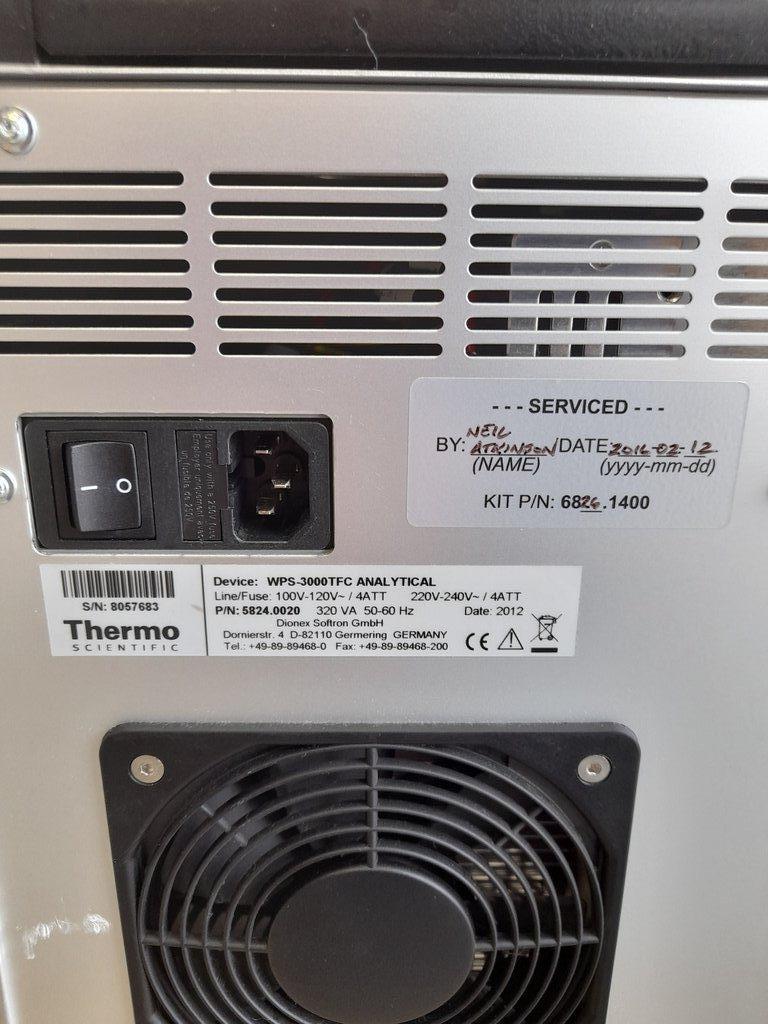

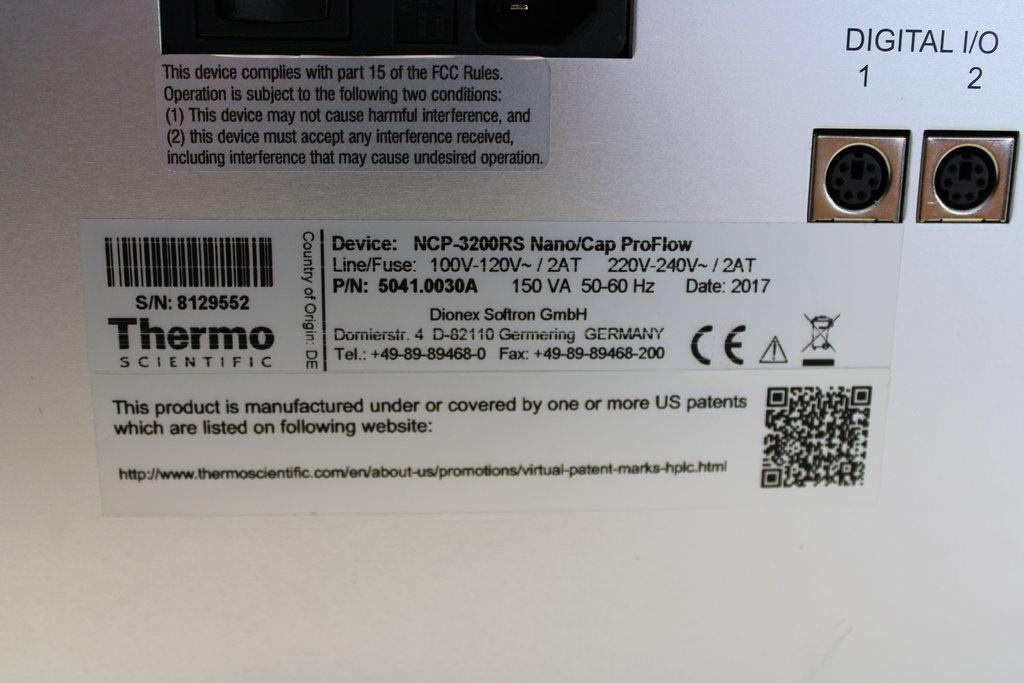

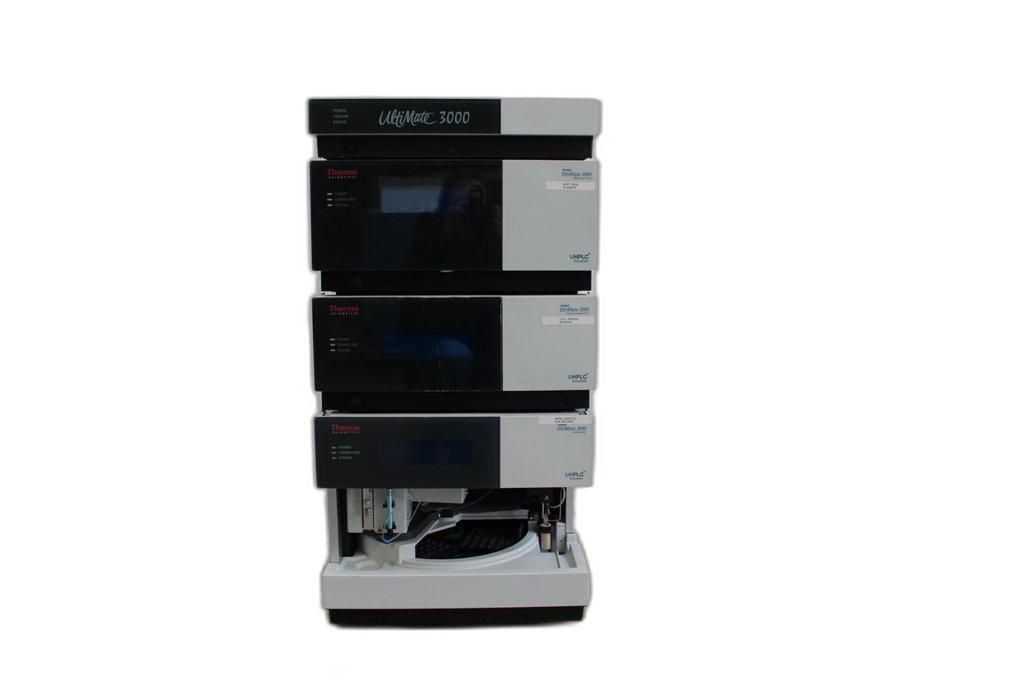

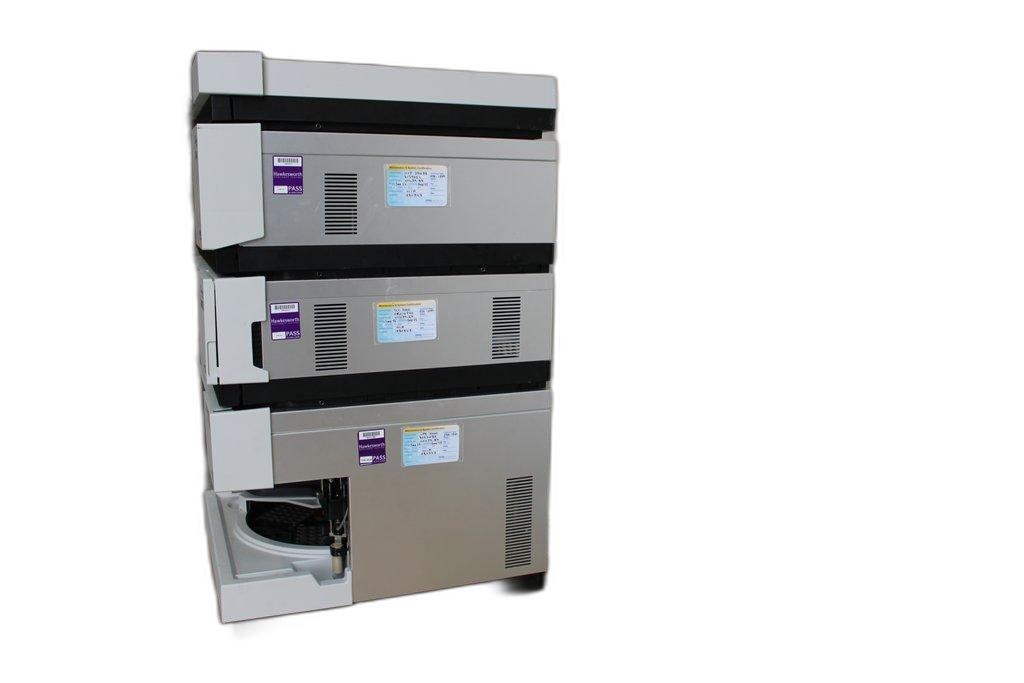

Includes U3000 HPLC components: NCP-3200RS Nano/Cap ProFlow pump, P/N: 5041-0030 WPS-3000TFC Analytical autosampler, P/N: 5824.0020 TCC-3000SD Column compartment, P/N: 5730.0010 SR-3000 Solvent Rack, P/N: 5035.9200 Unit needs to be validated and calibrated for full accuracy (not included). Please inquire about this with us for further details.
Key Features
- Ultra-High-Field Orbitrap analyzer
- Advanced Quadrupole Technology (AQT)
- Enhanced Data-Independent Acquisition (DIA)
- Parallel Reaction Monitoring (PRM)
- Includes U3000 HPLC components
Specifications
- Manufacture Year: 2018
- Condition: G (Good) - Powers on with basic test pass
- Orbitrap Mass Analyzer for high resolution and speed
- AQT for improved quantitation accuracy
- DIA methods include BASIC-DIA, pSMART-DIA, MSx-DIA
- Mass Range: Broad for diverse compounds
- Sensitivity and Resolution: High for complex matrices
- Includes: NCP-3200RS Nano/Cap ProFlow pump, WPS-3000TFC Analytical autosampler
- Optional Intact Protein Mode for large molecules
- Requires validation and calibration
Weight
Imperial: 450.0 Pounds
Metric: 204.12 Kilograms
Shipping Dimensions
Imperial: 43.2 lb x 42.0 lb x 44.4 lb
Metric: 109.73 cm x 106.68 cm x 112.78 cm
Harmonized Code
9027.20.00
Harmonized Code Details
9027.20.00 - Chromatographs, electrophoresis instruments. This code was chosen due to the combination of the mass spectrometer with HPLC components.
