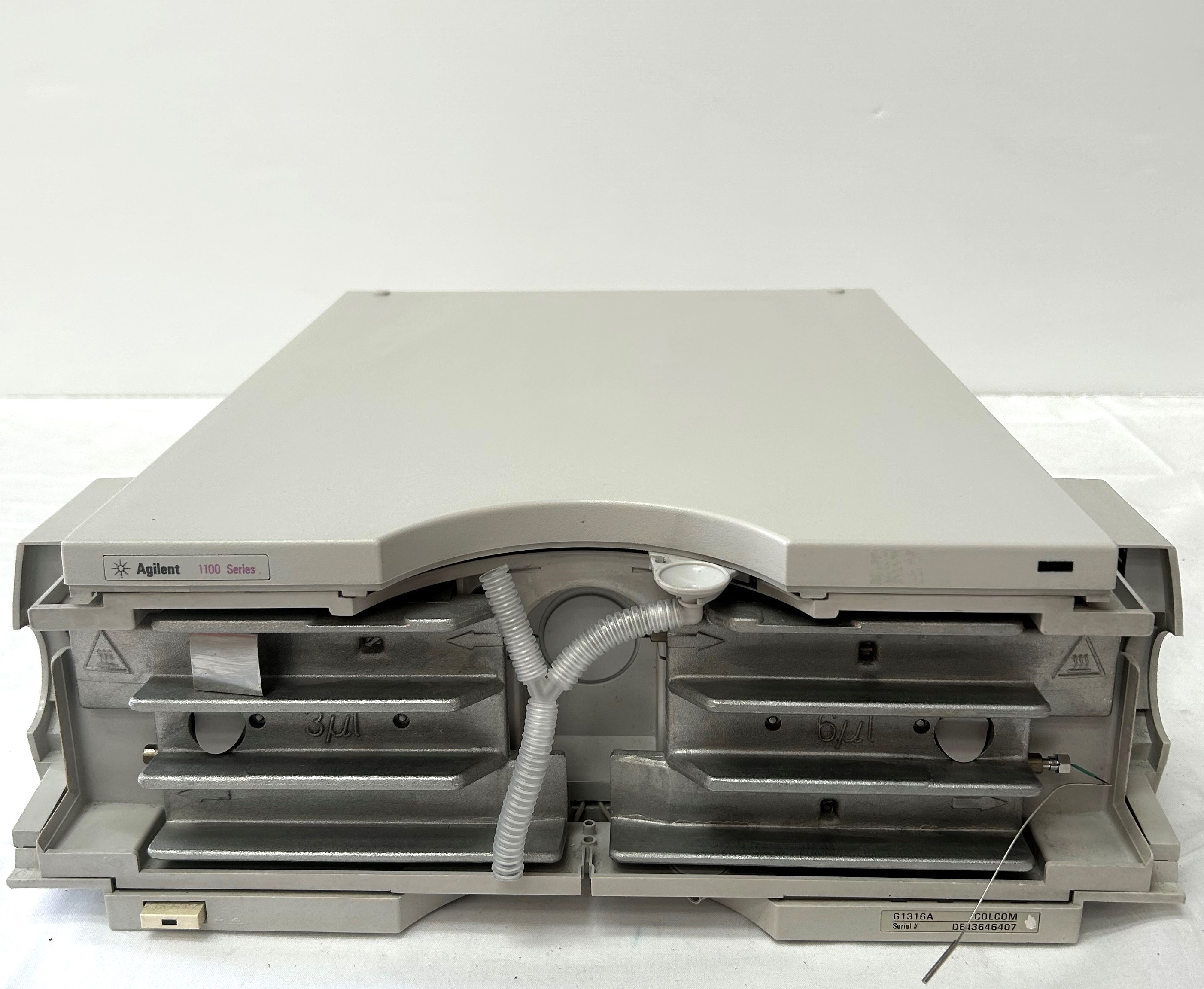

Agilent G1316A Column Oven HPLC 1100 Series Temperature Range -10C to 80C
Agilent
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension43.0cm x 35.0cm x 15.0cm
-
SerialDE43646407
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Agilent 1100 G1316A Column Compartment is a specialized thermofficial-controlled unit designed for precise chromatography applications. Manufactured by Agilent in Germany, this column compartment offers a temperature range of 10°C below ambient to 80°C with stability of ±0.15°C. This compact equipment seamlessly integrates into a single Agilent 1100 Series HPLC stack. It features two heat exchangers for solvent pre-heating, an automated column identification module, and CAN cable connectivity for streamlined operations. The compartment accommodates three 30 cm columns with high precision and temperature accuracy of ±0.8°C. Utilizing Peltier thermoelectric heating and cooling, the G1316A ensures rapid transition between temperatures — heating/cooling within 5 minutes from ambient to 40°C — providing flexibility and stability essential for high-performance HPLC processes.
Key Features
- Temperature Range: -10°C to 80°C
- Temperature Stability: ±0.15°C
- Supports three 30 cm columns
- Automated column identification
- Peltier Heating/Cooling
- Compact size for 1100 Series stack
Specifications
- Temperature Range: 10°C below ambient to 80°C
- Temperature Stability: ±0.15°C
- Column Capacity: Three 30 cm columns
- Temperature Accuracy: ±0.8°C
- Warm-up/Cool-down Time: 5 minutes from ambient to 40°C
- Includes: Two heat exchangers, automated column identification module, CAN cable
- Voltage: 120V/220V, Frequency: 50Hz/60Hz
Weight
Imperial: 26.46 Pounds
Metric: 12.0 Kilograms
Shipping Dimensions
Imperial: 20.31 lb x 16.54 lb x 7.09 lb
Metric: 51.59 cm x 42.01 cm x 18.01 cm
Harmonized Code
9027.90
Harmonized Code Details
9027.90: Instruments and apparatus for physical or chemical analysis. Used extensively for chromatographic equipment like HPLC, ensuring precise temperature control, vital for accurate analysis.
