Agilent G1316A HPLC Column Compartment Temp Range -10 to 80C Used
Agilent
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension43.0cm x 38.0cm x 15.0cm
-

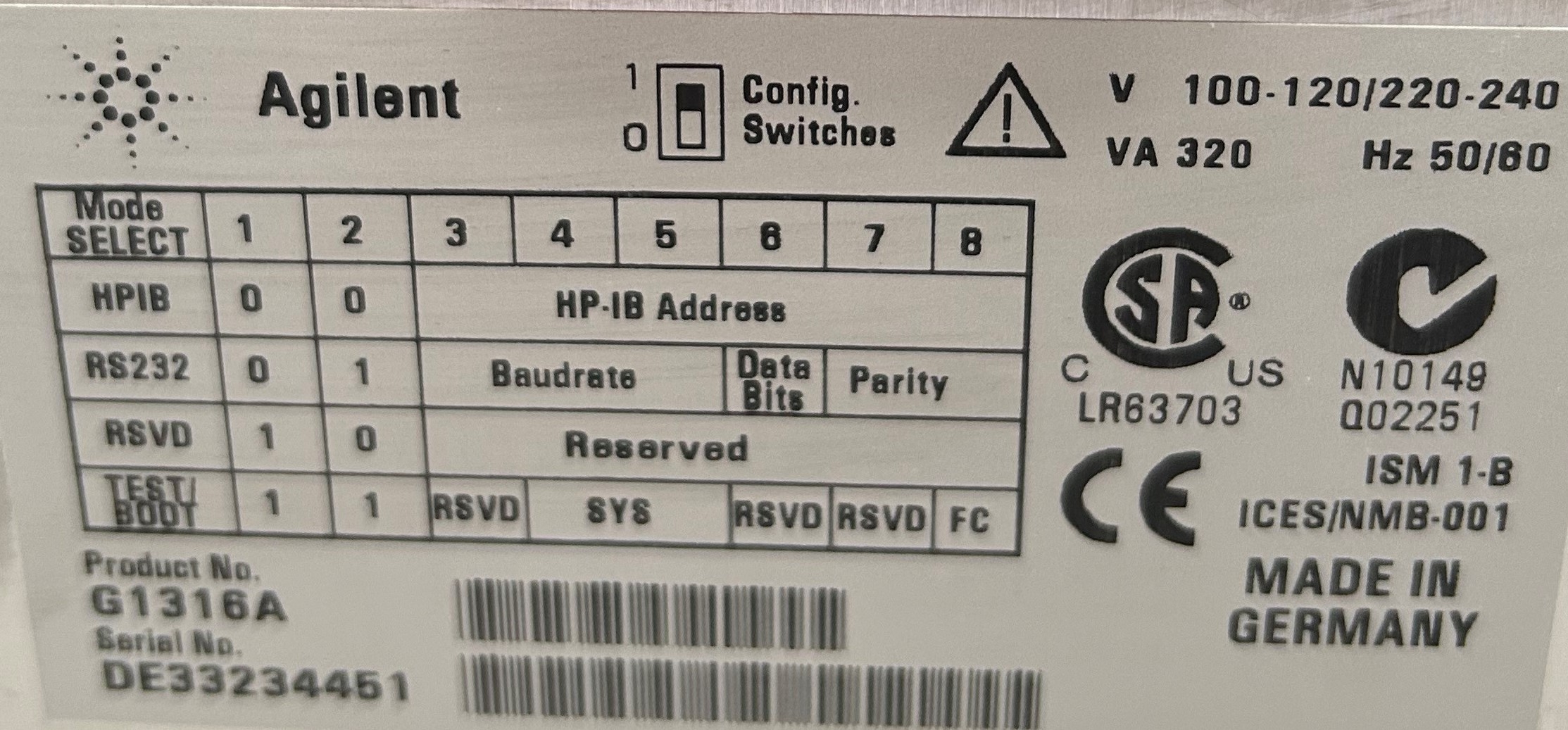

SerialDE33234451
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Agilent G1316A Column Compartment, a part of the HP Agilent 1100 Series HPLC, comprises dual heat exchangers for effective solvent pre-heating and a built-in automated column identification module with CAN cable. The unit compactly integrates into the 1100 Series HPLC stack. Its temperature controllable range spans from 10C below ambient to 80C, with a stability precision of ±0.15C. Designed for up to three 30 cm columns, the G1316A is engineered for temperature accuracy of ±0.8C. The Peltier heating and cooling mechanism allows rapid temperature adjustments, reaching target from ambient to 40C automatically within 5 minutes. Please note the unit is in fair used condition with certain minor errors that may affect functionality but are repairable, allowing continued application in HPLC processes.
Key Features
- Temperature range: 10C below ambient to 80C
- Temperature stability: ±0.15C
- Column capacity: Three 30 cm columns
- Peltier heating and cooling mechanism
- Compact size for integration with 1100 Series HPLC
Specifications
- Includes dual heat exchangers for solvent pre-heating
- Automated column ID with CAN cable
- Temperature accuracy of ±0.8C
- Warm up/cool down time: 5 minutes from ambient to 40C
Weight
Imperial: 26.46 Pounds
Metric: 12.0 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 18.0 lb x 7.2 lb
Metric: 51.82 cm x 45.72 cm x 18.29 cm
Harmonized Code
902790
Harmonized Code Details
902790 - Parts and accessories of instruments and apparatus for physical or chemical analysis (for example, polarimeters, refractometers, spectrometers), for measuring or checking viscosity, porosity, expansion, surface tension or the like; instruments and apparatus for measuring or checking quantities of heat, sound or light (including exposure meters); microtomes. The code is suitable as the product is a part of an HPLC system which is used for chemical analysis.
