Rheodyne MRA100-100 HPLC Flow Splitter

Product Information

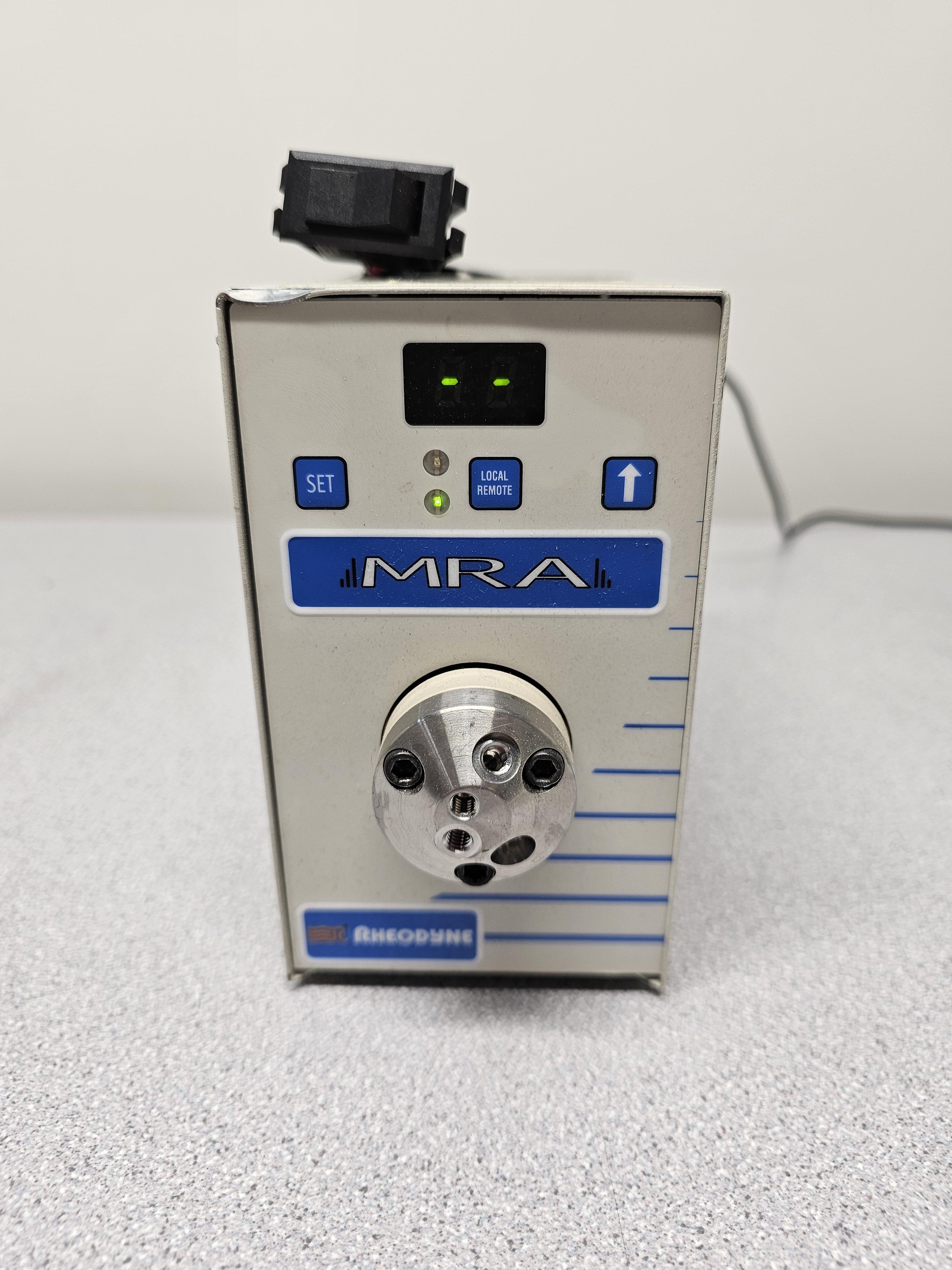

Rheydyne Custom MRA100-100 Flow splitter. HPLC flow splitters are often used to couple mass spectrometers to liquid chromatographs to reduce the amount and concentration of sample delivered to a mass spectrometer. This is especially useful in automated systems to avoid unwanted MS inlet overload. Splitting is also required for applications in which a second detector or a fraction collection device is used parallel to the MS. LC/MS flow splitting is typical, for example, in the automated analysis of combinatorial libraries, drug metabolites, and the characterization of impurities. The Rheodyne MRA100-100 boasts an extensive range of programmable split ratios, accurate and consistent split ratios independent of changes in temperature, and switching frequency range: 0.2 Hz to 2.0 Hz. It also provides nominal aliquot sizes of 22 nL, 100 nL, and 300 nL and a pressure rating of 6.9 MPa (69 bar, 1000 psi). The MRA100-100 is made of stainless steel and RPC-8*, and its communications are automated operation by Input Line Control or RS-232. An auxiliary LC pump is required to provide an independent flow source to the MS and the maximum benefits available from the MRA.

• Broad range of programmable split ratios
• Accurate and consistent split ratios independent of changes in temperature
• Pressure rating of 6.9 MPa (69 bar, 1000 psi)
• Stainless steel and RPC-8* construction
• Automated operation by Input Line Control or RS-232

• Approximate Split Ratio Range: 100:1-100,000:1
• Switching Frequency Range: 0.2 Hz to 2.0 Hz
• Nominal Aliquot Sizes: 22 nL, 100 nL, and 300 nL
• Pressure Rating: 6.9 MPa (69 bar, 1000 psi)
• Wetted Surfaces: Stainless Steel, RPC-8*

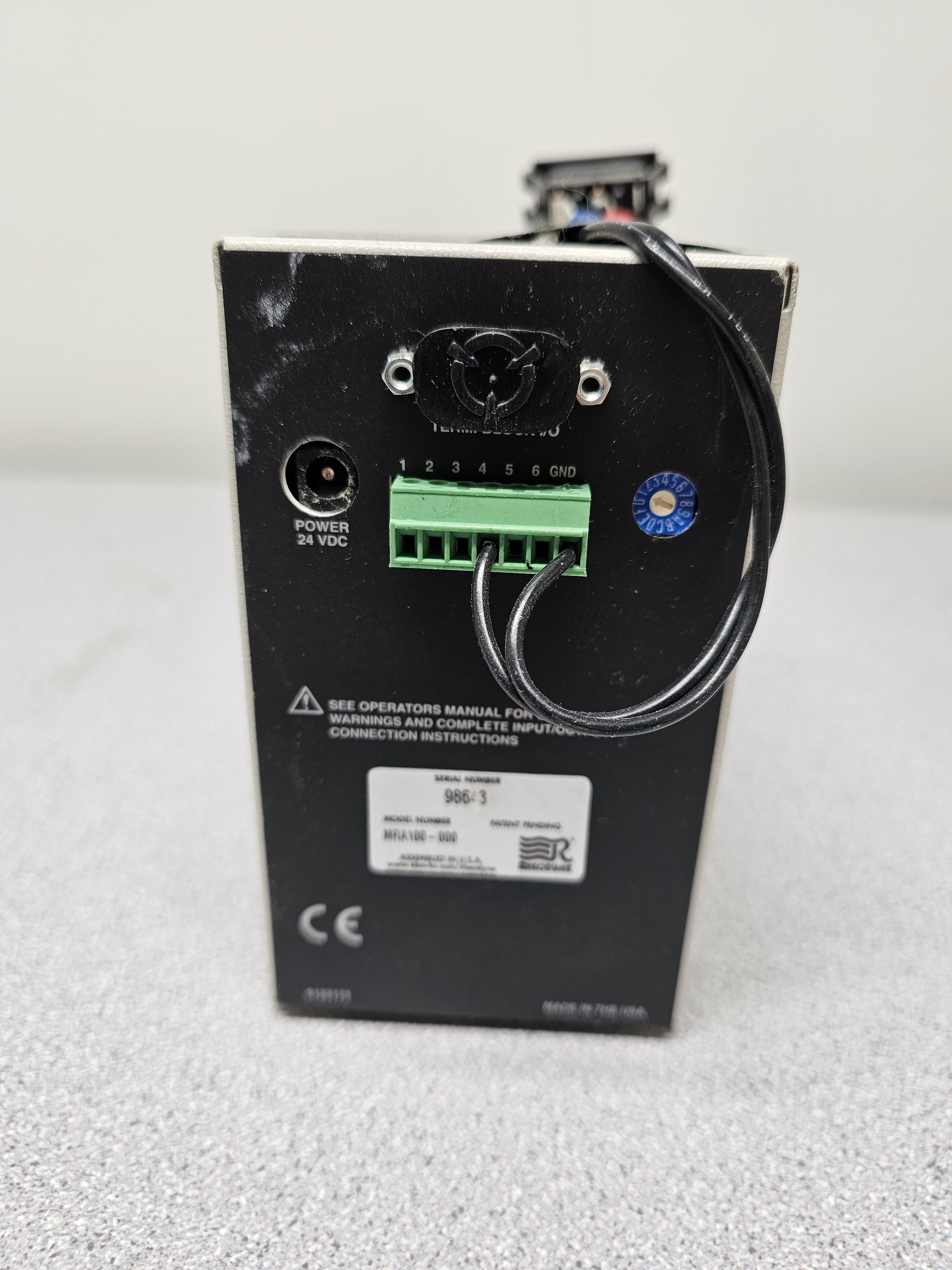

• Communications: Automated operation by Input Line Control or RS-232

Metric: 2.26796185 kg
Imperial: 5 lbs

Metric: 20.32 cm x 20.32 cm x 25.4 cm
Imperial: 8 in x 8 in x 10 in

902720

Instruments and apparatus for physical or chemical analysis: Chromatographs
