Cedrex Fluid 46 Tube Capper Automatic Decapper 96-Format Use High-Speed
Cedrex Fluid
Details
-
CategoryMiscellaneous
-
Dimension15.0in x 12.0in x 25.0in
-
Serial17296046
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

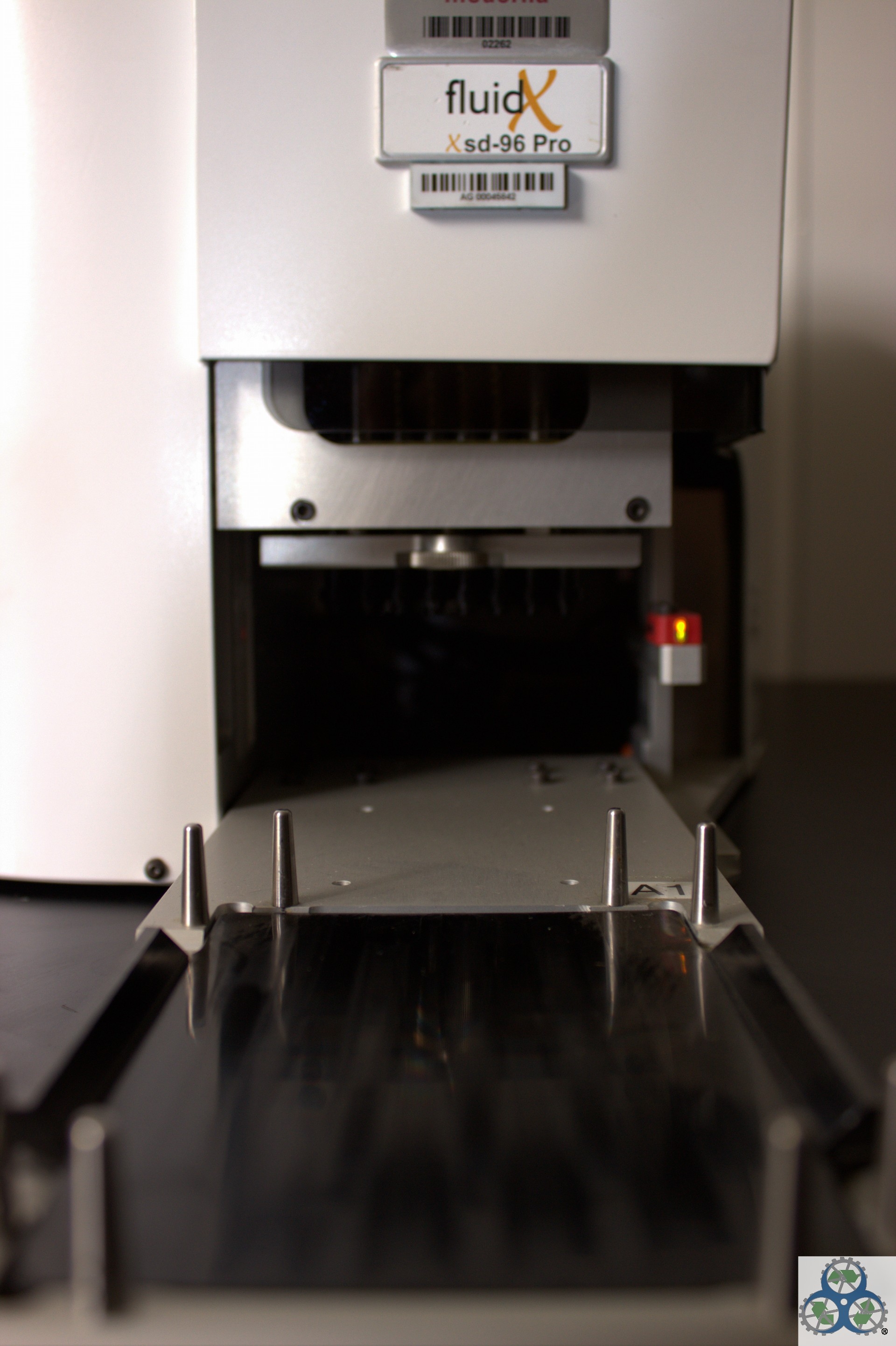

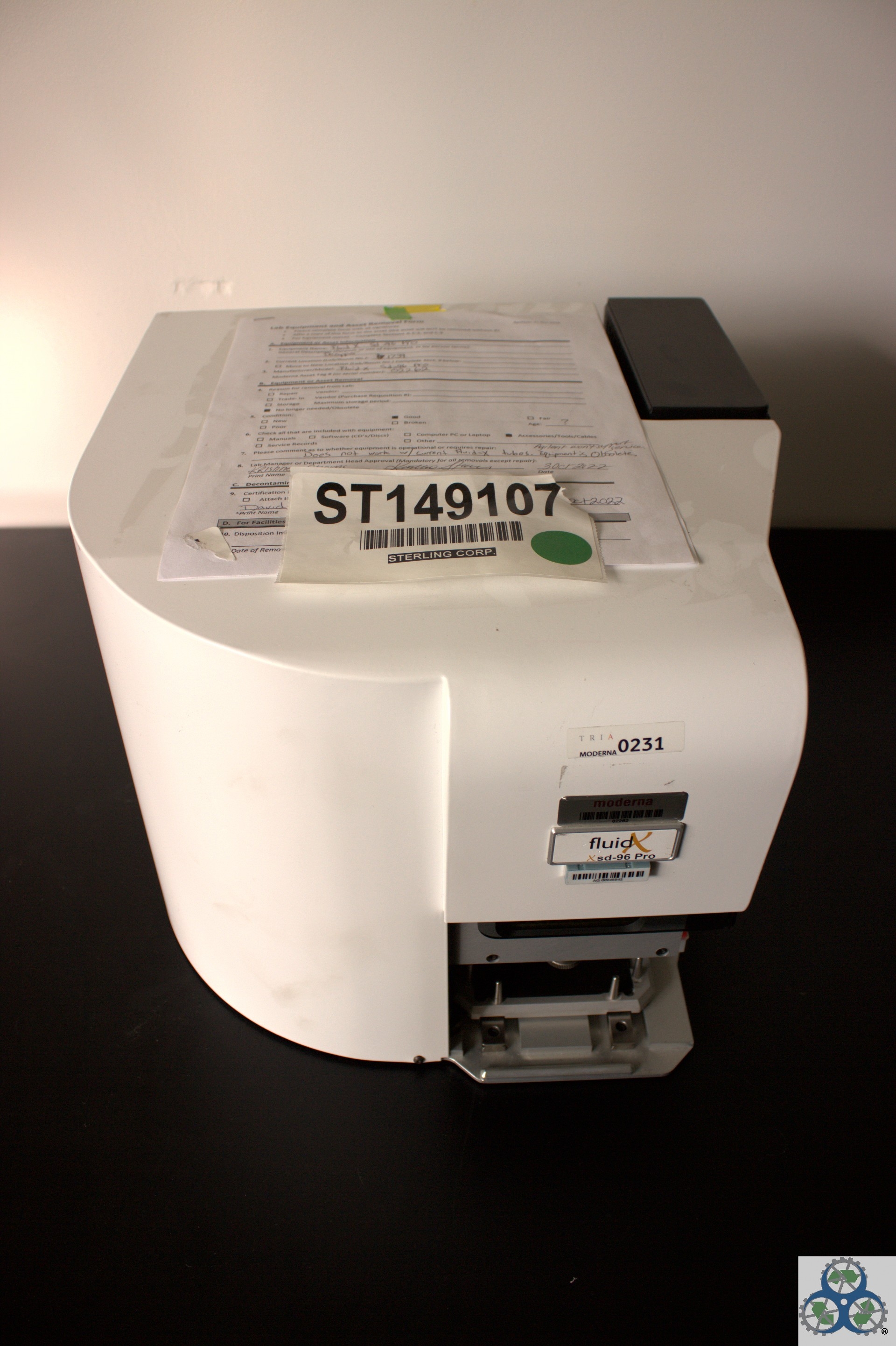

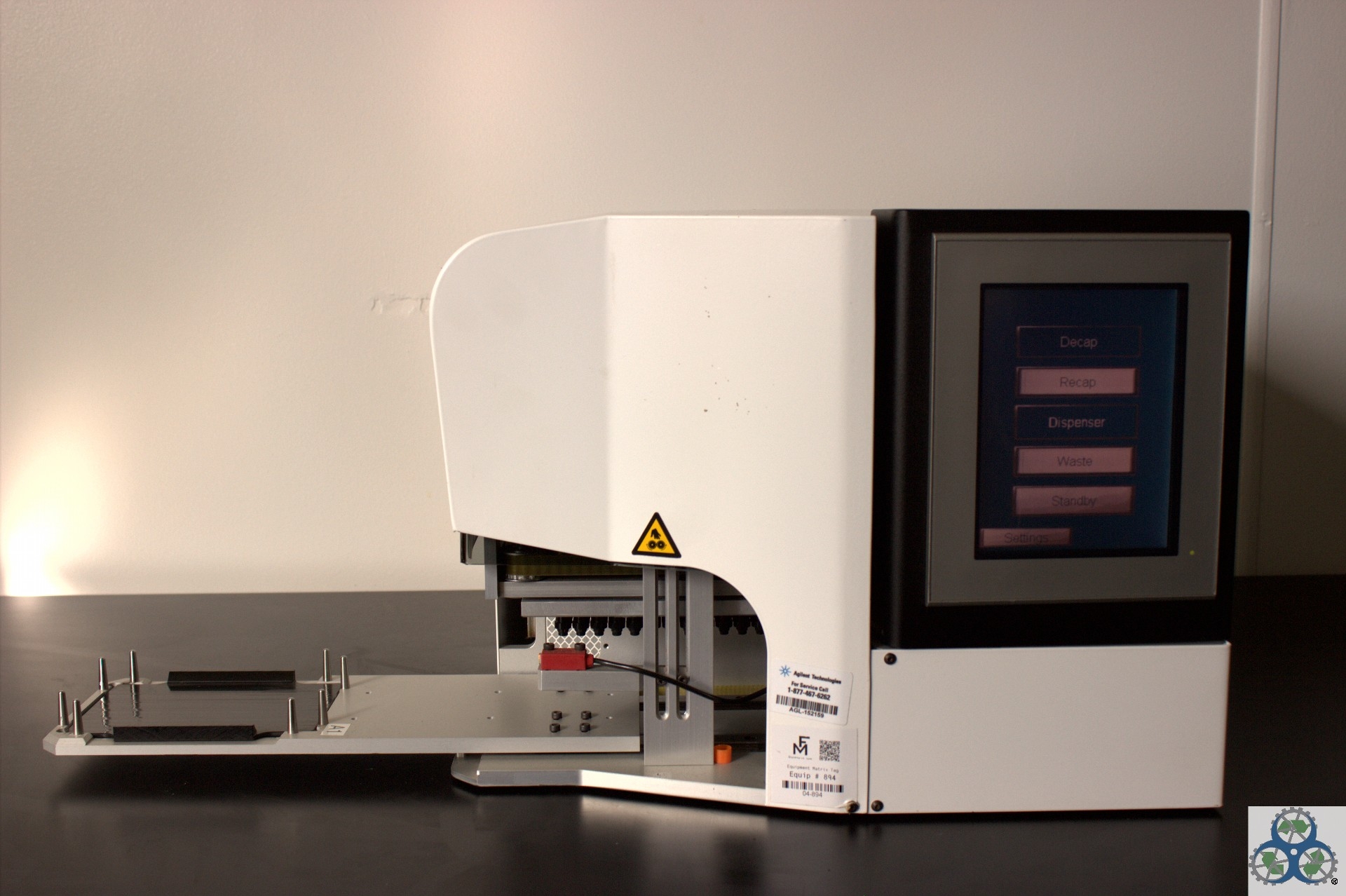

The Cedrex Fluid Model 46 is a FluidX XSD-96 Pro Tube Capper/Decapper designed for high-speed automatic capping and decapping of 96-format tube racks. Compatible with all major 96-format screw-capped tubes, this benchtop system can efficiently remove and re-insert caps for streamlined laboratory workflows. Despite a fair used condition, the unit demonstrates significant value due to its seamless operation in handling both internal and external threads. The XSD-96 features a cycle time of 34 seconds to decap and 44 seconds to recap a whole rack. Its optional Auto Height Detection module accommodates tubes of two differing heights, enhancing its versatility. In addition, this unit includes standard cap error detection and waste functions. Designed for serial RS232 communication, the XSD-96 integrates well into larger robotic systems and pairs with the BIOFILL automated dispenser for enhanced utility. This unit, of United States origin, requires a power supply of 120V and supports 50Hz/60Hz operation.
Key Features
- High-speed operation with 34s decap and 44s recap cycle
- Compatibility with all 96-format screw-capped tubes
- Optional Auto Height Detection for tubes of differing heights
- Cap error detection and waste management functions
- Serial RS232 communication for integration into robotic systems
Specifications
- Model: FluidX XSD-96 Pro
- Capper/Decapper Type: Automatic
- Cycle Time: 34 seconds decap, 44 seconds recap for 96 tubes

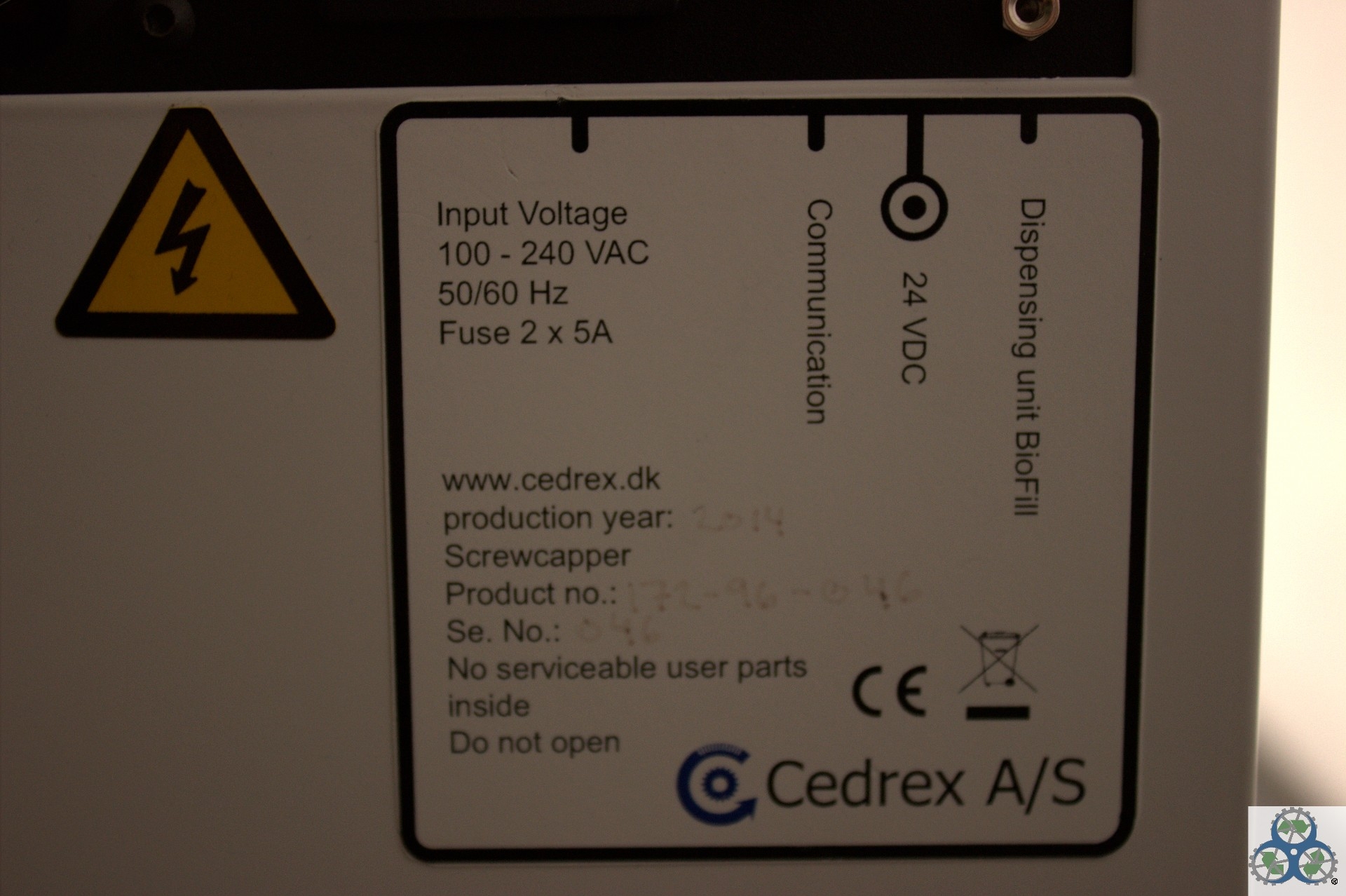

- Power Requirements: 120V, 50Hz/60Hz
- Communication Interface: Serial RS232
- Dimensions: Width 341mm x Height 280mm x Depth 366mm
- Materials: Compatible with both internal and external thread screw caps
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 14.4 lb x 30.0 lb
Metric: 45.72 cm x 36.58 cm x 76.2 cm
Harmonized Code
8479.89
Harmonized Code Details
Harmonized code 8479.89 is designated for machines and mechanical appliances with individual functions not specified or included in other categories, such as this automated tube capper/decapper.
