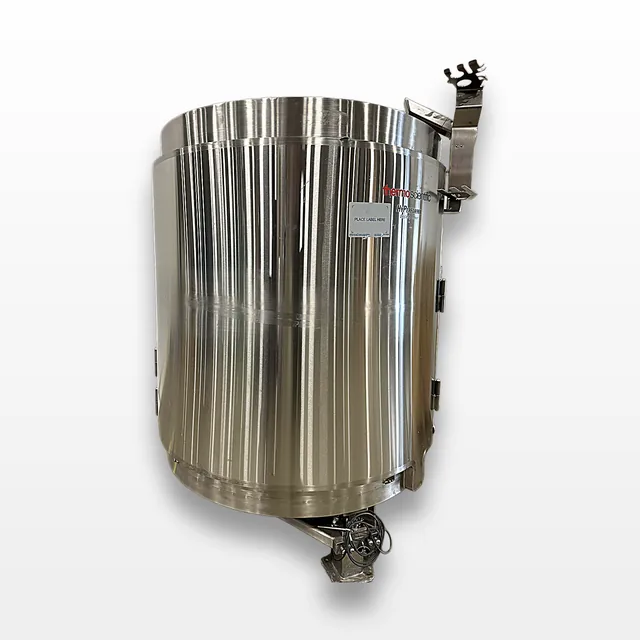

Thermo SUM2000.9004 S.U.M. 2000L Single Use Mixer BioProcess 220V 60Hz
Thermo Scientific
Details
-
CategoryBioprocessing
-
Dimension80.0in x 80.0in x 80.0in
-
Serial20009004
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 60Hz US
Description
The Thermo Scientific HyPerforma Single-use Mixer SUM2000.9004, with a 2000-liter capacity, is an ideal solution for rapid and sterile mixing in bioprocessing applications. It features a unique, proprietary mixing system that ensures sterility and integrity of the BioProcess Container. With a modular touchscreen interface, users can monitor mass, pH, conductivity, temperature, and pressure. The system supports data management through Modbus, Profibus, Ethernet, and USB connectivity. Functions such as automated titration and mixer fill control enhance operation efficiency. It can be used for powder media hydration, viral inactivation, and intermediate pooling among other processes. Despite some cosmetic wear, it functions optimally, supporting effective bioprocessing tasks.
Key Features
- Proprietary overhead mixing systems
- Graphical touchscreen for easy management
- Data management: Modbus, Profibus, Ethernet, USB
- Automated titration and fill control
- Mixing Rate: 30 to 350 RPM
- Water-jacket option for temperature control
- 3-load cell weighing systems
Specifications
- Capacity: 2000L
- Mixing Rate: 30 to 350 RPM
- Water-Jacketed option
- Impeller: 1 x 3 Blade
- Power Requirements: 240 VAC
- Data interfaces: Modbus, Profibus, Ethernet, USB
- Dimensions: 173 x 170 x 225 cm
Weight
Imperial: 1800.0 Pounds
Metric: 816.47 Kilograms
Shipping Dimensions
Imperial: 96.0 lb x 96.0 lb x 96.0 lb
Metric: 243.84 cm x 243.84 cm x 243.84 cm
Harmonized Code
84798200
Harmonized Code Details
84798200 - Machines and mechanical appliances having individual functions, not specified or included elsewhere. This code is used as the mixer serves a specific, individual function vital in bioprocessing applications.
