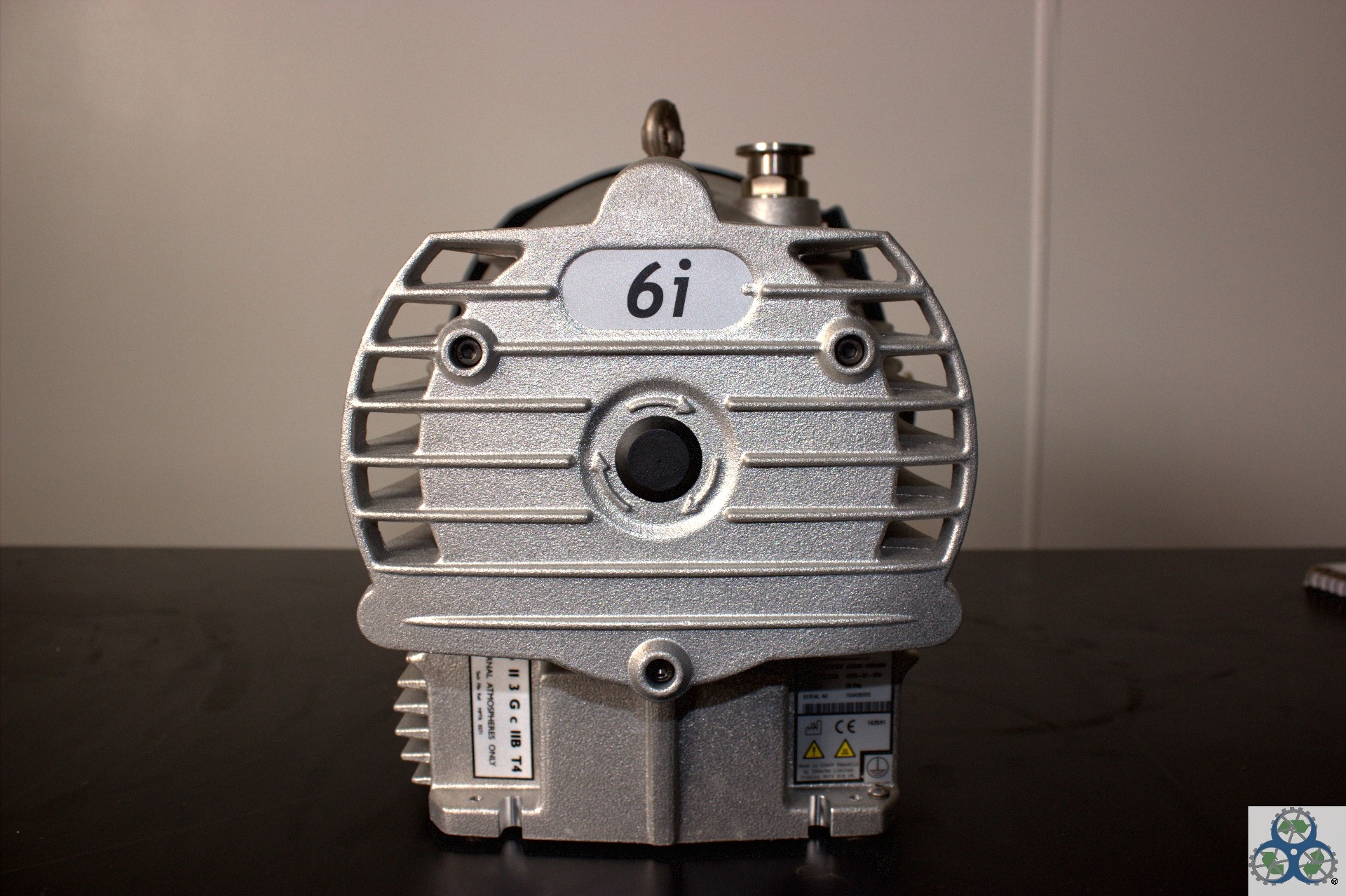

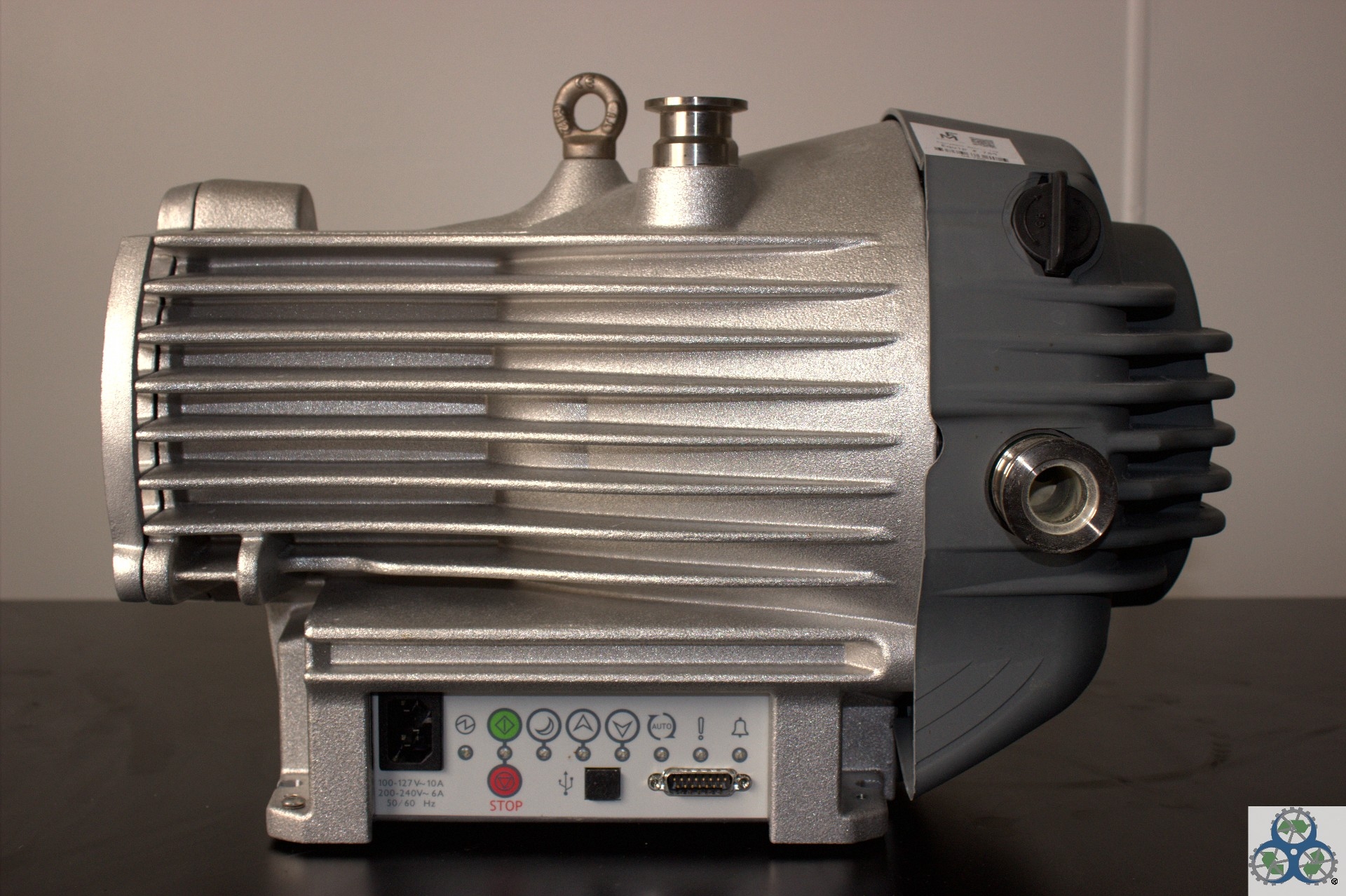

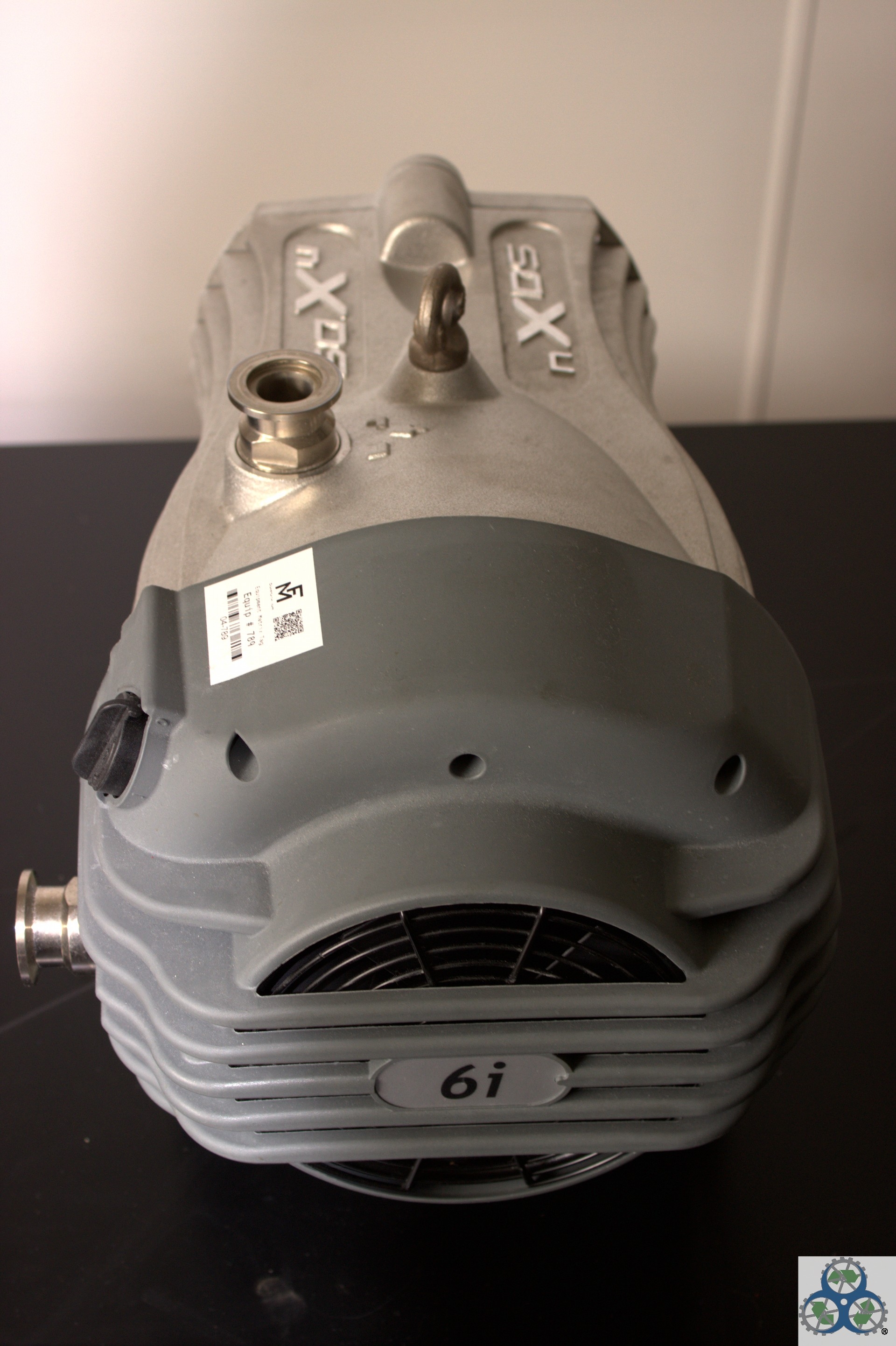

Edwards NXDS61 Dry Scroll Vacuum Pump 6.2m3h 200mbar Condensable Vapours
Edwards
Details
-
CategoryPump
-
Dimension15.0in x 9.0in x 4.0in
-

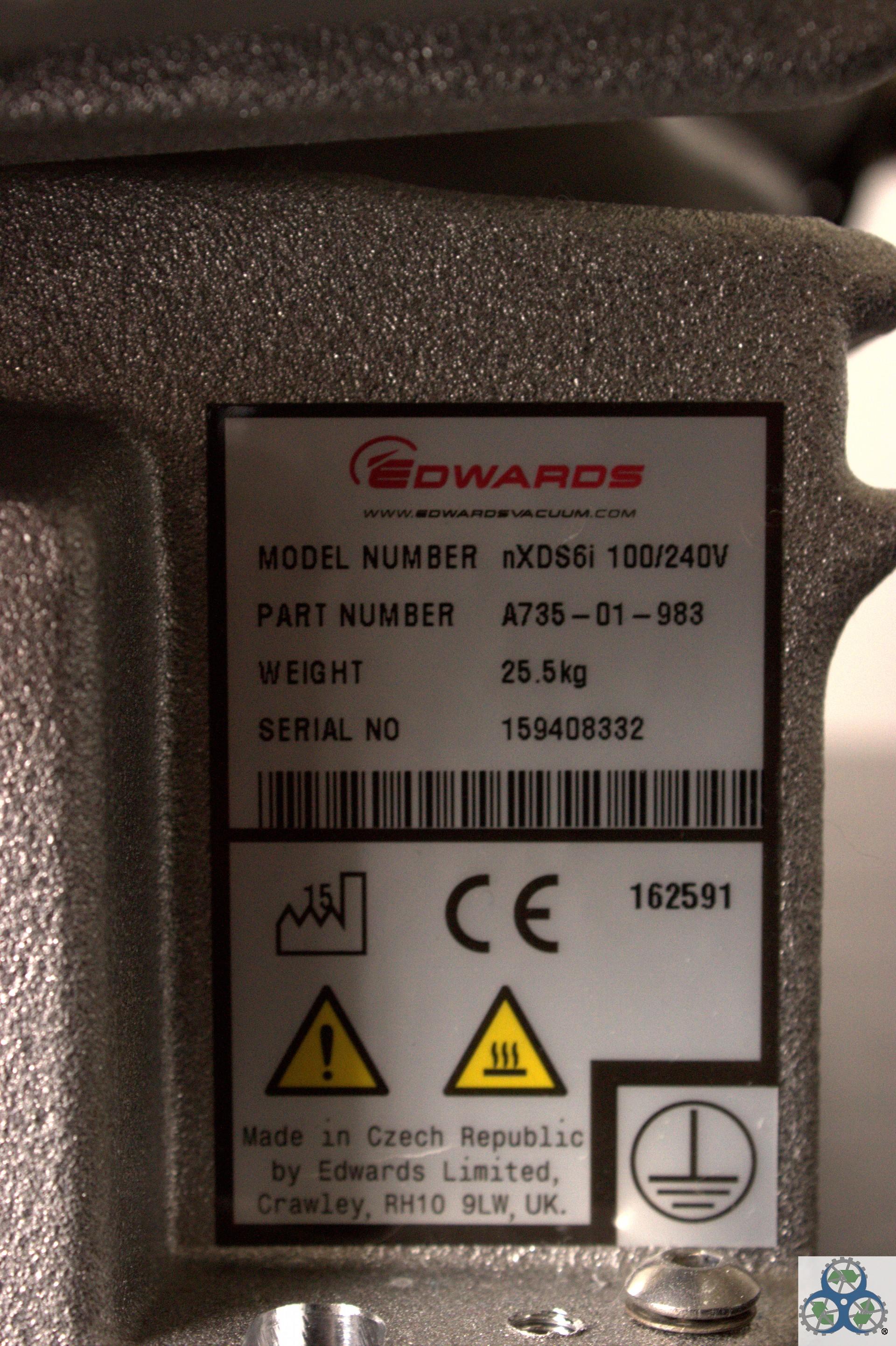

Serial1594D8332
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The Edwards NXDS61 Dry Scroll Vacuum Pump, manufactured by Edwards in the United States, is an exemplary choice for high-performance vacuum applications. This used model, showing some cosmetic signs of wear, powers on and completes basic tests. It offers exceptional pumping capabilities in laboratories, combining elevated pumping speeds and reduced power consumption with quieter operation—up to 20 times quieter than comparable units. Its gas ballast is optimal for handling condensable vapours such as water and solvents. Also incorporating a smart motor drive and the latest in tip seal technology, it extends the life between maintenance checks. Rated at a peak pumping speed of 6.2 m3h-1 with an ultimate vacuum of 0.020 mbar, it is well-suited for use alongside turbomolecular pumps. With an operating range of 10 to 40 degrees Celsius, it supports consistent performance and remote management capabilities. Supports a wide range of electrical voltages for robust global operations.
Key Features
- Ultimate vacuum at 0.020 mbar / 0.015 Torr
- Peak pumping speed of 6.2 m3h-1
- Noise level of 52 dB(A)
- Gas ballast for condensable vapours
- Integrated inverter with smart drive
- Energy efficient low power consumption
- Bearing shield minimizes contamination risk
- 240 gh-1 vapour pumping capacity
Specifications
- Nominal rotational speed: 1800 rpm
- Displacement: 6.8 m3h-1
- Ultimate vacuum: 0.020 mbar
- Pumping speed: 6.2 m3h-1
- Noise level: 52 dB(A)
- Operating temperature range: 10 to 40 C
- Weight: 26.2 kg
- Inlet/Exhaust flange: NW25
- Electrical requirements: 115/230V, 60Hz
- Motor power: 260 W, Single-phase
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 10.8 lb x 4.8 lb
Metric: 45.72 cm x 27.43 cm x 12.19 cm
Harmonized Code
841410
Harmonized Code Details
841410: Air or vacuum pumps; air or other gas compressors and fans; ventilating and recycling hoods incorporating a fan, whether or not fitted with filters. Chosen for its suitability for the Edwards NXDS61 Dry Scroll Vacuum Pump, which is a specialized vacuum pump designed for industrial settings.
