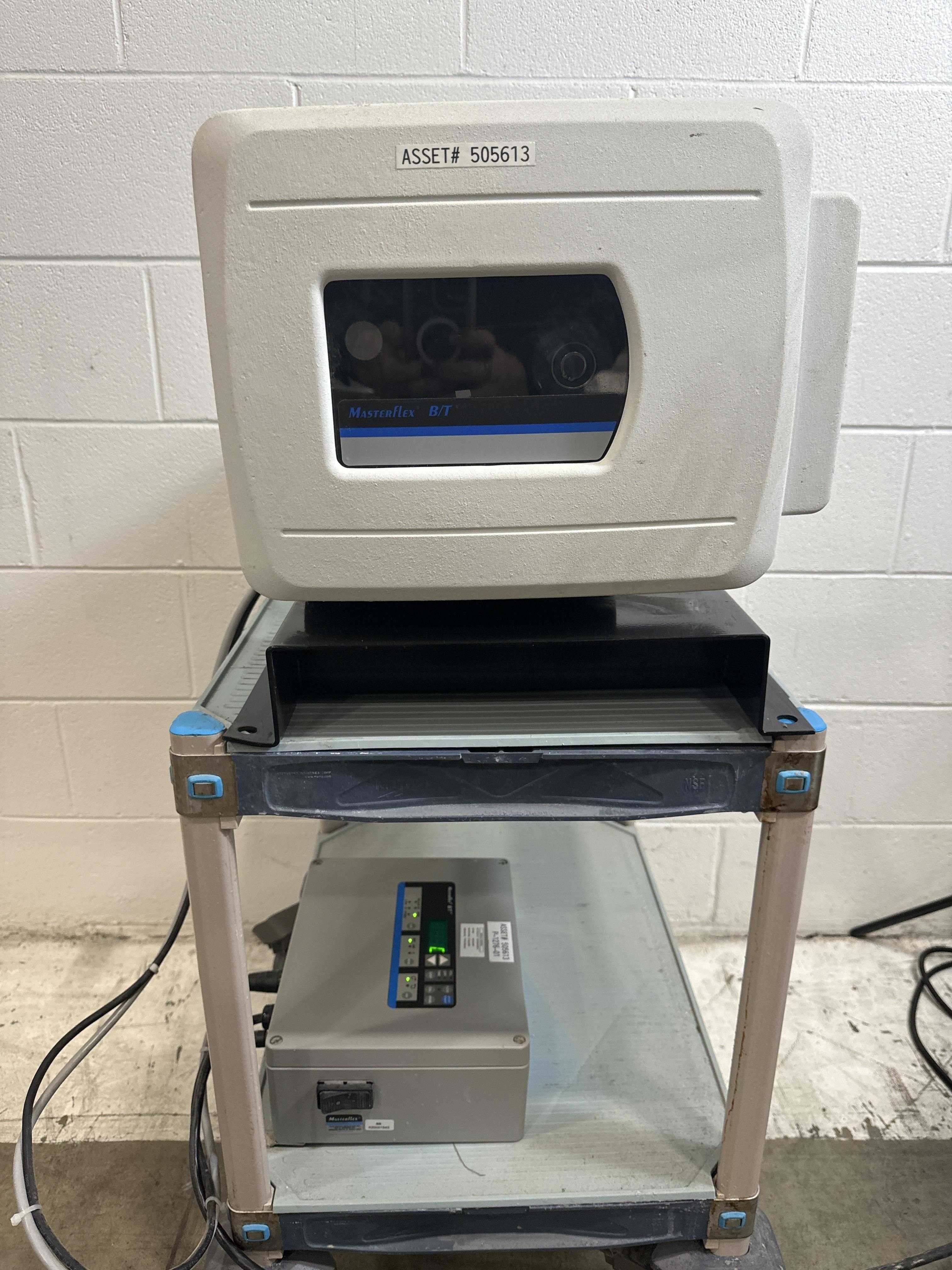

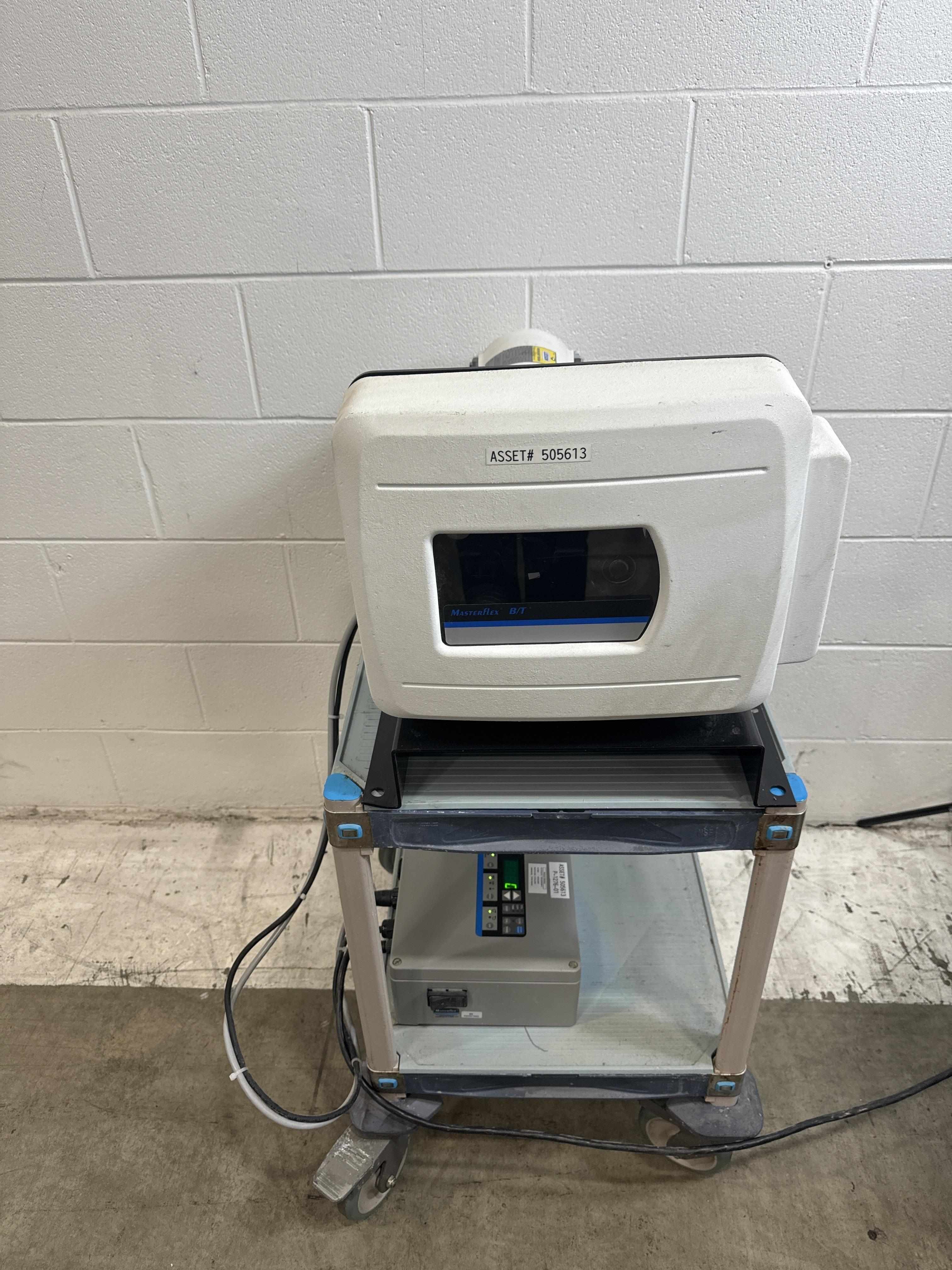

Leeson C4D17BC13A Masterflex Digital Drive Variable-Speed Fluid Pump Station
Leeson
Details
-
CategoryPump
-
Dimension20.0in x 30.0in x 20.0in
-
Serial10928700
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / 50Hz/60Hz
Description

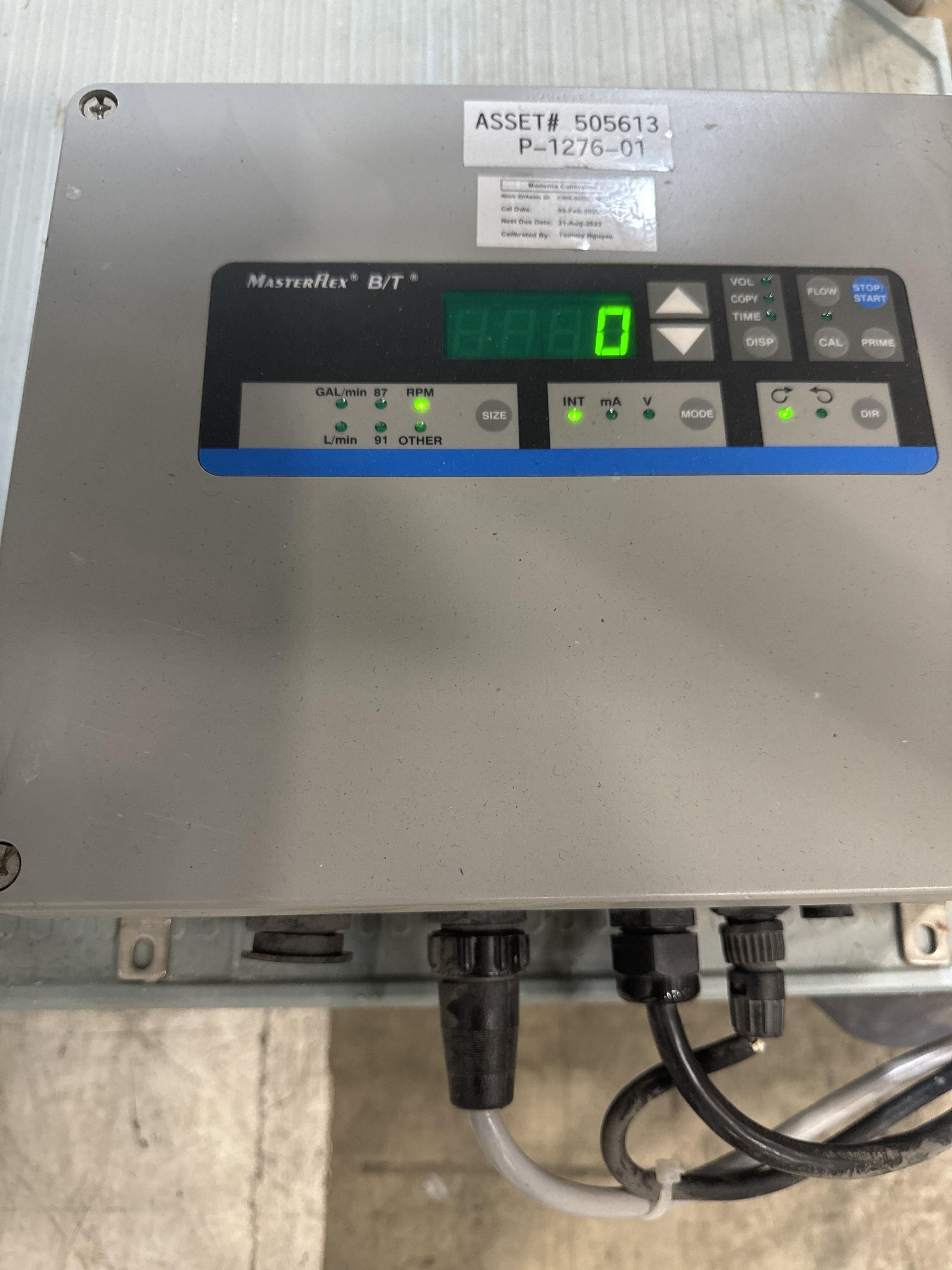

The Leeson Model C4D17BC13A MasterflexB/T Variable-Speed Digital Drive is a high-performance equipment designed for efficient bulk fluid transfer and dispensing applications. This used unit has undergone testing and powers on with no known functionality issues, albeit showing some cosmetic wear typical of prior use. The drive offers a range of features including a flow rate capability from 1.3 to 42 liters per minute using B/T tubing. It includes a powerful reversible 3/4-hp motor and intuitive digital controls managed through a sealed keypad. Important controls such as start, stop, prime, reverse, calibrate, and dispense can be handled with ease, with flow rates displayed in LPM on a four-digit LED. Additionally, the unit offers remote control capabilities and manual calibration for optimum accuracy. Ideal for laboratories managing large fluid batches, this drive ensures precise and repeatable operations.
Key Features
- Flow rate from 1.3 to 42 LPM
- Rapid-Load pump head for easy loading
- Interlock power switch for safety

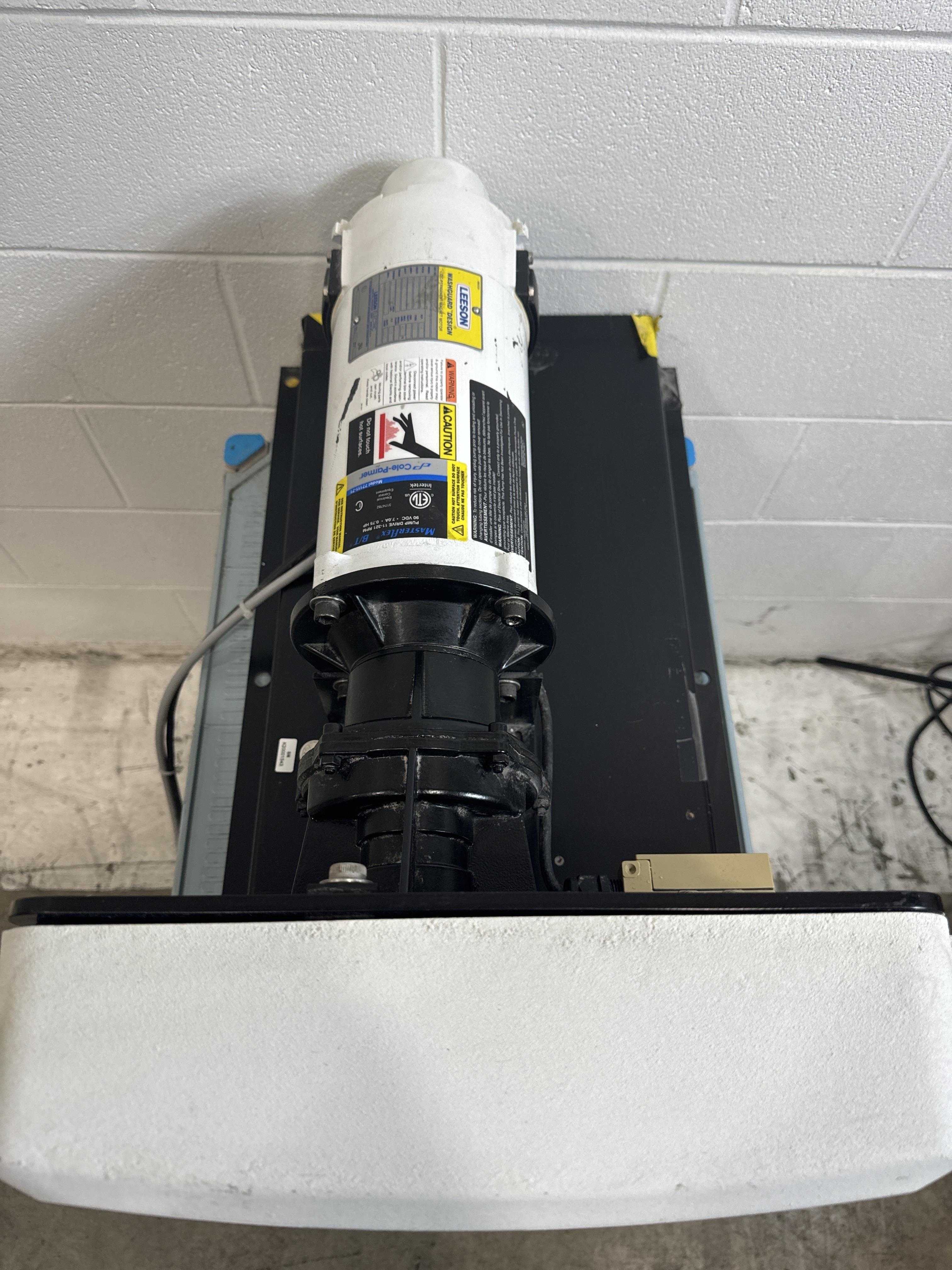

- Reversible 3/4-hp motor with intuitive controls
- Remote control via open collector/closure
- Digital variable-speed control
- LED display with auto-ranging resolution
Specifications
- Brand: Leeson
- Model: C4D17BC13A
- Flow rate: 1.3 to 42 LPM

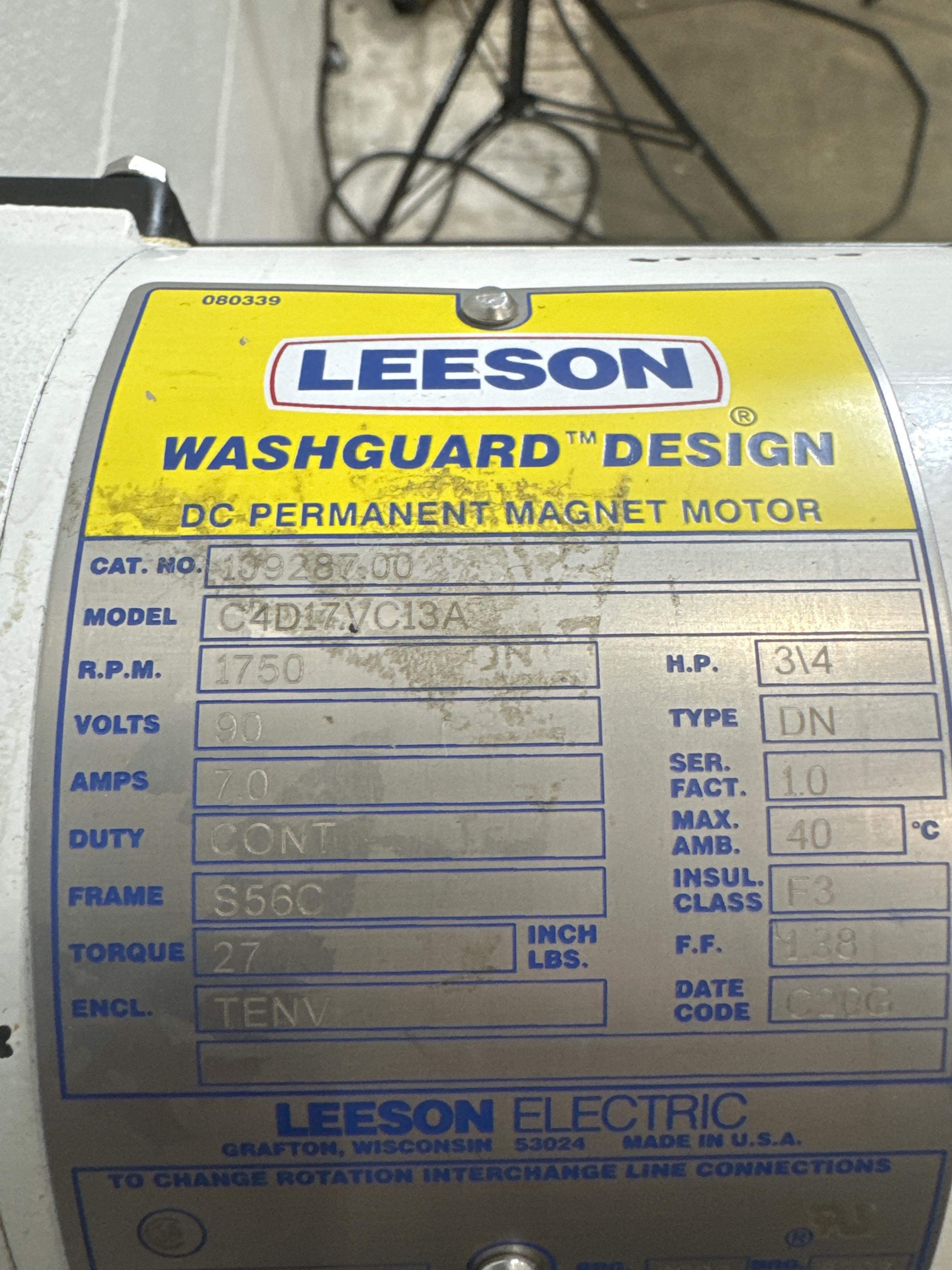

- Motor power: 3/4-hp
- Voltage: 230 V
- Amperage: 10.5 A
- Speed: 11 to 321 rpm
- Tubing Size: B/T 87, B/T 91
- IP Rating: IP56
- Electrical Requirements: 190 to 260 VAC
- Dimensions (Drive): 68.6 x 40 x 38.4 cm
Weight
Imperial: 96.0 Pounds
Metric: 43.54 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 36.0 lb x 24.0 lb
Metric: 60.96 cm x 91.44 cm x 60.96 cm
Harmonized Code
902610
Harmonized Code Details
902610 - Instruments and apparatus for measuring or checking the flow or level of liquids; electric. This code is appropriate due to the equipment's functionality involving fluid flow measurement and control.
