Tech SSPLS-30-007 Solvent Pump Lift Station 30gl Stainless Steel Dual Drum
Tech Engineering
Details
-
CategoryPump
-
Dimension45.0in x 45.0in x 45.0in
-
Serial171288514
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

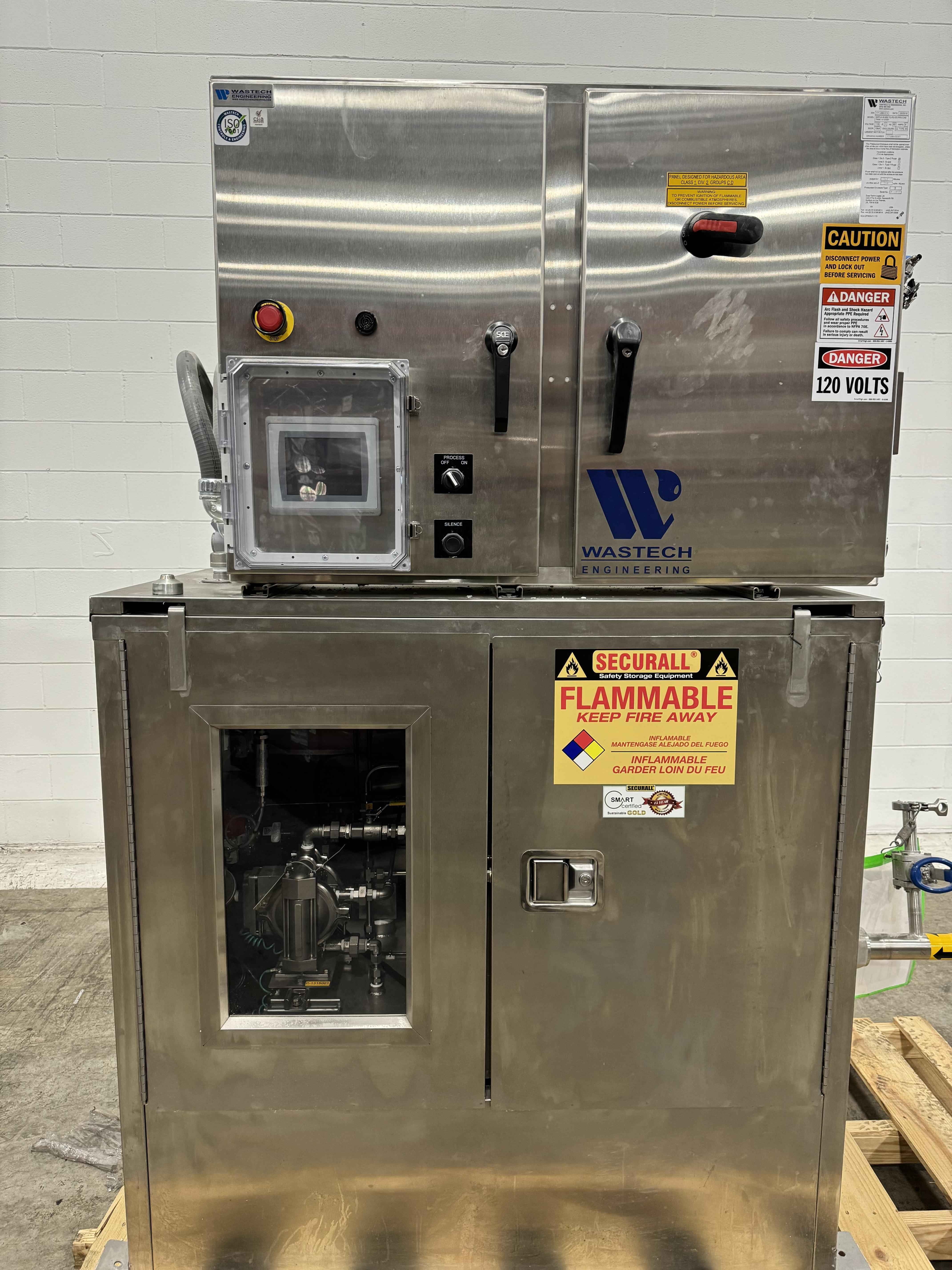

The Tech Engineering SSPLS-30-007 Solvent Dispense System is a robust and reliable solvent pump lift station designed to safely transfer volatile solvents in environments where a gravity drain is impractical. Built from corrosion-resistant 316 stainless steel, this unit features a 30-gallon tank and supports both simplex and duplex configurations. Its design is optimized for Class 1 Division 1 hazardous locations, utilizing Wastech industrial AOD control panels. The system includes a standard dual drum setup with automatic change-over, installed in a fire-rated enclosure, ensuring continuous operation even during drum replacements. Equipped with leak detection, monitoring sensors, and an intrinsically safe multipoint level switch assembly, it provides high-level security and efficiency. The stainless steel cabinet construction ensures durability, while included features such as air-operated valves, electrical grounding, and alarm integration with Building Management Systems enhance operational safety.
Key Features
- Corrosion-resistant 316 stainless steel tank and valves
- Simplex (one pump) or duplex (two pumps) configuration
- Class 1 Division 1 hazardous environment rating
- Double containment with leak detection
- Automatic dual drum change-over
- Standard dual drum setup
- Fire-rated enclosure with leak monitoring
- Air-operated valves for control
- High-level alarm activation
Specifications
- Tank volume: 30 gallons
- Pump size: 1/2'' connection
- Uses Wastech industrial AOD control panels
- Heavy duty, reinforced 18-gauge all-welded double wall construction
- 304 stainless steel cabinet with 3-point self-latching doors
- Includes low exhaust and CDA pressure switches
- Electrical grounding for cabinet and drums
- Proximity switches for proper drum placement
- Remote-mounted control panel for nonhazardous locations
Weight
Imperial: 1800.0 Pounds
Metric: 816.47 Kilograms
Shipping Dimensions
Imperial: 54.0 lb x 54.0 lb x 54.0 lb
Metric: 137.16 cm x 137.16 cm x 137.16 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps. This code is suitable because the lift station includes mechanisms similar to pumps used for moving fluids in a specialized context.
