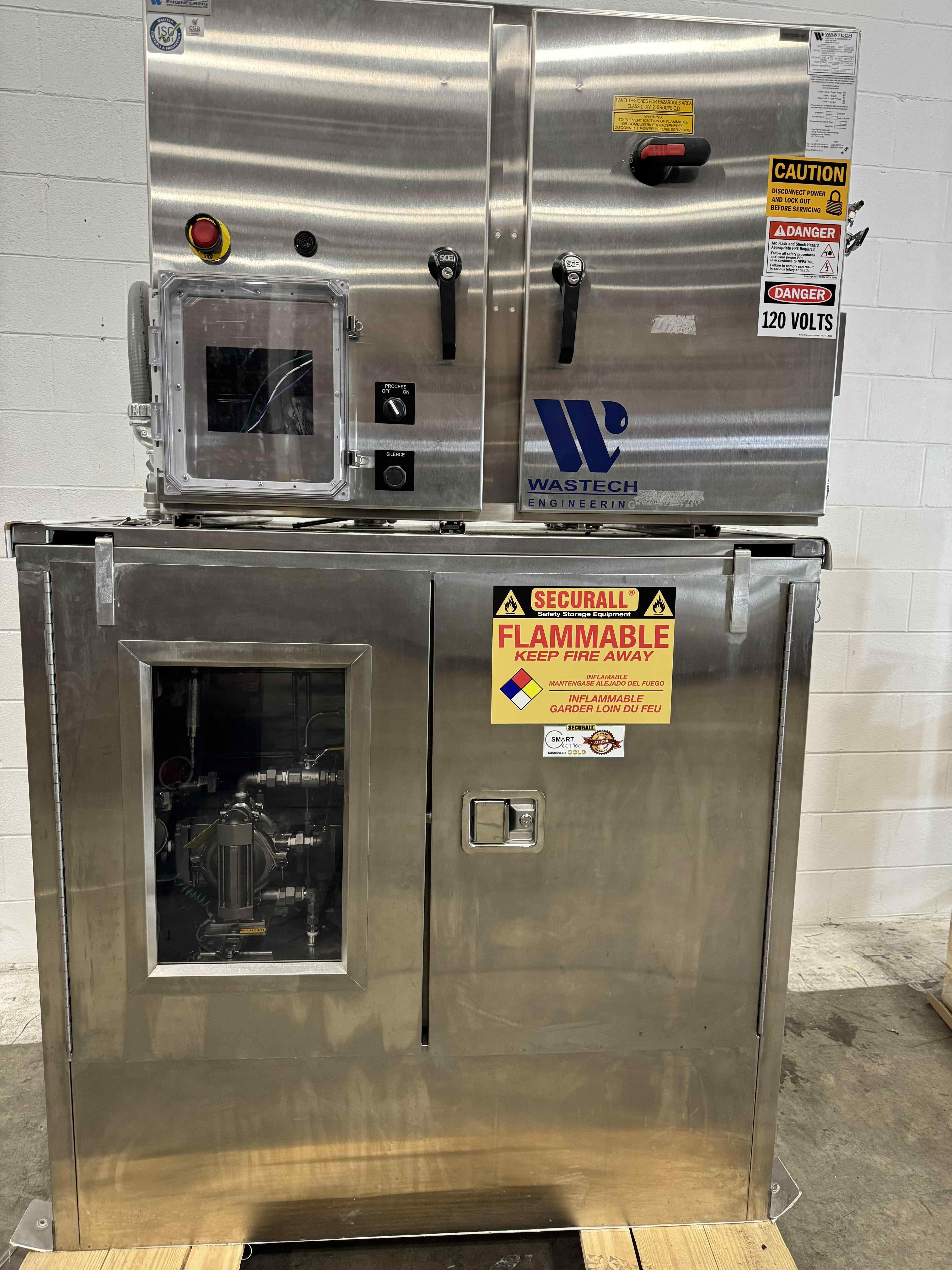

Tech Engineering SSPLS-30-006 Solvent Dispense System, 30 Gal, 316 SS
Tech Engineering
Details
-
CategoryPump
-
Dimension45.0in x 45.0in x 45.0in
-
Serial171288515
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
This used Tech Engineering SSPLS-30-006 Solvent Dispense System with Sub-Model 'SOLVENT DISPENSE SYSTEMS' is designed for safe and efficient solvent transfer when a gravity drain is not possible. The system can handle hazardous environments, rated for Class 1 Division 1 zones and Group D solvents. It features a 30-gallon 316 stainless steel tank, suitable for single or dual drum setups, with automatic changeover. Although the system shows cosmetic wear, it powers on and performs basic tests, indicating functional capabilities despite full testing not being possible. The lift station includes high-level alarm switches and corrosion-resistant materials, ensuring safety and durability in handling volatile solvents. Electrical components like the quick disconnects and grounding ensure safe operations, while the air-operated valves and stainless steel rollers aid in drum installation and removal.
Key Features
- 30-gallon 316 stainless steel tank
- Class 1 Division 1 hazardous environment rating
- Simplex or duplex pump configurations
- Corrosion resistant components
- High-level alarm switches
- Automatic drum changeover
- Leak detection and sensor monitoring
Specifications
- 316 stainless steel tank with 30-gallon capacity
- 1/2'' pump size
- Air operated 316 stainless steel ATEX-rated double-diaphragm style (Teflon Diaphragm)
- Standard control panel is remote-mounted rated for nonhazardous locations
- Internal double containment with leak switch
- 3-point self-latching doors with non-sparking latch
- 316 stainless steel piping and valves
- Fire sprinkler system integrated
- Stainless steel rollers for drum handling
Weight
Imperial: 1800.0 Pounds
Metric: 816.47 Kilograms
Shipping Dimensions
Imperial: 54.0 lb x 54.0 lb x 54.0 lb
Metric: 137.16 cm x 137.16 cm x 137.16 cm
Harmonized Code
841381
Harmonized Code Details
841381 - Pumps for liquids, not fitted with a measuring device, others. This code fits as the equipment pumps and manages liquid solvents without specific measuring devices.
