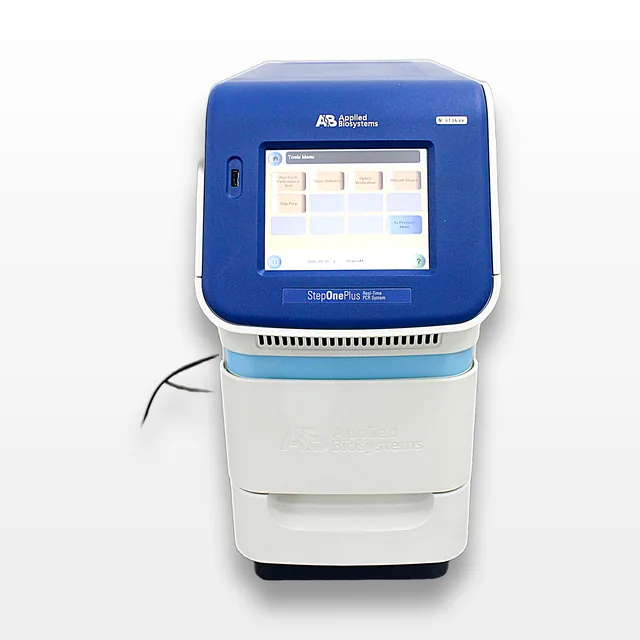

Applied Biosystems StepOnePlus Real-Time PCR System 4-color 96-well 4C to 100C
Applied Biosystems
Details
-
CategoryMolecular Biology
-
Dimension19.0in x 10.0in x 21.0in
-
Serial272000090
-
Shipping TypeFedEx Ground
-
Manufacturing2007-08-01
-
Voltage / Hertz120V / 50Hz/60Hz
Description
Applied Biosystems StepOnePlus Real-Time PCR System (Sub-Model 4376592), manufactured in 2007. This pre-owned qPCR instrument is designed for 96-well plate workflows, including 12 x 8-tube strips or 96 x 0.1 mL tubes. It uses a 4-color optical detection system with Blue LED excitation and photodiode readout, paired with a Peltier-based thermal block for controlled cycling from 4C to 100C. Reaction volumes are 10 to 30 uL, with run times under 40 minutes in Fast Mode or under 2 hours in Standard Mode. The unit shows minor cosmetic wear consistent with prior use and was observed to initialize properly during intake; a cycle test was performed and passed. Please validate fitness for your specific assay and consumables.
Technician comment
Pre-owned unit. Powers on and initializes properly. Cycle test performed and passed. Minor cosmetic wear from normal use. See photos.
Key Features
- 96-well plate format support
- 4-color optical detection system with Blue LED excitation
- Photodiode detection
- Peltier-based thermal system
- Temperature range 4C to 100C
- Reaction volume range 10 to 30 uL
- Fast Mode run time under 40 minutes
- Standard Mode run time under 2 hours
Specifications
- Format: 96-well plate, 12 x 8-tube strips, or 96 x 0.1 mL tubes
- Temperature Range: 4C to 100C
- Reaction Volume: 10 to 30 uL
- Detection: 4-color optical system
- Excitation Source: Blue LED
- Detector Type: photodiode
- Thermal System: Peltier-based
- Run Time: under 40 minutes (Fast Mode)
- Run Time: under 2 hours (Standard Mode)
- Power: 100 to 240 VAC
- Frequency: 50/60 Hz
- Dimensions: approximately 9.7 W x 19.1 D x 20.4 H (inches)
- Weight: approximately 53 lbs (24 kg)
- Voltage: 120V
Weight
Imperial: 66.0 Pounds
Metric: 29.94 Kilograms
Shipping Dimensions
Imperial: 22.8 in x 12.0 in x 25.2 in
Metric: 57.91 cm x 30.48 cm x 64.01 cm
