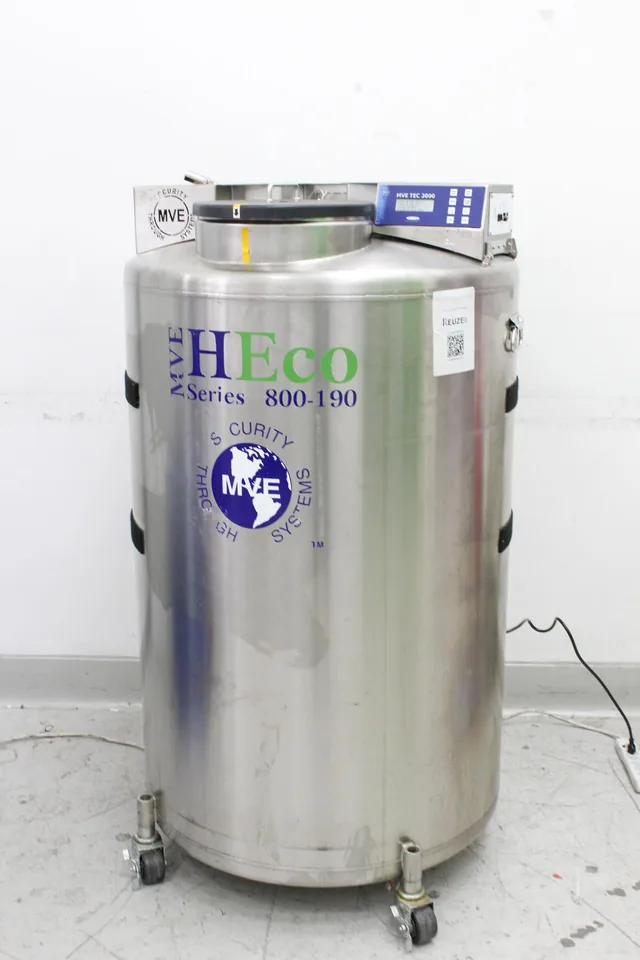

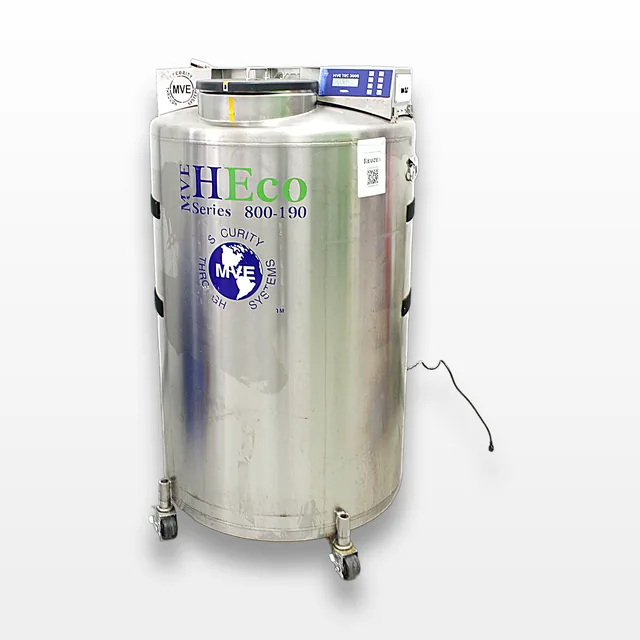

Chart Industries MVE Heco 819P-190AF-GB Cryogenic Freezer -190C Storage
Chart Industries
Details
-
CategoryCold Storage
-
Dimension39.0in x 40.0in x 65.0in
-
SerialCAB2118120534
-
Shipping TypeFreight
-
Voltage / Hertz100-230V / 50Hz/60Hz
Description
The Chart Industries MVE Heco 819P-190AF-GB is a dependable cryogenic freezer, ideal for biorepositories, freezer farms, and biobanks. This unit is used and in fair condition, with expected minor cosmetic wear. Featuring an eco-friendly design with a top box temperature of -190°C, it ensures high sample security and maximum storage density. The unit is equipped with MVE TS touchscreen technology or TEC 3000 control options, vacuum jacketed transfer hose, and standard gas bypass, offering operational versatility. Although fully functional testing is partially restrained by the lack of LN2 supply, the alarm system is active, and racks are included. This model also supports eco-friendly storage with a hinged work surface and battery backup option.
Technician comment
This unit powers on and controller/display respond properly. Alarm system activates. Unable to fully test cryogenic cooling functions due to lack of LN2 supply. Includes racks. Cosmetic scratches and wear from previous use all around. See photos for further details.
Key Features
- Eco-friendly design
- Maximum storage density
- High sample security
- Hinged work surfaces
- Vacuum jacketed transfer hose
- Optional battery backup
- Standard gas bypass
Specifications
- Temperature: -190°C top box
- Interface: MVE TS touchscreen or TEC 3000
- Use Case: Biorepositories, Biobanks
- Dimensions: 99x101x165 cm
- Weight: 272 kg
- Storage capacity: 15,600 to 94,500 vials
- Voltage: 100-230V, Hertz: 50Hz/60Hz
- Certifications: UL/C-UL Listed, Conforms to MDD 93/42/EEC
Weight
Imperial: 720.0 Pounds
Metric: 326.59 Kilograms
Shipping Dimensions
Imperial: 46.8 in x 48.0 in x 78.0 in
Metric: 118.87 cm x 121.92 cm x 198.12 cm
Harmonized Code
8418.69
Harmonized Code Details
8418.69: Refrigerators, freezers and other refrigerating or freezing equipment; heat pumps other than air conditioning machines: Other. Selected due to the equipment's classification as a cryogenic freezer used for storage purposes.
