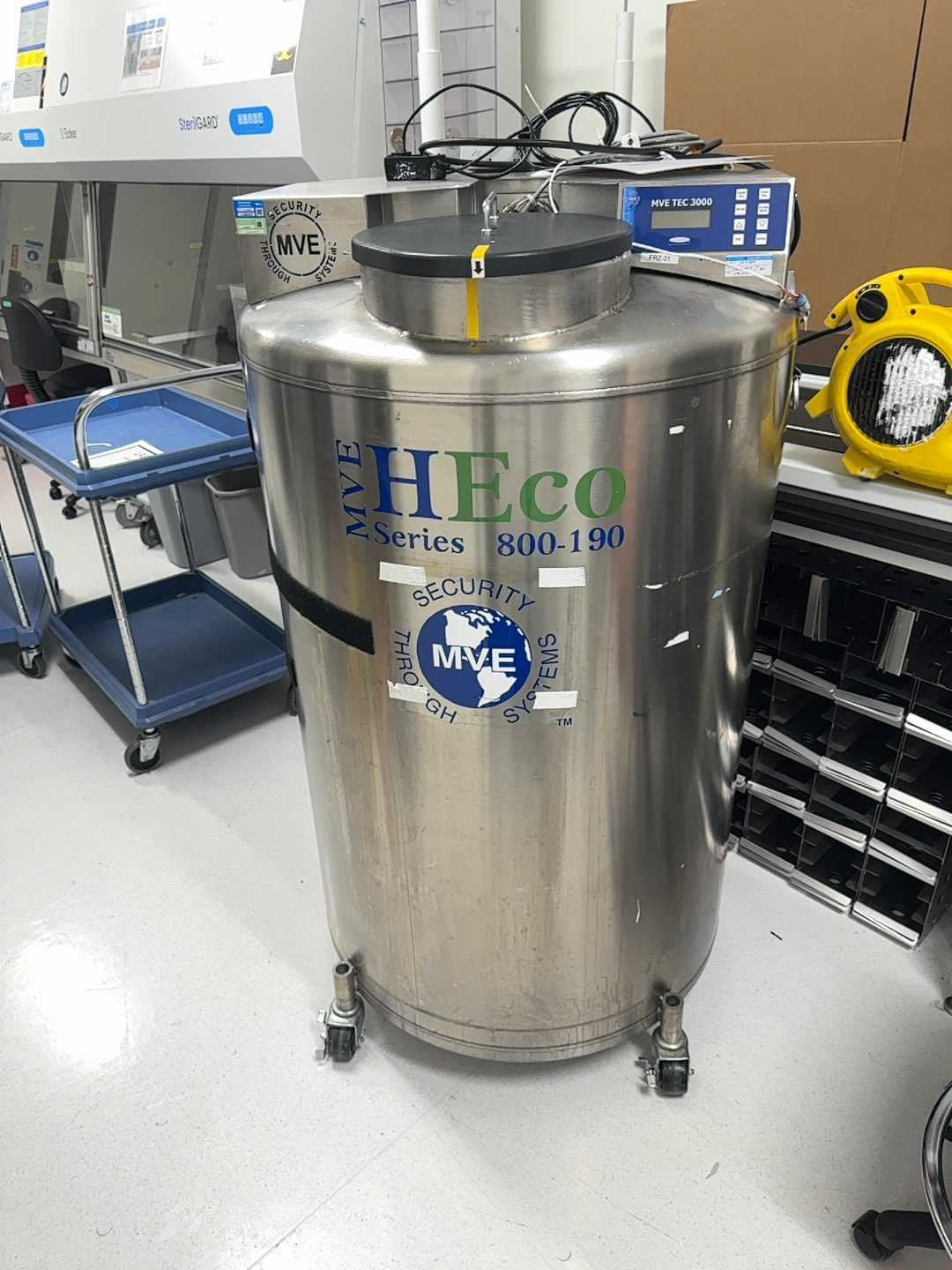

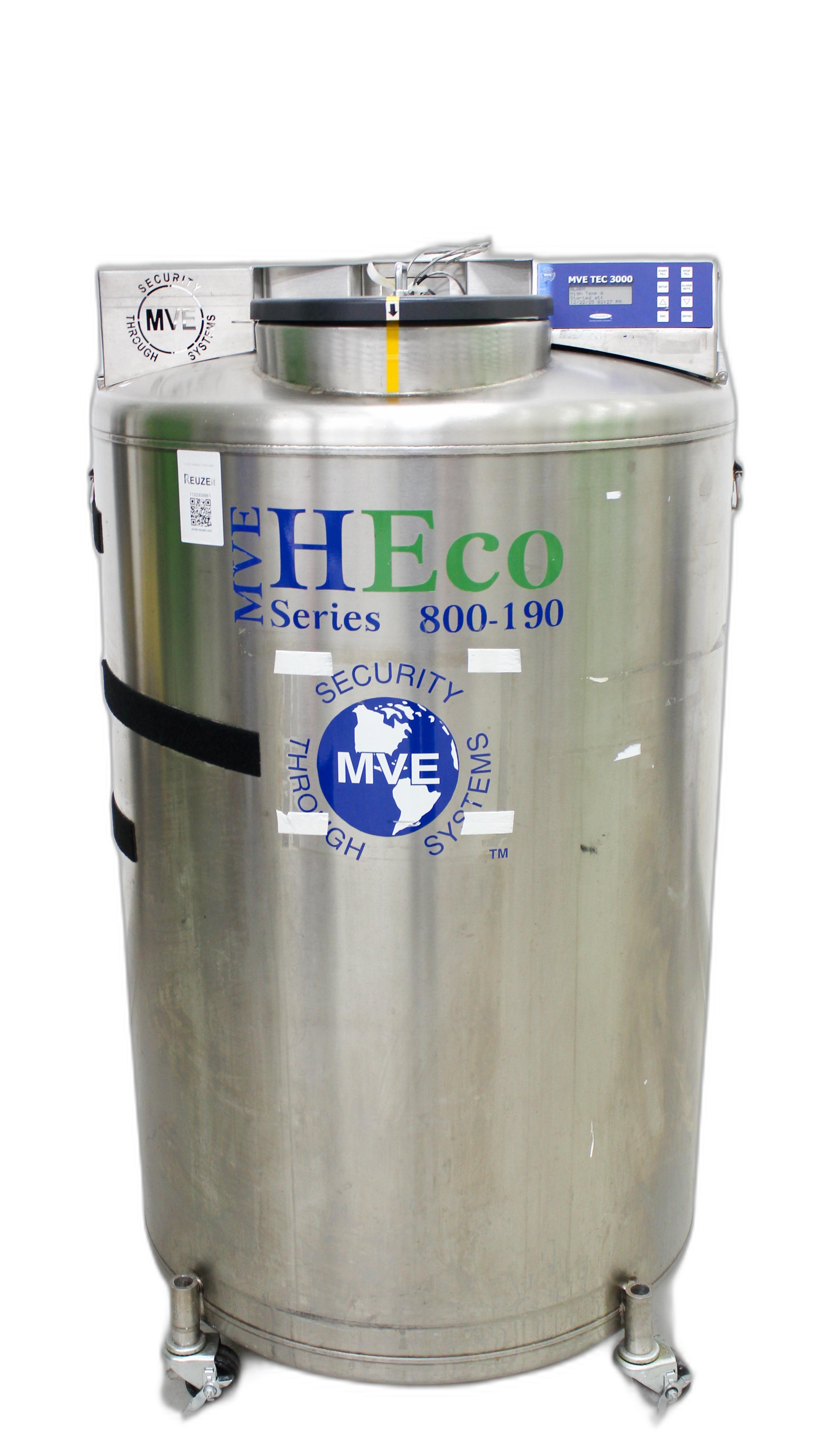

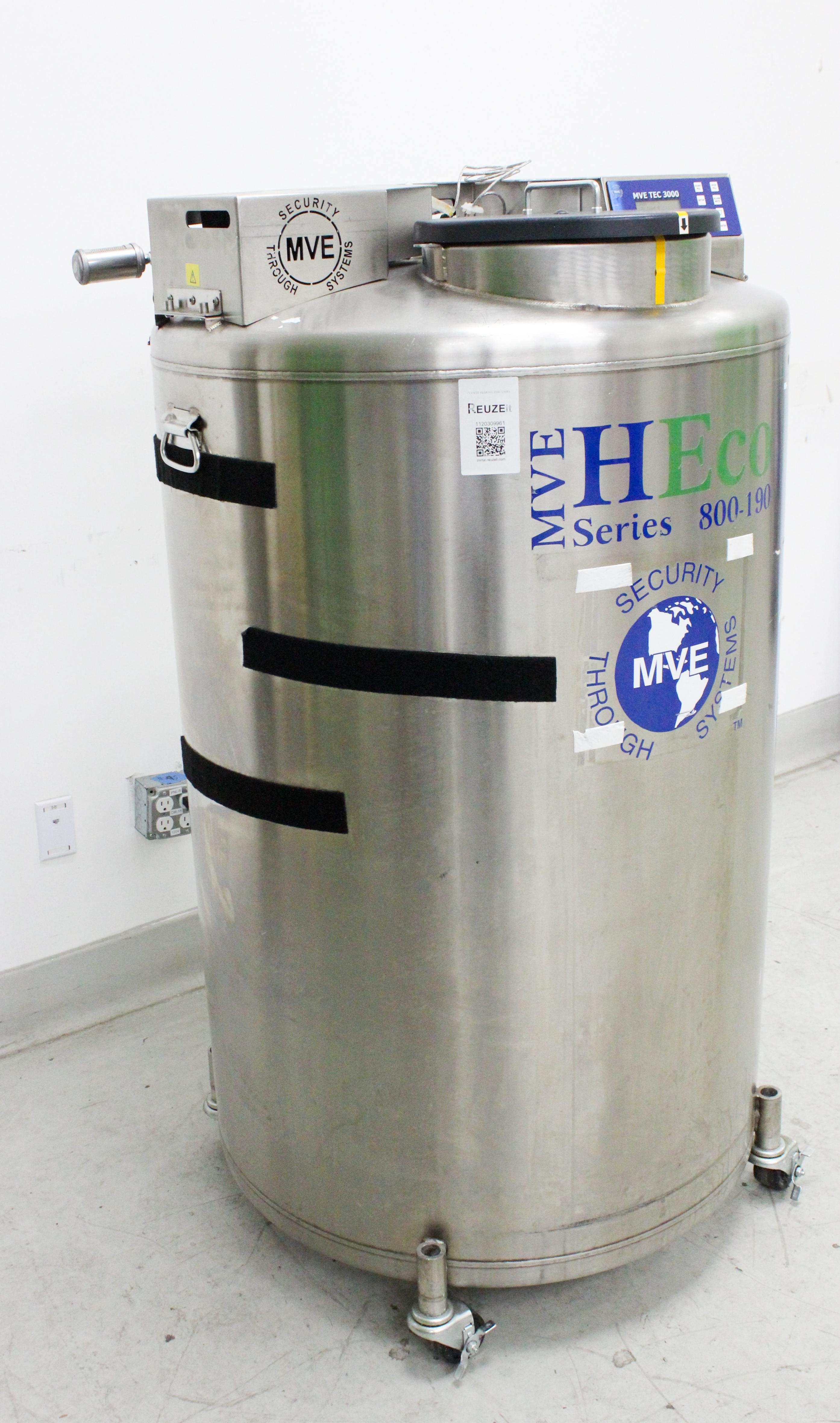

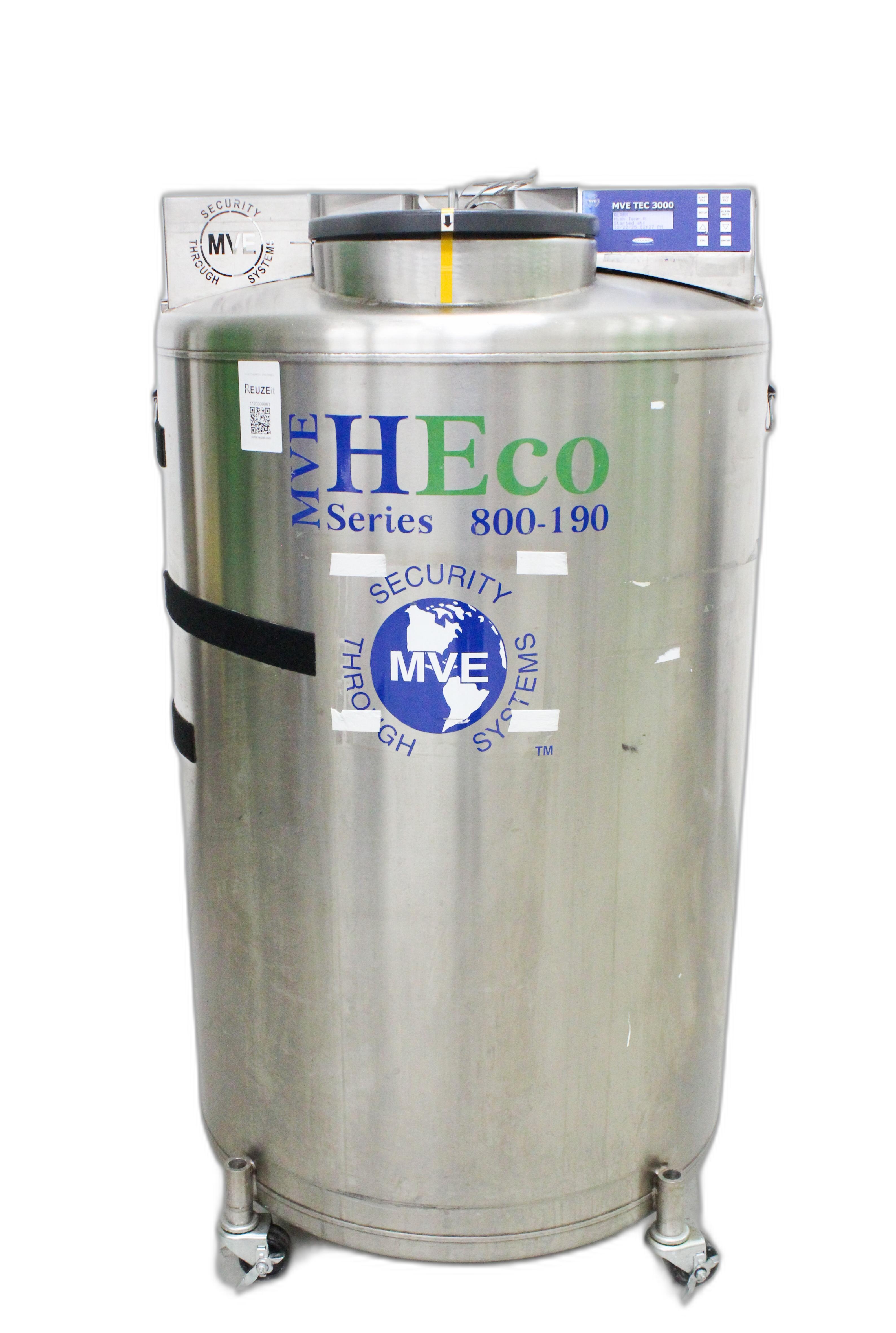

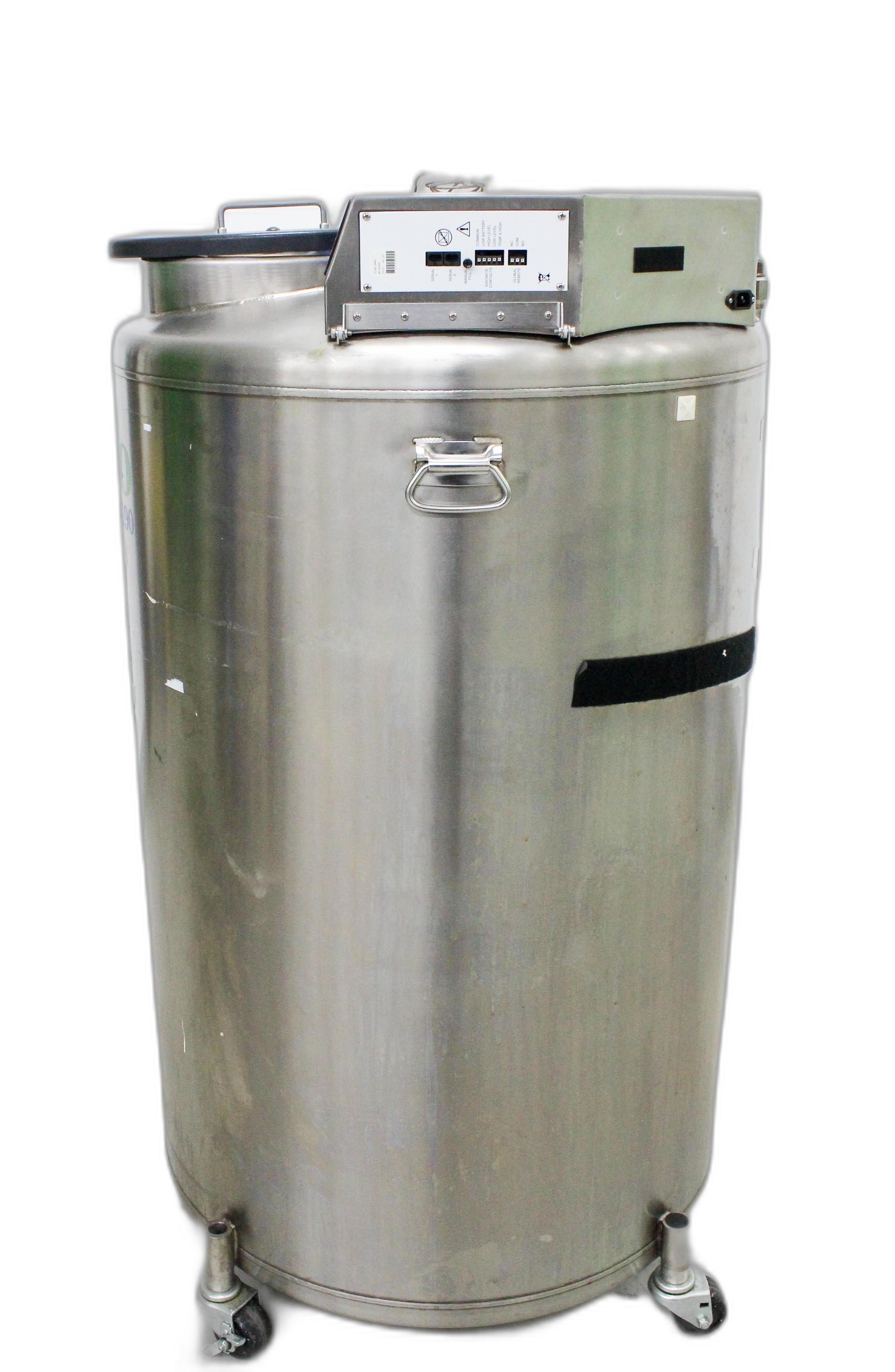

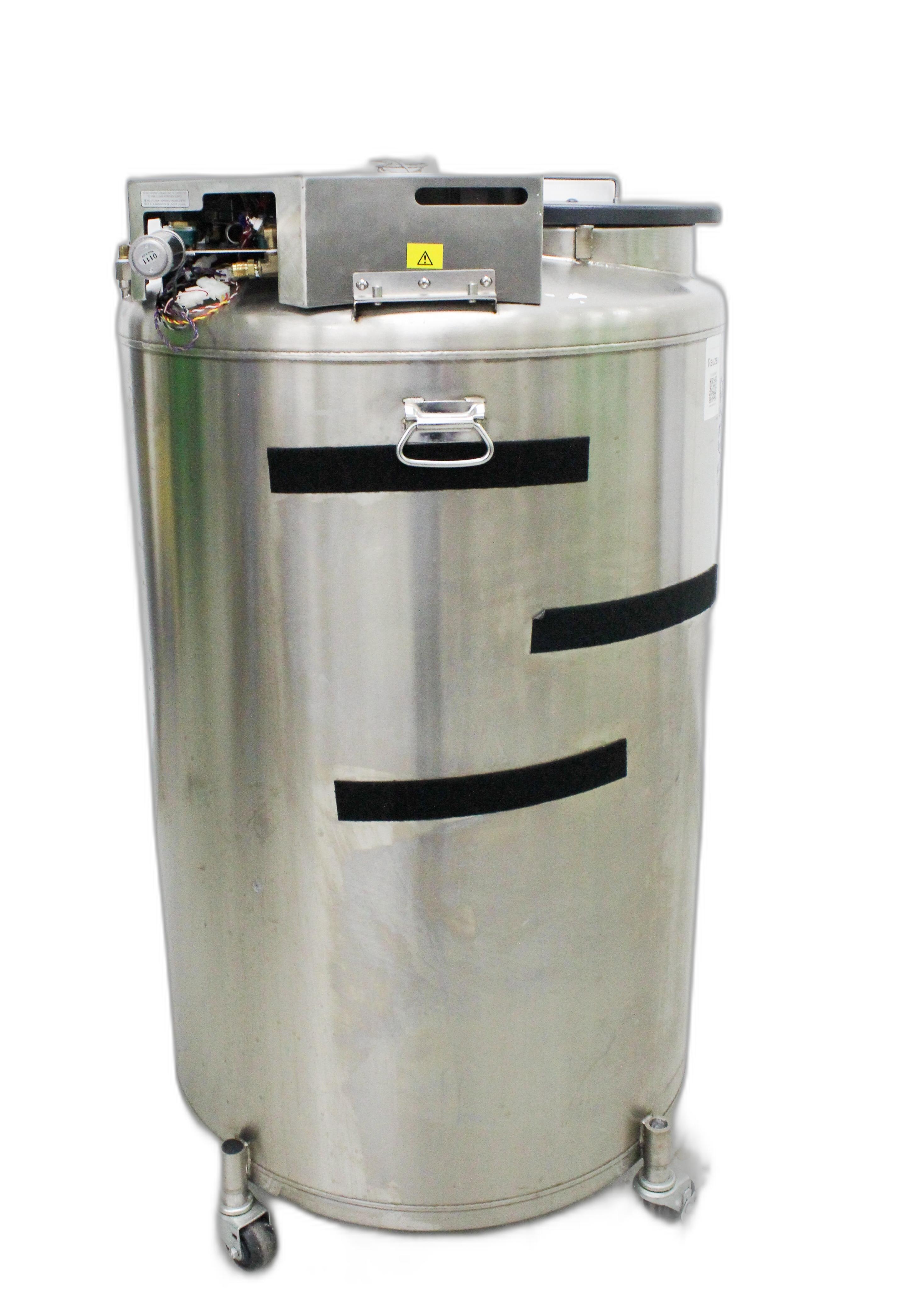

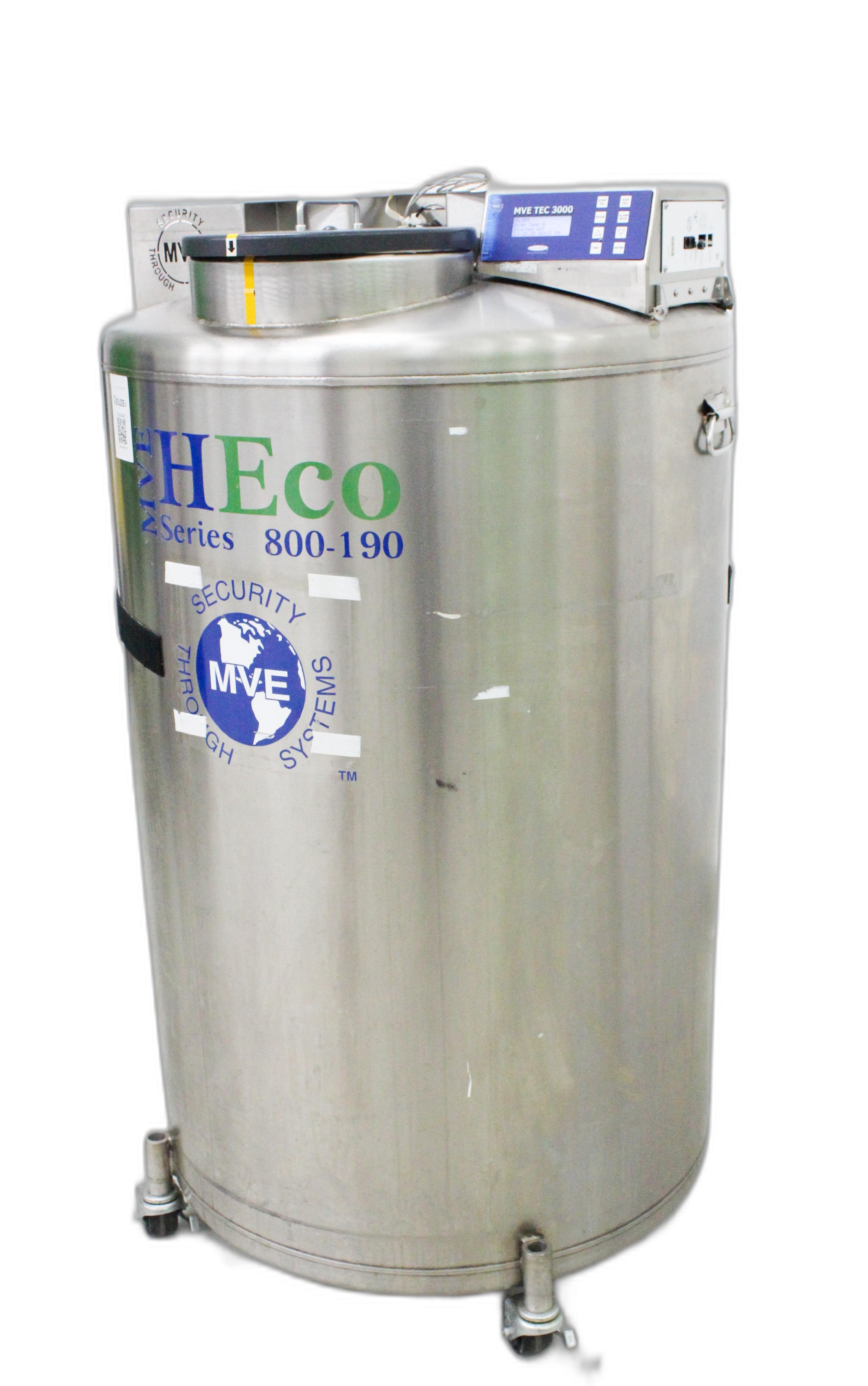

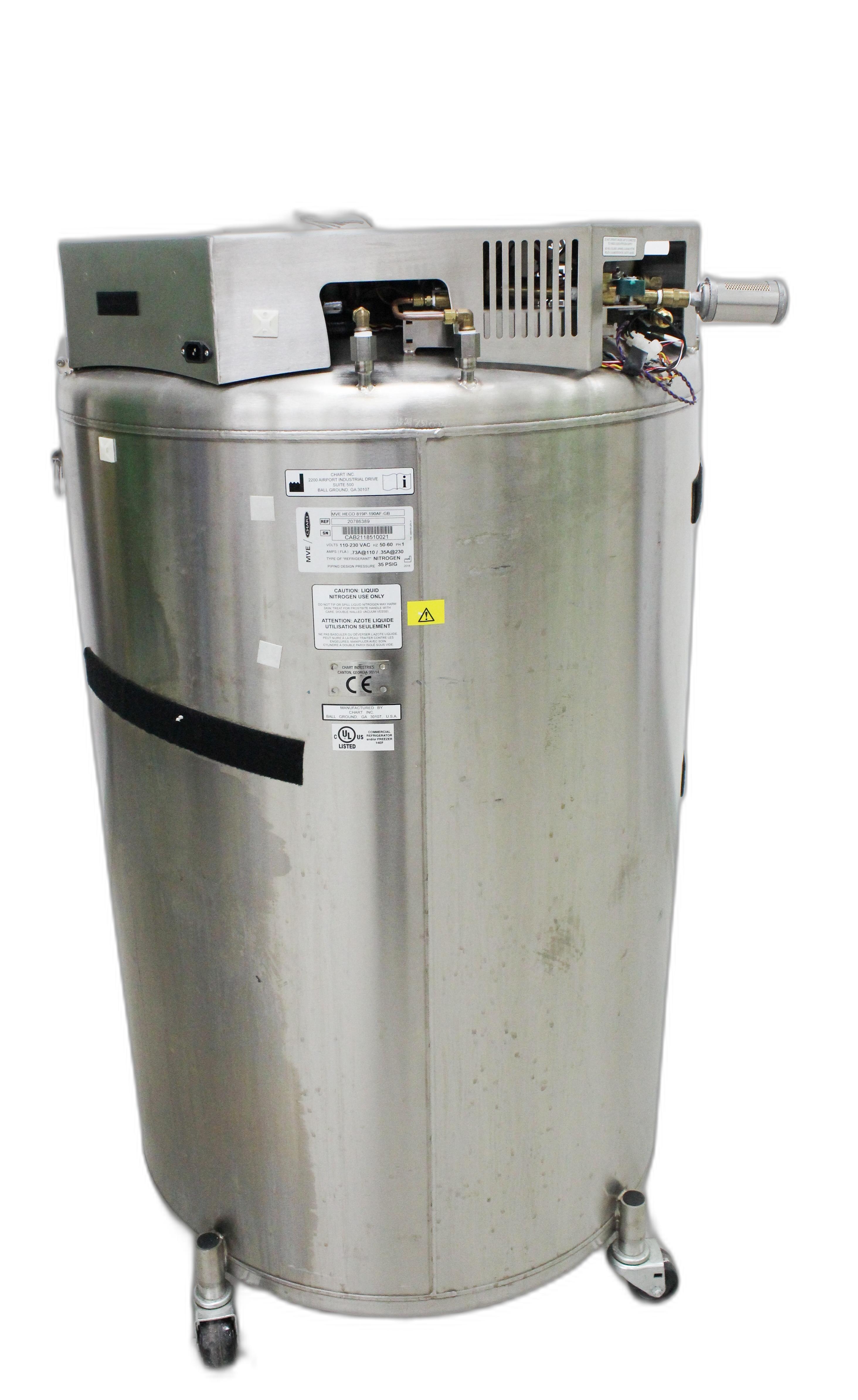

Chart MVE 819P-190AF-GB Cryogenic Storage LN2 Freezer Vapor Phase
Chart Industries
Details
-
CategoryCold Storage
-
Dimension34.0in x 35.0in x 58.0in
-
SerialCAB2118510021
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz110-230V / 50Hz/60Hz
Description

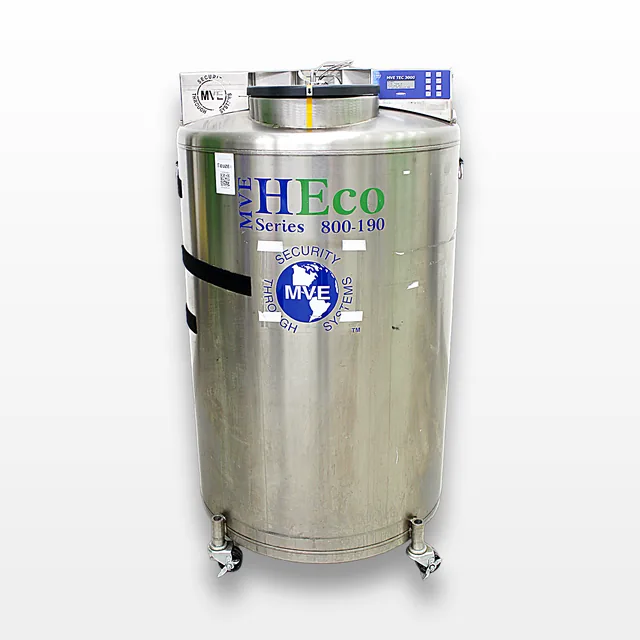

The Chart MVE Heco 819P-190AF-GB is a used cryogenic storage tank ideal for vapor phase storage at an impressive -190°C. Designed as part of the MVE High Efficiency 800 Series, it is optimized for storing up to 19,500 vials, offering the longest hold time and maximum storage density available in the industry. Equipped with a TEC 3000 controller, this freezer promises efficient LN2 usage thanks to its shroud design and vacuum jacketed transfer hose. Enhanced features include a low liftover height, large LN2 vapor platform capacity, optional battery backup, and dry sample storage capabilities. This device is perfect for secure, long-term sample preservation and conforms with MDD 93/42/EEC standards for medical devices in the EU.
Technician comment
Chart MVE HEco 819P-190AF-GB vapor-phase LN2 freezer sourced from a working lab environment. Unable to fully test at this facility due to liquid nitrogen supply was not available; full autofill, vapor temperature, and alarm functions will need to be verified once connected to an LN2 source.
Key Features
- Vapor phase storage at -190°C
- Accommodates 19,500 vials
- TEC 3000 controller for precise management
- Efficient LN2 usage
- Low liftover height
- Conforms to MDD 93/42/EEC
Specifications
- Material: Stainless Steel
- LN2 Capacity without Inventory: 463 L
- LN2 Capacity at Vapor Platform: 55 L
- Usable Internal Height: 34.5 inches
- Inner Diameter: 28.8 inches
- Overall Height with Autofill: 65 inches
- Weight Empty: 515 lb
- Maximum Storage Capacity: 19,500 vials
- Blood Bag Capacities: Various sizes up to 500 ml
- Advanced safety features with enclosed wiring and plumbing
Weight
Imperial: 618.0 Pounds
Metric: 280.32 Kilograms
Shipping Dimensions
Imperial: 40.8 lb x 42.0 lb x 69.6 lb
Metric: 103.63 cm x 106.68 cm x 176.78 cm
Harmonized Code
841840
Harmonized Code Details
841840 - Freezers of the upright type. This code reflects equipment designed for freezing and holding samples below ambient environment, common in scientific and industrial settings for preservation.
