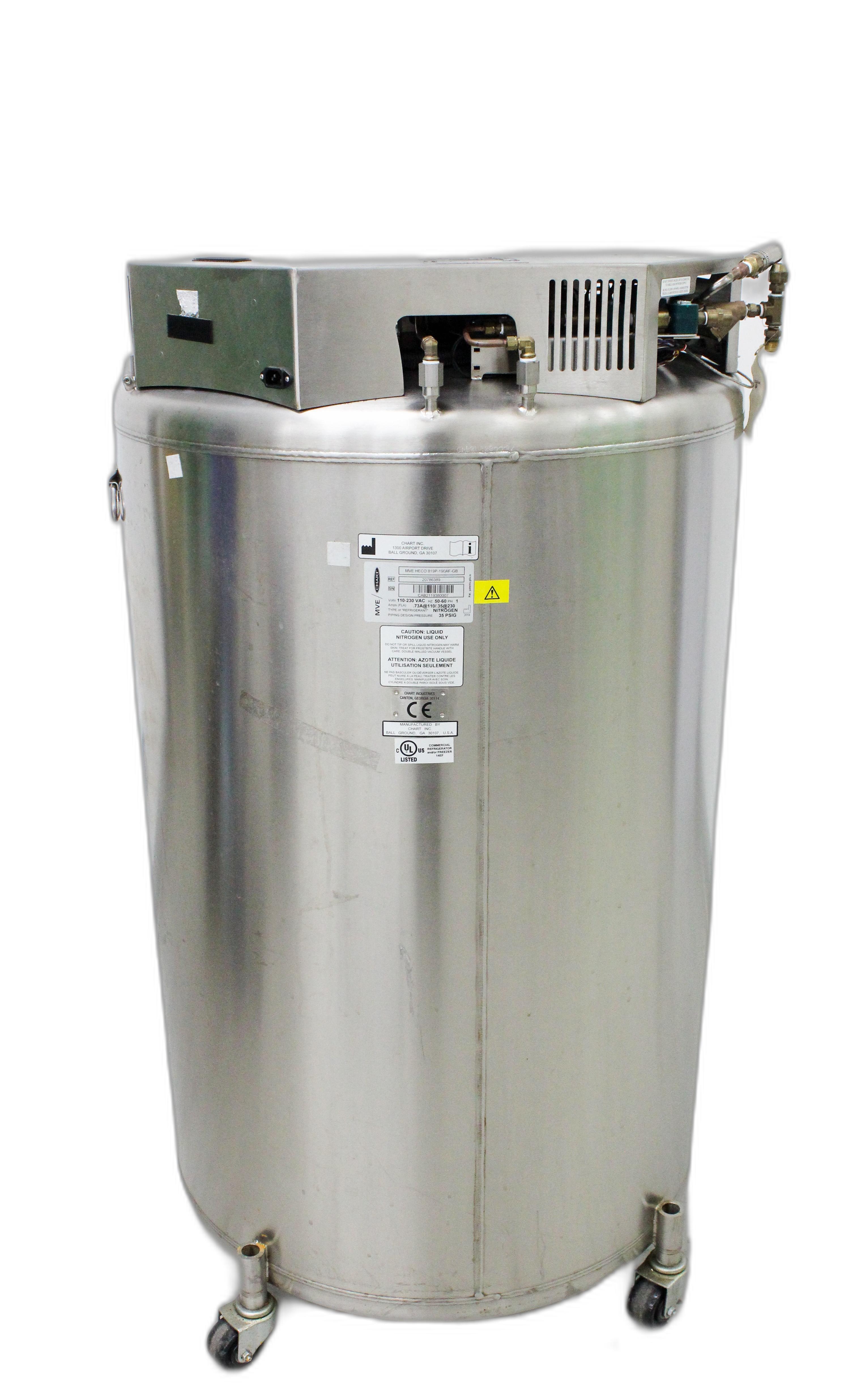

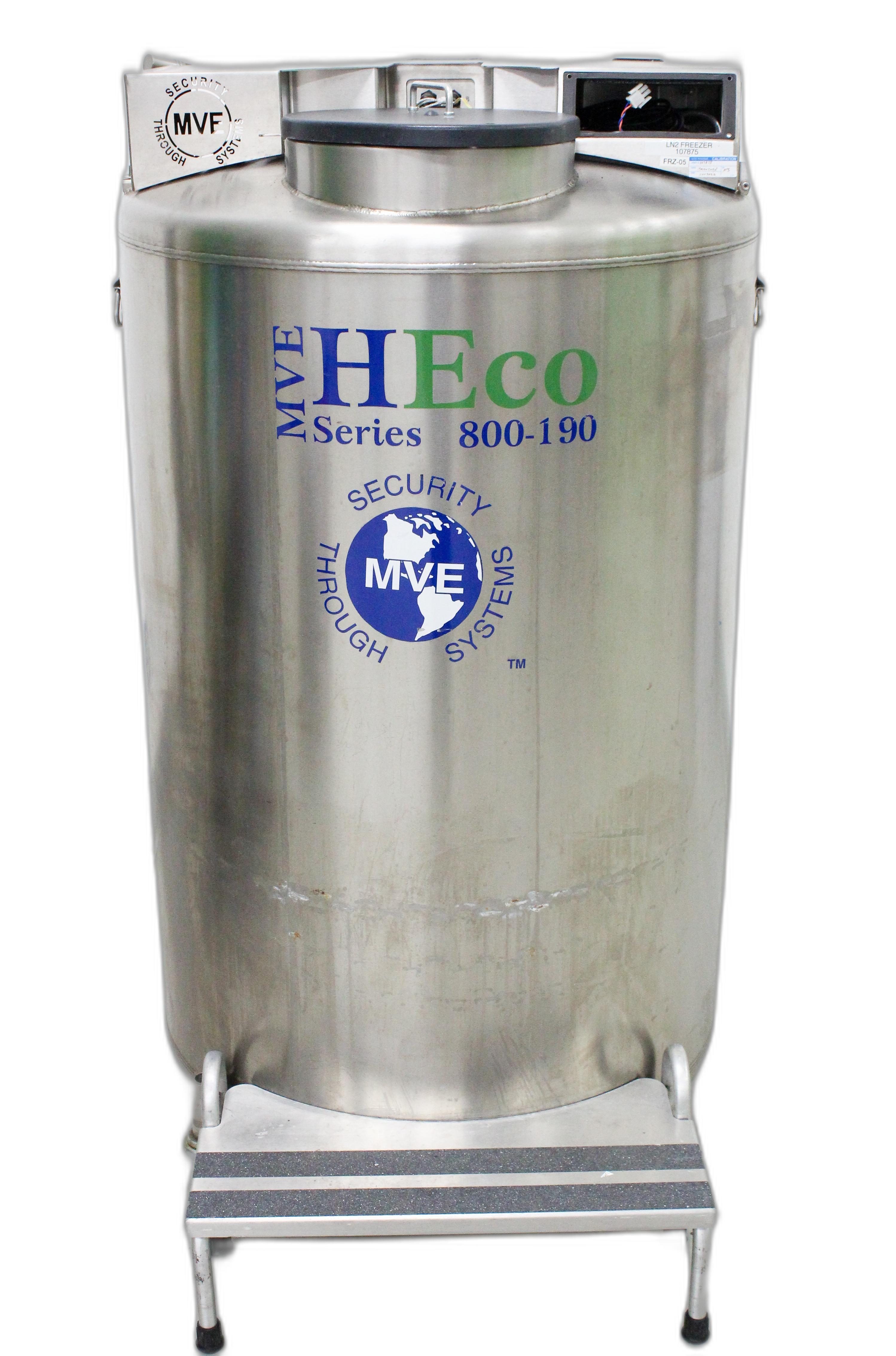

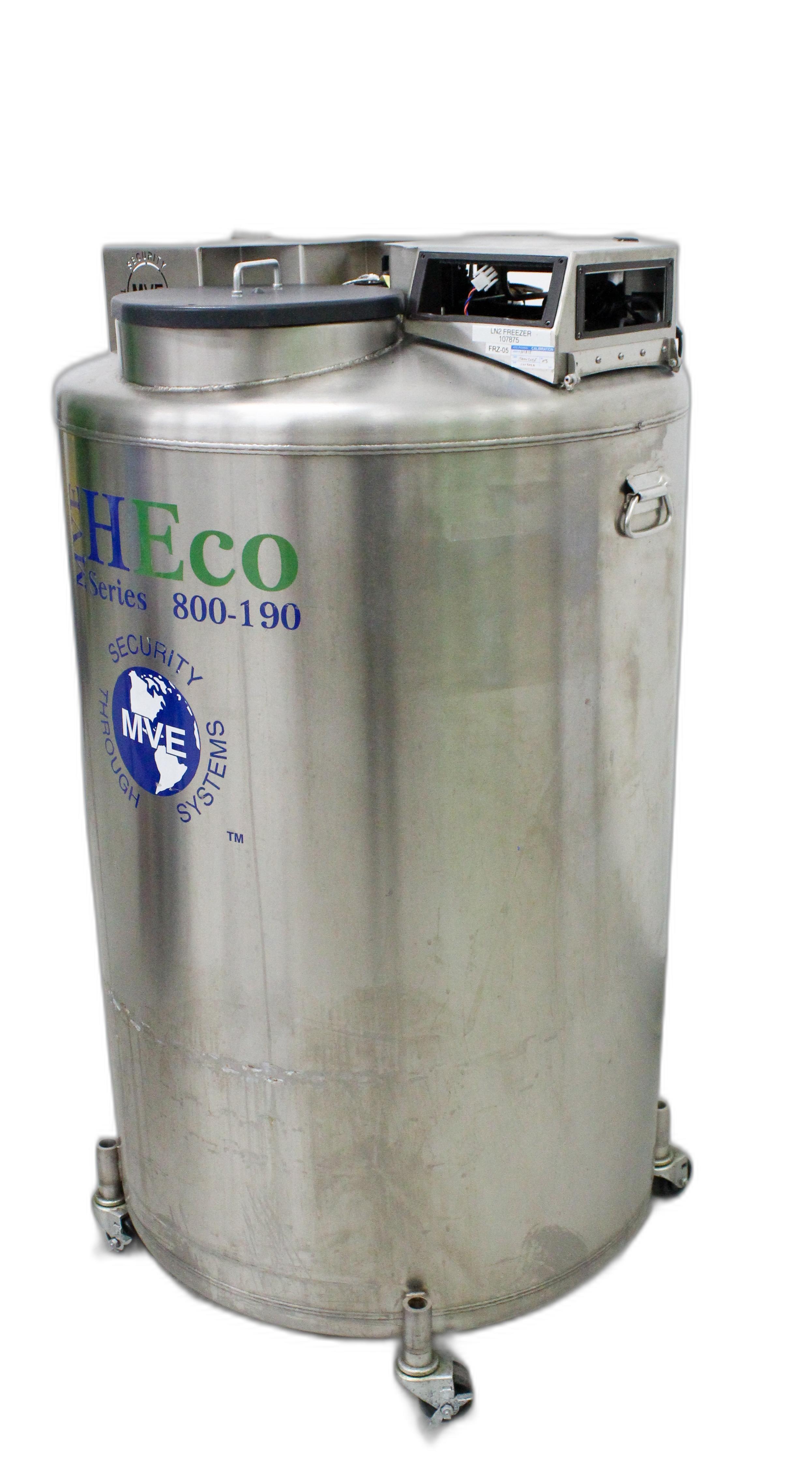

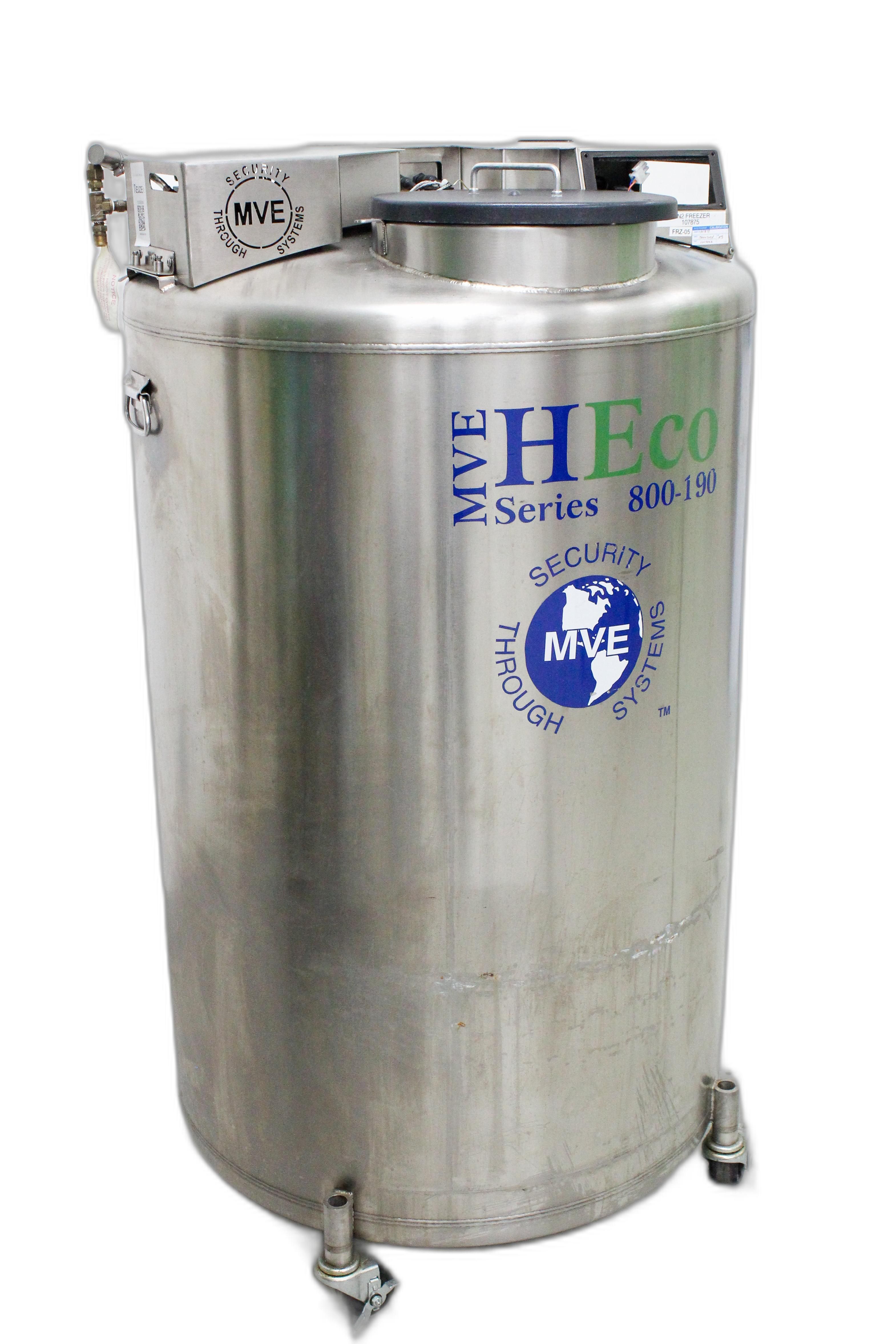

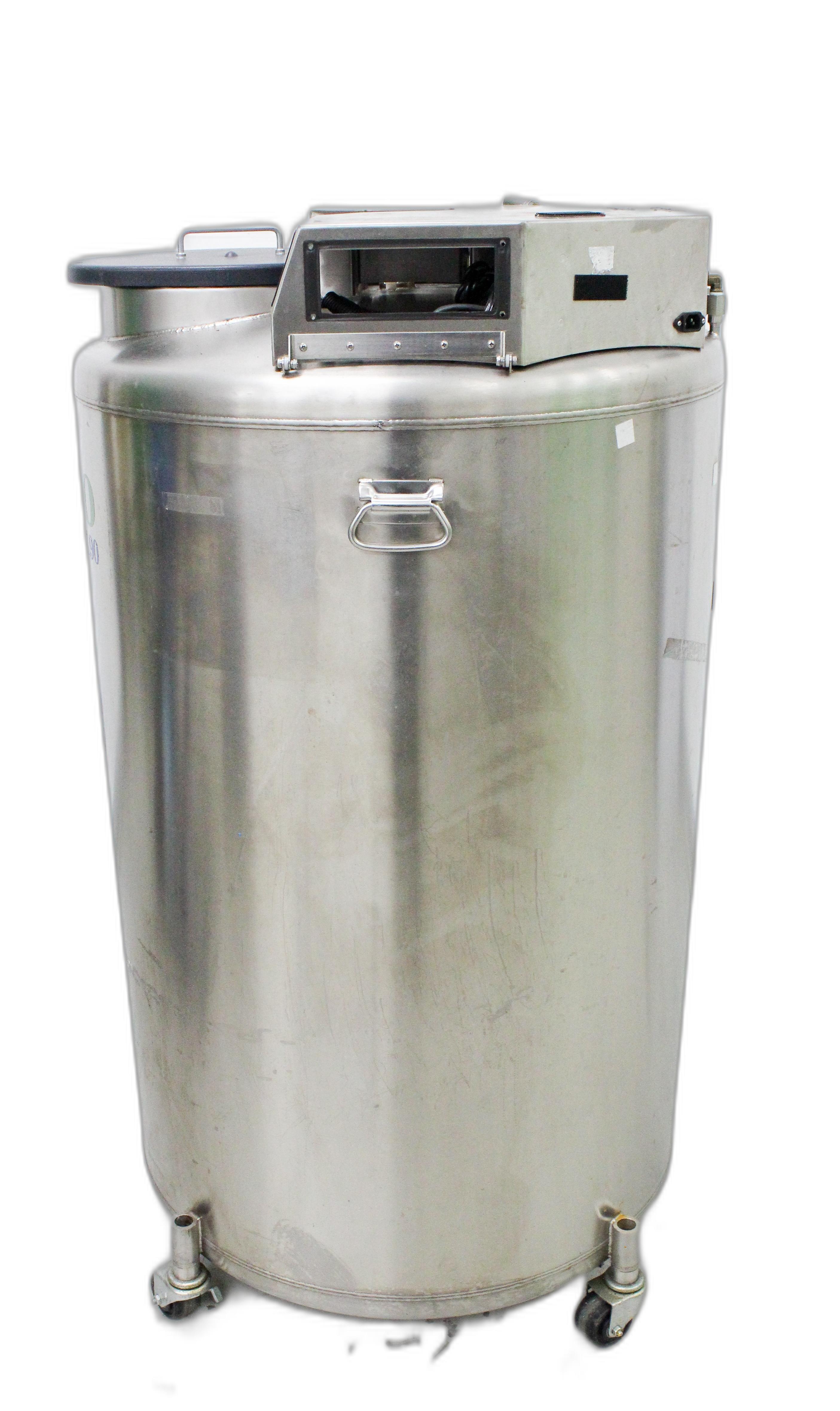

Chart Industries MVE Heco 819P-190AF-GB Cryogenic Storage Freezer -190C 19500 Vials Capacity
Chart Industries
Details
-
CategoryCold Storage
-
Dimension33.0in x 33.0in x 58.0in
-
SerialCAB2119380007
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz110-230V / 50Hz/60Hz
Description

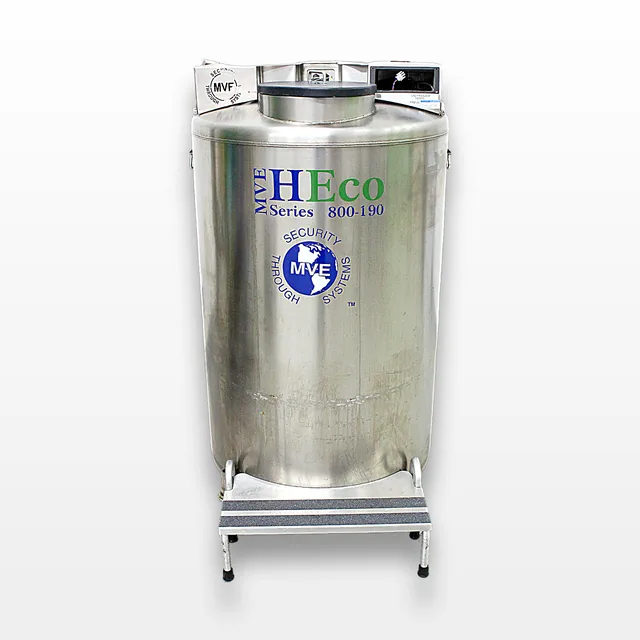

The Chart Industries MVE Heco 819P-190AF-GB, a high-efficiency cryogenic storage freezer, is designed for vapor phase storage, accommodating 19,500 vials in boxes at an ultra-low temperature of -190°C. Part of the Series 800-190 line, it boasts the largest LN2 capacity at its vapor platform and offers secure, dry sample storage with the industry's longest hold time. Despite fair condition with a need for minor fixes, it remains a valuable asset for high-density storage. Notably, it requires a compatible MVE TEC 3000 controller for operation, which is not included. Manufactured in the United States, this freezer adheres to MDD 93/42/EEC and is UL/C-UL listed, ensuring compliance with international safety standards.
Technician comment

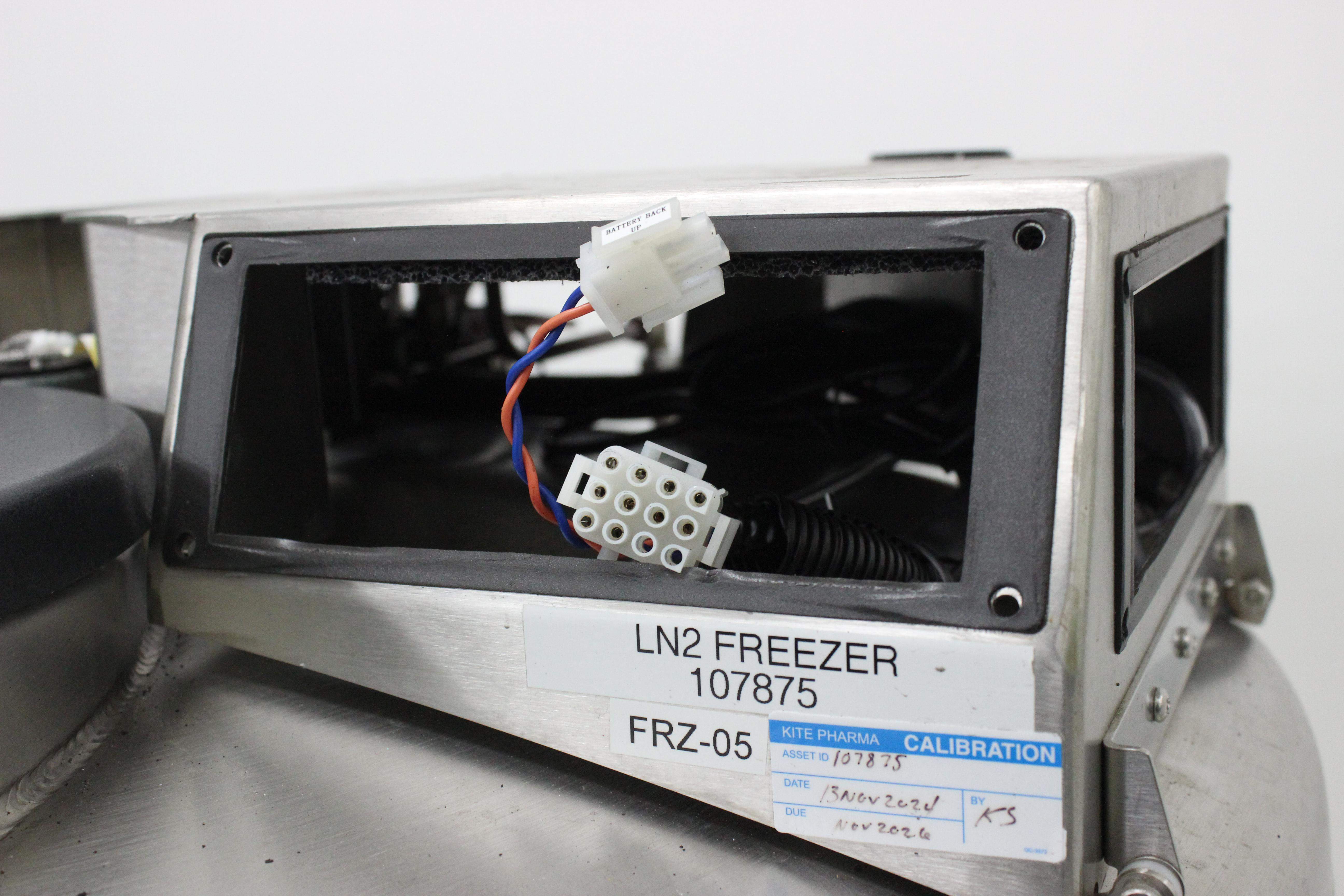

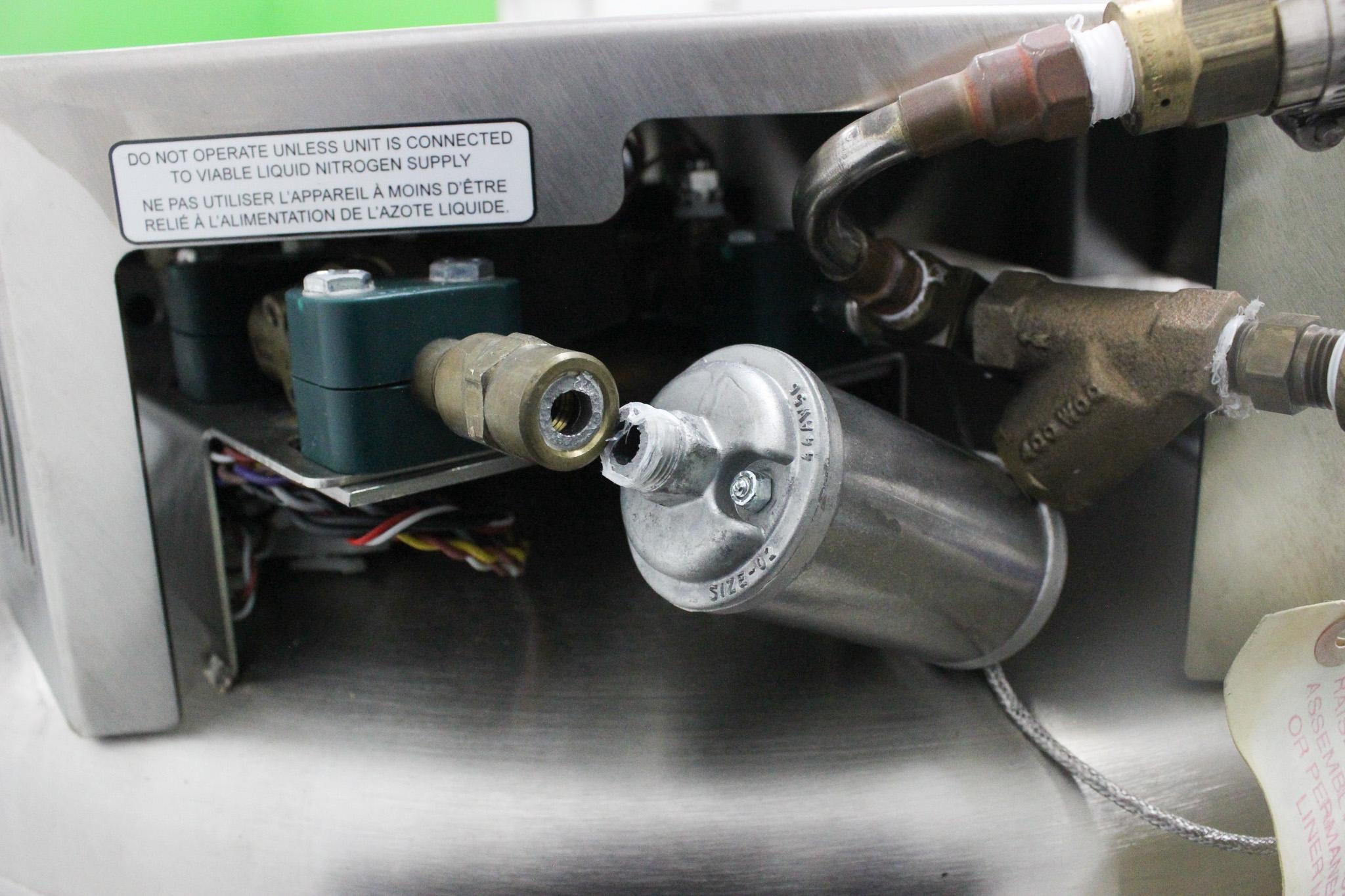

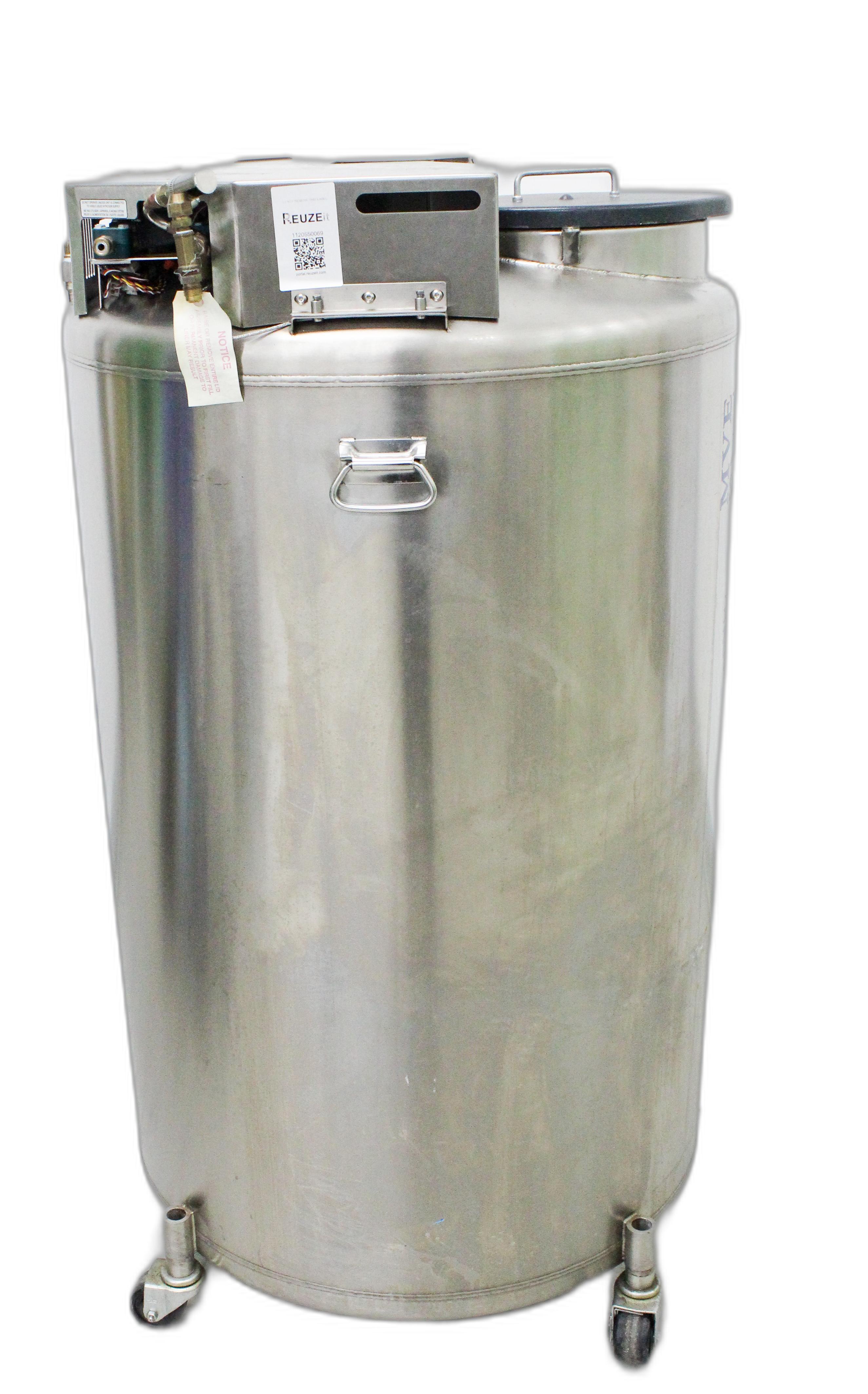

LN2 filter on the back of the unit is snapped at the threads and will need repair or replacement before use. Unit does not include the MVE TEC 3000 controller; a compatible controller will be required for normal operation. See photos for details.
Key Features
- Vapor phase storage at -190°C
- Holds 19,500 vials in boxes
- Largest LN2 capacity at vapor platform
- Dry sample storage
- Optional battery backup
- Fully enclosed wiring and plumbing
- Vacuum jacketed transfer hose
Specifications
- Model: MVE Heco 819P-190AF-GB
- Maximum Storage Capacity: 1.2 & 2 ml Vials, 19,500
- LN2 Capacity (Empty): 463 L est.
- LN2 Capacity at Vapor Platform: 55 L est.
- Temperature: -190°C
- Dimensions: Neck Opening - 12.5 in, Internal Height - 34.5 in
- Overall Height with Autofill: 65.0 in
- Weight Empty: 515 lb

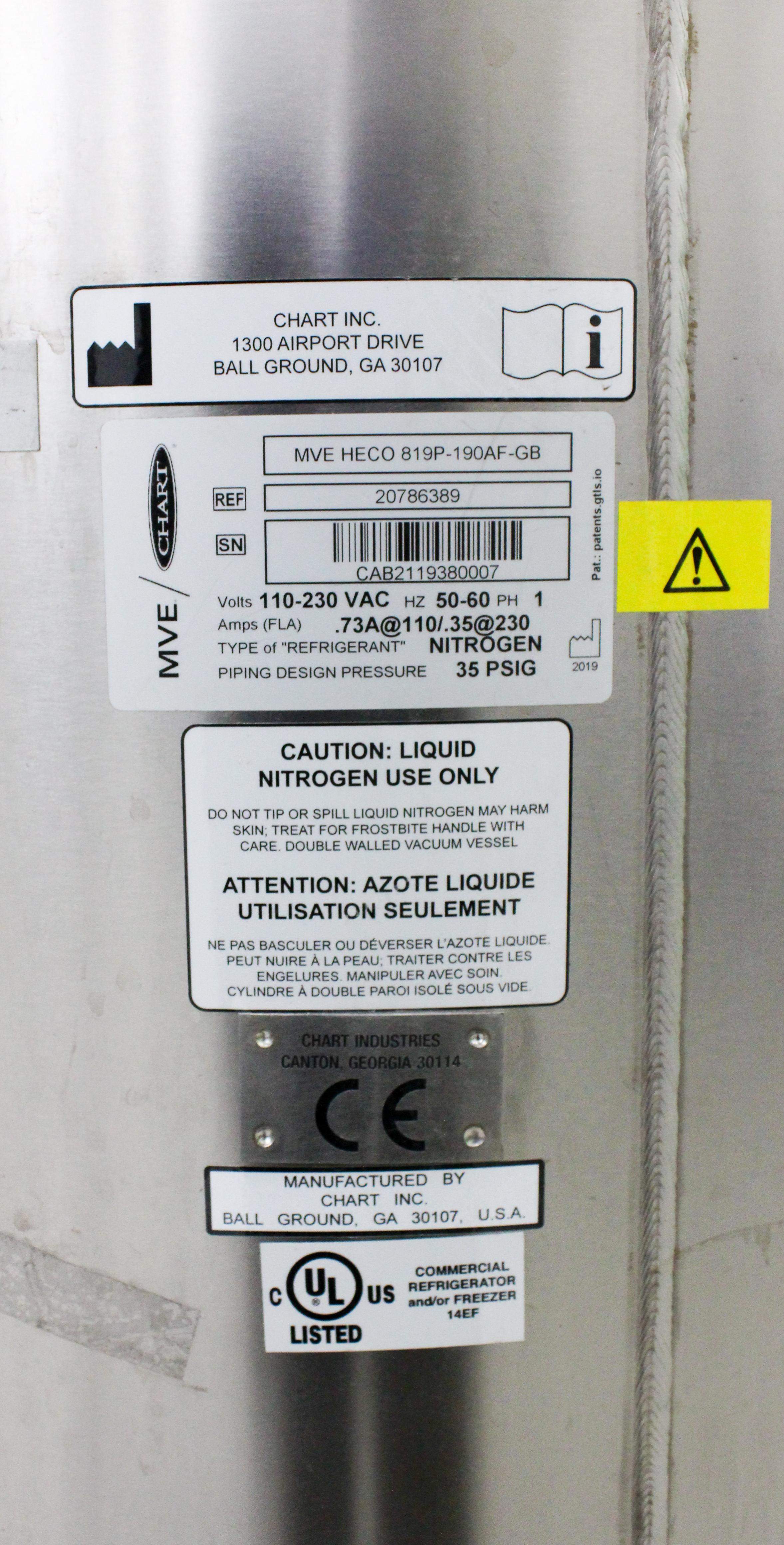

- Compliance: MDD 93/42/EEC, UL/C-UL Listed
Weight
Imperial: 618.0 Pounds
Metric: 280.32 Kilograms
Shipping Dimensions
Imperial: 39.6 lb x 39.6 lb x 69.6 lb
Metric: 100.58 cm x 100.58 cm x 176.78 cm
Harmonized Code
841960
Harmonized Code Details
841960 - Machinery for liquefying air or other gases: This code applies to equipment designed to store materials at cryogenic temperatures, as it includes machinery used for the liquefaction of air or gases.
