Miltenyi MACSQuant Analyzer 16 Flow Cytometry 16 Optical Parameters
Miltenyi Biotec
Details
-
CategoryCell Counting / Sorting
-
Dimension19.0in x 24.0in x 22.0in
-
Serial40078
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

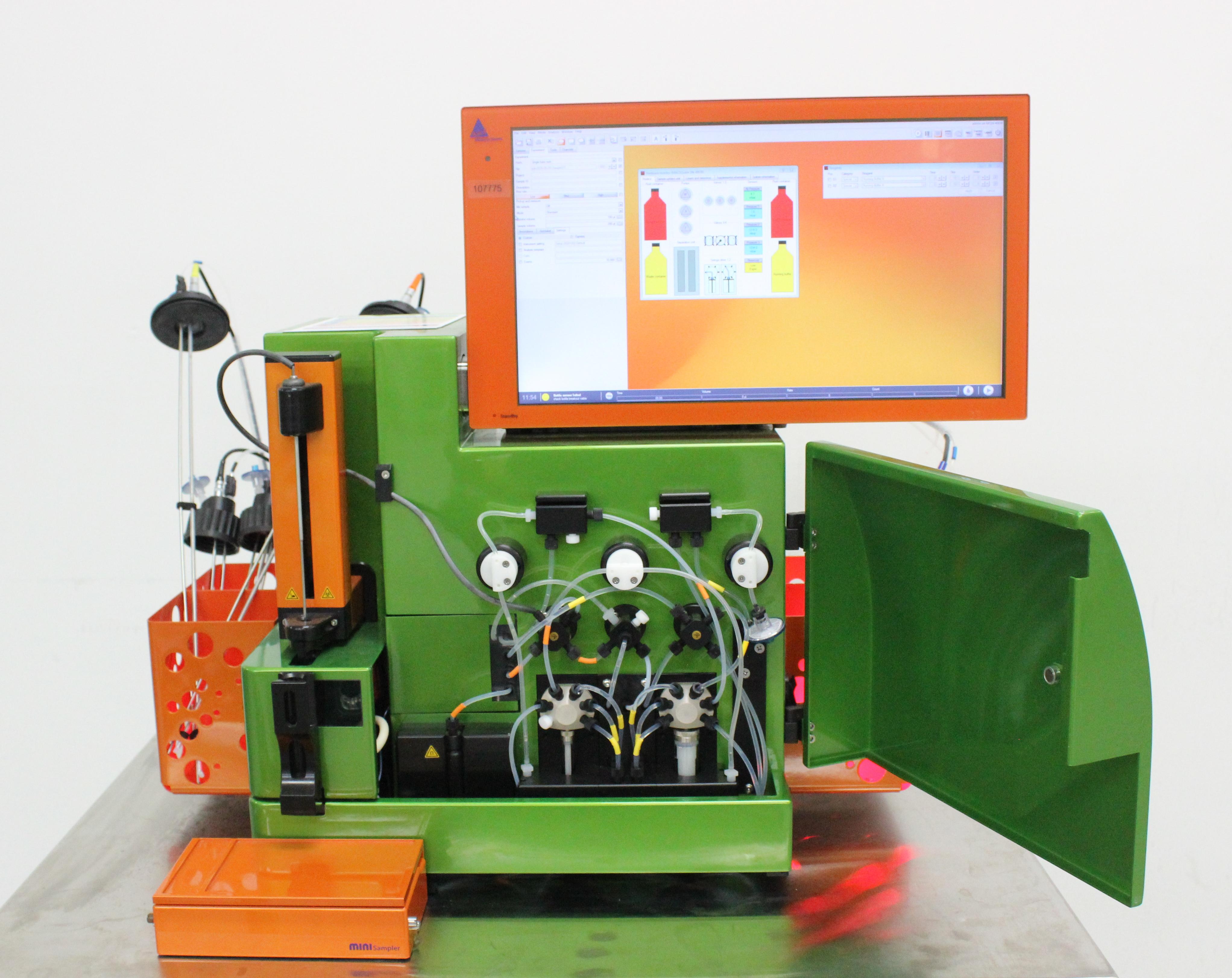

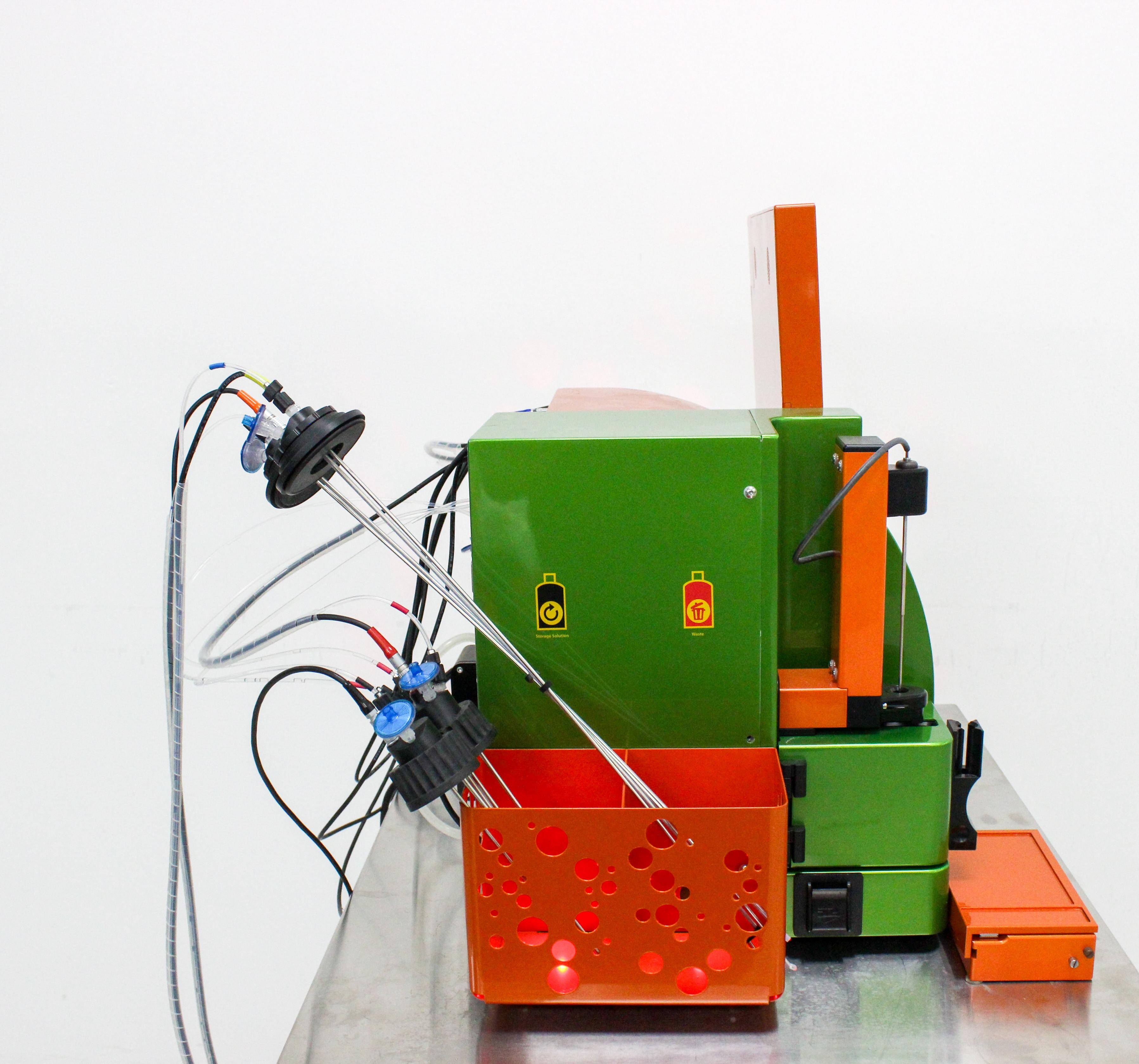

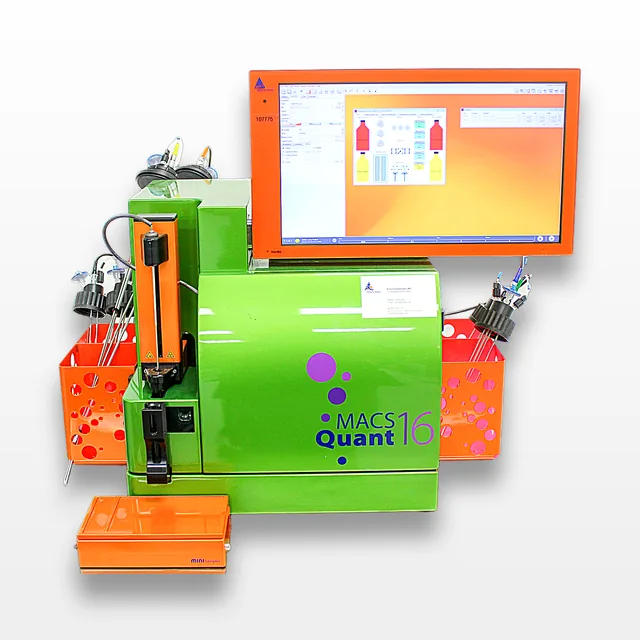

The Miltenyi Biotec MACSQuant Analyzer 16 is a versatile flow cytometer engineered for automated data acquisition with 16 optical parameters. Ideal for both basic research and advanced immunophenotyping applications, it features a compact design and expanded capabilities with 6 additional fluorescent channels compared to its predecessor, the MACSQuant Analyzer 10. This analyzer enables full automation of sample processing, from staining to data analysis, and offers flexible assay setup with the ability to switch between tubes and plates easily. Equipped with 14 fluorescence channels, it requires minimal sample volume, increasing efficiency in modern laboratory settings. The unit powers on and displays no errors and is offered in good condition, sourced from a working environment but unable to be fully tested.
Technician comment
MACSQuant Analyzer 16 powers on with no errors observed. Unit is in excellent cosmetic condition and was removed from a working environment. Unable to fully test; offered as preowned.
Key Features
- 16 optical parameters for comprehensive data acquisition
- 14 fluorescence channels for flexible analysis
- Automated sample processing from staining to data acquisition
- Compact design for various research applications

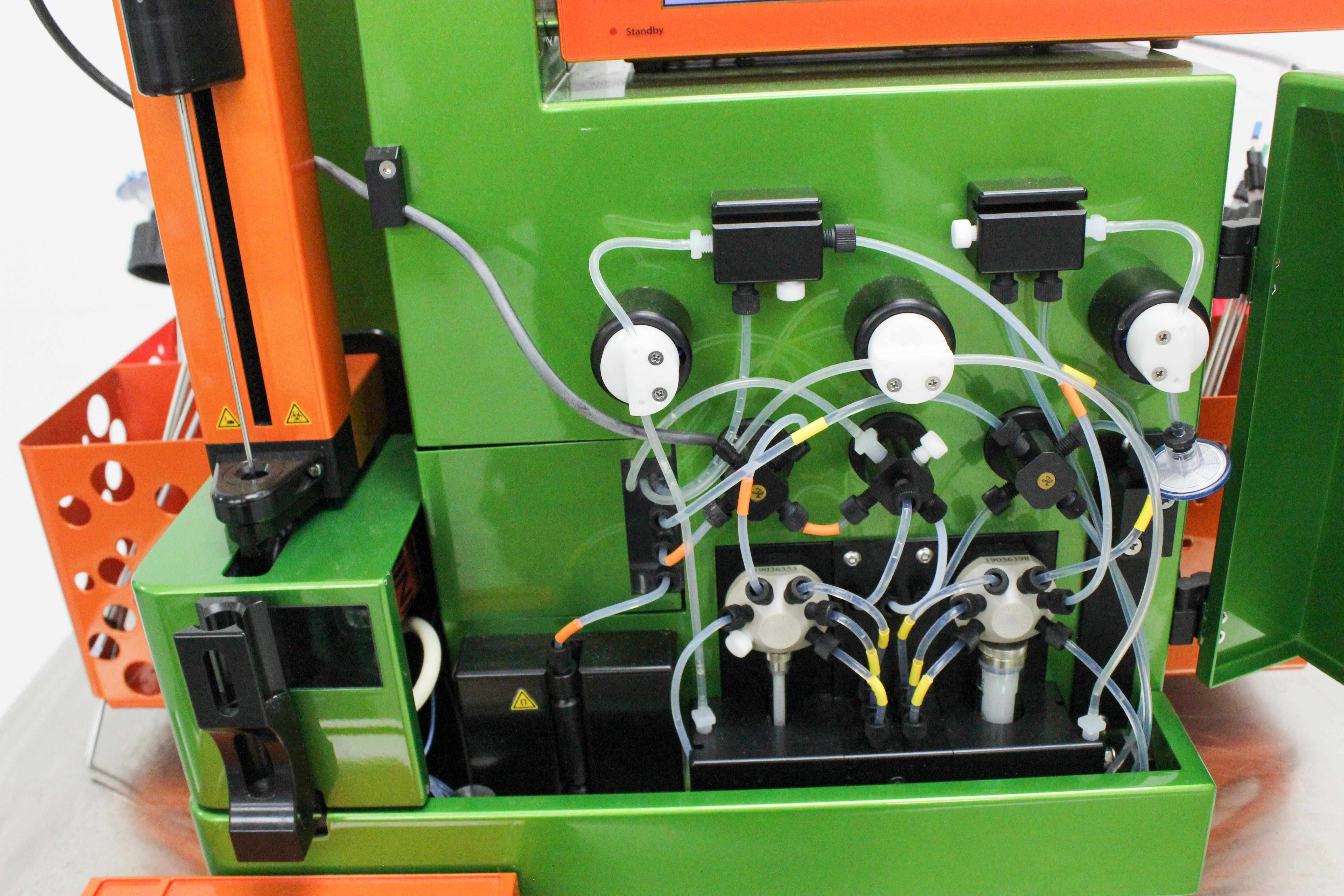

- Fluidics system minimizes sample volume required
- Easily switch between tubes and plates setup
- Maximal event rate up to 15,000 events/second
- Optimized fluorescence detectors with PMTs
Specifications
- Laser excitation: 405 nm (65 mW), 488 nm (50 mW), 640 nm (72 mW)
- Emission detectors include numerous nm ranges
- Flow cell dimensions: 200×250 μm
- Sample flow rate: 25, 50, 100 µL/min
- Measurement speed: <25 minutes per 96-well plate
- Monitor: 15.6" LCD touchscreen
- Power requirements: 100–240 V, 50/60 Hz
- Ports: 4× USB 2.0, 6× USB 3.0, DisplayPort, LAN, etc.
Weight
Imperial: 132.0 Pounds
Metric: 59.87 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 28.8 lb x 26.4 lb
Metric: 57.91 cm x 73.15 cm x 67.06 cm
Harmonized Code
9027.30
Harmonized Code Details
9027.30: Instruments and apparatus for physical or chemical analysis, specifically flow cytometers. It is a suitable code due to the equipment's function in analytical testing in laboratory settings.
