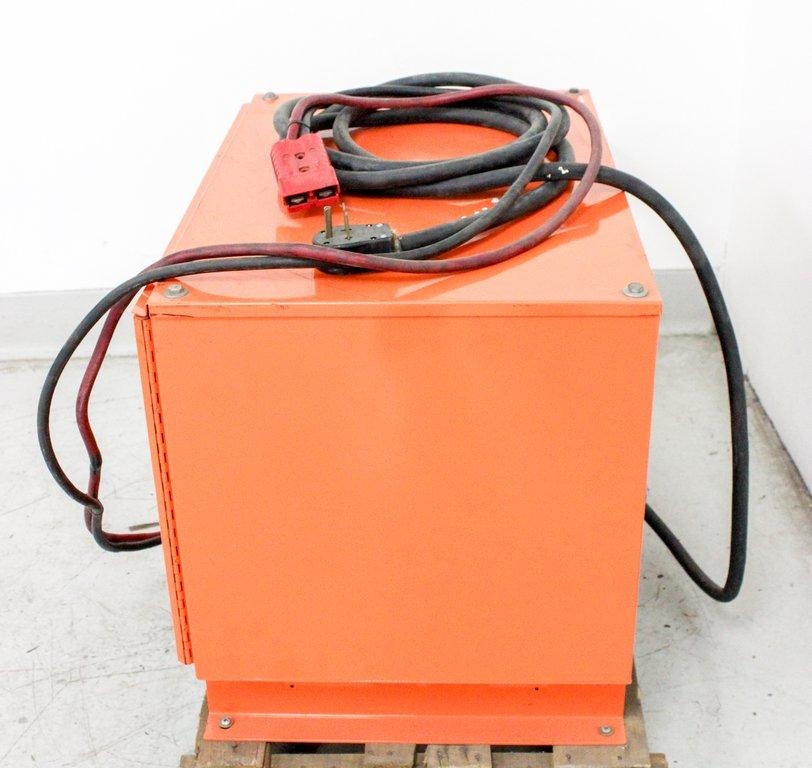

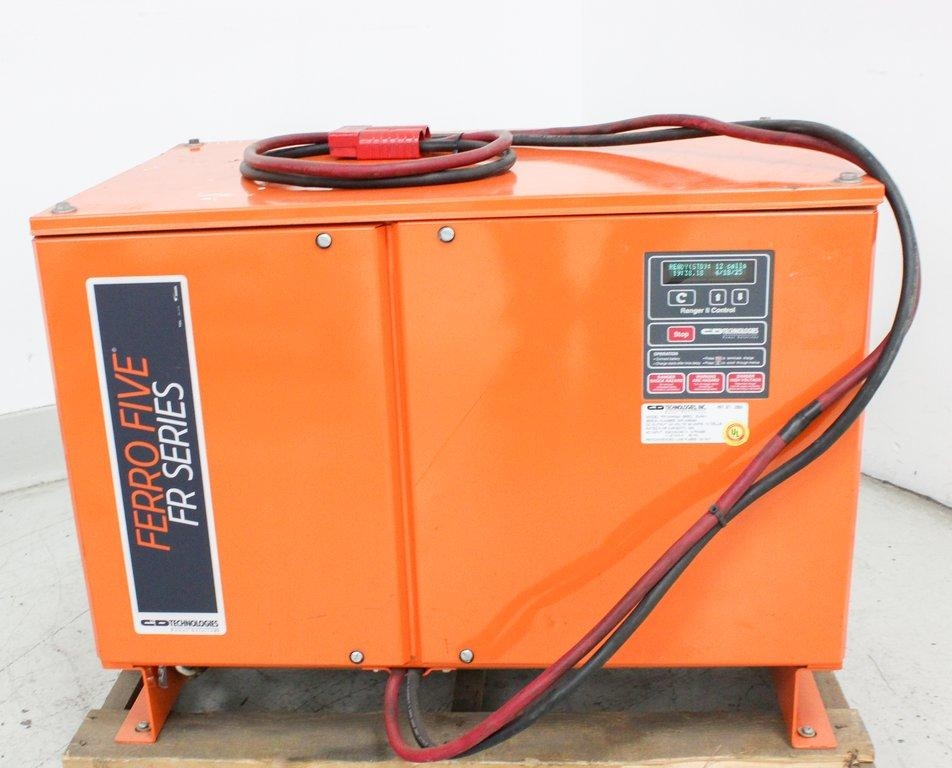

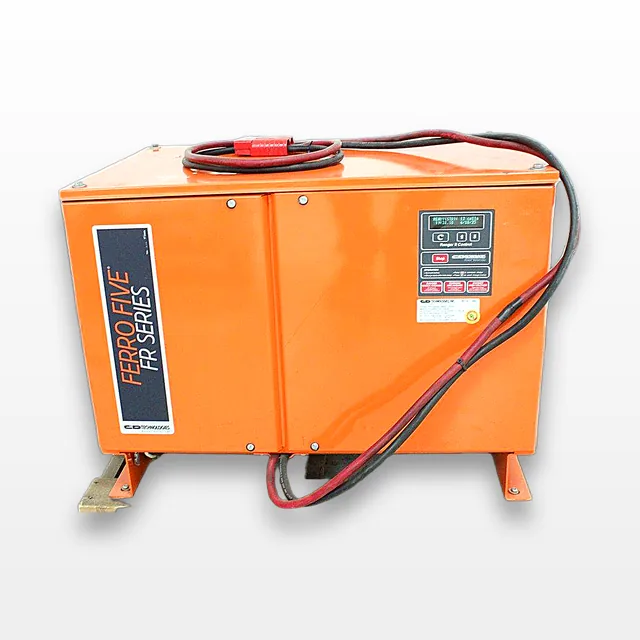

C&D Technologies FR12HK550 24V Forklift Battery Charger Industrial Use
C&D Technologies
Details
-
CategoryOther
-
Dimension23.0in x 33.0in x 25.0in
-
SerialMPI-256295
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 60Hz US
Description
The C&D Technologies Ferro Five FR Series FR12HK550 24V forklift battery charger is designed to meet the demands of industrial settings, ensuring reliable and efficient charging for battery-powered equipment like electric forklifts and pallet jacks. Powered by rugged ferroresonant technology, this charger offers a consistent output with a charging capacity of 550 amp-hours. With a durable steel enclosure, it is capable of operating in harsh environments. It includes safety features such as overload protection, automatic shutoff, and diagnostic indicators for safety and reliability. The charger operates on a 60Hz frequency, with 208/240/480V field-selectable input voltage, and approximately 91.7 amps charging current for an 8-hour charge rate. While the unit seems to function properly when powered on, it hasn't been fully tested.
Key Features
- 24V forklift battery charging
- Rugged ferroresonant technology
- 550 amp-hour capacity
- Heavy-duty steel enclosure
- Automatic operation with float and equalize modes
- Input voltage: 208/240/480V, 60Hz
Specifications
- Battery Voltage: 24V DC
- Amp-Hour Capacity: 550 AH @ 8-hour rate
- Input Voltage: 208/240/480 VAC (field-selectable)
- Input Frequency: 60 Hz
- Input Phase: Three Phase
- Charging Current: Approx. 91.7 Amps (8-hour charge rate)
- Output Type: DC – Unfiltered, Ferroresonant

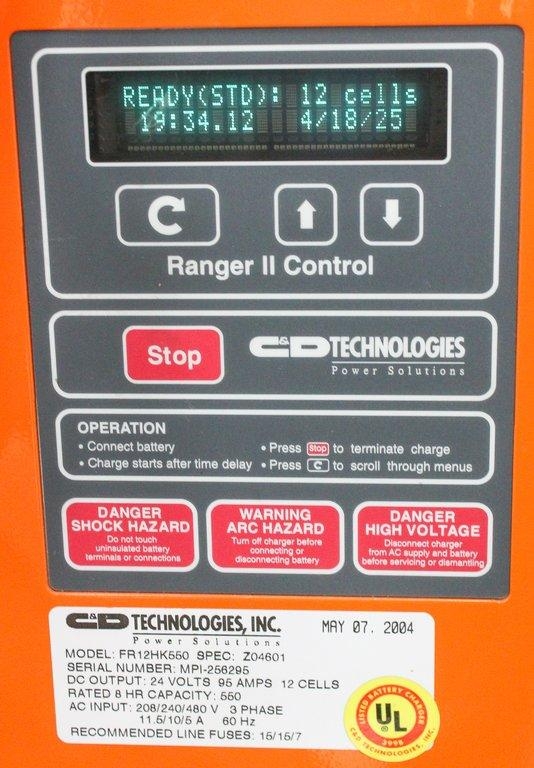

- Safety Features: Overload protection, automatic shutoff, diagnostic indicators
Weight
Imperial: 240.0 Pounds
Metric: 108.86 Kilograms
Shipping Dimensions
Imperial: 27.6 lb x 39.6 lb x 30.0 lb
Metric: 70.1 cm x 100.58 cm x 76.2 cm
Harmonized Code
85044030
Harmonized Code Details
HS Code 85044030: Electrical static converters for industrial use. This code is suitable for devices converting electric power to industrial-use electric energy, such as battery chargers.
