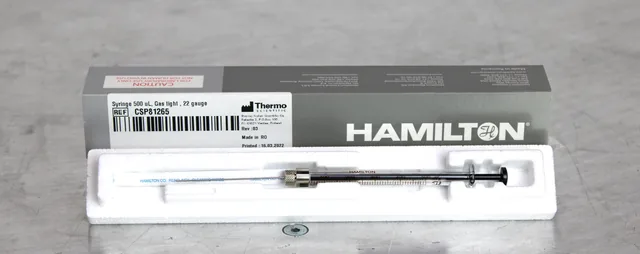

Hamilton 500uL Gastight Syringe 22 Gauge 1700 Series RN Model CSP81265
Hamilton
Details
-
CategoryLiquid Handling
-
Dimension23.0cm x 4.0cm x 4.0cm
-
Serial1900066722
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Hamilton 500uL, 1750 RN, 22 gauge syringe is part of the renowned 1700 series. Designed for precision in dispensing volumes from 1 µL up to 500 µL, it offers excellent flexibility with its removable large RN needle. Crafted with a durable construction including borosilicate glass and stainless steel, it ensures reliability under pressure up to 700 psig and variable temperatures ranging from 10°C to 115°C. This new gastight syringe features a needle point style 3 and a fluid path lined with PTFE, making it both autoclavable and gas sterilizable. Ideal for laboratory settings, it is used for high-precision applications where sterility and accuracy are critical, such as in analytical chemistry, medical research, and industrial applications. Manufactured in Romania, it aligns with the high standards expected in life sciences.
Key Features
- Gastight syringe for precision dispensing
- 500uL capacity with 1700 series design
- 22 gauge large removable needle (RN)
- Constructed with borosilicate glass, SST, and PTFE
- Autoclavable and gas sterilizable
Specifications
- Volume: 500 µL
- Syringe Type: Gastight
- Series: 1700
- Termination: Removable Needle (RN)
- Needle: Large RN, 22 gauge, Point Style 3
- Needle Length: 2 inch (51 mm)
- Fluid Path: SST, Borosilicate glass, PTFE
- Pressure: 700 psig (48.3 bar)
- Temperature Range: 10°C to 115°C
- Barrel Inner Diameter: 0.128 inches (3.26 mm)
- Barrel Outer Diameter: 0.305 inches (7.75 mm)
- Needle Inner Diameter: 0.0161 inches (0.41 mm)
- Needle Outer Diameter: 0.0283 inches (0.72 mm)
- Standard Needle Dead Volume: 6.81 µL
- Made in Romania
Weight
Imperial: 2.65 Pounds
Metric: 1.2 Kilograms
Shipping Dimensions
Imperial: 10.87 lb x 1.89 lb x 1.89 lb
Metric: 27.61 cm x 4.8 cm x 4.8 cm
Harmonized Code
9018.32.00
Harmonized Code Details
9018.32.00 - Syringes, with or without needles. This code is appropriate as this product is identified as a syringe, falling under this category.
