Thermo Trace GC Ultra Gas Chromatograph 450C Configs Used Functional
Thermo Fisher Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension65.0cm x 61.0cm x 48.0cm
-

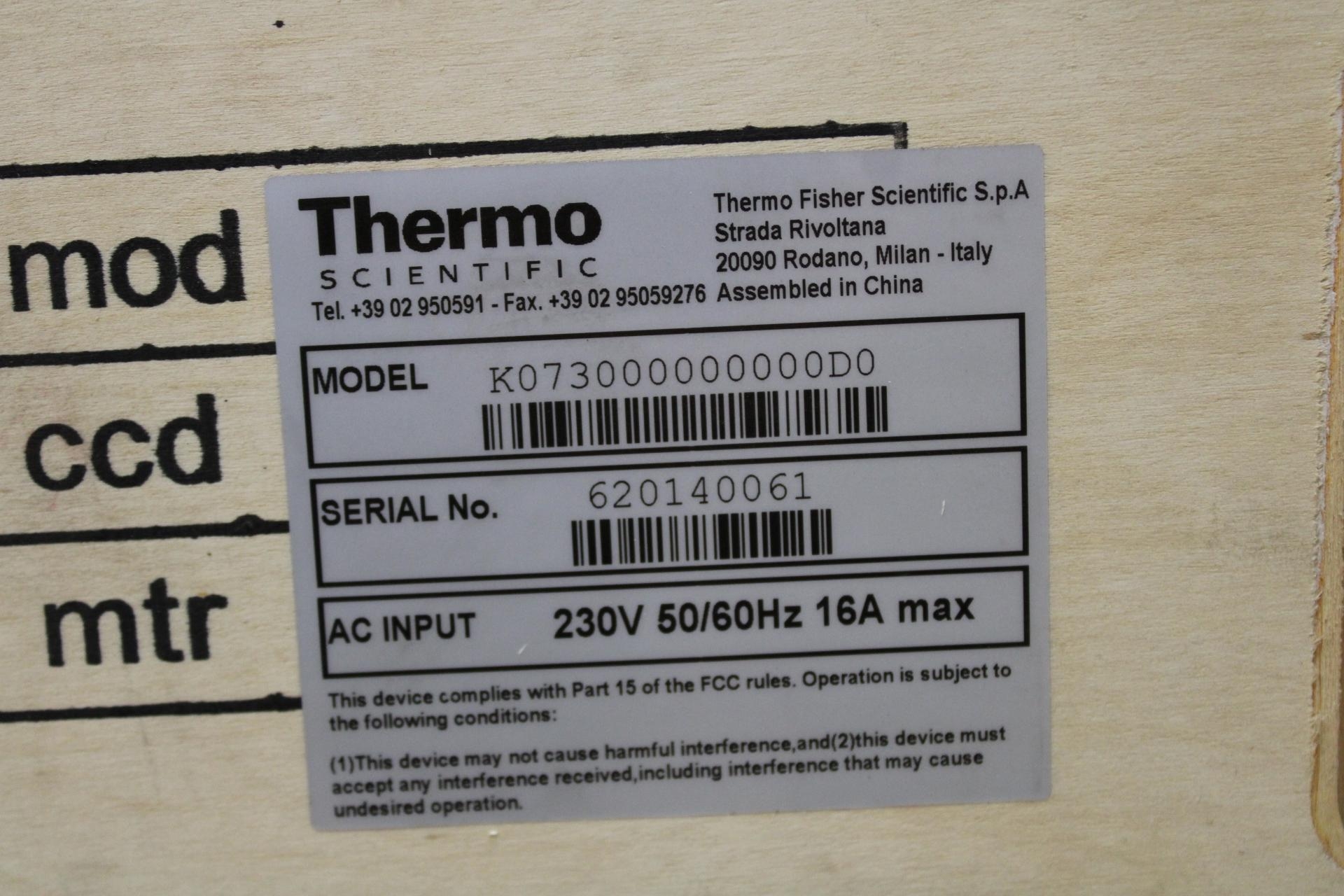

Serial620140061
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Thermo Trace GC Ultra, model K073000000000D0, is a versatile multi-channel gas chromatograph, produced in China, that meets the varying demands of modern laboratories. With a design that allows easy configuration of up to two injectors and three detectors, this unit features robust, simple hardware, and internal LAN interfacing capabilities. It is equipped with an independently heated valve housing that can accommodate multiple gas valves and needle valves, as well as packed and capillary columns, enhancing its flexibility and utility. Its range of large volume techniques extends the detection limits of standard gas chromatography, featuring linear heating rates up to 1200C per minute to quicken the analysis of crude oils, pesticides, and hydrocarbons. This particular chromatograph facilitates large volume split/splitless injections, supports a variety of injectors and detectors, and provides precise retention time control without the need for expensive revalidation of established methods. Computer not included.
Key Features
- Configurable up to two injectors and three detectors
- Linear heating rate up to 1200C/min
- High temperature programming up to 450C
- Independently heated valve housing for multiple gas applications
- Internal LAN interfacing capability
- Large Volume Techniques
Specifications
- Column Oven Programmability: 7 Ramps/8 Plateaus
- Temperature Range: Ambient to 450C
- Maximum Temperature Ramp: 120C/min
- Vaporizing Inlets: SSL, Packed, Purged Packed
- Heating Rate: Up to 14.5C/sec
- Detectors: Flame Ionization, Thermal Conductivity, Electron Capture
- Sub-Ambient Options: -99C with liquid N2, -55C with CO2
- Support for Large Volume Cold On-column and B.E.S.T. PTV
- Pneumatic Controls: Digital (250 and 1000kPa), Ambient Temp/Pressure Compensation
Weight
Imperial: 119.05 Pounds
Metric: 54.0 Kilograms
Shipping Dimensions
Imperial: 30.71 lb x 28.82 lb x 22.68 lb
Metric: 78.0 cm x 73.2 cm x 57.61 cm
Harmonized Code
902789
Harmonized Code Details
Harmonized Code 902789 encompasses instruments for physical or chemical analysis, such as gas chromatographs and spectrometers. The Thermo Trace GC Ultra is classified under this due to its function in gas chromatography for laboratory analysis.
