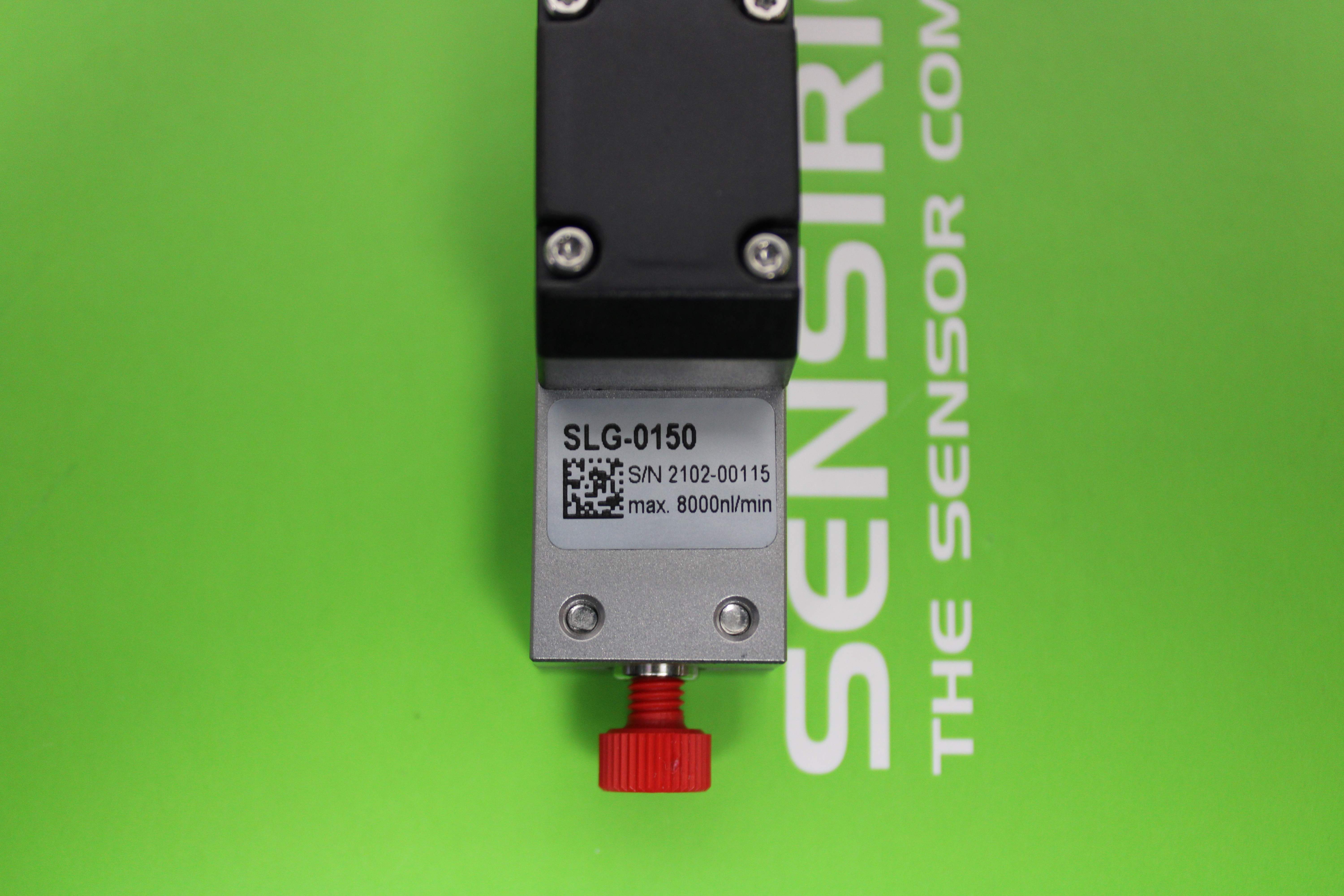

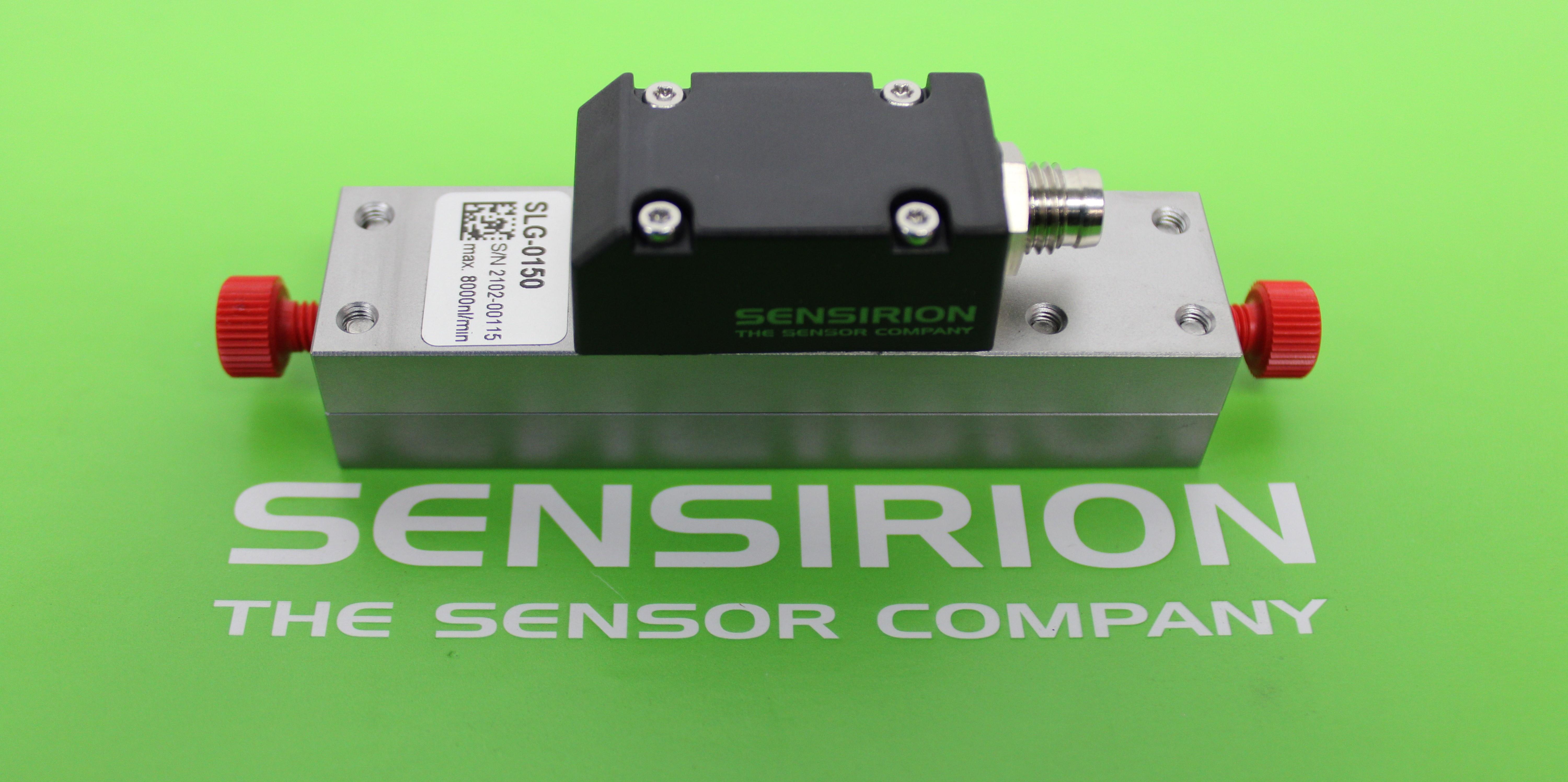

Sensirion SLG-0150 Dynamic Liquid Flow Monitor 2021 8 l/min CMOSens Tech
Sensirion
Details
-
CategoryAnalytical
-
Dimension17.0cm x 24.0cm x 6.0cm
-
Serial-
-
Shipping TypeFedEx Ground
-
Manufacturing2021-01-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Sensirion SLG-0150, manufactured in Switzerland in 2021, is a high-precision dynamic liquid flow monitor designed for ultra-low flow rates that are ideal for Ultra-High-Pressure Liquid Chromatography (UHPLC) applications. Equipped with an innovative CMOSens microchip, the SLG-0150 accurately detects mass flow through a robust fused silica flow channel rated for pressures up to 1200 bar (17500 psi). Its quick 40ms response time ensures consistent and repeatable analysis results necessary in HPLC and microfluidic systems. This model extends the SLG series by supporting slightly higher flow ranges with reduced pressure drop, making it suitable for laboratory setups and leakage detection at moderate pressures up to 500 bar. Key specifications include a full scale flow rate of 8μl/min, 5% accuracy, 0.5% repeatability, and analog voltage/current interfaces. Its compact size fits close spaces, enhancing versatility without sacrificing precision.
Key Features
- Ultra-low flow monitoring
- Ideal for UHPLC applications
- CMOSens microchip for high precision
- Max operating pressure 500 bar
- Fast response time of 40 ms
- Wide flow range up to 8 l/min
- Compact design for versatile use
Specifications
- Full scale flow rate (H2O): 8μl/min
- Accuracy (H2O): ±5%
- Repeatability (H2O): ±0.5%
- Maximum operating pressure: 500 bar
- Fluidic connector ports: 10-32 coned port
- Supply voltage: 4-6V
- Average supply current: 51000μA
- Max supply current: 6000μA
- Interfaces: Analog voltage, Analog current, IC, RS485
- Dimensions (LxWxH): 80 x 30 x 20mm
Weight
Imperial: 5.29 Pounds
Metric: 2.4 Kilograms
Shipping Dimensions
Imperial: 8.03 lb x 11.34 lb x 2.83 lb
Metric: 20.4 cm x 28.8 cm x 7.19 cm
Harmonized Code
902610
Harmonized Code Details
902610 - Instruments and apparatus for measuring or checking the flow or level of liquids. This code suits the Sensirion SLG-0150 as it is specifically designed for liquid flow measurement in laboratory environments.
